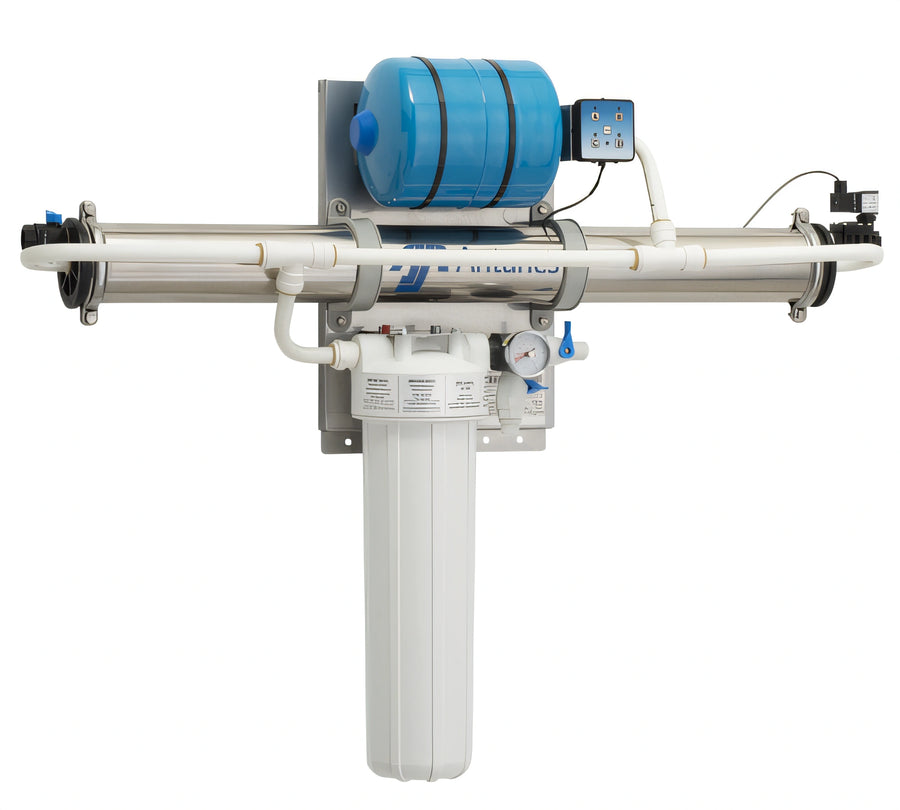

Antunes Vizion VZN-541HE Horizontal Ultrafiltration Water Filter System with Extended-Life Carbon Cartridge, 500,000-Gallon Capacity

SKU: VZN-541HE
$2,346.12
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Antunes Best Sellers Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Water Filters

Antunes Vizion VZN-541HE Horizontal Ultrafiltration Water Filter System with Extended-Life Carbon Cartridge, 500,000-Gallon Capacity

0.015-Micron Filtration, 8 GPM Flow Rate

Deliver cleaner beverage water with a self-cleaning horizontal ultrafiltration system that separates sediment removal from taste and odor reduction.

  • Horizontal ultrafiltration system designed for commercial beverage water treatment.
  • Self-cleaning ultrafilter helps reduce clogging and lower maintenance.
  • One extended-life carbon cartridge provides 500,000-gallon capacity.
  • 0.015-micron filtration helps reduce sediment, cysts, and fine particles.
  • Includes plug adapters for the US, Europe, Australia, and the UK.
  • Stainless steel housing with 3/4-inch inlet/outlet and drain connections.

Overall Dimensions:

50.0"W x 9.0"D x 39.0"H

Product Weight:

56.0 lb

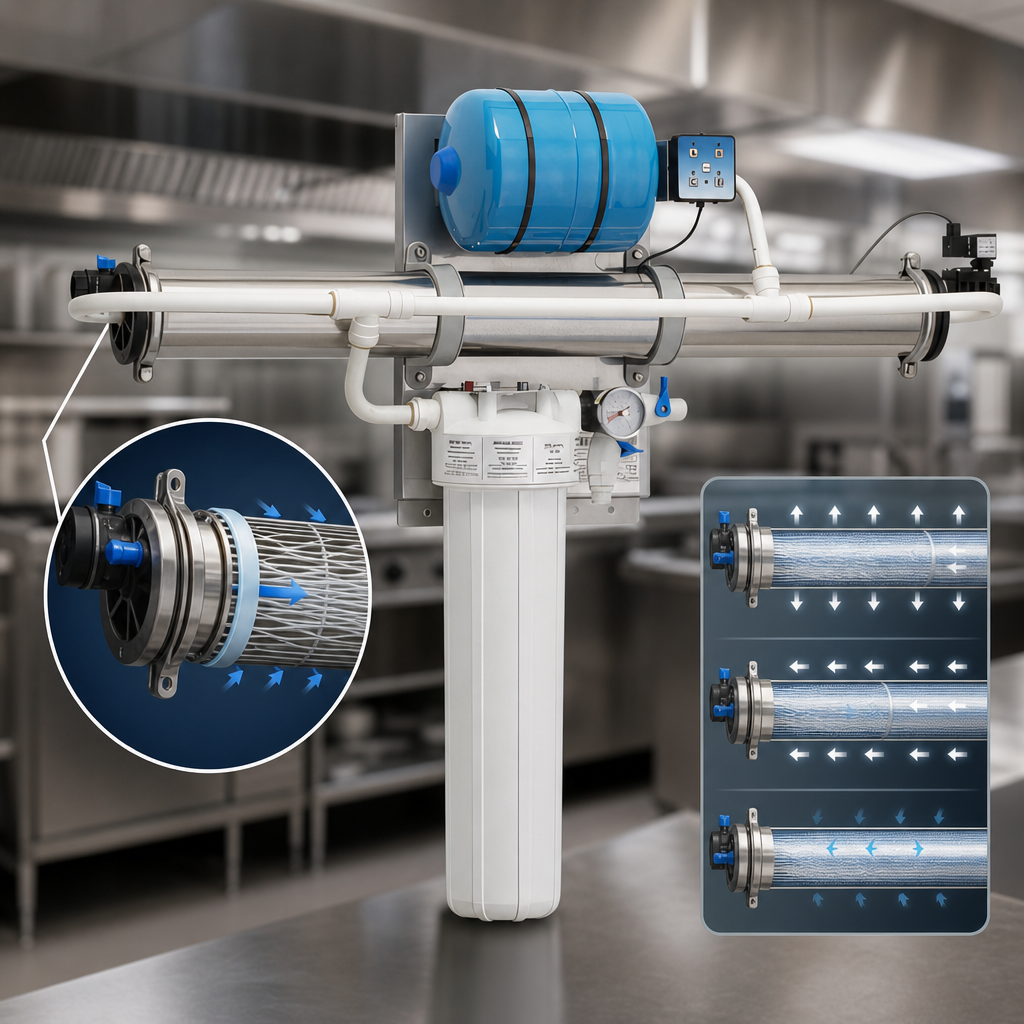

Self-Cleaning Ultrafilter

The mechanical ultrafilter is self-cleaning to help reduce clogging and maintenance.

Self-Cleaning Ultrafilter

Separated Filtration Stages

Mechanical filtration is separated from taste and odor reduction to help extend cartridge life.

Extended-Life Carbon Cartridge

Includes one 500,000-gallon extended-life carbon cartridge for longer service intervals.

Fine Ultrafiltration

0.015-micron nominal pore size helps remove sediment, cysts, and very fine particles.

Stainless Steel Housing

Durable stainless steel ultrafilter housing is built for commercial water treatment use.

Adjustable Flush Timer

Built-in adjustable flush timer supports system operation and maintenance.

International Plug Adapters Included

Plug adapters for the US, Europe, Australia, and the UK are included.

NSF Certified

System is tested and certified by NSF International.

Type Ultrafiltration System
Style Horizontal
Capacity 500,000 Gallons (1,893,000 Liters)
Filter Quantity 1
Micron Rating 0.015 Microns
Service Flow Rate 8 GPM (30 LPM)
Controls Adjustable Flush Timer
Temperature Range Up to 104°F (40°C)
Material Stainless Steel
Voltage 100-240 Volts
Hertz 50/60 Hz
Phase 1-Phase
Watts 10 Watts
Amps 0.08 Amps
Water Inlet Size 3/4 Inch MNPT
Drain Connection Size 3/4 Inch FNPT
Shipping Width 50 Inches
Shipping Depth 9 Inches
Shipping Height 39 Inches
Shipping Weight 56 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The VZN-541HE is rated at 8 GPM (30 LPM).
It uses one extended-life carbon cartridge with a 500,000-gallon capacity.
The system operates on 100-240 volts, 50/60 Hz, single-phase power and uses 10 watts at 0.08 amps.
It uses a 3/4-inch MNPT water inlet/outlet connection and a 3/4-inch FNPT drain connection.
The maximum operating temperature is 104°F (40°C).
Yes. Plug adapters for the US, Europe, Australia, and the UK are included.
