Vizion Chloramine Horizontal Ultrafiltration Water Filtration System with TAC Cartridge

SKU: VZN-541HC-T5
$2,790.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers New Arrivals Restaurant Equipment Water Filters

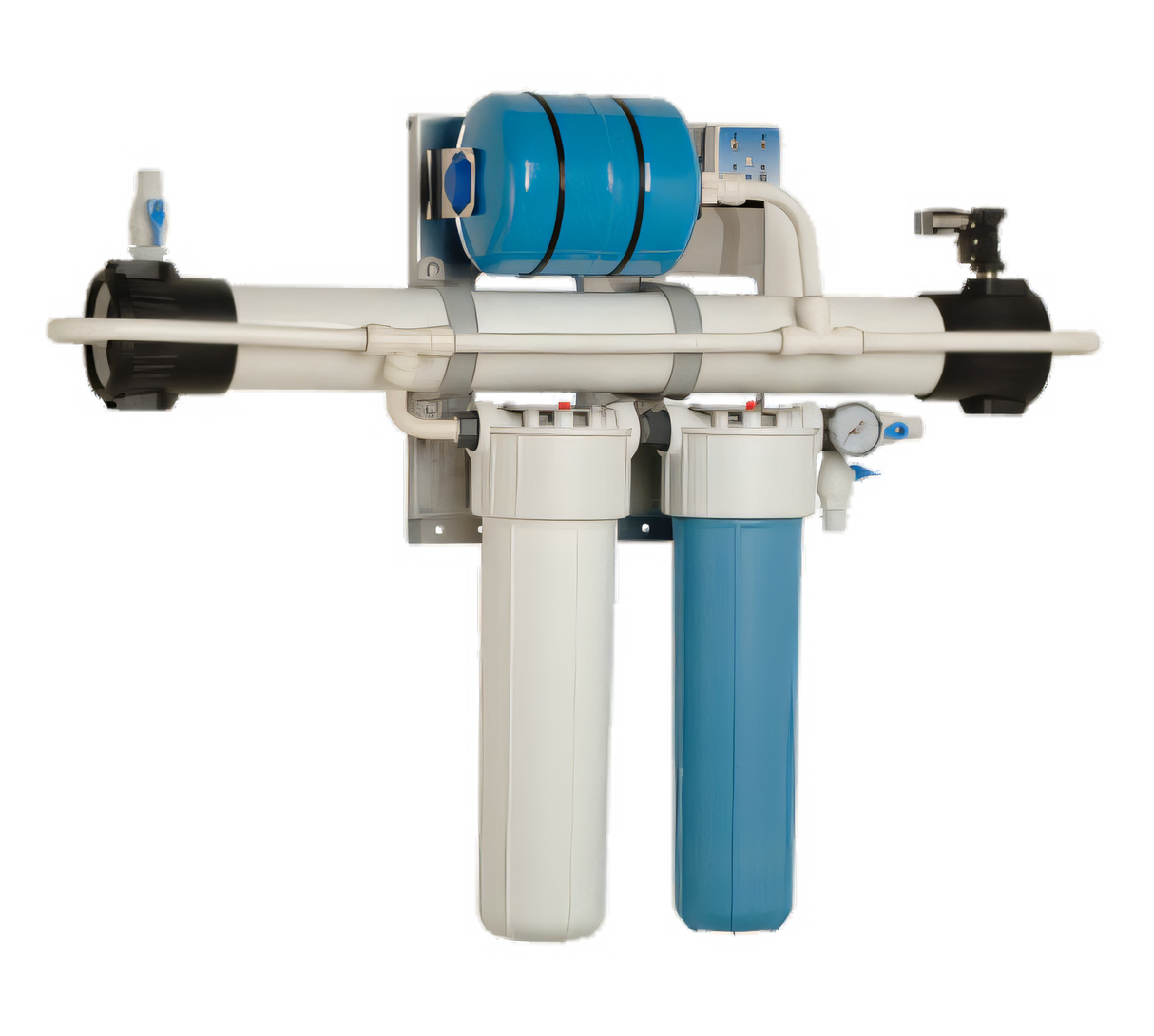

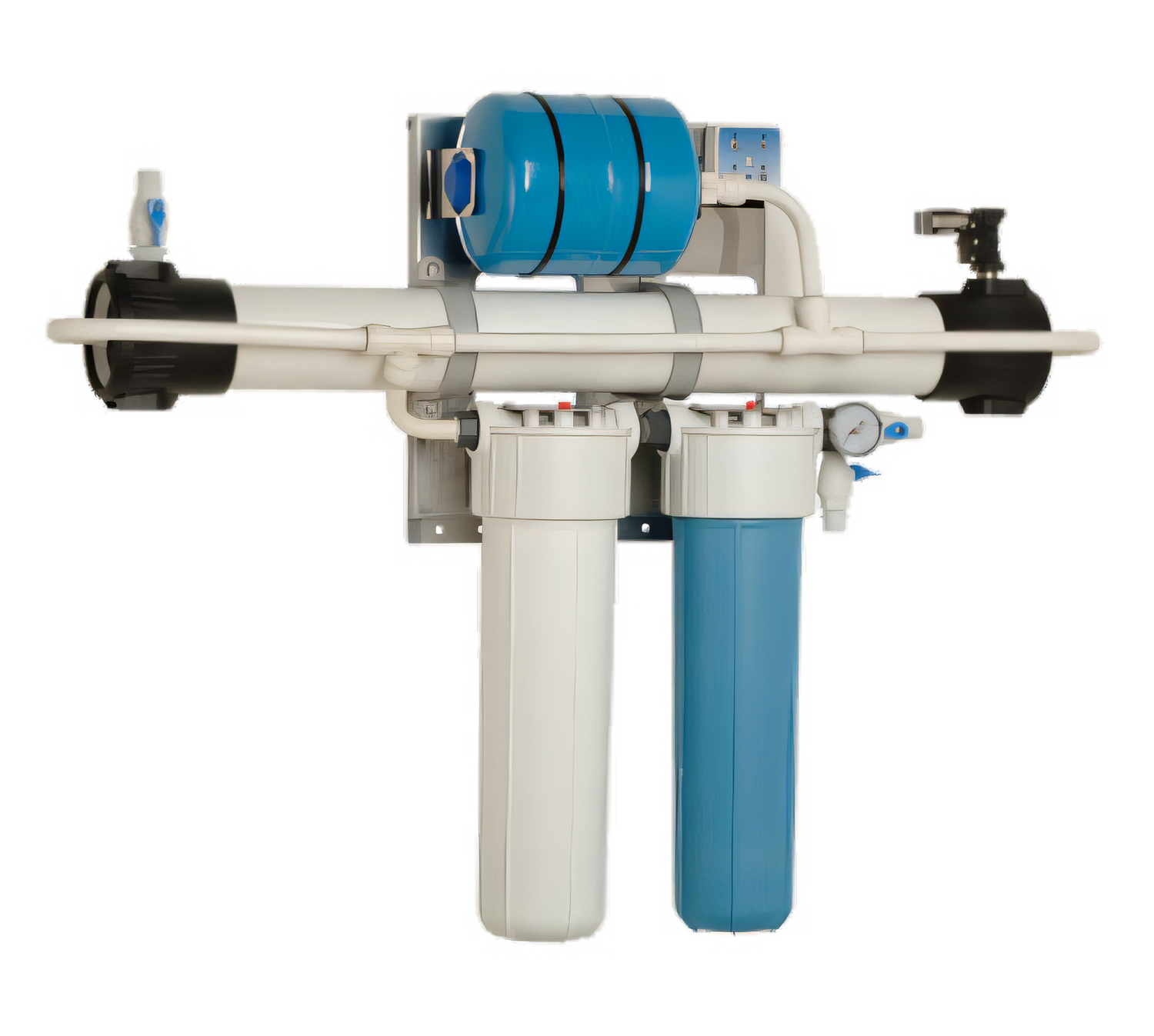

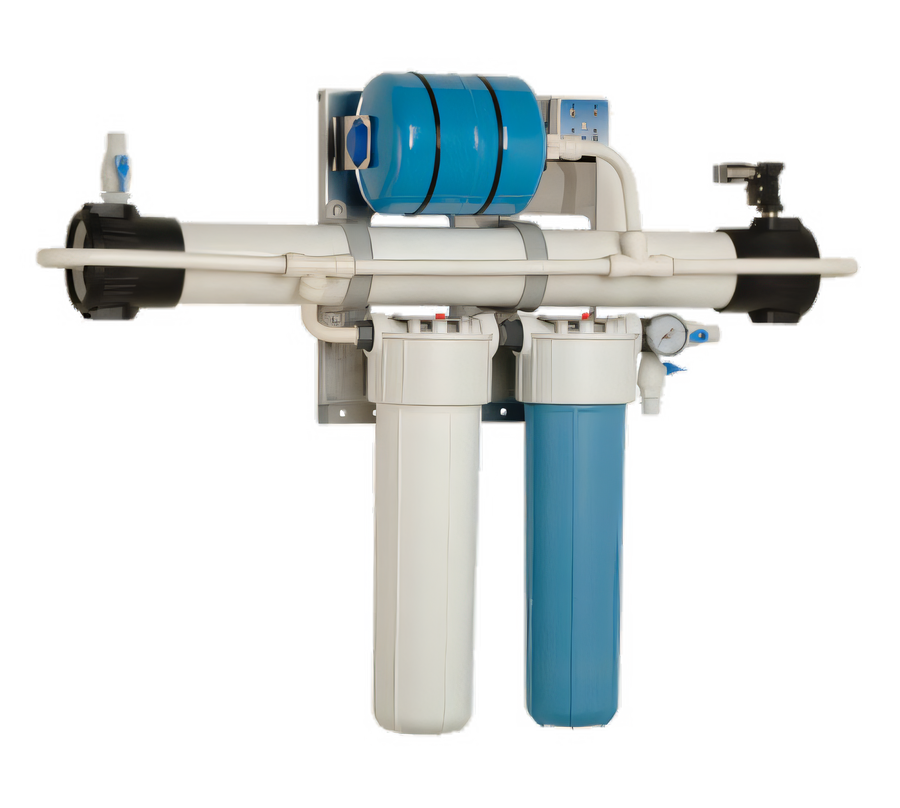

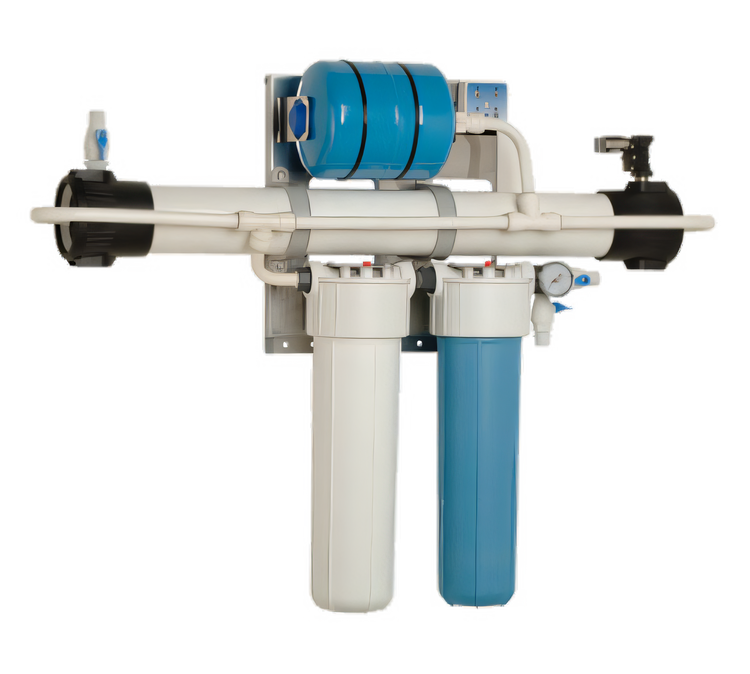

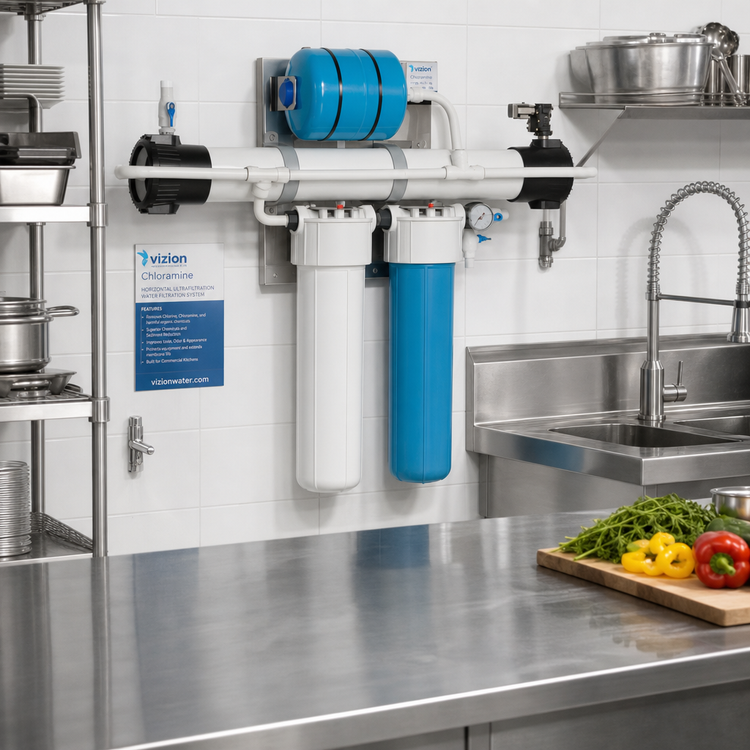

Vizion Chloramine Horizontal Ultrafiltration Water Filtration System with TAC Cartridge

13 GPM, 0.015-Micron, Stainless Steel Housing

Protect beverage equipment and improve water quality with a high-flow horizontal chloramine filtration system that combines 0.015-micron ultrafiltration and TAC scale reduction.

  • Horizontal chloramine water filtration system built for high-demand beverage and equipment applications.
  • Dual-cartridge design pairs chloramine reduction with template-assisted crystallization (TAC) scale protection.
  • 0.015-micron ultrafiltration and self-cleaning particle reduction help deliver cleaner water.
  • Separate mechanical filtration from taste and odor reduction helps reduce premature clogging.
  • 13 GPM service flow supports larger-volume operations.
  • Stainless steel ultrafilter housing and 104°F maximum operating temperature suit demanding foodservice environments.

Overall Dimensions:

50.0"W x 9.0"D x 39.0"H

Product Weight:

68.0 lb

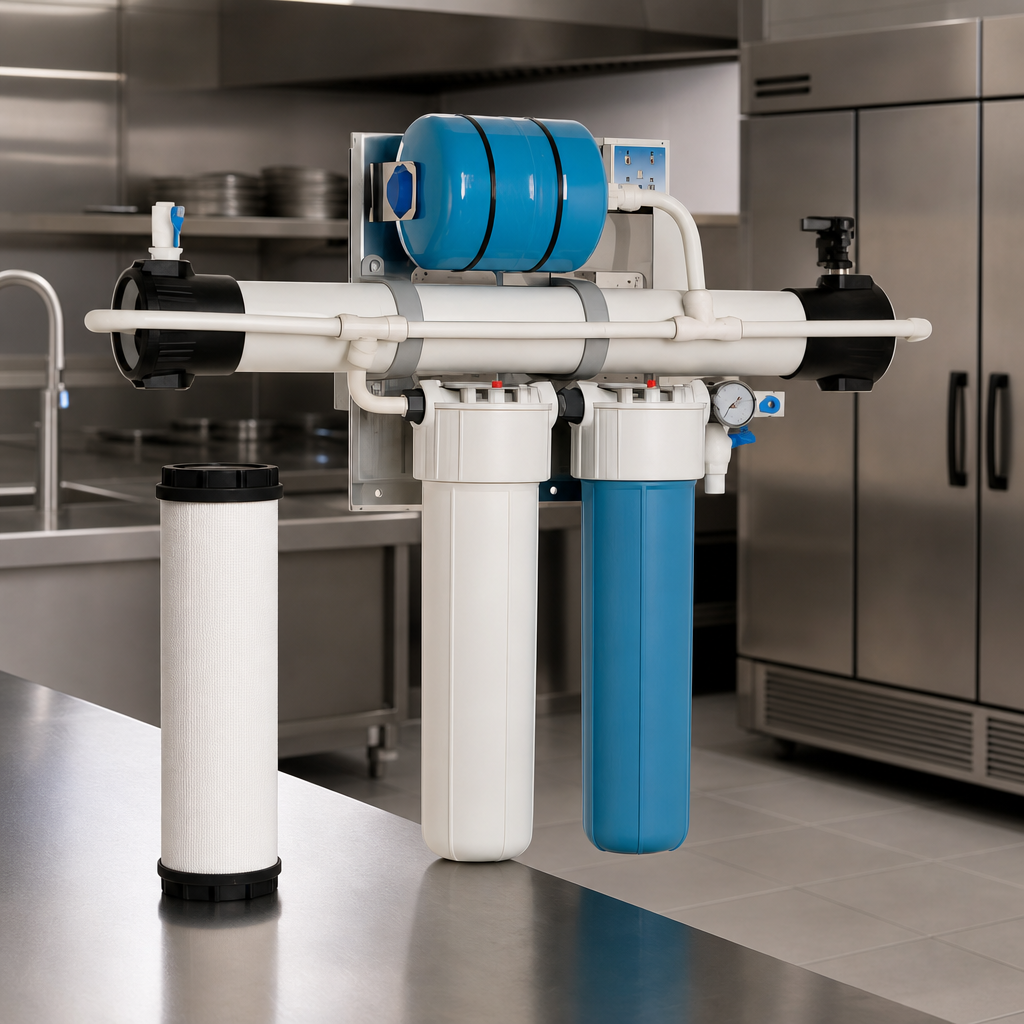

Chloramine Reduction Cartridge

Includes a chloramine cartridge designed to reduce chloramine in treated water, with a rated reduction life of 21,000 gallons at 5 GPM.

TAC Scale Reduction Cartridge

Template-assisted crystallization cartridge helps reduce lime scale buildup and protect connected equipment.

0.015-Micron Ultrafiltration

Fine ultrafiltration helps remove very small particles and supports higher water quality.

Separate Mechanical Filtration

Mechanical filtration is separated from taste and odor reduction to help prevent premature clogging and extend cartridge life.

Self-Cleaning Particle Reduction

Self-cleaning ultrafilter design helps maintain performance while reducing sediment and particle buildup.

Stainless Steel Housing

Durable stainless steel ultrafilter housing is built for commercial foodservice use.

High-Flow Operation

Rated for 13 gallons per minute service flow to support beverage dispensing and equipment needs.

Wide Voltage Range

Operates on 100-240V, 50/60 Hz, 1-phase power with 10 watts and 0.08 amps.

International Plug Adapters Included

Includes plug adapters for the US, Europe, Australia, and the UK.

Maximum Operating Temperature

Designed for operation up to 104°F (40°C).

Type Chloramine Water Filtration System
Style Horizontal
Micron Rating 0.015 Microns
Filter Quantity 2
Service Flow Rate 13 Gallons per Minute
Capacity 21,000 Gallons at 5 GPM
Material Stainless Steel
Temperature Range Up to 104°F
Voltage 100-240 Volts
Hertz 50/60 Hz
Phase 1-Phase
Watts 10 Watts
Amps 0.08 Amps
Plug Type Cord with Plug Adapters
Water Connection Required
Drain Connection Required
Water Inlet Size 3/4 Inch MNPT
Drain Connection Size 3/4 Inch FNPT
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The TAC cartridge helps reduce lime scale buildup to protect connected equipment.
The system uses 0.015-micron ultrafiltration for fine particle reduction.
The system is rated for 13 gallons per minute.
It operates on 100-240V, 50/60 Hz, 1-phase power and draws 10 watts and 0.08 amps.
The system uses a 3/4 inch MNPT plumbing connection for inlet/outlet and a 3/4 inch FNPT drain connection.
The maximum operating temperature is 104°F (40°C).
