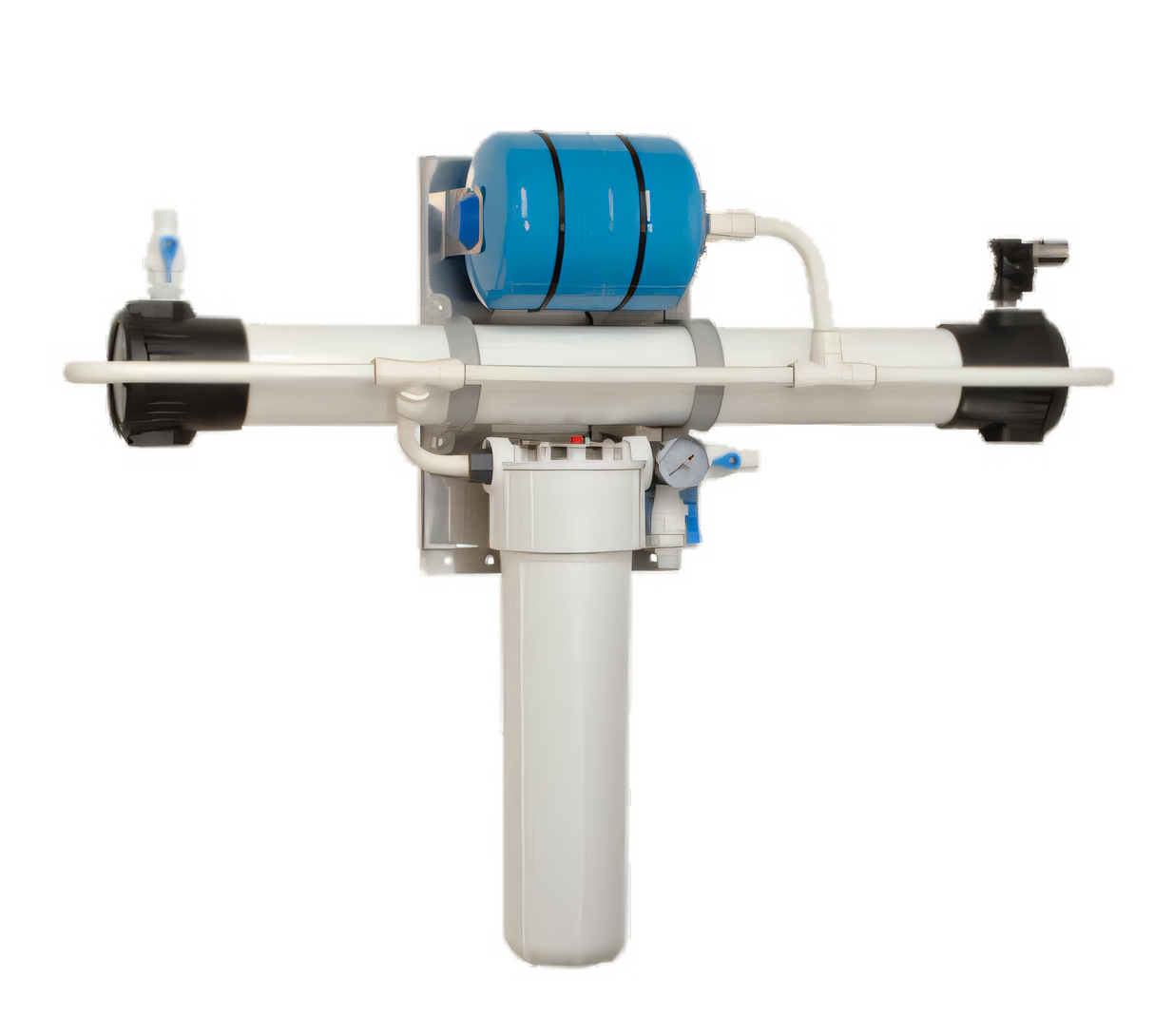

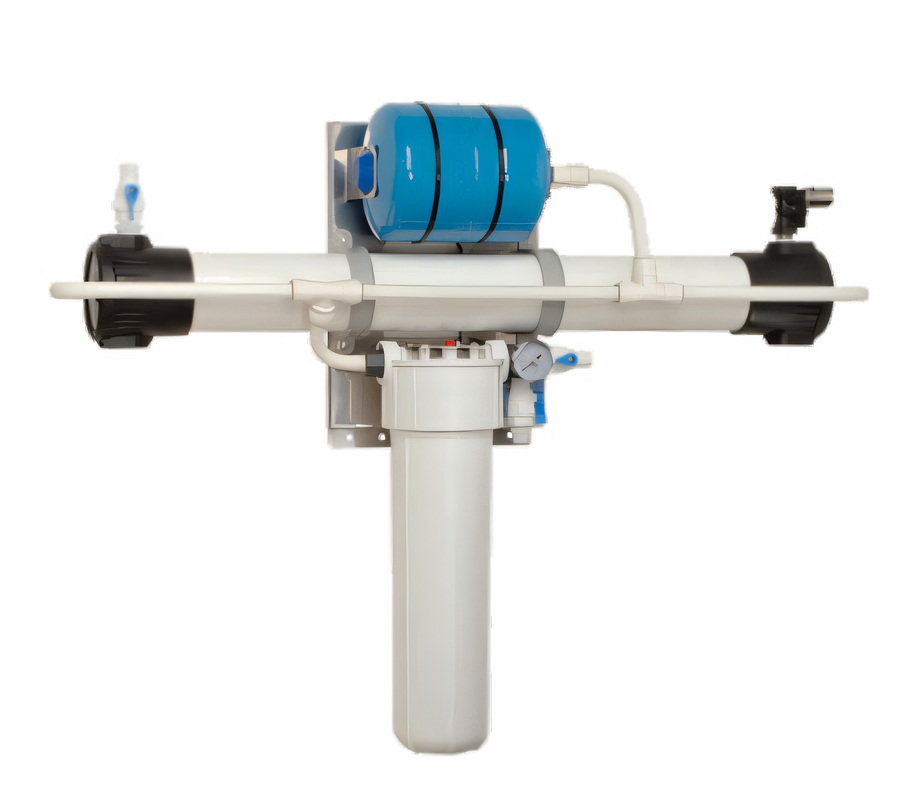

Antunes Vizion VZN-541H Horizontal Ultrafiltration Water Filtration System, 15 GPM, 0.015 Micron

One Carbon Cartridge, 100-240V, NSF-Certified at 13 GPM

Deliver cleaner beverage water with self-cleaning ultrafiltration and separated taste-and-odor reduction that help cut maintenance and cartridge change-outs.

  • Horizontal ultrafiltration water filtration system rated for up to 15 GPM.
  • Nominal 0.015-micron filtration helps remove sediment, cysts, and fine particles.
  • Self-cleaning ultrafilter sits ahead of the carbon cartridge to help reduce clogging.
  • Separate mechanical filtration from taste and odor reduction for better cartridge life.
  • Operates on 100-240V, 50/60 Hz, 1-phase power with plug adapters included for multiple regions.
  • Stainless steel housing with 3/4-inch FNPT plumbing connections.

Overall Dimensions:

50.0"W x 9.0"D x 39.0"H

Product Weight:

56.0 lb

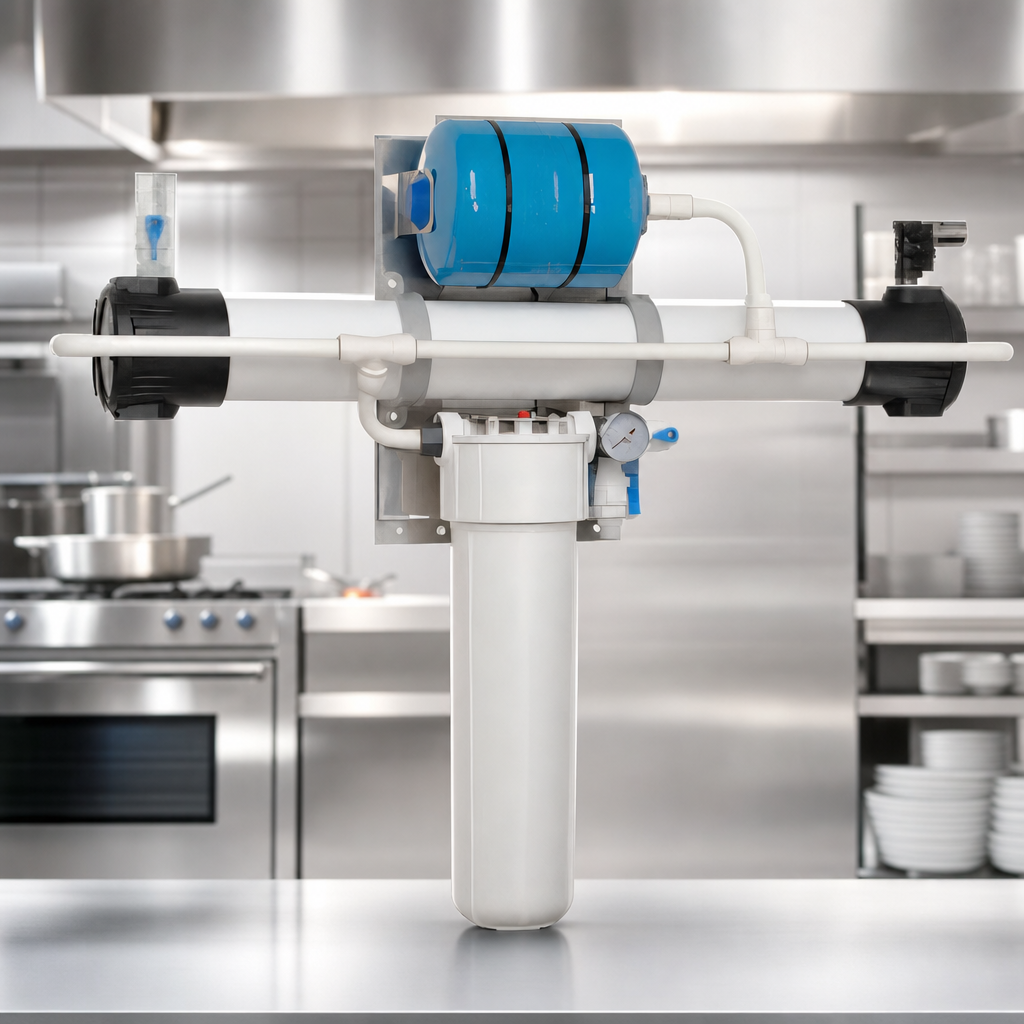

Self-Cleaning Ultrafilter

A self-cleaning ultrafilter helps reduce premature clogging and supports longer cartridge life.

Separated Filtration Stages

Mechanical filtration is separated from taste and odor reduction for more consistent performance.

0.015-Micron Filtration

Helps remove sediment, cysts, and particles as small as 0.015 microns.

High-Flow Horizontal Design

Horizontal system design supports water delivery up to 15 GPM (57 LPM).

Carbon Cartridge Included

Includes one carbon cartridge for taste and odor reduction.

Universal Power Support

Runs on 100-240V, 50/60 Hz, 1-phase power and includes plug adapters for the US, Europe, Australia, and the UK.

Stainless Steel Housing

Durable stainless steel ultrafilter housing is built for commercial foodservice environments.

NSF-Certified Performance

Tested and certified by NSF at 13 GPM (49.2 LPM).

Type Ultrafiltration System
Style Horizontal
Material Stainless Steel
Flow Rate 15 GPM (57 LPM)
Micron Rating 0.015 Microns
Cartridge Life 1 Year
Temperature Range Up to 104°F (40°C)
Voltage 100-240 Volts
Amps 0.08 Amps
Watts 10 Watts
Hertz 50/60 Hz
Phase 1-Phase
Plug Type US, Europe, Australia & UK Plug Adapters
Water Inlet Size 3/4 Inch FNPT
Drain Connection Size 3/4 Inch FNPT
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It uses nominal 0.015-micron ultrafiltration for fine particle reduction.
The system is rated for up to 15 GPM (57 LPM) and is NSF certified at 13 GPM (49.2 LPM).
It operates on 100-240V, 50/60 Hz, 1-phase power, draws 0.08 amps, and uses 10 watts.
The system uses 3/4-inch FNPT inlet and drain connections.
The maximum operating temperature is 104°F (40°C).
Yes. The system includes plug adapters for the US, Europe, Australia, and the UK.
