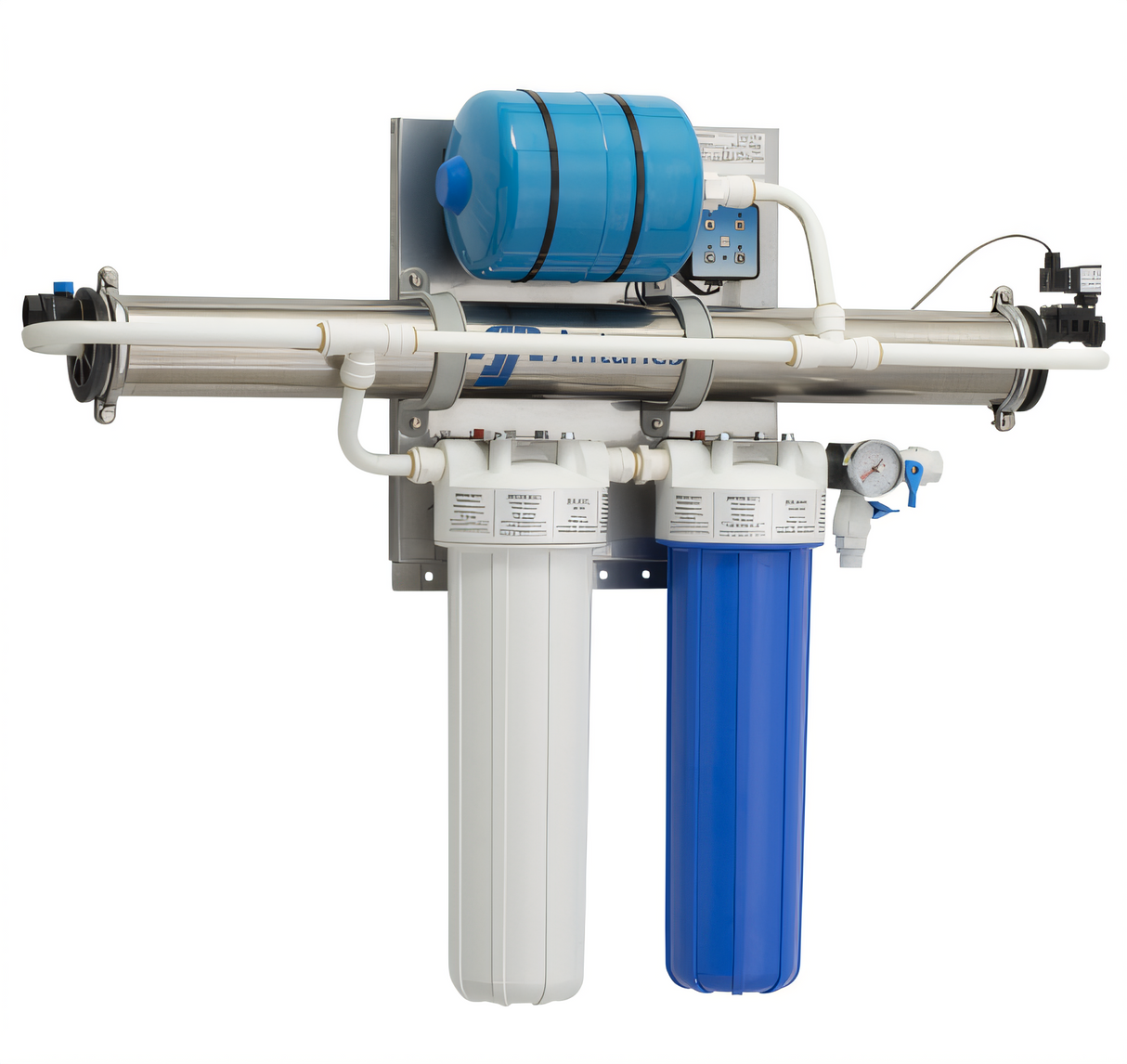

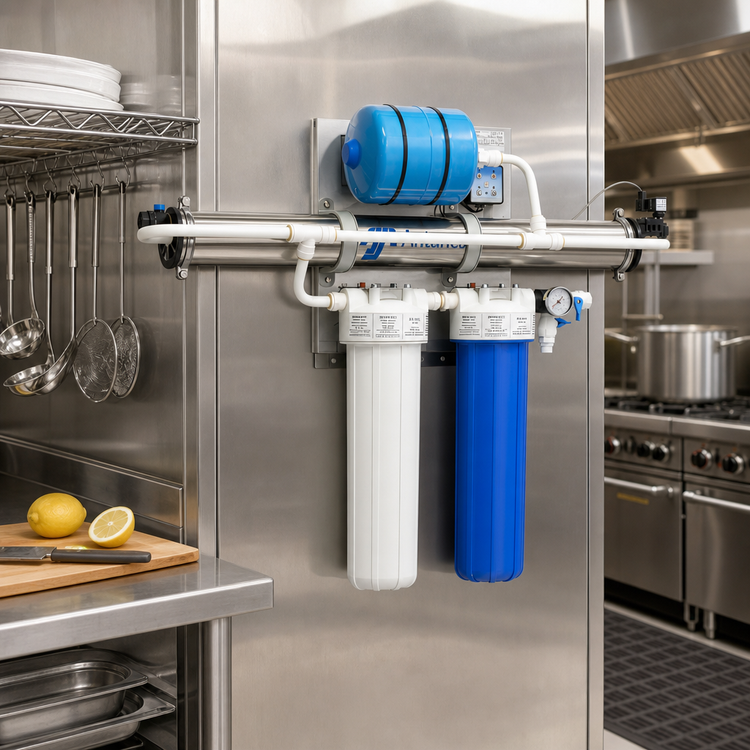

Antunes Vizion VZN-541H-T5 Horizontal Ultrafiltration Water Filtration System with Carbon and TAC Cartridges, 15 GPM

SKU: VZN-541H-T5
$2,583.54
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Antunes Best Sellers Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Water Filters

Antunes Vizion VZN-541H-T5 Horizontal Ultrafiltration Water Filtration System with Carbon and TAC Cartridges, 15 GPM

0.015 Micron Filtration, 100-240V Universal Power, Stainless Steel Housing

A high-flow horizontal ultrafiltration system that combines carbon and TAC cartridges for cleaner water, scale protection, and lower-maintenance operation.

  • 15 GPM horizontal ultrafiltration system for commercial beverage and water applications.
  • Includes one carbon cartridge and one TAC cartridge for taste/odor treatment and lime scale reduction.
  • 0.015-micron nominal pore size helps remove sediment, cysts, and fine particles.
  • Self-cleaning ultrafilter separates mechanical filtration from taste and odor reduction to help reduce clogging.
  • Universal 100-240V operation with 10W draw, 0.08A current, and plug adapters for the US, Europe, Australia, and the UK.
  • Stainless steel ultrafilter housing with a 104°F maximum operating temperature.

Overall Dimensions:

50.0"W x 9.0"D x 39.0"H

Product Weight:

68.0 lb

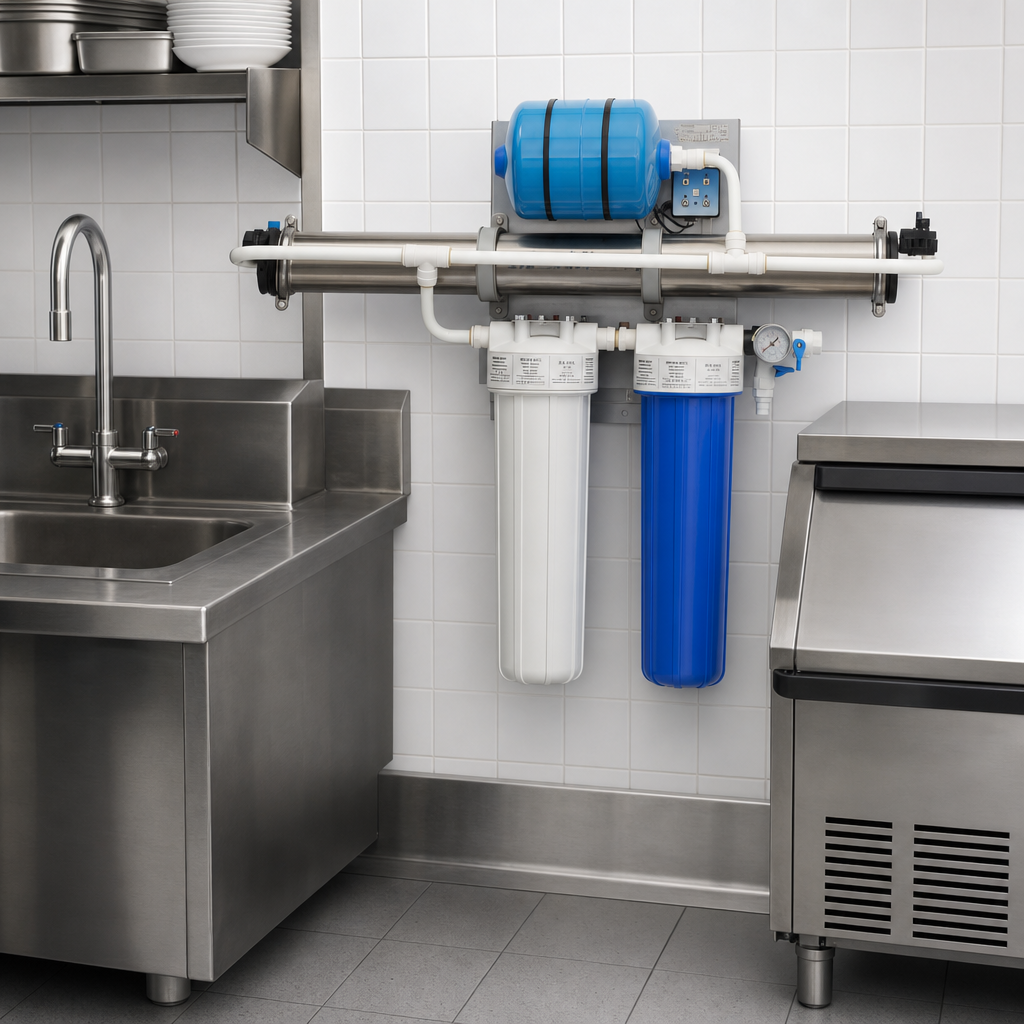

Horizontal System Layout

Space-saving horizontal configuration designed for commercial water treatment applications.

Horizontal System Layout

Dual Cartridge Treatment

Includes one carbon cartridge and one TAC cartridge for taste and odor improvement plus scale control.

0.015-Micron Ultrafiltration

Fine mechanical filtration helps remove sediment, cysts, and particles as small as 0.015 microns.

Self-Cleaning Ultrafilter

Helps minimize clogging by separating mechanical filtration from taste and odor reduction.

Lime Scale Reduction

TAC technology helps protect connected equipment against lime scale buildup.

Universal Electrical Input

Runs on 100-240V, 50/60 Hz, single-phase power with a 10W draw and 0.08A current.

International Plug Adapters

Includes plug adapters for the US, Europe, Australia, and the UK.

Stainless Steel Housing

Durable stainless steel ultrafilter housing built for commercial environments.

Maximum Operating Temperature

Rated for operation up to 104°F (40°C).

Type Ultrafiltration System
Style Horizontal
Micron Rating 0.015 Microns
Filter Quantity 2
Service Flow Rate 15 Gallons Per Minute
Maximum Operating Temperature 104°F (40°C)
Voltage 100-240 Volts
Watts 10 Watts
Amps 0.08 Amps
Hertz 50/60 Hz
Phase 1-Phase
Water Inlet Size 3/4 Inch FNPT
Drain Connection Size 3/4 Inch FNPT
Material Stainless Steel
Shipping Width 50 Inches
Shipping Depth 9 Inches
Shipping Height 39 Inches
Shipping Weight 68 Lbs.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes one carbon cartridge and one TAC cartridge, along with a self-cleaning ultrafilter.
The system is rated for 15 gallons per minute (57 lpm).
The nominal pore size is 0.015 microns.
It operates on 100-240V, 50/60 Hz, single-phase power, with a 10W draw and 0.08A current.
The maximum operating temperature is 104°F (40°C).
The document lists 3/4-inch FNPT inlet, outlet, and drain connections, plus a 3/4-inch GHT rinse connection.
