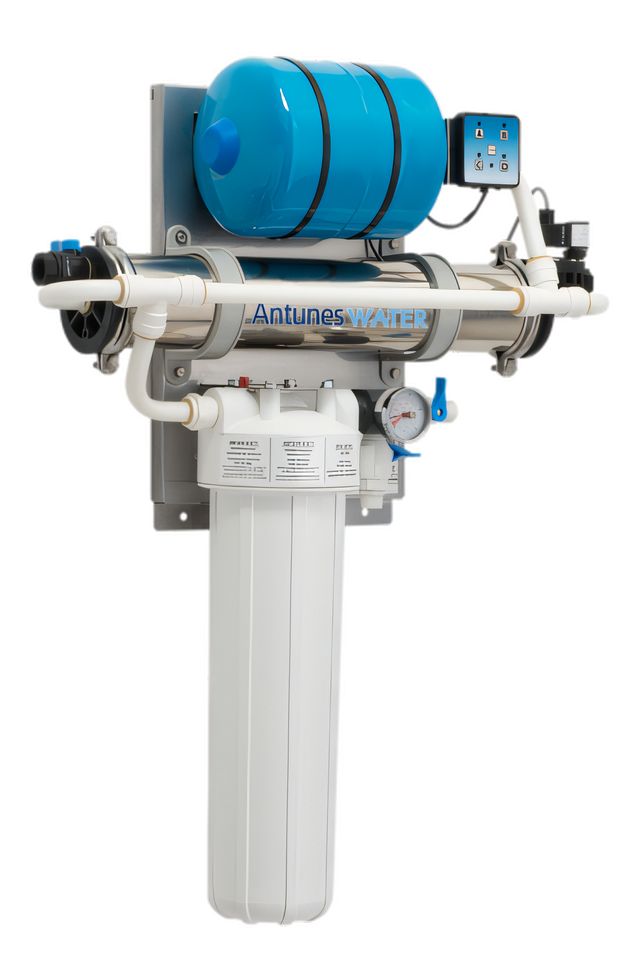

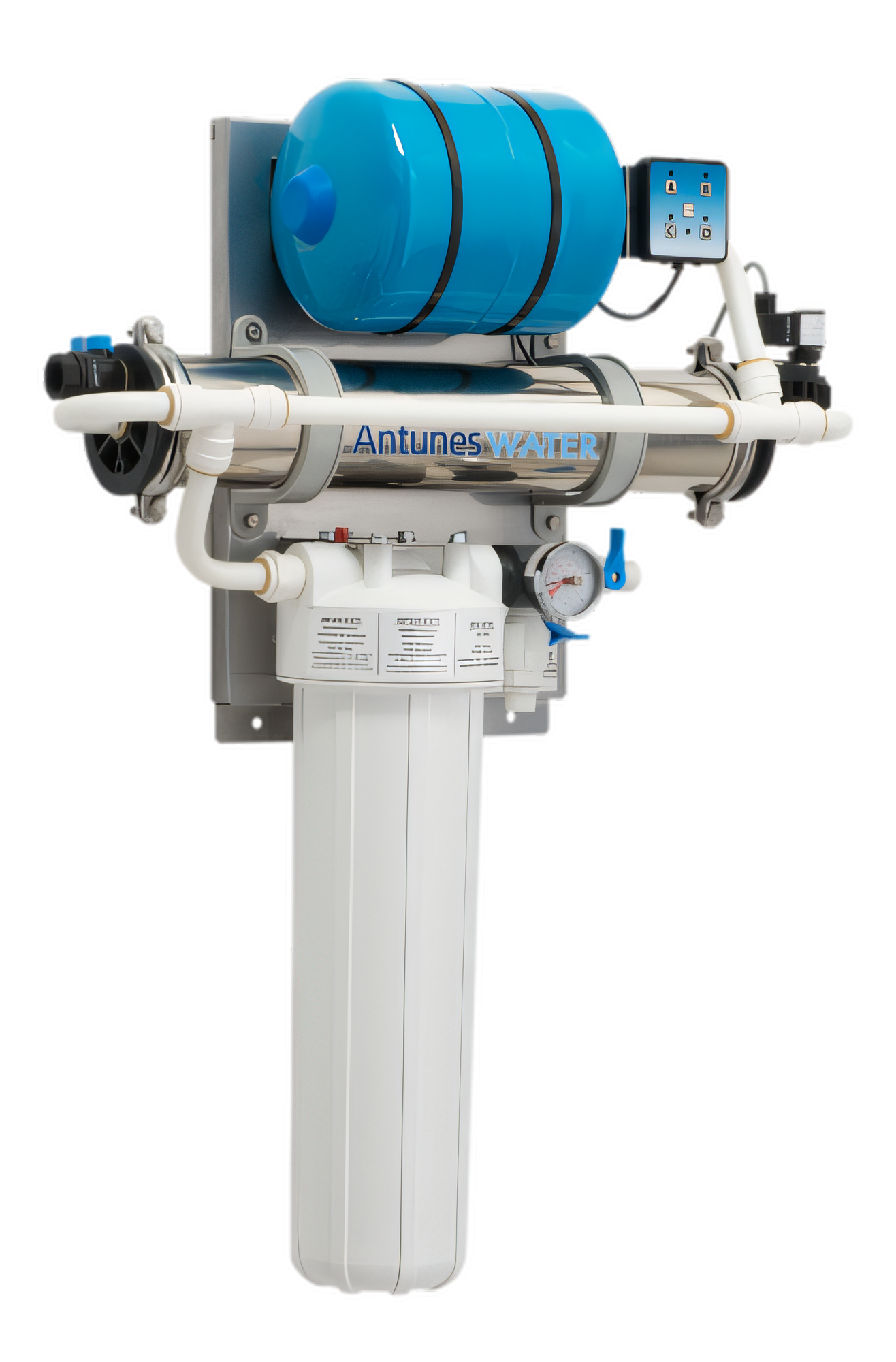

Vizion Horizontal Ultrafiltration Water Filtration System with Extended Life Carbon Cartridge, 8 GPM, 500,000-Gallon Capacity

0.015 Micron, 100-240V, Stainless Steel Housing

Compact, high-capacity horizontal filtration delivers self-cleaning ultrafiltration and long-life carbon performance for consistently cleaner water.

  • Horizontal ultrafiltration system built for commercial beverage and water treatment applications.
  • One extended-life carbon cartridge supports a 500,000-gallon service life.
  • 0.015-micron filtration helps remove sediment, cysts, and fine particles.
  • Self-cleaning ultrafilter and separated filtration stages help minimize clogging and extend cartridge life.
  • Runs on 100-240V, 50/60 Hz power and includes plug adapters for US, Europe, Australia, and the UK.
  • Tested and certified by NSF International for performance standards in water quality treatment.

Overall Dimensions:

31.0"W x 9.0"D x 38.0"H

Product Weight:

48.0 lb

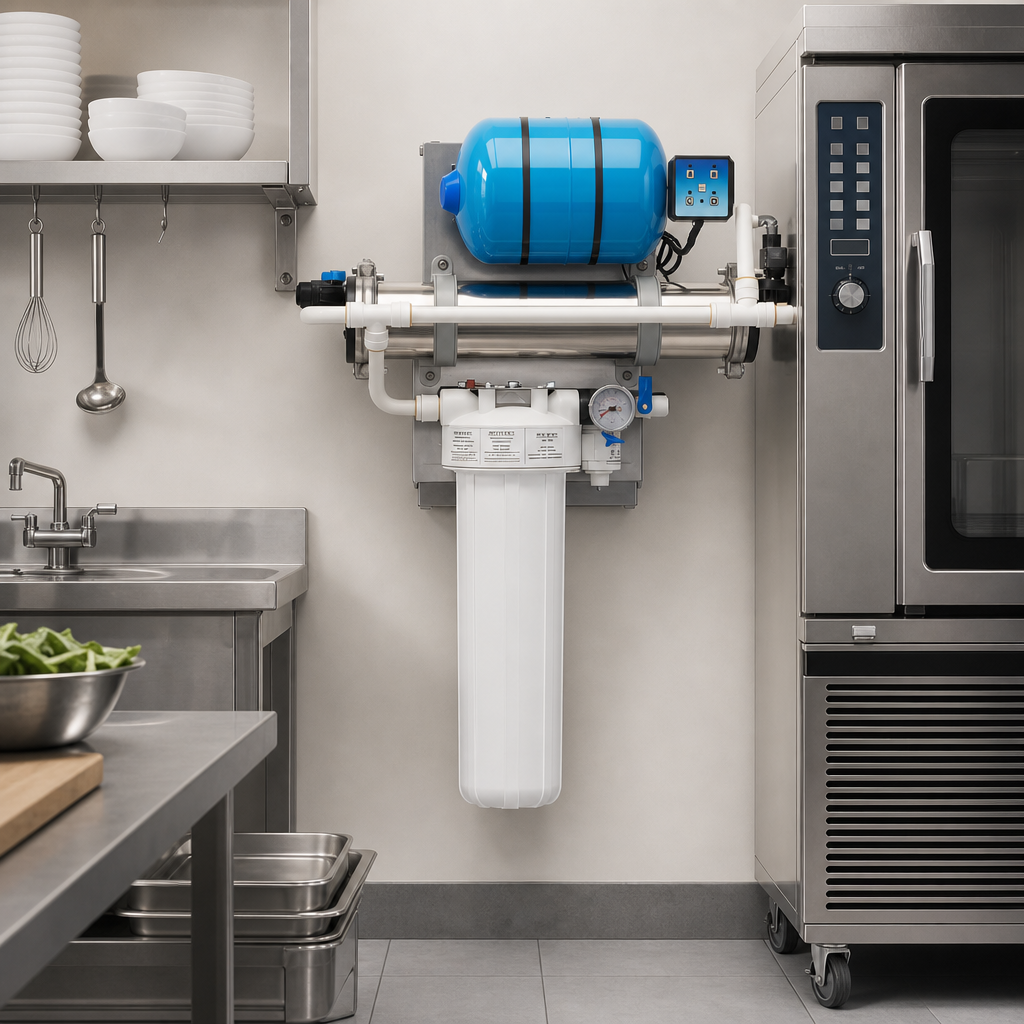

Horizontal Layout

Compact horizontal design is suited for space-conscious commercial installations.

Horizontal Layout

Extended-Life Carbon Cartridge

Includes one extended-life carbon cartridge rated for 500,000 gallons to reduce replacement frequency.

0.015-Micron Ultrafiltration

Fine membrane filtration helps remove sediment, cysts, and very small particles from incoming water.

Self-Cleaning Ultrafilter

Self-cleaning particle reduction helps limit clogging and maintain consistent system performance.

Separated Filtration Stages

Mechanical filtration is separated from taste and odor reduction to improve filter life and performance.

Stainless Steel Housing

Durable stainless steel ultrafilter housing is built for demanding foodservice environments.

Universal Power Input

Operates on 100-240V, 50/60 Hz, single-phase power with a cord and plug adapters for US, Europe, Australia, and the UK.

NSF Tested and Certified

Tested and certified by NSF International against NSF/ANSI 42 and 53 performance standards.

Type Ultrafiltration System
Style Horizontal
Capacity 500,000 Gallons
Filter Quantity 1
Micron Rating 0.015 Microns
Service Flow Rate 8 GPM
Maximum Operating Pressure 100 PSIG
Maximum Operating Temperature 104°F
Operating pH Range 6.5 to 8.5
Material Stainless Steel
Water Inlet Size 3/4 Inch FNPT
Water Outlet Size 3/4 Inch FNPT
Drain Connection Size 3/4 Inch FNPT
Rinse Connection Size 3/4 Inch GHT
Voltage 100-240 Volts
Hertz 50/60 Hz
Phase 1-Phase
Watts 10 Watts
Amps 0.08 Amps
Shipping Width 31 Inches
Shipping Depth 9 Inches
Shipping Height 38 Inches
Shipping Weight 48 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is a horizontal ultrafiltration system with one extended-life carbon cartridge.
The system is rated at 8 GPM, and the NSF-certified flow rate is 7.9 GPM.
The extended-life carbon cartridge is rated for 500,000 gallons (1,893,000 liters).
It provides 0.015-micron ultrafiltration for fine particle reduction.
It operates on 100-240V, 50/60 Hz, single-phase power and includes plug adapters for US, Europe, Australia, and the UK.
It uses 3/4-inch FNPT inlet, outlet, and drain connections, plus a 3/4-inch GHT rinse connection.
