Antunes

Antunes Vizion Horizontal Ultrafiltration Water Filtration System with Extended-Life Carbon and TAC Cartridges

SKU: VZN-521HE-T5
$2,312.64
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Antunes Best Sellers Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Water Filters

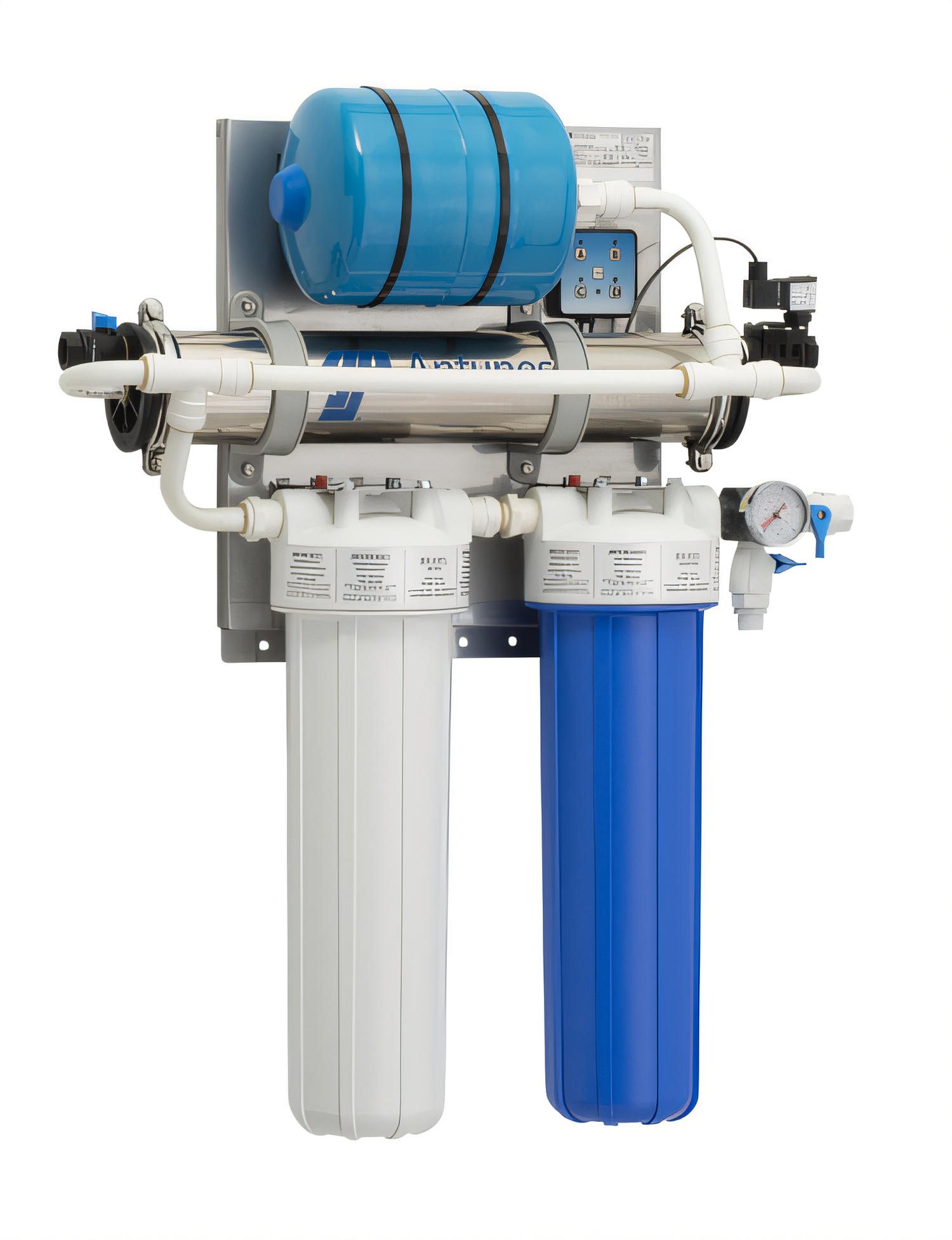

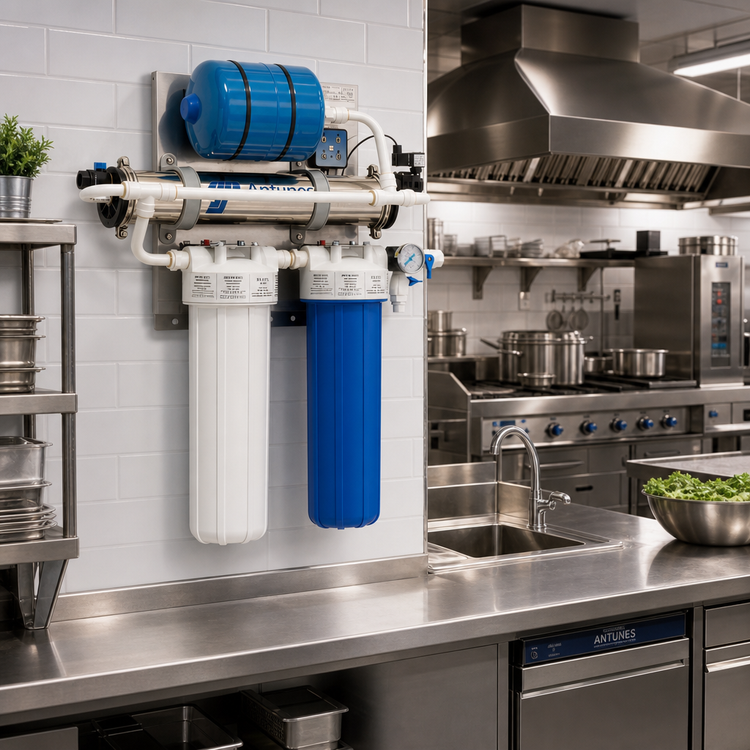

Antunes Vizion Horizontal Ultrafiltration Water Filtration System with Extended-Life Carbon and TAC Cartridges

500,000-Gallon Capacity, 0.015-Micron, 8 GPM

This self-cleaning horizontal filtration system delivers high-quality water while helping reduce scale, sediment, and cartridge changeouts.

  • Horizontal Vizion ultrafiltration system with one extended-life carbon cartridge and one TAC cartridge
  • 500,000-gallon cartridge capacity helps reduce replacement frequency and maintenance costs
  • 0.015-micron ultrafiltration helps reduce sediment, cysts, and fine particles
  • TAC technology helps protect equipment by reducing lime scale buildup
  • Self-cleaning design separates mechanical filtration from taste and odor reduction for longer cartridge life
  • 100-240V operation includes plug adapters for the US, Europe, Australia, and UK

Overall Dimensions:

31.0"W x 9.0"D x 39.0"H

Product Weight:

60.0 lb

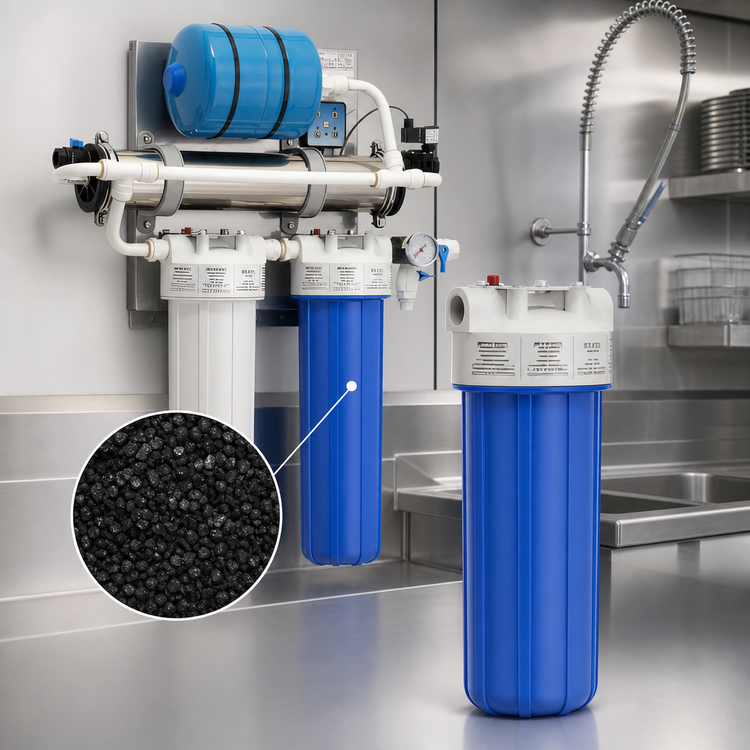

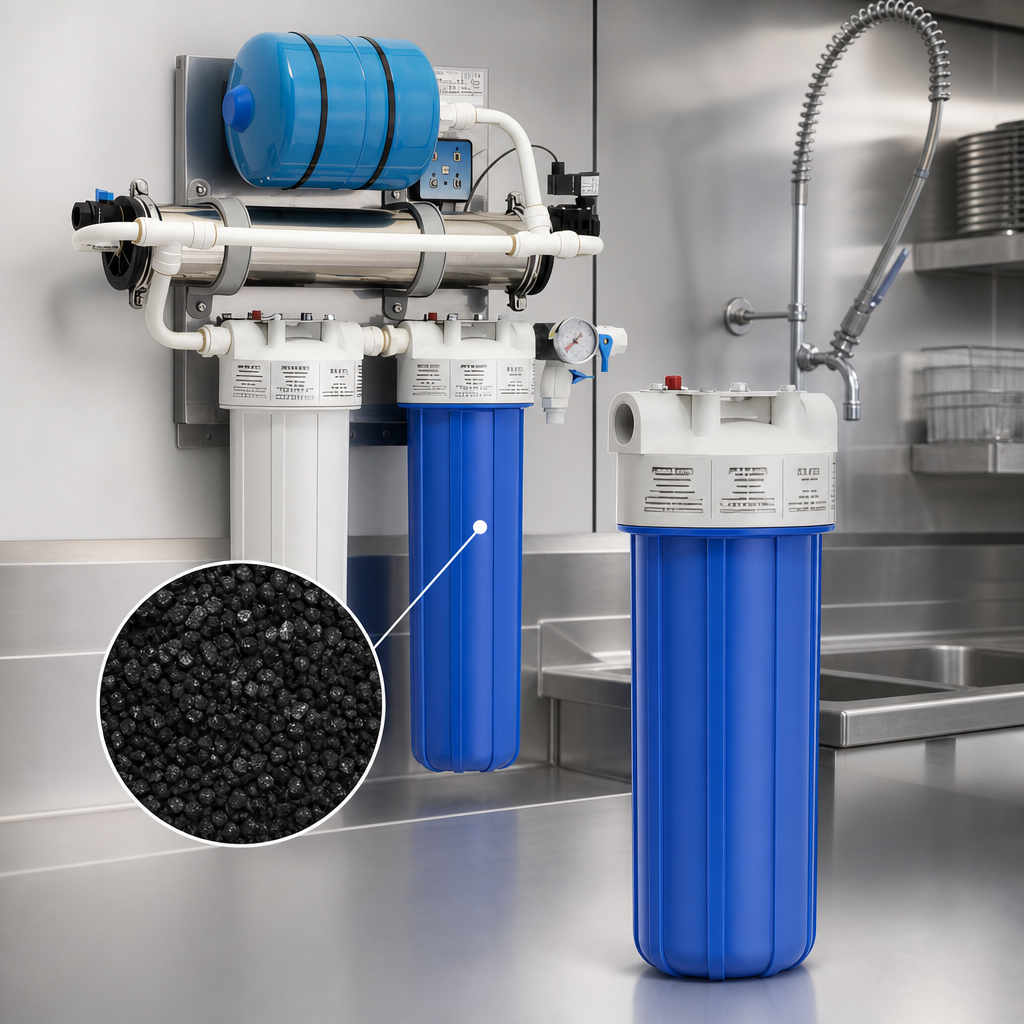

Extended-Life Carbon Cartridge

Includes one carbon cartridge with a 500,000-gallon capacity to help extend service life and reduce changeouts.

Extended-Life Carbon Cartridge

TAC Scale Control

Includes one template-assisted crystallization cartridge to help reduce lime scale buildup in downstream equipment.

Self-Cleaning Ultrafiltration

The mechanical filtration stage is separated from taste and odor reduction to help prevent premature clogging.

Ultra-Fine Filtration

Nominal pore size of 0.015 microns helps reduce sediment, cysts, and other fine particles.

Stainless Steel Housing

Stainless steel ultrafilter housing is built for commercial durability.

Adjustable Flush Timer

Built-in flush timer helps support routine maintenance and system performance.

Global Power Compatibility

Operates on 100-240V, 50/60 Hz power and includes plug adapters for the US, Europe, Australia, and UK.

NSF-Tested Performance

NSF-certified flow performance is rated at 7.9 GPM (29.9 LPM).

High Temperature Rating

Maximum operating temperature is 104°F (40°C).

Type Ultrafiltration System
Style Horizontal
Capacity 500,000 Gallons
Filter Quantity 2
Micron Rating 0.015 Microns
Flow Rate 8 GPM (30 LPM)
Maximum Operating Pressure 100 PSIG (690 kPa)
Maximum Operating Temperature 104°F (40°C)
pH Range 6.5 to 8.5
Controls Adjustable Flush Timer
Voltage 100-240 Volts
Hertz 50/60 Hz
Phase 1-Phase
Watts 10 Watts
Amps 0.08 Amps
Material Stainless Steel
Water Inlet Size 3/4 Inch FNPT
Water Outlet Size 3/4 Inch FNPT
Drain Connection Size 3/4 Inch FNPT
Rinse Connection Size 3/4 Inch GHT
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes one extended-life carbon cartridge and one TAC cartridge.
The system uses a nominal pore size of 0.015 microns.
The system is rated for 8 GPM, with NSF-certified performance at 7.9 GPM (29.9 LPM).
It operates on 100-240V, 50/60 Hz, 10W, and 0.08A.
The unit uses 3/4-inch FNPT inlet, outlet, and drain connections, plus a 3/4-inch GHT rinse connection.
Yes. The TAC cartridge is designed to help reduce lime scale buildup and protect equipment.
