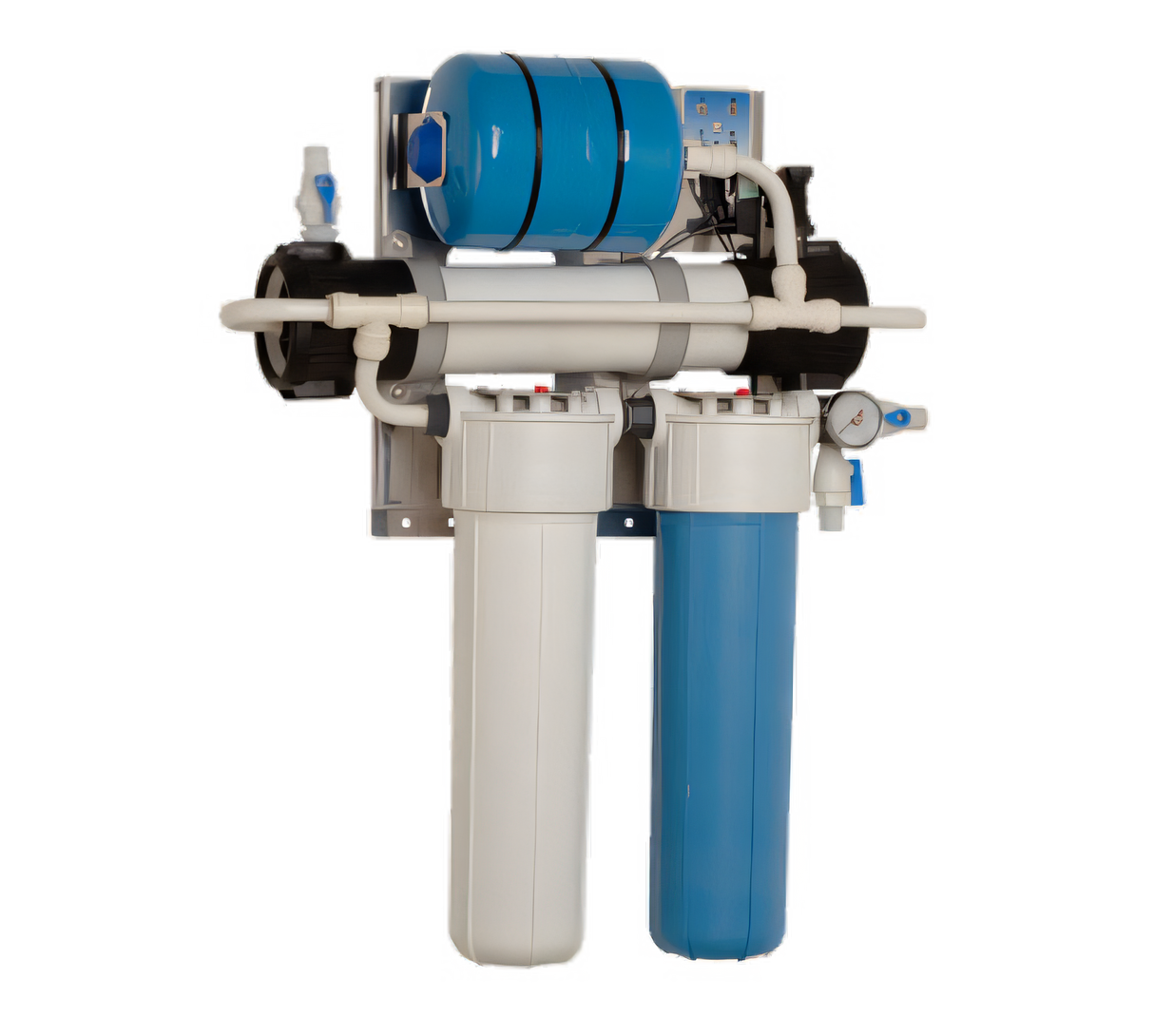

Antunes Vizion Horizontal Chloramine Water Filtration System with TAC Cartridge, 7.9 GPM

SKU: VZN-521HC-T5
$2,471.46
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers New Arrivals Restaurant Equipment Water Filters

Antunes Vizion Horizontal Chloramine Water Filtration System with TAC Cartridge, 7.9 GPM

Includes Chloramine and TAC Cartridges, 0.015 Micron Ultrafiltration

A high-flow horizontal filtration system that combines chloramine reduction, TAC scale control, and self-cleaning ultrafiltration to help protect equipment and improve water quality.

  • 7.9 GPM service flow supports demanding beverage water applications.
  • Includes one chloramine cartridge and one TAC cartridge for chloramine reduction and lime scale control.
  • Self-cleaning ultrafiltration separates mechanical filtration from taste and odor reduction to help reduce clogging.
  • 0.015 micron filtration and stainless steel housing support reliable commercial performance.
  • Universal 100-240V power input with plug adapters for the US, Europe, Australia, and the UK; NSF-certified performance.

Overall Dimensions:

33.0"W x 9.0"D x 39.0"H

Product Weight:

60.0 lb

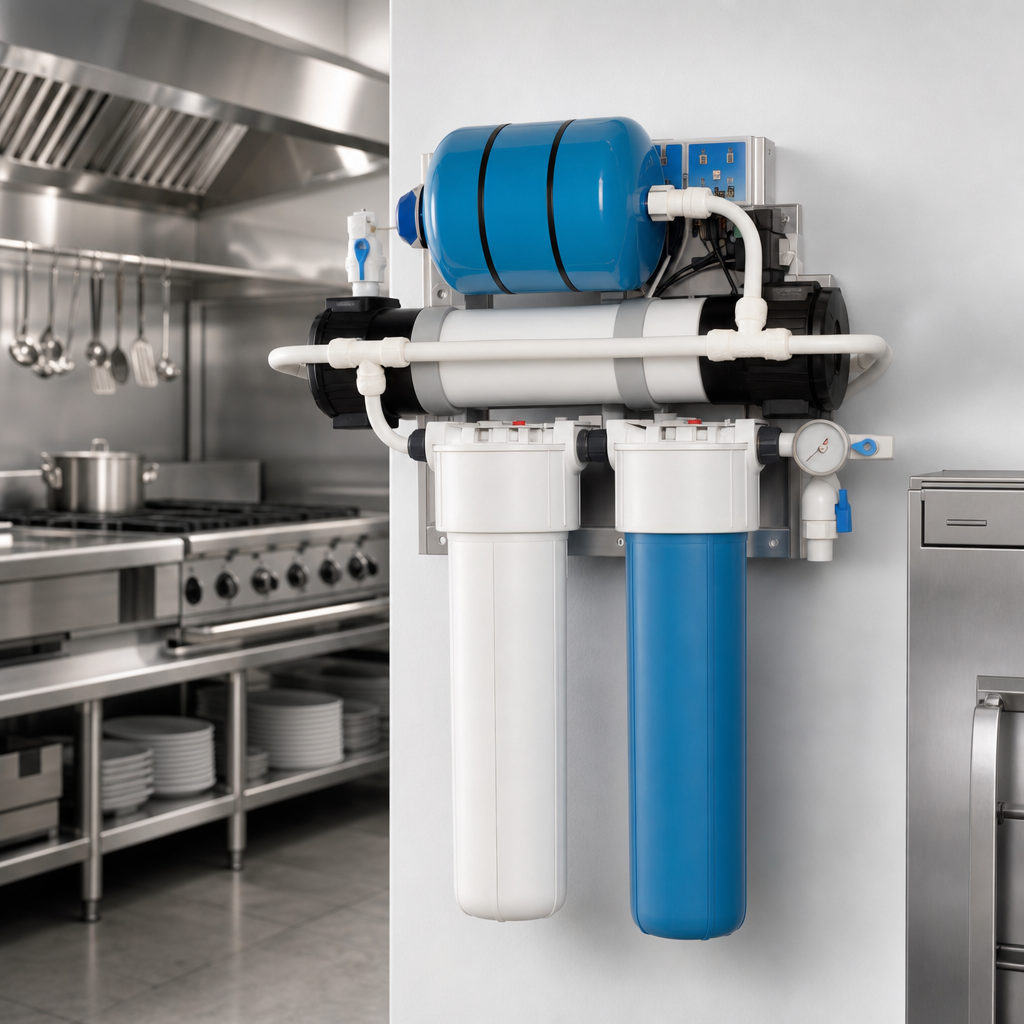

Chloramine And TAC Filtration

Includes one chloramine cartridge and one TAC cartridge to reduce chloramine and help protect equipment against lime scale buildup.

Self-Cleaning Ultrafiltration

A self-cleaning ultrafilter sits ahead of taste and odor reduction to help prevent premature clogging and extend cartridge life.

0.015 Micron Filtration

Nominal pore size of 0.015 microns helps remove very fine particles from incoming water.

High Flow Performance

Delivers 7.9 gallons per minute service flow for high-demand beverage applications.

Stainless Steel Housing

Stainless steel ultrafilter housing is built for commercial foodservice environments.

Adjustable Flush Timer

Built-in adjustable flush timer helps simplify maintenance and system setup.

Universal Power Input

Operates on 100-240V, 50/60 Hz, single-phase power at 10 watts and 0.08 amps; plug adapters for the US, Europe, Australia, and the UK are included.

NSF-Certified Performance

Tested and certified by NSF International against NSF/ANSI Standards 42 and 53.

Type Chloramine Ultrafiltration System
Style Horizontal
Material Stainless Steel
Capacity 21,000 Gallons at 5 GPM
Flow Rate 7.9 GPM (29.9 LPM)
Filter Quantity 2
Micron Rating 0.015 Microns
Maximum Operating Pressure 100 psig (690 kPa)
pH Range 6.5 to 8.5 pH
Maximum Operating Temperature 104°F (40°C)
Voltage 100-240 Volts
Hertz 50/60 Hz
Phase 1-Phase
Watts 10 Watts
Amps 0.08 Amps
Connection Size 3/4 Inch MNPT Inlet/Outlet; 3/4 Inch FNPT Drain
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes one chloramine cartridge and one TAC cartridge.
The TAC cartridge helps reduce lime scale buildup in connected equipment.
The system uses nominal 0.015 micron ultrafiltration.
The service flow rate is 7.9 GPM (29.9 LPM).
It uses 100-240V, 50/60 Hz, 1-phase power and 3/4 Inch MNPT inlet/outlet connections with a 3/4 Inch FNPT drain.
The maximum operating pressure is 100 psig (690 kPa) and the maximum operating temperature is 104°F (40°C).
