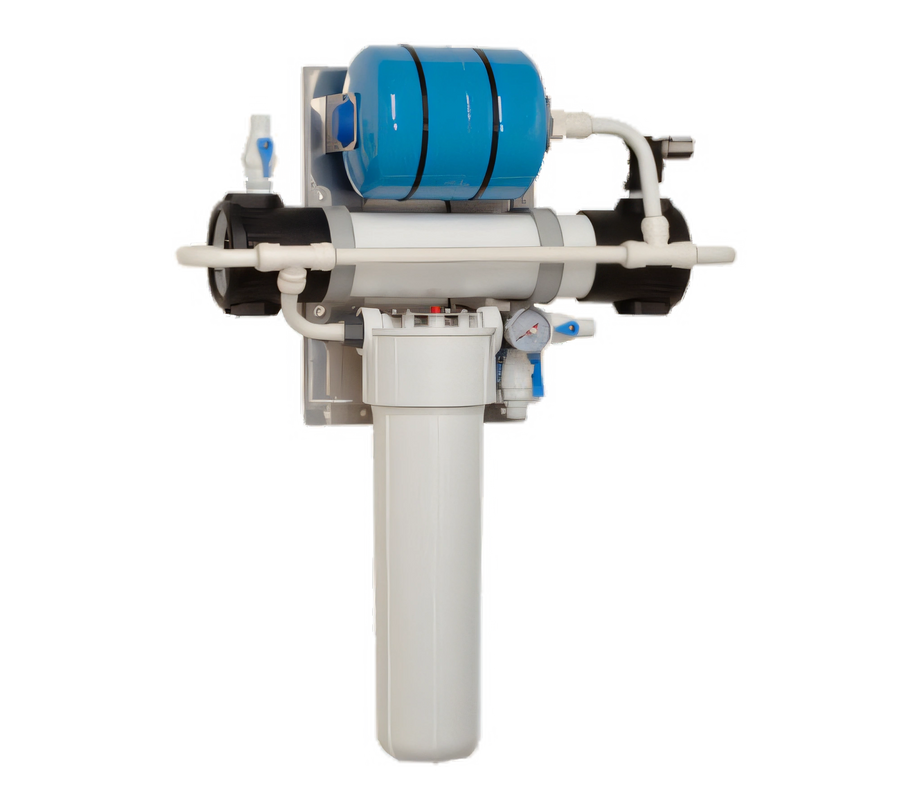

Antunes Vizion VZN-521H Horizontal Ultrafiltration Water Filtration System with One Carbon Cartridge

SKU: VZN-521H
$1,843.79
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Antunes Best Sellers Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Water Filters

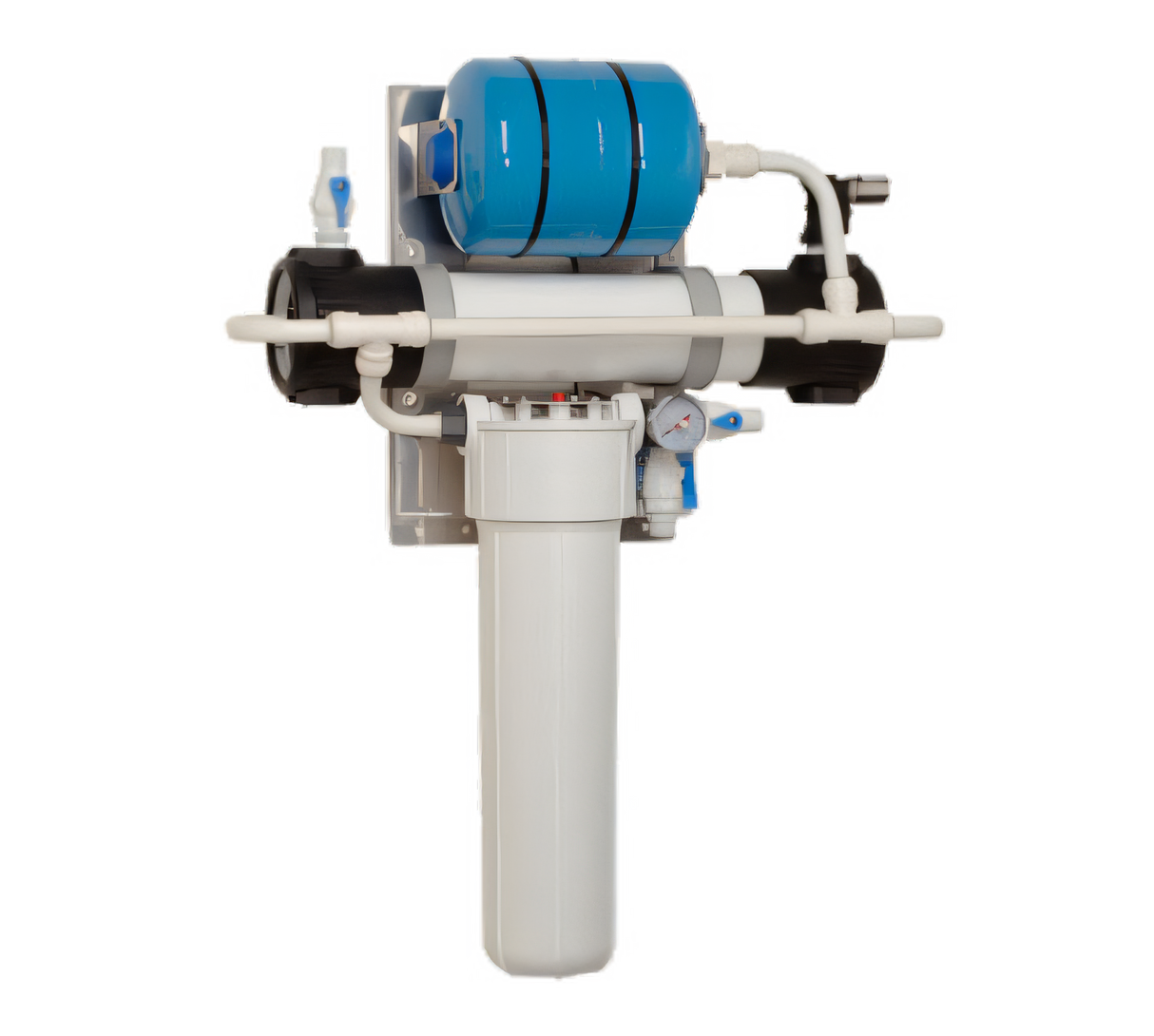

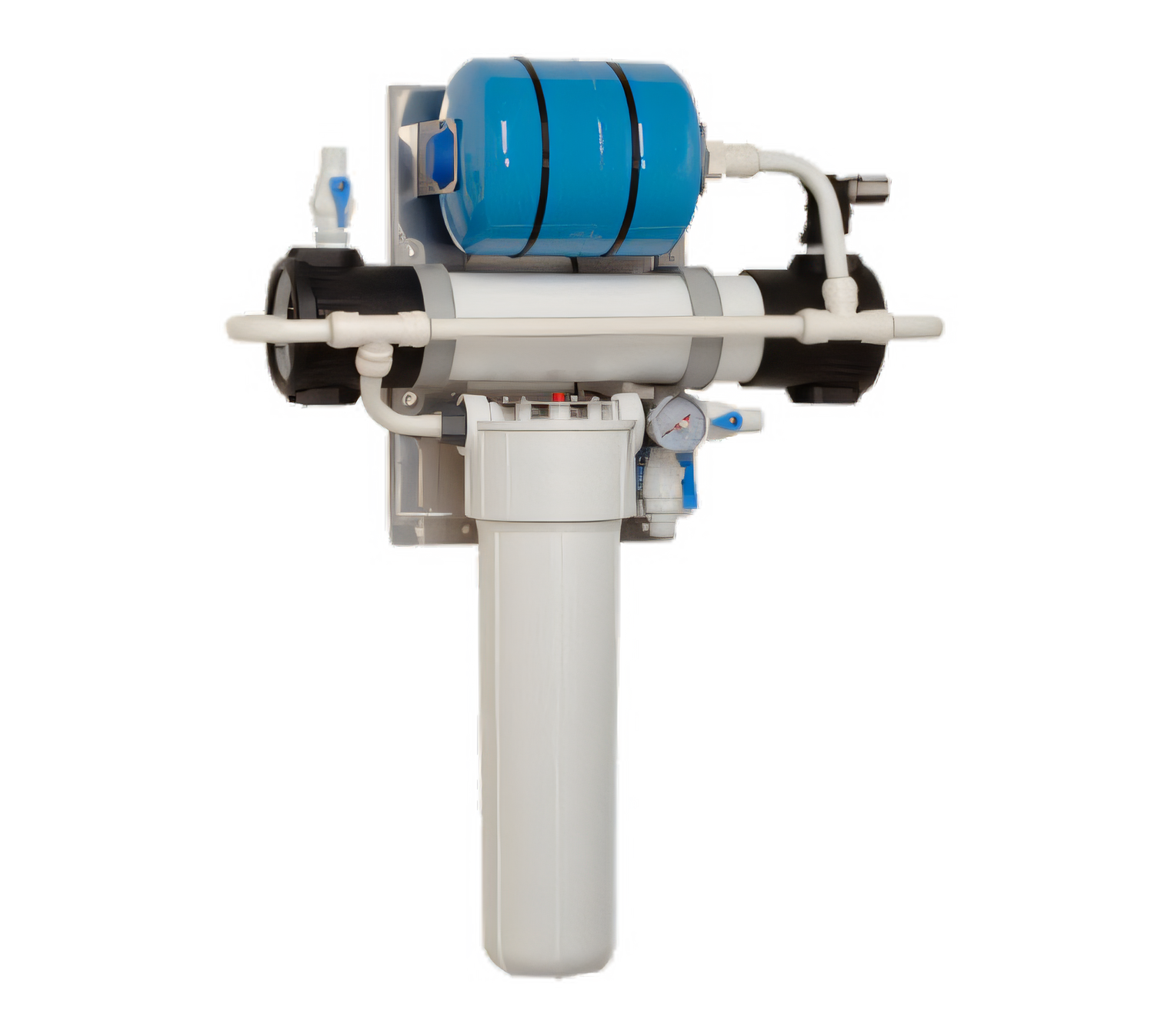

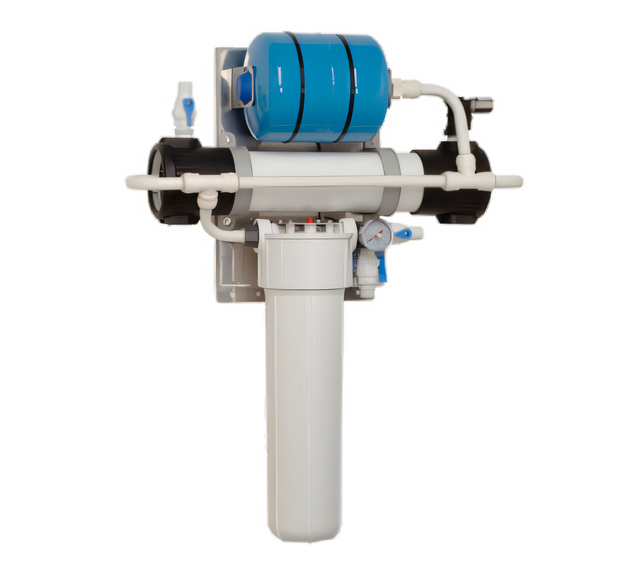

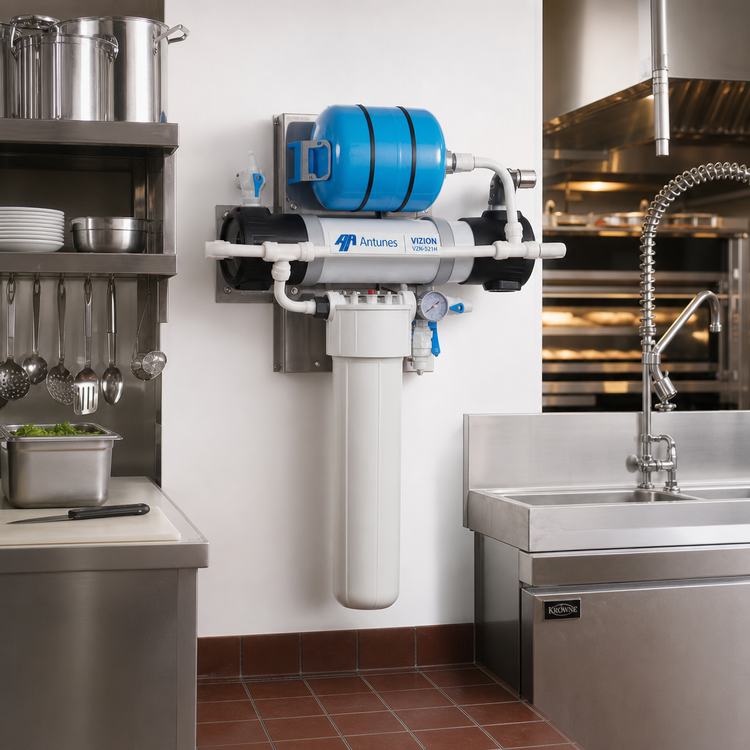

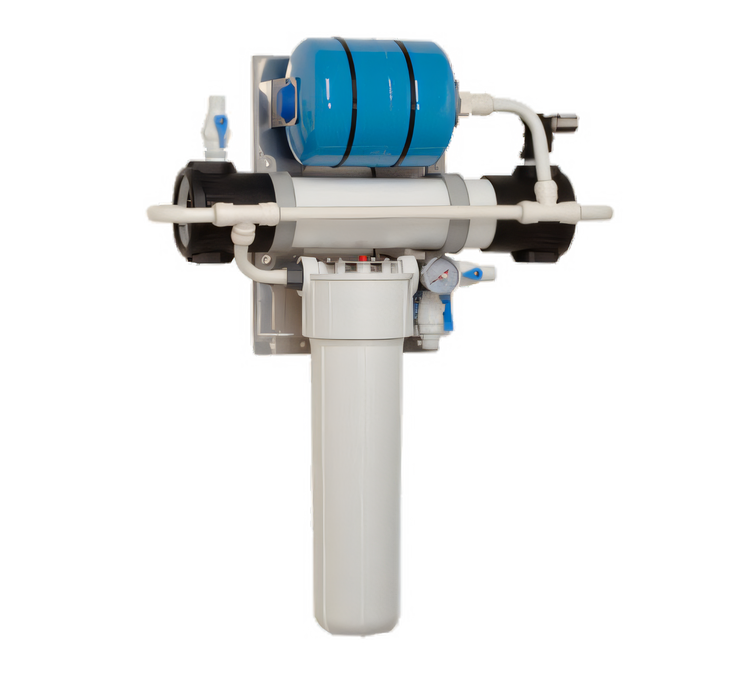

Antunes Vizion VZN-521H Horizontal Ultrafiltration Water Filtration System with One Carbon Cartridge

8 GPM, 0.015 Micron, 100-240V, NSF Certified

Deliver cleaner, better-tasting water with a self-cleaning horizontal ultrafiltration system that combines fine particulate reduction with a dedicated carbon cartridge.

  • Horizontal ultrafiltration system for beverage and water service applications.
  • Self-cleaning ultrafilter helps reduce clogging and extend cartridge life.
  • 0.015-micron nominal pore size for fine sediment and cyst reduction.
  • 8 GPM service flow rate; NSF certified at 7.9 GPM.
  • One carbon cartridge separates taste and odor reduction from mechanical filtration.
  • Universal 100-240V power with plug adapters for the US, Europe, Australia, and UK.
  • Stainless steel ultrafilter housing with 3/4-inch plumbing connections and adjustable flush timer.

Overall Dimensions:

31.0"W x 9.0"D x 39.0"H

Product Weight:

48.0 lb

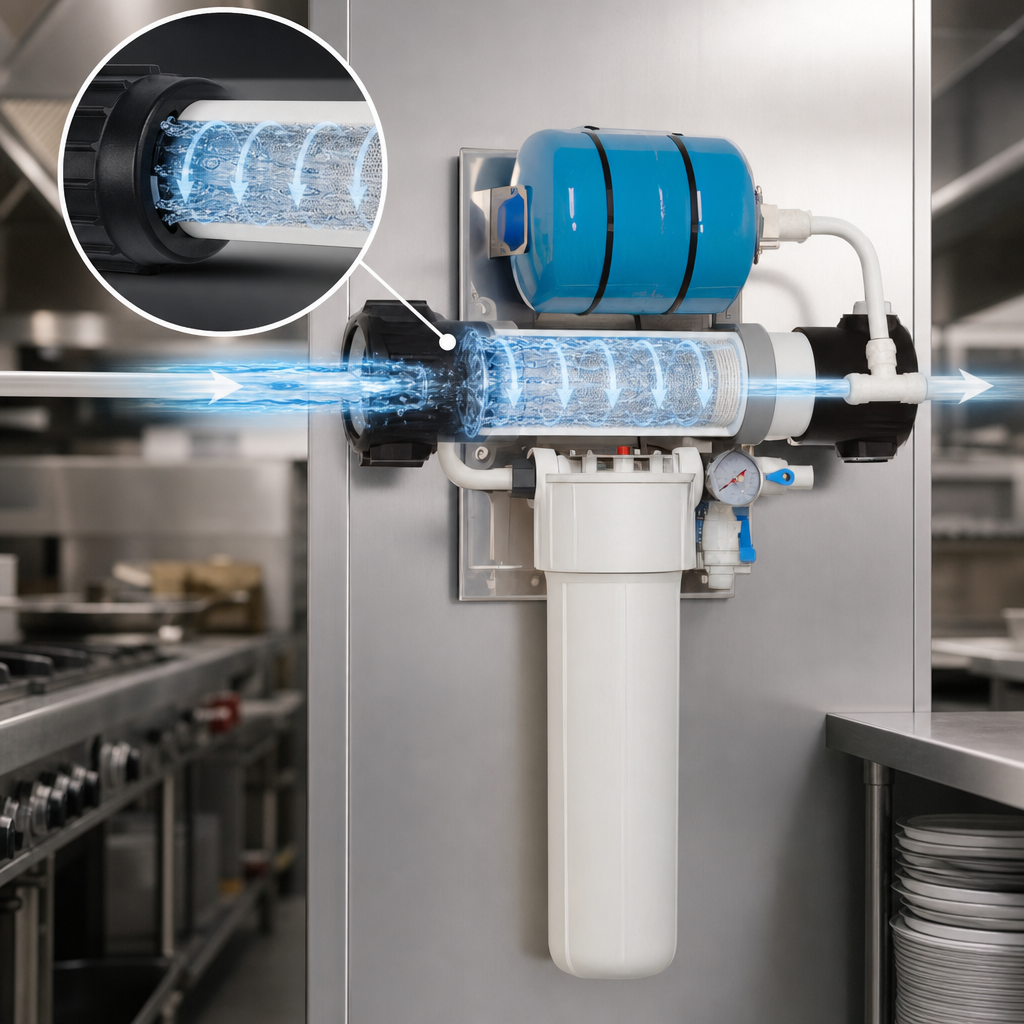

Self-Cleaning Ultrafilter

The ultrafilter cleans itself ahead of the carbon cartridge to help minimize clogging and reduce maintenance.

Self-Cleaning Ultrafilter

Separated Filtration Stages

Mechanical filtration is separated from taste and odor reduction for better performance and longer cartridge life.

0.015-Micron Filtration

Nominal pore size removes sediment, cysts, and very fine particles down to 0.015 microns.

Service Flow Rate

Rated for 8 gallons per minute (30 liters per minute), with NSF certification tested at 7.9 gpm (29.9 lpm).

Carbon Cartridge Life

Includes one carbon cartridge with a stated one-year lifespan.

Universal Electrical Setup

Operates on 100-240V, 50/60 Hz, single-phase power with 10W draw and 0.08A current.

Stainless Steel Housing

Stainless steel ultrafilter housing provides durable construction for foodservice use.

Included Plug Adapters

Supplied with plug adapters for the US, Europe, Australia, and the UK.

Adjustable Flush Timer

Built-in adjustable flush timer supports system setup and maintenance.

Type Ultrafiltration Water Filtration System
Style Horizontal
Material Stainless Steel
Filter Quantity 1
Service Flow Rate 8 Gallons Per Minute (30 Liters Per Minute)
Micron Rating 0.015 Microns
Carbon Cartridge Lifespan 1 Year
Maximum Operating Temperature 104°F (40°C)
Maximum Operating Pressure 100 PSIG
pH Range 6.5 to 8.5
Voltage 100-240 Volts
Amps 0.08 Amps
Watts 10 Watts
Hertz 50/60 Hz
Phase 1-Phase
Water Inlet Size 3/4 Inch FNPT
Water Outlet Size 3/4 Inch FNPT
Drain Connection Size 3/4 Inch FNPT
Shipping Width 31 Inches
Shipping Depth 9 Inches
Shipping Height 39 Inches
Shipping Weight 48 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It uses a self-cleaning ultrafilter with a 0.015-micron nominal pore size and one carbon cartridge for taste and odor reduction.
The system is rated at 8 gpm (30 lpm) and is NSF certified at 7.9 gpm (29.9 lpm).
It operates on 100-240V, 50/60 Hz, single-phase power, draws 10W and 0.08A, and includes plug adapters for the US, Europe, Australia, and the UK.
The cutsheet lists 3/4-inch FNPT inlet, outlet, and drain connections, plus a 3/4-inch GHT rinse connection.
Yes. The VZN-521H includes one carbon cartridge with a stated one-year lifespan.
The maximum operating temperature is 104°F (40°C).
