Antunes

Vizion Horizontal Ultrafiltration Water Filtration System with Carbon and TAC Cartridges, 8 GPM

SKU: VZN-521H-T5
$2,230.48
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers New Arrivals Restaurant Equipment Water Filters

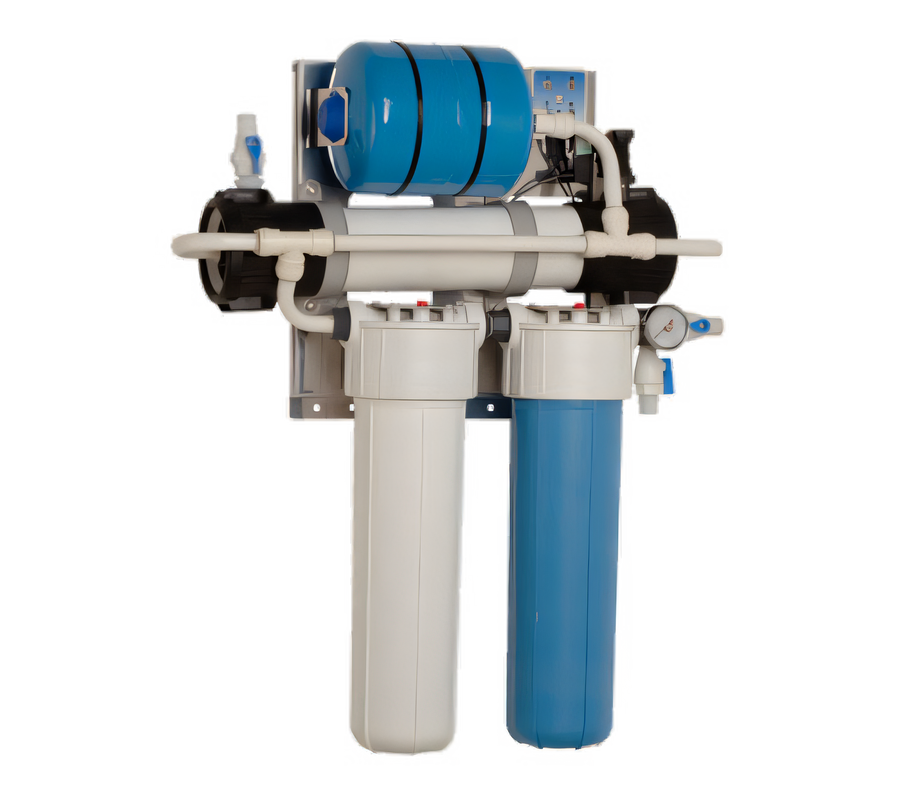

Vizion Horizontal Ultrafiltration Water Filtration System with Carbon and TAC Cartridges, 8 GPM

0.015 Micron, Stainless Steel Housing, Multi-Voltage

Deliver cleaner, better-tasting water and help control scale with a high-flow horizontal system built for low-maintenance commercial use.

  • Horizontal ultrafiltration system designed for beverage water treatment.
  • Includes one carbon cartridge and one TAC cartridge for taste, odor, and scale control.
  • 0.015-micron filtration helps reduce sediment, cysts, and fine particles.
  • Self-cleaning design helps minimize clogging and extend cartridge life.
  • Stainless steel housing and adjustable flush timer support low-maintenance operation.
  • 100-240V, single-phase power with cord and international plug adapters.

Overall Dimensions:

33.0"W x 9.0"D x 39.0"H

Product Weight:

60.0 lb

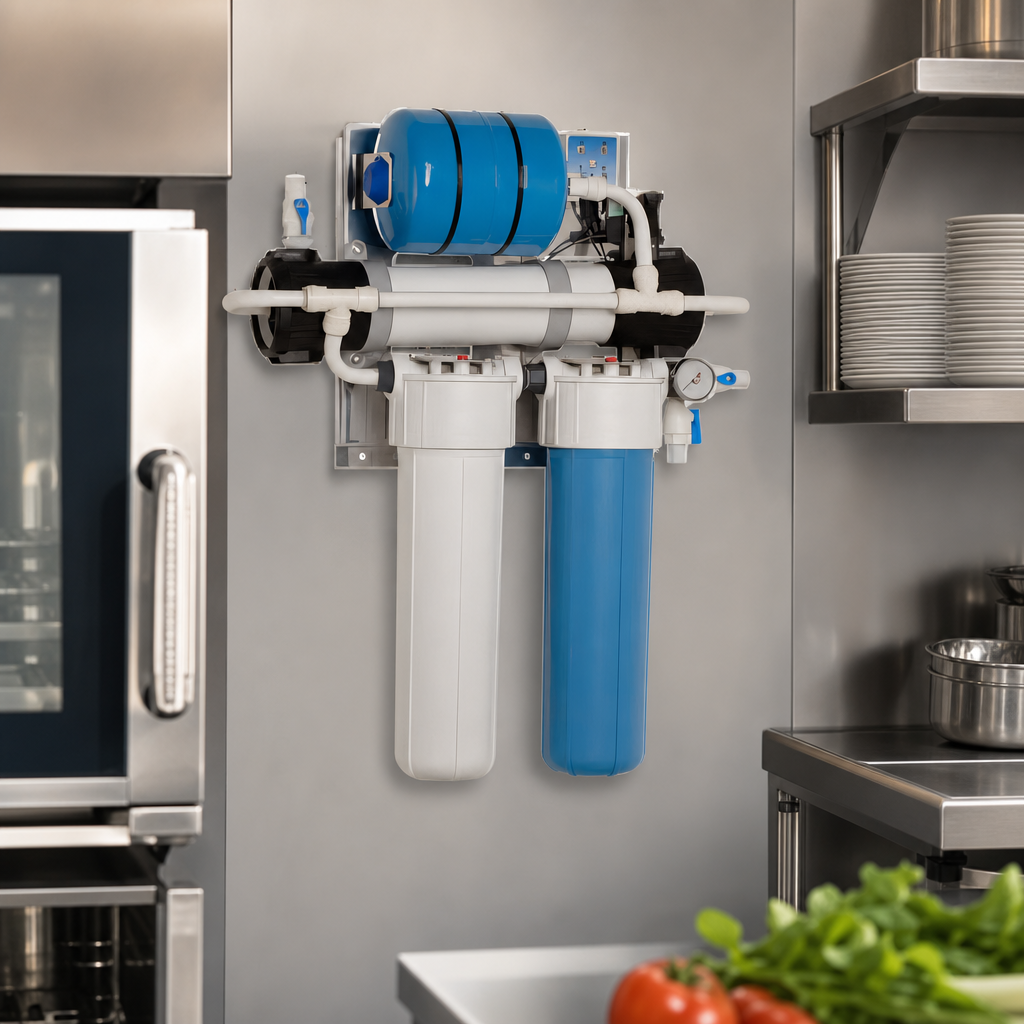

Horizontal Configuration

Space-saving horizontal system layout for commercial water filtration applications.

Dual-Cartridge Filtration

Includes one carbon cartridge and one template-assisted crystallization (TAC) cartridge.

0.015-Micron Ultra Filtration

Fine ultrafiltration helps capture sediment, cysts, and particles as small as 0.015 microns.

Self-Cleaning Mechanical Filtration

The ultrafilter is designed to self-clean, helping reduce clogging and maintenance.

Separate Taste and Odor Reduction

Mechanical filtration is separated from taste and odor reduction to help improve cartridge life and performance.

TAC Scale Protection

The TAC cartridge helps reduce lime scale buildup and protect connected equipment.

Stainless Steel Housing

Durable stainless steel ultrafilter housing for long-term commercial use.

Adjustable Flush Timer

Built-in adjustable flush timer helps optimize system operation.

Multi-Voltage Power With Adapters

Operates on 100-240V, 50/60 Hz, single-phase power and includes plug adapters for the US, Europe, Australia, and the UK.

NSF-Tested Performance

Tested and certified by NSF International; model performance is verified at 7.9 GPM (29.9 LPM) per test data.

Type Ultrafiltration System
Style Horizontal
Material Stainless Steel
Micron Rating 0.015 Microns
Filter Quantity 2
Service Flow Rate 8 GPM (30 LPM)
Carbon Cartridge Life 1 Year
Maximum Operating Pressure 100 psig (690 kPa)
pH Range 6.5 to 8.5
Temperature Range Up to 104°F (40°C)
Voltage 100-240 Volts
Hertz 50/60 Hz
Phase 1-Phase
Plug Type Cord with International Plug Adapters
Watts 10 Watts
Amps 0.08 Amps
Water Inlet Size 3/4 Inch FNPT
Drain Connection Size 3/4 Inch FNPT
Rinse Connection Size 3/4 Inch GHT
Shipping Width 33 Inches
Shipping Depth 9 Inches
Shipping Height 39 Inches
Shipping Weight 60 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes one carbon cartridge and one TAC cartridge.
The TAC cartridge uses template-assisted crystallization to help reduce lime scale buildup and protect equipment.
The system uses a nominal 0.015-micron ultrafilter.
It operates on 100-240V, 50/60 Hz, single-phase power and uses 10 watts and 0.08 amps.
The system uses 3/4 inch FNPT inlet, outlet, and drain connections, plus a 3/4 inch GHT rinse connection.
The maximum operating temperature is 104°F (40°C).
