Antunes

Antunes Vizion Horizontal Ultrafiltration Water Filtration System, 8 GPM, 0.015 Micron

SKU: VZN-520H
$1,539.59
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers New Arrivals Restaurant Equipment Water Filters

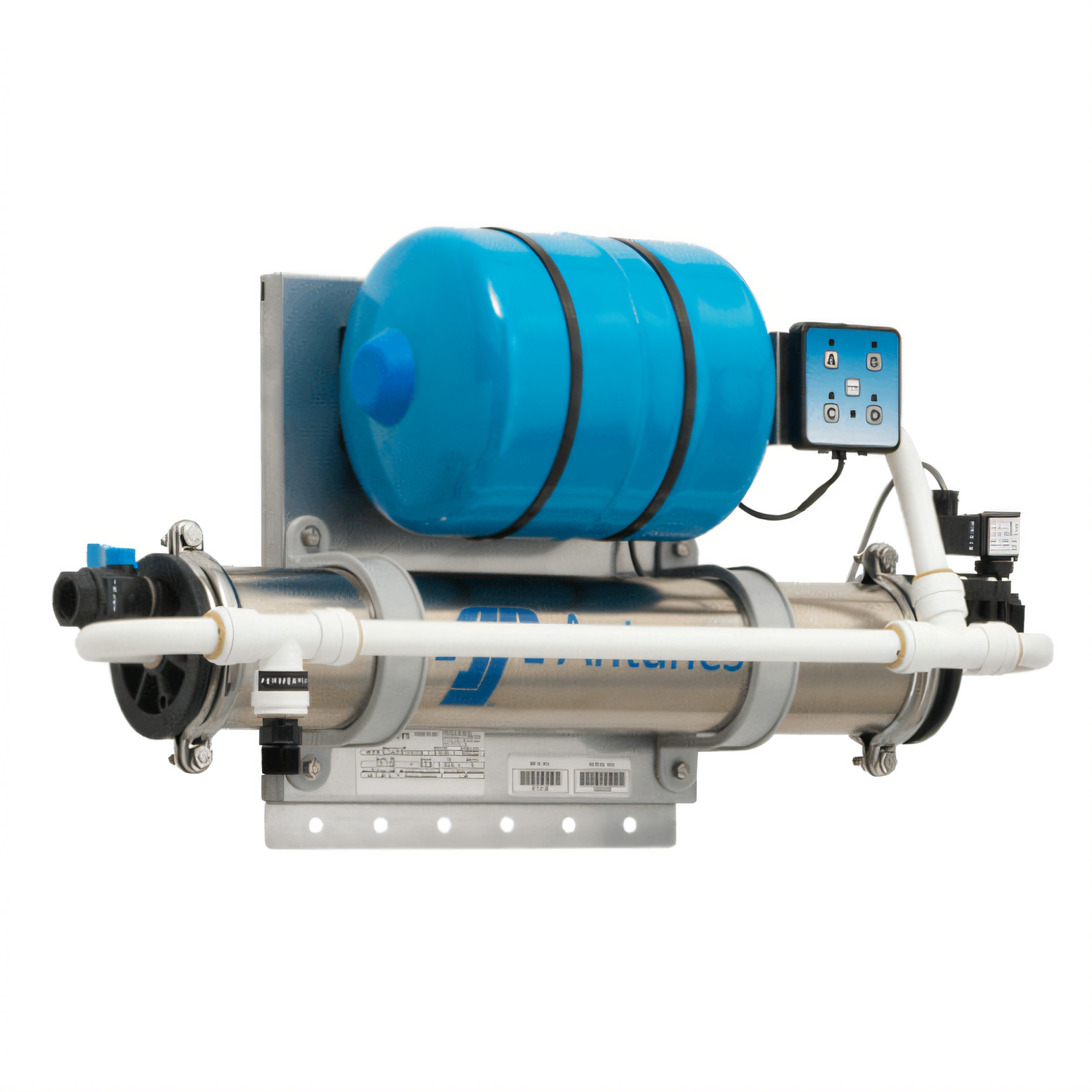

Antunes Vizion Horizontal Ultrafiltration Water Filtration System, 8 GPM, 0.015 Micron

Without Carbon Cartridge, Stainless Steel Housing

Deliver cleaner water with a self-cleaning horizontal ultrafiltration system that captures fine particles down to 0.015 microns while helping reduce maintenance.

  • Horizontal ultrafiltration system designed for high-quality water delivery at up to 8 GPM.
  • 0.015-micron nominal pore size helps reduce sediment, cysts, and fine particles.
  • Self-cleaning ultrafilter helps minimize clogging and lower maintenance.
  • Separate mechanical filtration from taste and odor reduction for improved cartridge life.
  • Stainless steel ultrafilter housing for durable commercial use.
  • Universal 100-240V power input with included plug adapters for US, Europe, Australia, and UK.

Overall Dimensions:

31.0"W x 9.0"D x 17.0"H

Product Weight:

40.0 lb

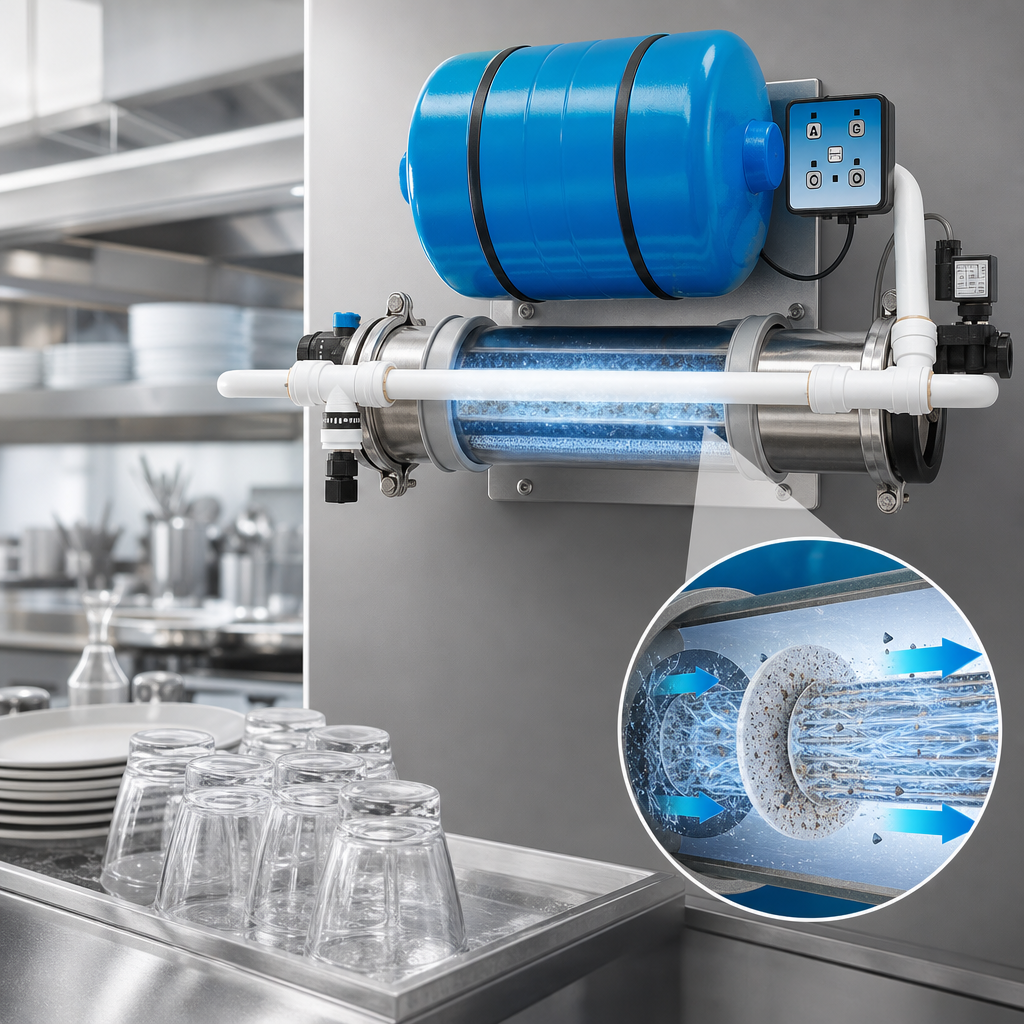

Self-Cleaning Ultrafilter

Helps reduce particle buildup and supports lower-maintenance operation.

Separate Filtration Stages

Mechanical filtration is separated from taste and odor reduction to help extend filter life and improve performance.

Fine Particle Reduction

Nominal pore size of 0.015 microns helps remove sediment, cysts, and other very small particles.

Horizontal Design

Compact horizontal configuration suited to commercial water filtration applications.

Stainless Steel Housing

Durable stainless steel ultrafilter housing for commercial durability.

Universal Electrical Input

Operates on 100-240V, 50/60 Hz, single-phase power for broad installation flexibility.

International Plug Adapters Included

Includes plug adapters for US, Europe, Australia, and UK outlets.

High Temperature Capability

Maximum operating temperature is 104°F (40°C).

Type Ultrafiltration Water Filtration System
Style Horizontal
Material Stainless Steel
Micron Rating 0.015 Microns
Service Flow Rate 8 GPM (30 LPM)
Temperature Range Up to 104°F (40°C)
Voltage 100-240 Volts
Hertz 50/60 Hz
Phase 1-Phase
Watts 10 Watts
Amps 0.08 Amps
Plug Type Cord With Plug Adapter
Water Inlet Size 3/4 Inch FNPT
Water Outlet Size 3/4 Inch FNPT
Drain Connection Size 3/4 Inch FNPT
Rinse Connection Size 3/4 Inch GHT
Selling Unit Each
Units Per Case 1
Shipping Width 31 Inches
Shipping Depth 9 Inches
Shipping Height 17 Inches
Shipping Weight 44 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It provides ultrafiltration down to 0.015 microns, helping reduce sediment, cysts, and fine particles.
The maximum operating temperature is 104°F (40°C).
It operates on 100-240V, 50/60 Hz, single-phase power and uses 10 watts at 0.08 amps.
No. The VZN-520H is the horizontal system without a carbon cartridge.
Yes. Plug adapters for the US, Europe, Australia, and the UK are included.
The system uses 3/4 inch FNPT connections for inlet, outlet, and drain, plus a 3/4 inch GHT rinse connection.
