Antunes

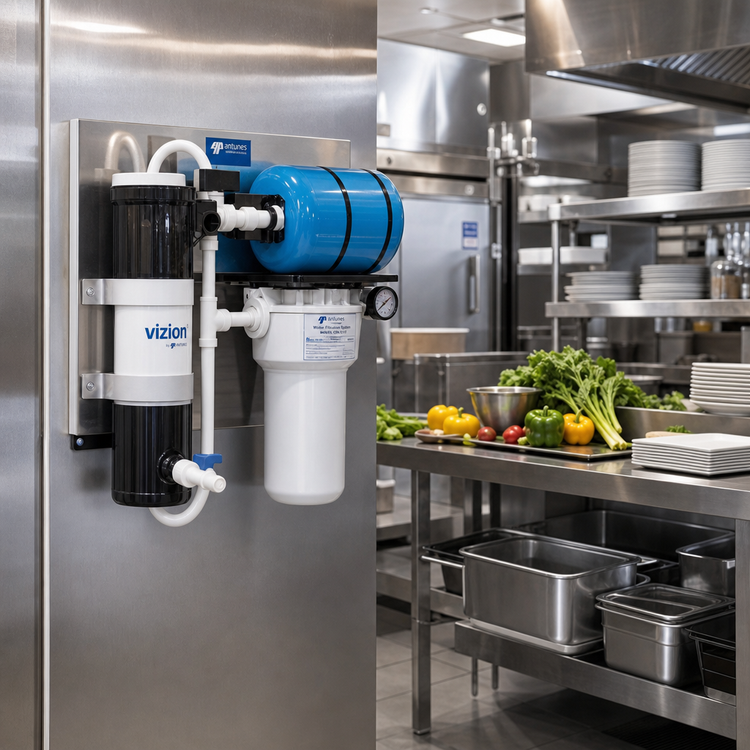

Antunes Vizion VZN-511V Vertical Ultrafiltration Water Filtration System, 5.2 GPM, 0.015 Micron, 1 Carbon Cartridge

SKU: VZN-511V
$1,726.09
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Antunes Vizion VZN-511V Vertical Ultrafiltration Water Filtration System, 5.2 GPM, 0.015 Micron, 1 Carbon Cartridge

Self-cleaning ultrafilter, 100-240V, with plug adapters for US, Europe, Australia, and UK

Deliver cleaner, better-tasting water with fine ultrafiltration, a self-cleaning vertical design, and a carbon cartridge that helps reduce odor and taste issues.

  • Vertical ultrafiltration system with one carbon cartridge for commercial water treatment.
  • 0.015-micron filtration helps remove sediment and fine particles.
  • Self-cleaning ultrafilter helps reduce clogging and maintenance.
  • Rated for 5.2 GPM service flow and 100-240V, 50/60 Hz, 1-phase power.
  • Includes a cord and plug adapters for US, Europe, Australia, and UK use.

Overall Dimensions:

25.0"W x 9.0"D x 27.0"H

Product Weight:

40.0 lb

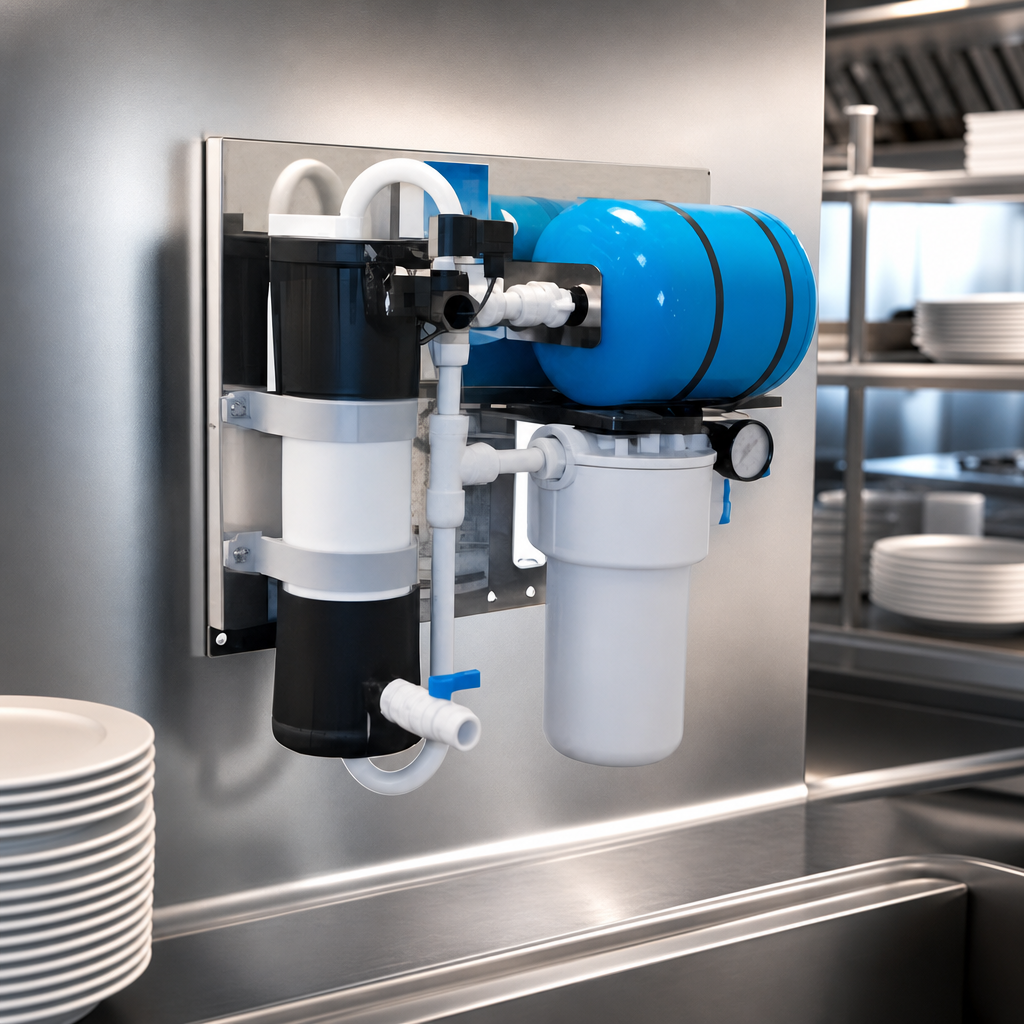

Self-Cleaning Ultrafilter

Designed to reduce particle buildup and help minimize maintenance between service intervals.

Self-Cleaning Ultrafilter

0.015 Micron Ultrafiltration

Provides very fine filtration for sediment and particle reduction.

Separate Carbon Cartridge

Mechanical filtration is separated from taste and odor reduction for better cartridge life.

Vertical System Design

Compact vertical layout with one carbon cartridge.

Stainless Steel Housing

Durable stainless steel ultrafilter housing for commercial use.

Universal Power Compatibility

Operates on 100-240V, 50/60 Hz, 1-phase power and includes plug adapters for US, Europe, Australia, and UK.

Adjustable Flush Timer

Built-in flush timer supports system maintenance and performance.

Type Ultrafiltration System
Style Vertical
Filter Quantity 1
Cartridge Life 1 Year
Micron Rating 0.015 Microns
Flow Rate 5.2 GPM (19 LPM)
Maximum Operating Pressure 100 psig (690 kPa)
Maximum Operating Temperature 104°F (40°C)
pH Range 6.5 to 8.5
Material Stainless Steel
Voltage 100-240 Volts
Amps 0.08 Amps
Watts 10 Watts
Hertz 50/60 Hz
Phase 1-Phase
Plug Type Cord with Plug Adapters
Water Inlet Size 3/4 Inch NPT
Drain Connection Size 3/4 Inch NPT
Controls Adjustable Flush Timer
Selling Unit Each
Units Per Case 1
Shipping Width 25 Inches
Shipping Depth 9 Inches
Shipping Height 27 Inches
Shipping Weight 40 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Frequently Asked Questions

It uses 0.015-micron ultrafiltration for fine particle reduction.
The system is rated for a 5.2 GPM service flow rate.
It operates on 100-240V, 50/60 Hz, single-phase power and draws 0.08 amps at 10 watts.
The system includes one carbon cartridge, a cord, and plug adapters for US, Europe, Australia, and UK outlets.
The document lists 3/4-inch NPT inlet and drain connections.
