Antunes UFL-540 Ultrafiltration Water Filter System, 15 GPM, 0.015 Micron, Stainless Steel

SKU: UFL-540
$1,714.89
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Antunes Best Sellers Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Water Filters

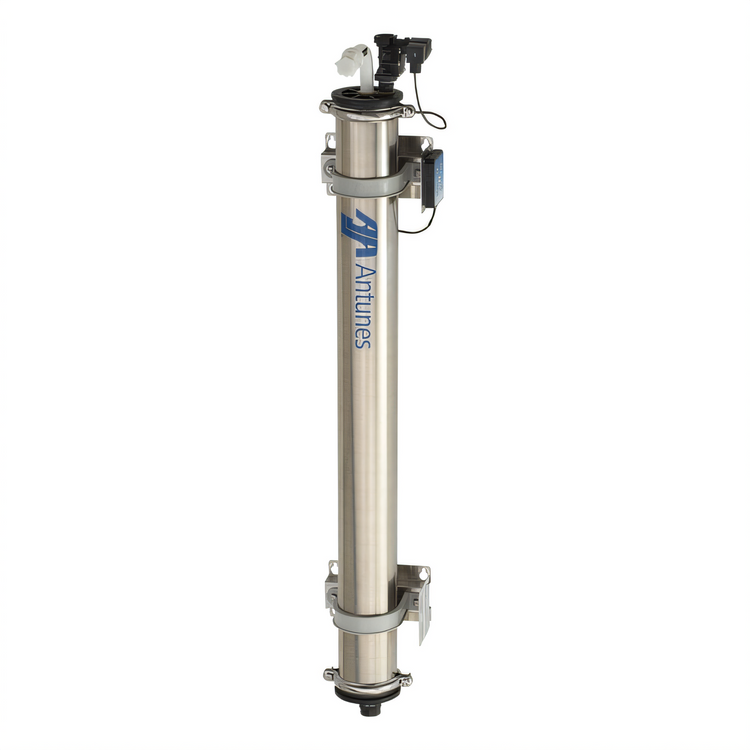

Antunes UFL-540 Ultrafiltration Water Filter System, 15 GPM, 0.015 Micron, Stainless Steel

Self-Cleaning Cartridge System with 100-240V Power and 3/4" NPT Connections

This self-cleaning ultrafiltration system helps deliver consistent water quality while reducing maintenance in busy foodservice operations.

  • 0.015 micron ultrafiltration helps significantly reduce particles for cleaner water.
  • Self-cleaning cartridge design extends ultrafilter life and minimizes user intervention.
  • 15 GPM maximum flow rate supports high-demand applications; NSF certified at 13 GPM.
  • Stainless steel ultrafilter housing adds durability in commercial environments.
  • Operates on 100-240V power with low 10W draw and 50/60 Hz compatibility.
  • 3/4" NPT inlet/outlet and drain connections simplify installation.
  • Compact footprint provides flexibility for installation.

Overall Dimensions:

12.0"W x 6.0"D x 49.0"H

Product Weight:

33.0 lb

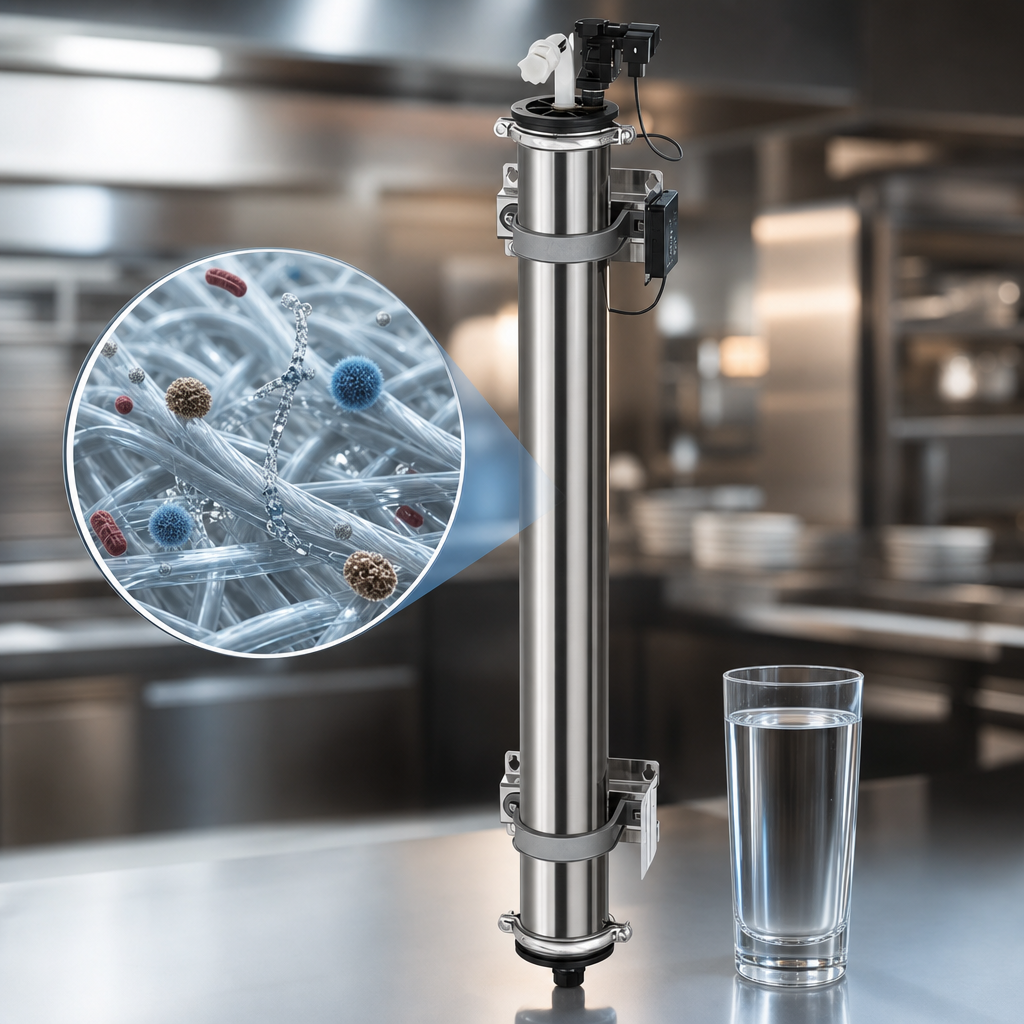

0.015 Micron Ultrafiltration

Helps substantially reduce particles to improve drinking water quality.

0.015 Micron Ultrafiltration

Self-Cleaning Cartridge

Designed to extend ultrafilter life and reduce the need for user intervention.

High Flow Capacity

Delivers up to 15 GPM (57 LPM); NSF certified at 13 GPM (49.2 LPM).

Stainless Steel Housing

Durable ultrafilter housing built for commercial water filtration applications.

Universal Power Input

Works with 100-240V, 50/60 Hz power and uses only 10W.

3/4 Inch NPT Connections

Features 3/4" NPT inlet/outlet and drain connections.

Plug Adapters Included

Includes plug adapters for US, Europe, Australia, and UK outlets.

Recommended Flush Tank Kit

Flush Tank Kit P/N 7000472 is highly recommended to improve flushing and extend ultrafilter life.

Type Ultrafiltration System
Style Cartridge
Service Flow Rate 15 GPM (57 LPM)
Micron Rating 0.015 Microns
Material Stainless Steel
Connection Size 3/4 Inch FNPT
Water Connection Required
Drain Connection Required
Maximum Operating Pressure 100 psig (690 kPa)
Maximum Operating Temperature 104°F (40°C)
pH Range 3 to 10
MWCO 100 kD
Voltage 100-240 Volts
Watts 10 Watts
Amps 0.04 Amps
Hertz 50/60 Hz
Phase 1-Phase
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The UFL-540 has a maximum flow rate of 15 GPM (57 LPM) and is NSF certified at 13 GPM (49.2 LPM).
This system uses .015 micron ultrafiltration to significantly reduce particles.
Yes. The system is self-cleaning, which extends ultrafilter life and helps reduce maintenance.
It operates on 100-240V, 50/60 Hz, uses 10 watts, and draws .04 amps.
The system uses 3/4" NPT connections for the inlet/outlet and drain.
The maximum operating temperature is 104°F (40°C).
