Antunes UFL-520 Ultrafiltration Water Filtration System, 7.9 GPM, 0.015 Micron

SKU: UFL-520
$1,490.72
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Antunes Best Sellers Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Water Filters

Antunes UFL-520 Ultrafiltration Water Filtration System, 7.9 GPM, 0.015 Micron

Self-Cleaning, Stainless Steel Housing, 100-240V

Deliver consistent, high-quality filtered water with a compact, self-cleaning ultrafiltration system designed to reduce particles and maintenance.

  • 0.015-micron ultrafiltration helps significantly reduce particles for cleaner water.
  • Self-cleaning design extends ultrafilter life and reduces user intervention.
  • 7.9 GPM service flow rate supports medium-demand foodservice applications.
  • Stainless steel ultrafilter housing provides durable commercial construction.
  • Operates on 100-240V, 50/60 Hz, 1-phase power with plug adapters included.
  • Compact footprint makes installation easier in tight spaces.
  • Rated for a maximum operating temperature of 104°F.

Overall Dimensions:

12.0"W x 6.0"D x 30.0"H

Product Weight:

23.0 lb

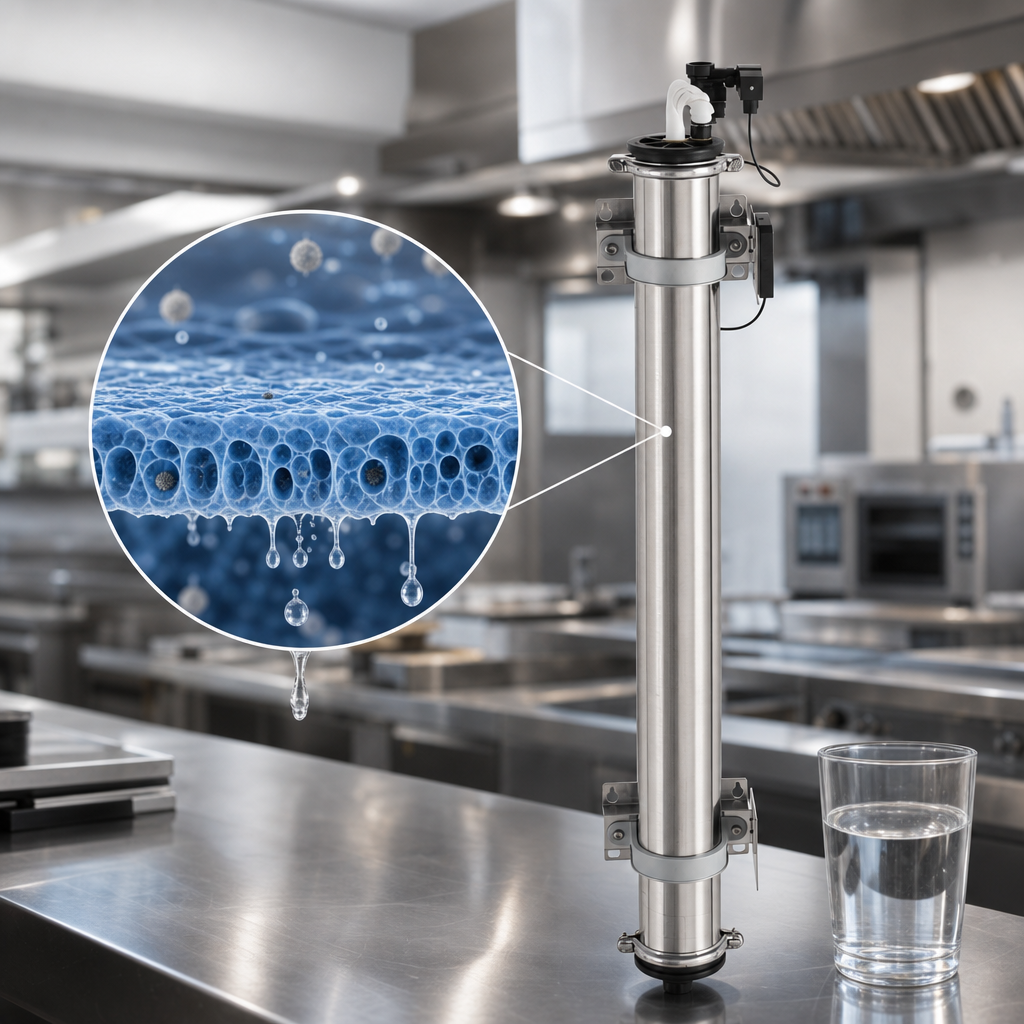

0.015-Micron Ultrafiltration

Helps substantially reduce particles and support consistent, high-quality water output.

0.015-Micron Ultrafiltration

Self-Cleaning Design

Built to extend ultrafilter life and minimize maintenance needs.

Microbiological Reduction

Engineered to support microbiological reduction in drinking water applications.

Stainless Steel Ultrafilter Housing

Durable stainless steel housing suited for commercial foodservice environments.

Universal Voltage Power

Uses 100-240V, 50/60 Hz, single-phase power with 10 watts and plug adapters for US, Europe, Australia, and UK outlets.

Compact Footprint

Small overall size allows flexible installation in limited-space locations.

Maximum Operating Temperature

Rated for operation up to 104°F (40°C).

Type Ultrafiltration System
Style Cartridge
Capacity 1,000 Gallons and Under
Filter Quantity 1
Service Flow Rate 7.9 GPM
Micron Rating 0.015 Microns
Maximum Operating Pressure 100 psig
Maximum Operating Temperature 104°F
pH Range 3 to 10
MWCO 100 kD
Water Inlet Size 3/4 Inch FNPT
Drain Connection Size 3/4 Inch FNPT
Material Stainless Steel
Voltage 100-240 Volts
Hertz 50/60 Hz
Phase 1-Phase
Watts 10 Watts
Amps 0.04 Amps
Shipping Width 12 Inches
Shipping Depth 6 Inches
Shipping Height 30 Inches
Shipping Weight 23 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The UFL-520 is rated at 7.9 GPM (29.1 LPM).
It uses 3/4 inch FNPT inlet, outlet, and drain connections.
Yes. The system is self-cleaning to help extend ultrafilter life and reduce user intervention.
It operates on 100-240V, 50/60 Hz, single-phase power and uses 10 watts and 0.04 amps.
Replacement cartridge Mfg. No. 7001917 is the L-520 cartridge for use in the UFL-520.
