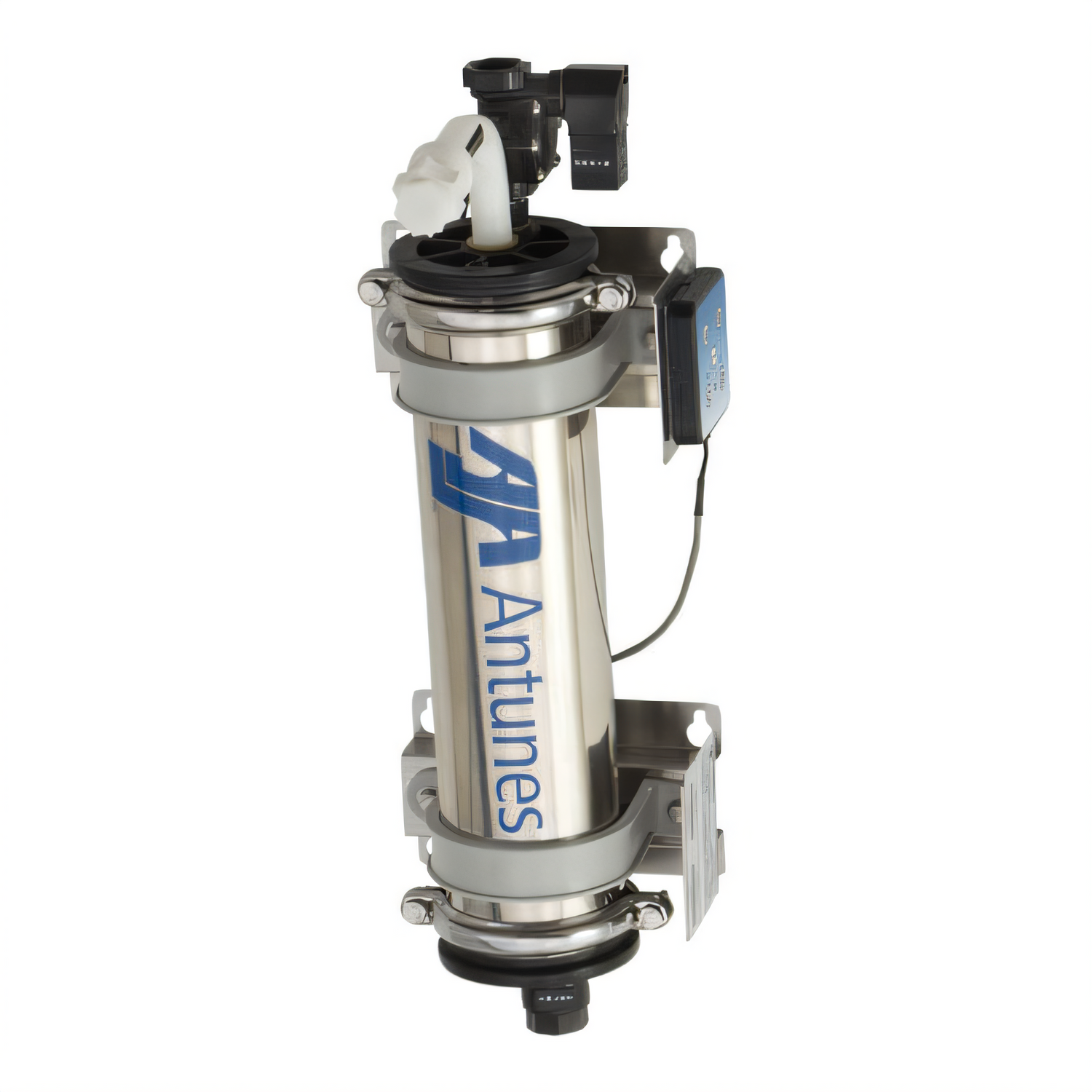

Antunes UFL-510 Ultrafiltration Water Filter System, 5.2 GPM, 0.015 Micron, Self-Cleaning

3/4 Inch FNPT Connections, 100-240V Power, Global Plug Adapters

Deliver consistently cleaner drinking water with self-cleaning ultrafiltration that filters to 0.015 microns and supports a 5.2 GPM service flow.

  • 0.015-micron ultrafiltration helps reduce particles for consistently high-quality water.
  • Self-cleaning operation extends ultrafilter life and minimizes user intervention.
  • 5.2 GPM (19 LPM) service flow rate supports demanding foodservice applications.
  • 3/4 Inch FNPT inlet, outlet, and drain connections simplify plumbing setup.
  • Runs on 100-240V, 50/60 Hz, single-phase power with a 10-watt draw.
  • Includes plug adapters for US, Europe, Australia, and UK outlets.
  • Compact footprint provides added installation flexibility in tight spaces.

Overall Dimensions:

12.0"W x 6.25"D x 23.0"H

Product Weight:

19.0 lb

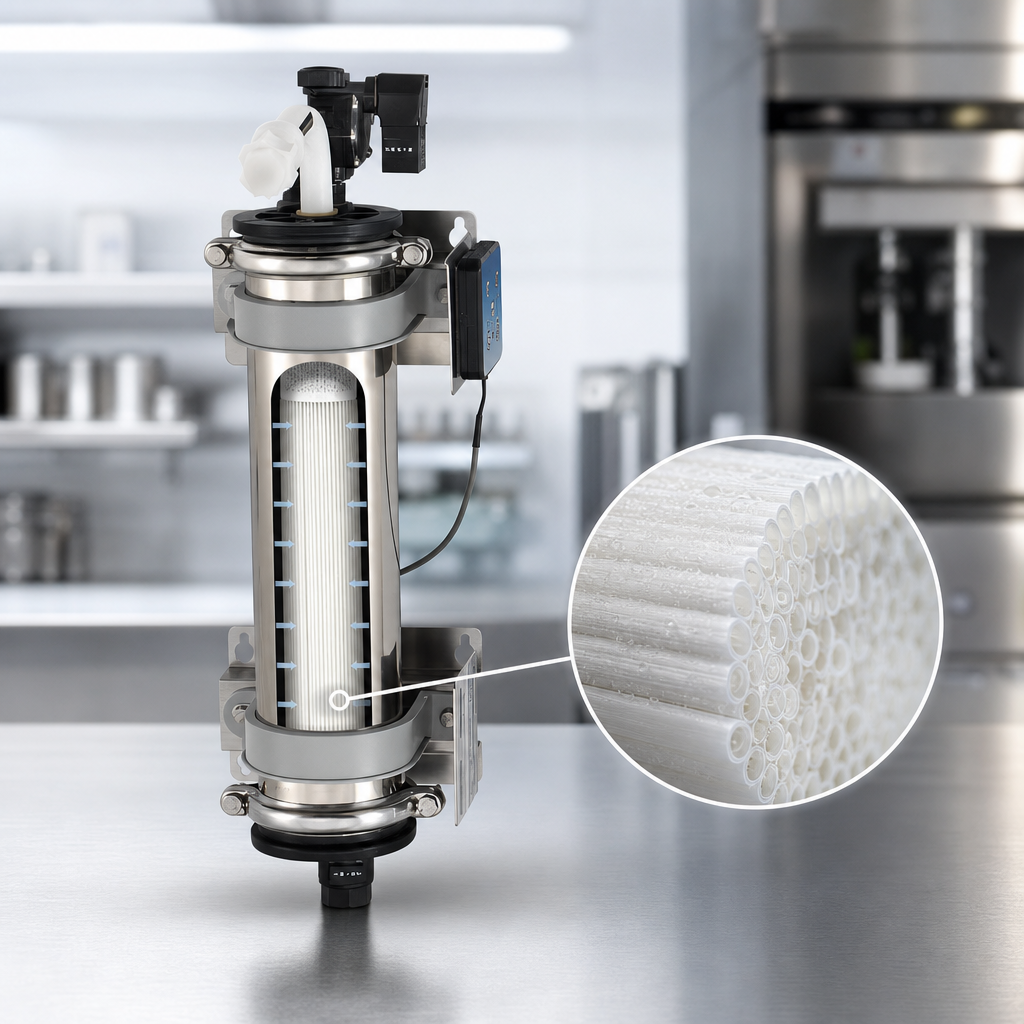

Ultrafiltration Cartridge

0.015-micron filtration substantially reduces particles for cleaner, more consistent water quality.

Self-Cleaning Design

Built-in self-cleaning helps extend ultrafilter life and reduce maintenance.

High Flow Capacity

Delivers 5.2 GPM (19 LPM) service flow for busy beverage and water applications.

Compact Footprint

Small footprint adds flexibility for easier installation in limited spaces.

Power Compatibility

Operates on 100-240V, 50/60 Hz, single-phase power with a 10-watt draw.

Plumbing Connections

Uses 3/4 Inch FNPT inlet, outlet, and drain connections.

Global Plug Adapters

Includes plug adapters for US, Europe, Australia, and UK outlets.

Optional Flush Tank Kit

Flush Tank Kit P/N 7000472 is highly recommended to improve flushing and extend ultrafilter life.

Type Ultrafiltration System
Style Cartridge
Capacity 1,000 Gallons and Under
Micron Rating 0.015 Micron
Service Flow Rate 5.2 GPM (19 LPM)
Maximum Operating Pressure 100 psig (690 kPa)
Temperature Range Up to 104°F (40°C)
pH Range 3 to 10
MWCO 100 kD
Water Connection Required
Drain Connection Required
Water Inlet Size 3/4 Inch FNPT
Drain Connection Size 3/4 Inch FNPT
Voltage 100-240 Volts
Hertz 50/60 Hz
Phase 1-Phase
Watts 10 Watts
Amps 0.04 Amps
Plug Type Cord with Plug Adapters
Selling Unit Each
Units Per Case 1
Shipping Width 12 Inches
Shipping Depth 7 Inches
Shipping Height 23 Inches
Shipping Weight 19 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The UFL-510 has a maximum flow rate of 5.2 GPM (19 LPM).
It uses 3/4 Inch FNPT inlet, outlet, and drain connections.
Yes. The system is self-cleaning, which helps extend ultrafilter life and reduce maintenance.
It operates on 100-240V, 50/60 Hz, single-phase power and draws 10 watts.
Replacement cartridge 7001915 (L-510) is used in the UFL-510.
Yes. Plug adapters for US, Europe, Australia, and UK outlets are included.
