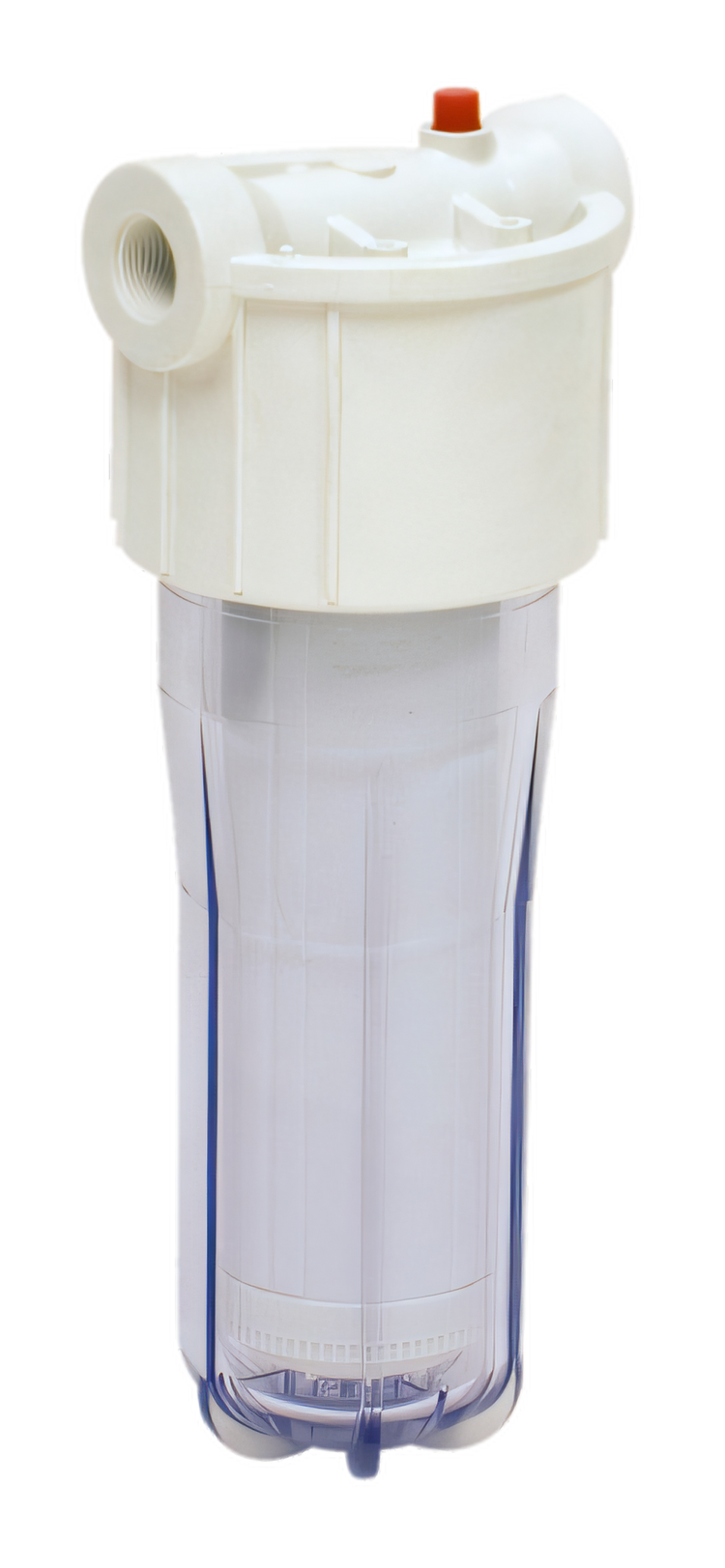

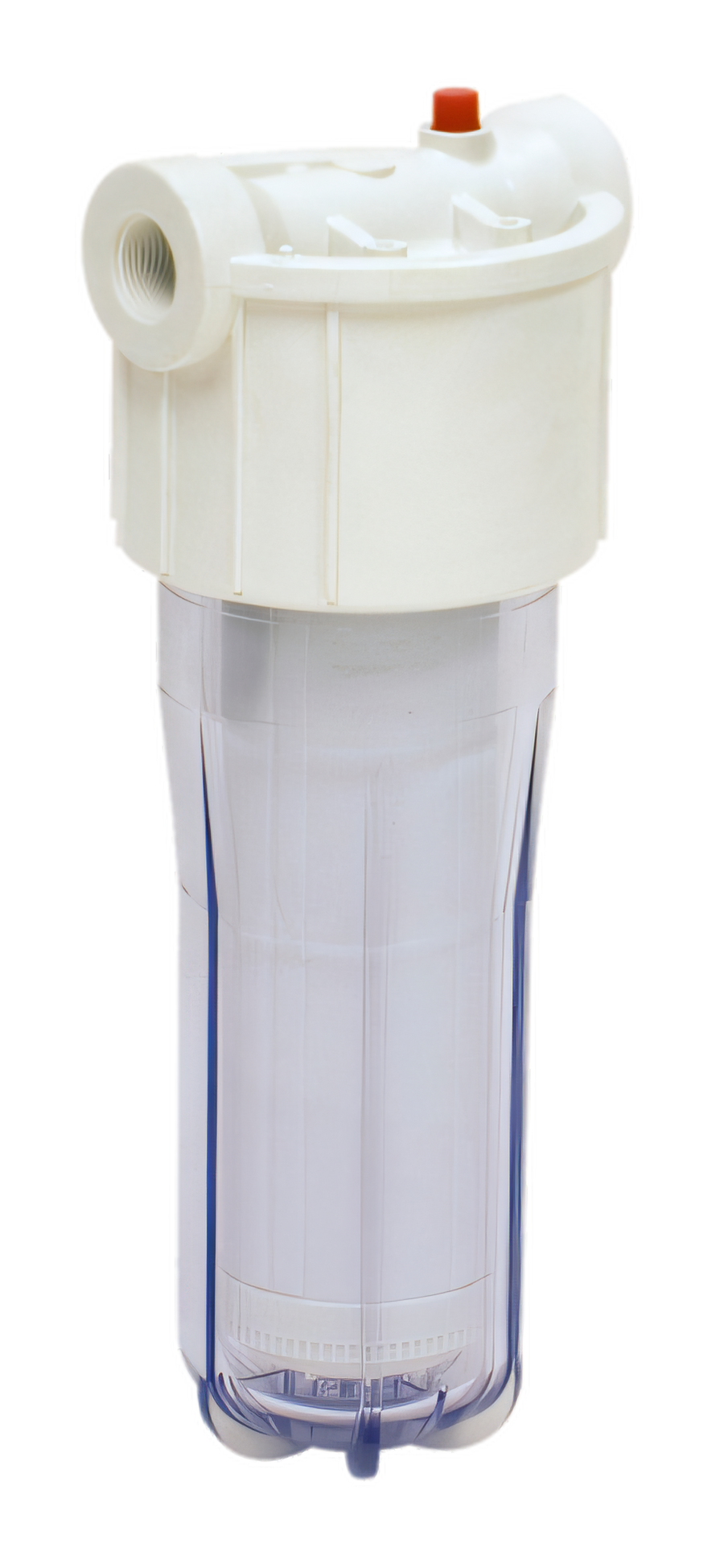

Antunes TAC-01 Template Assisted Crystallization Water Treatment System, 1 GPM

3/4" FNPT Inlet/Outlet, Chemical-Free Scale Control

Protect beverage and cooking equipment from lime scale without chemicals, salt, or wastewater.

  • Reduces lime scale deposits by 96-98% to help protect foodservice equipment and lower maintenance needs.
  • Uses template-assisted crystallization technology to convert hardness minerals into inactive microscopic crystals.
  • No chemicals, salt, regenerants, or electricity required for simple, low-maintenance operation.
  • No cleaning cycle and no water waste, helping preserve water and reduce operating costs.
  • 1 GPM flow rate with 3/4" FNPT inlet and outlet connections for point-of-use installation.
  • Helps maintain good water minerals and avoids off tastes in drinks.

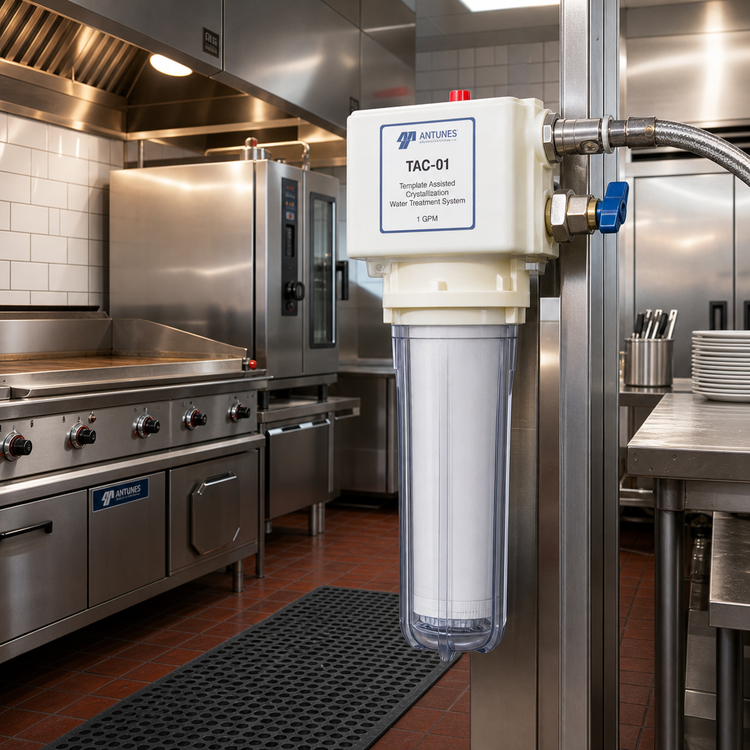

  • Suitable for coffee and tea brewers, steamers, RO pretreatment, humidifiers, and tankless water heaters.

Overall Dimensions:

5.5"W x 6.5"D x 15.5"H

Product Weight:

8.0 lb

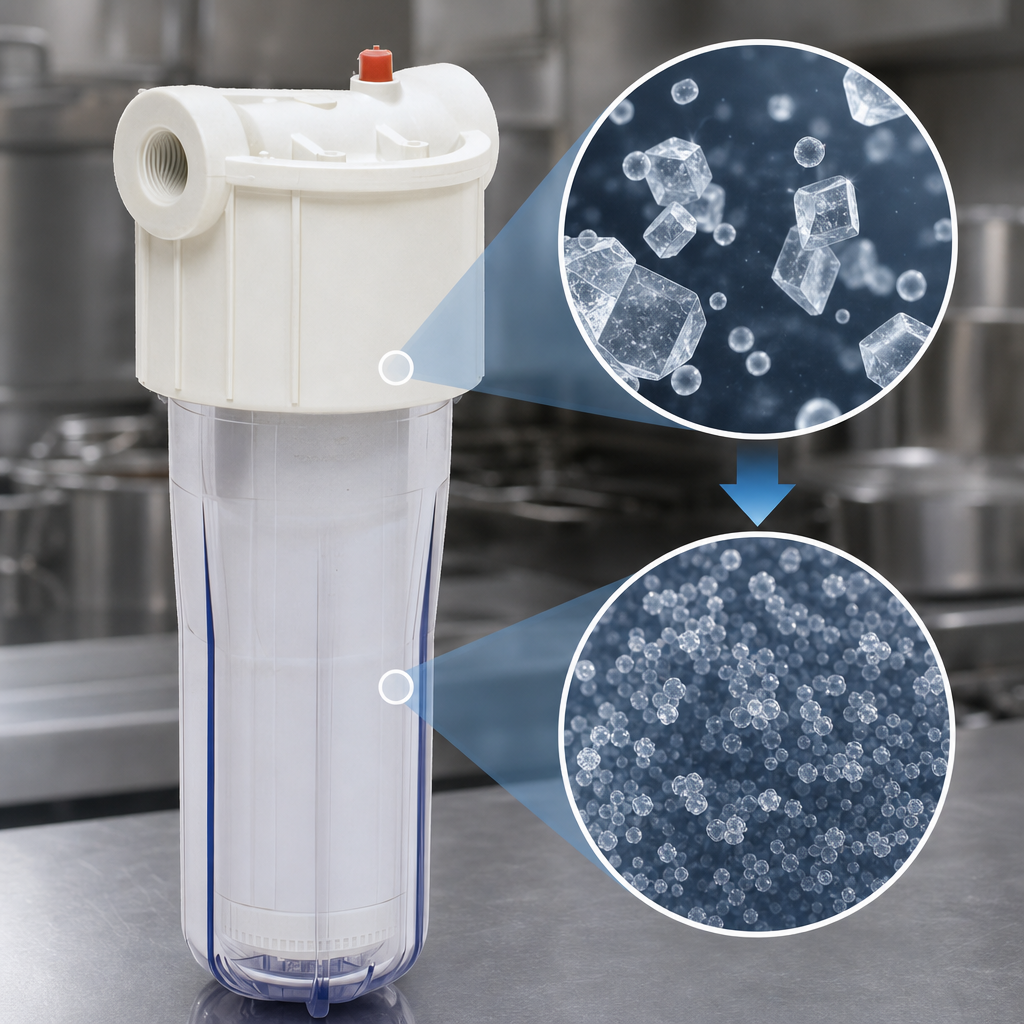

Template Assisted Crystallization Technology

Uses TAC media to transform hardness minerals into microscopic crystals that are isolated from the water chemistry and less likely to form scale.

Template Assisted Crystallization Technology

Scale Reduction Performance

Helps reduce lime scale deposits by 96-98%, improving equipment protection and reducing service needs.

Chemical-Free Treatment

Treats water without chemicals, salt, or other regenerates, helping preserve beverage taste and water quality.

No Cleaning Or Water Waste

Requires no cleaning cycle, so it does not waste water during maintenance.

No Electricity Required

Operates without a control valve or electrical connection, simplifying installation and use.

Long-Lasting Media

Designed for extended service life with a 5-second contact time regardless of hardness level.

Point-Of-Use Flow Capacity

Provides a 1 GPM flow rate for equipment protection at the point of use.

Type Template Assisted Crystallization System
Capacity 1,000 Gallons and Under
Flow Rate 1 Gallon Per Minute (3.8 Liters Per Minute)
Water Inlet Size 3/4 Inch FNPT
Water Outlet Size 3/4 Inch FNPT
Shipping Width 6 Inches
Shipping Depth 7 Inches
Shipping Height 16 Inches
Shipping Weight 8 Pounds
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It uses template-assisted crystallization to convert hardness minerals into inactive microscopic crystals that are less likely to adhere as lime scale.
No. The documentation states that it adds no chemicals and requires no salt or other regenerates.
No. The system operates without electricity and does not use a control valve.
The TAC-01 model is rated at 1 GPM (3.8 LPM).
It is recommended for coffee and tea brewers, steamers, RO pretreatment, humidifiers, evaporative cooling, and instantaneous or tankless water heaters.
Yes. The documentation lists pH 6.5 to 8.5, temperature 41°F to 100°F, chlorine under 3 ppm, iron at 0.3 mg/l, manganese at 1.3 mg/l, copper at 1.3 mg/l, and oil/H2S should be removed before TAC.
