Antunes HRS-200 9700562 Espresso Machine Hardness Reduction System, 4,528-Gallon Capacity, 0.5 GPM, 29-116 PSI
$653.51
/each
Ships in 21–24 business days
- Working pressure
- 29-116 psi (2-8 bar)
- Flow rate
- 0.5 gpm (1.9 lpm)
- Operating water temperature
- 39-86°F (4-30°C)
- Ambient temperature
- 38-100°F (4-40°C)
- Capacity with steam generation
- 4,528 US gal. (17,140 l), at 7 GPG/125 ppm CaCO3 (7°dKH)
- Capacity without steam generation
- 5,434 US gal. (20,570 l), at 7 GPG/125 ppm CaCO3 (7°dKH)
Specifications
Working pressure
29-116 psi (2-8 bar)
Flow rate
0.5 gpm (1.9 lpm)
Operating water temperature
39-86°F (4-30°C)
Ambient temperature
38-100°F (4-40°C)
Capacity with steam generation
4,528 US gal. (17,140 l), at 7 GPG/125 ppm CaCO3 (7°dKH)
Capacity without steam generation
5,434 US gal. (20,570 l), at 7 GPG/125 ppm CaCO3 (7°dKH)
Capacity for combi steamer/oven
3,434 US gal. (13,000 l), at 7 GPG/125 ppm CaCO3 (7°dKH)
Capacity for chlorine, taste and odor reduction
9,510 US gal. (36,000 l), at 2.0 mg/l influent concentration; chlorine reduction greater than 50%
Inlet connection
3/8-inch BSP male
Outlet connection
3/8-inch BSP male
Process
5-step process to remove scale-forming ions
Description

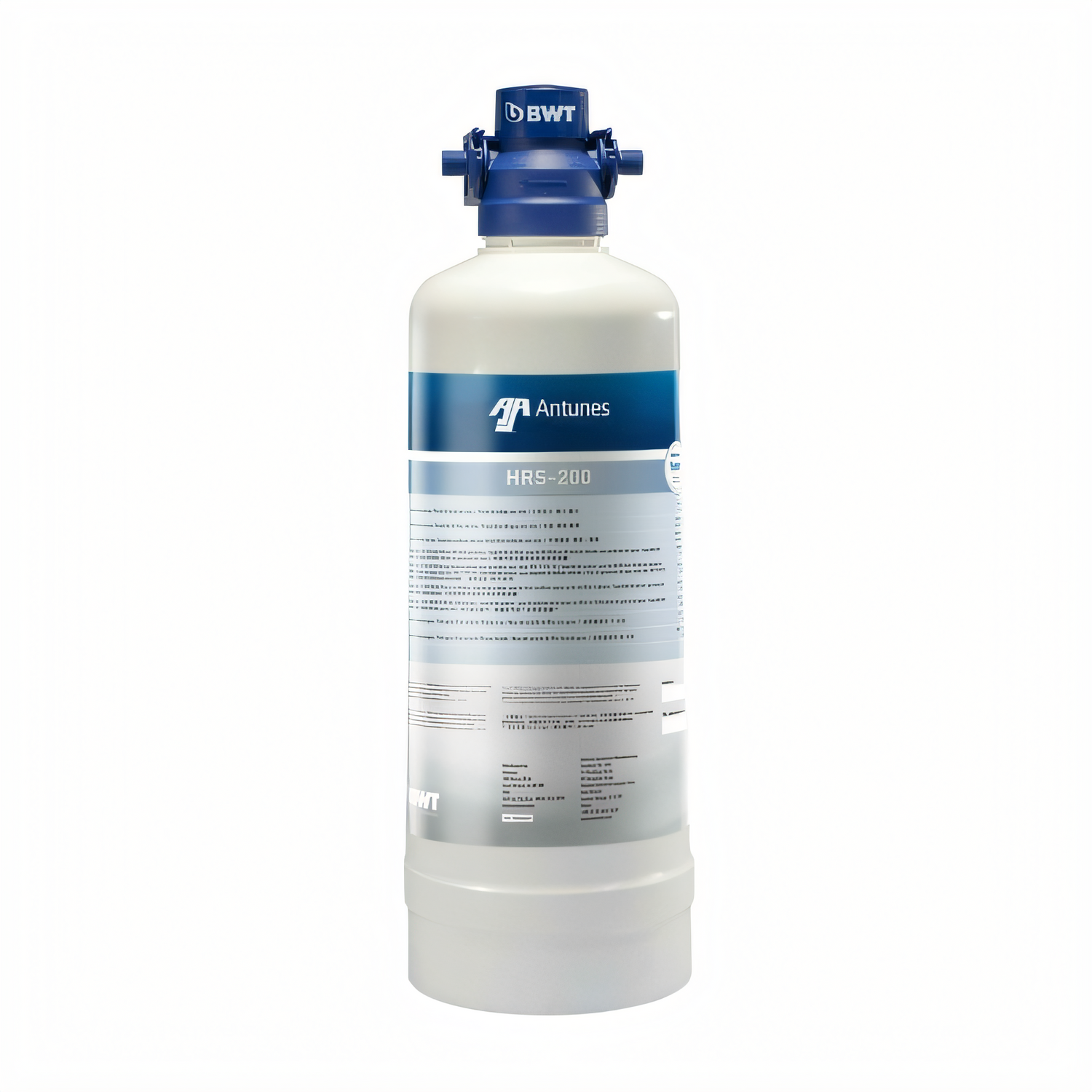

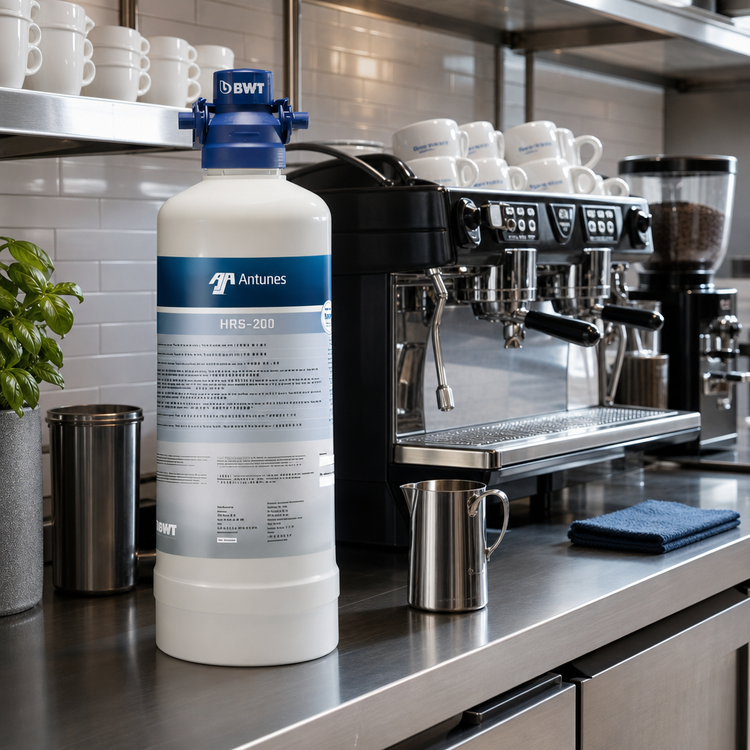

The Antunes HRS-200 9700562 is a hardness reduction system for espresso-based coffee and steam equipment.
- Uses a five-step process to remove scale-forming ions and inhibit lime scale buildup.
- Provides a 0.5 gpm flow rate and 4,528 US gal. capacity with steam generation.
- Includes a flush valve, carbonate hardness kit, and fittings for 1/2-inch ID hose and/or 3/8-inch OD tubing.
Overall Dimensions:
7.25"W x 7.25"D x 23.63"HProduct Weight:

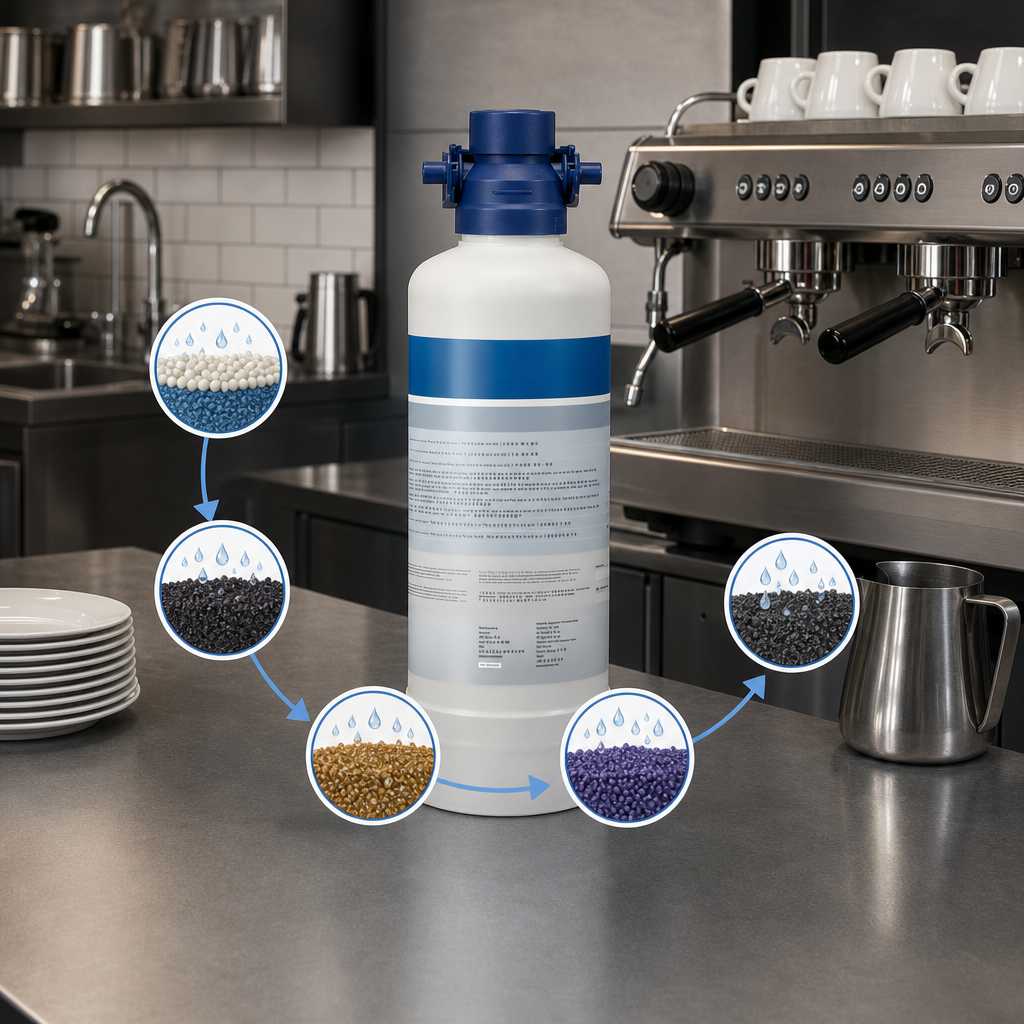

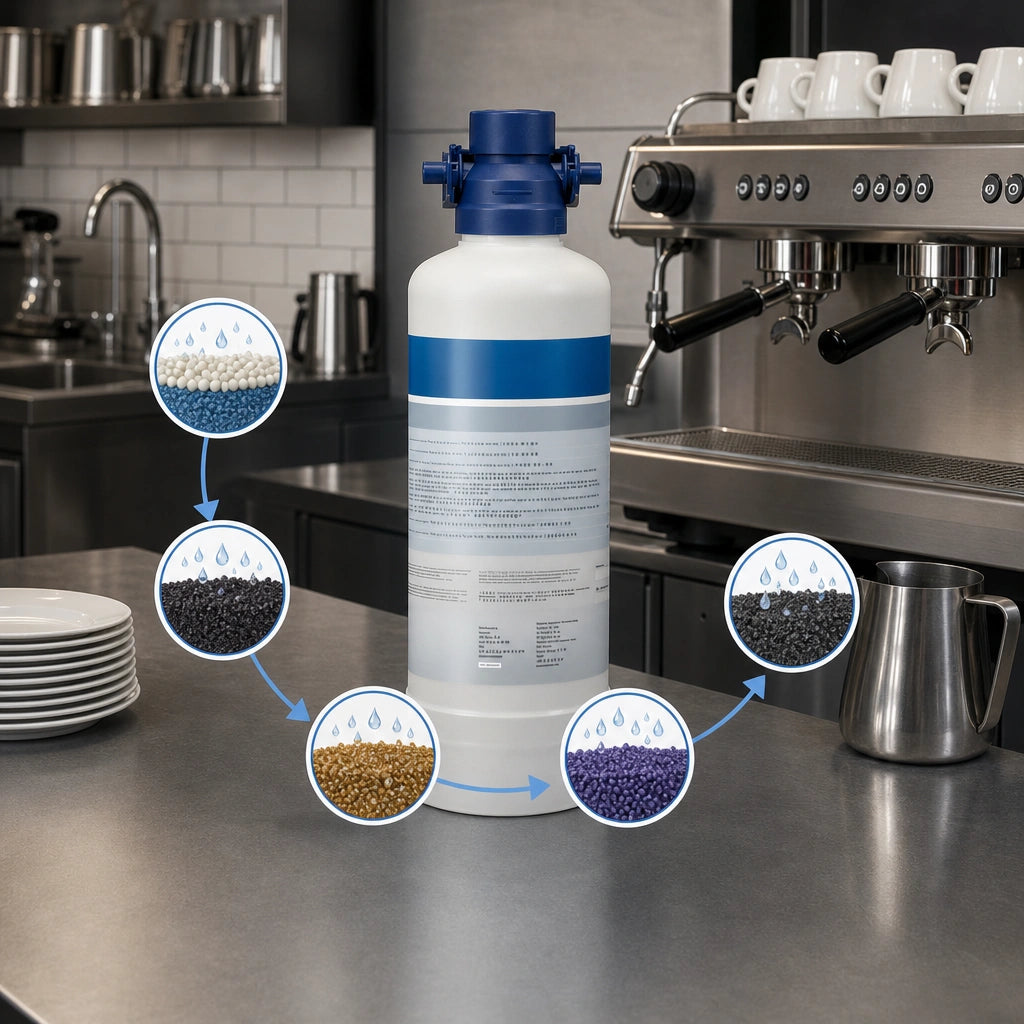

21.0 lbFive-step ion removal
Uses a five-step process to remove scale-forming ions and inhibit lime scale buildup.
Blend setting
Allows the level of hardness reduction to be specified.
Cartridge changeouts
The installation package includes the filter and head for quick and sanitary cartridge changeouts.
Installation orientation
Can be installed and operated horizontally or vertically.
Included connection components
Includes a flush valve, carbonate hardness kit, and fittings for 1/2-inch ID hose and/or 3/8-inch OD tubing.
Applications
Designed for espresso machines, combi ovens and steamers, and flash surface steamers.
Documentation
Frequently Asked Questions
It is designed for espresso machines, combi ovens and steamers, and flash surface steamers.
The flow rate is 0.5 gpm (1.9 lpm).
Working pressure is 29-116 psi (2-8 bar), and operating water temperature is 39-86°F (4-30°C).
Yes. The system can be installed and operated horizontally or vertically.
The system includes a flush valve, carbonate hardness kit, and fittings for 1/2-inch ID hose and/or 3/8-inch OD tubing.
For best results, it should be installed after an ultrafiltration system.
