AMPTO Mecnosud SP501 Spiral Dough Mixer, 2-speed spiral hook and bowl rotation, 66 lb. flour capacity, 110 lb. dough capacity, 74 qt. (70 liter)
- Bowl capacity
- 74 qt. (70 L)
- Bowl type
- Fixed
- Bowl material
- Stainless steel
- Flour capacity
- 66 lb.
- Dough capacity
- 110 lb.
- Dough capacity basis
- Calculated with 60% hydration; maximum capacity may vary depending on ingredients
Specifications
Description

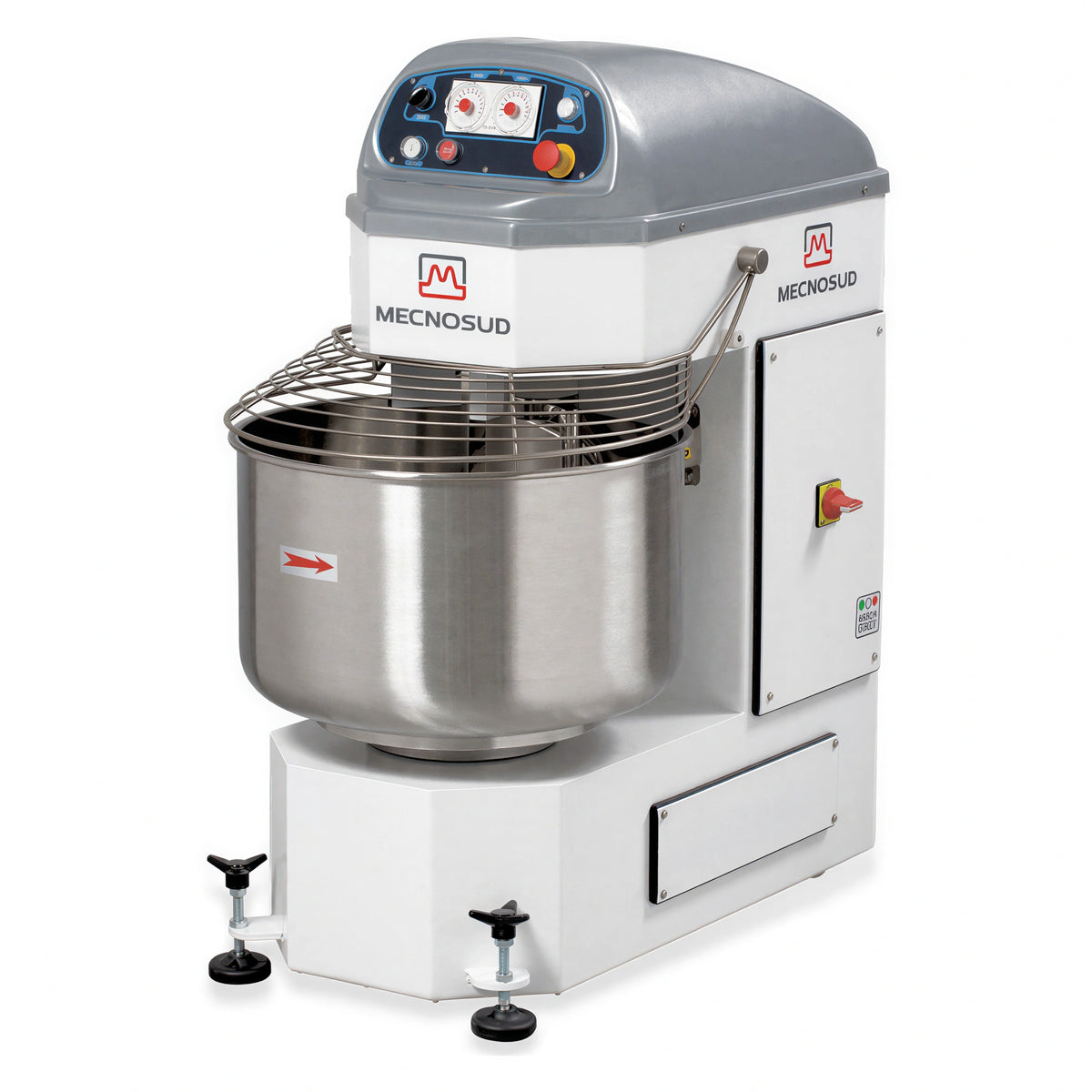

The Mecnosud SP501 is a spiral dough mixer with a fixed 74 qt. (70 L) stainless steel bowl, 66 lb. flour capacity, and 110 lb. dough capacity.
- Two-speed spiral hook and bowl rotation with timer controls.
- Safety lift guard, heavy-duty belt drive transmission, and a 4 HP single motor.
- White painted steel frame with casters.
- 220 V / 60 Hz / 3 ph electrical specification with 11 A draw and hardwire connection; no plug.
- Listed attachments include a bowl guard, dough hook, kneading bar, and bowl.
The documented dough capacity is calculated with 60% hydration, and maximum capacity may vary with ingredients.
Overall Dimensions:
48.4"W x 21.7"D x 40.2"HProduct Weight:
661.0 lbTwo-speed spiral mixing
The spiral hook and bowl rotate at two speeds.
Stainless steel bowl
The fixed bowl has a 74 qt. (70 L) capacity and is made of stainless steel.
Safety lift guard
The mixer includes a safety lift guard.
Timer controls
Timer controls are specified for the mixer.
Motor
A 4 HP single motor powers the mixer.
Belt drive transmission
The mixer uses a heavy-duty belt drive transmission.
Frame and casters
The frame is white painted steel and the mixer has casters.
Electrical connection
The unit is specified for 220 V / 60 Hz / 3 ph service, draws 11 A, and uses a hardwire connection with no plug.
Listed attachments
Bowl guard, dough hook, kneading bar, and bowl are listed.
