Key specifications
- Amps
- 13 Amps
- Phase
- 1-Phase
- Dimensions
- 33.88"W × 30.75"D × 37.75"H
- Type
- Blast Chiller
- Style
- Reach-In
- Installation Type
- Floor Model
Spec sheet
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

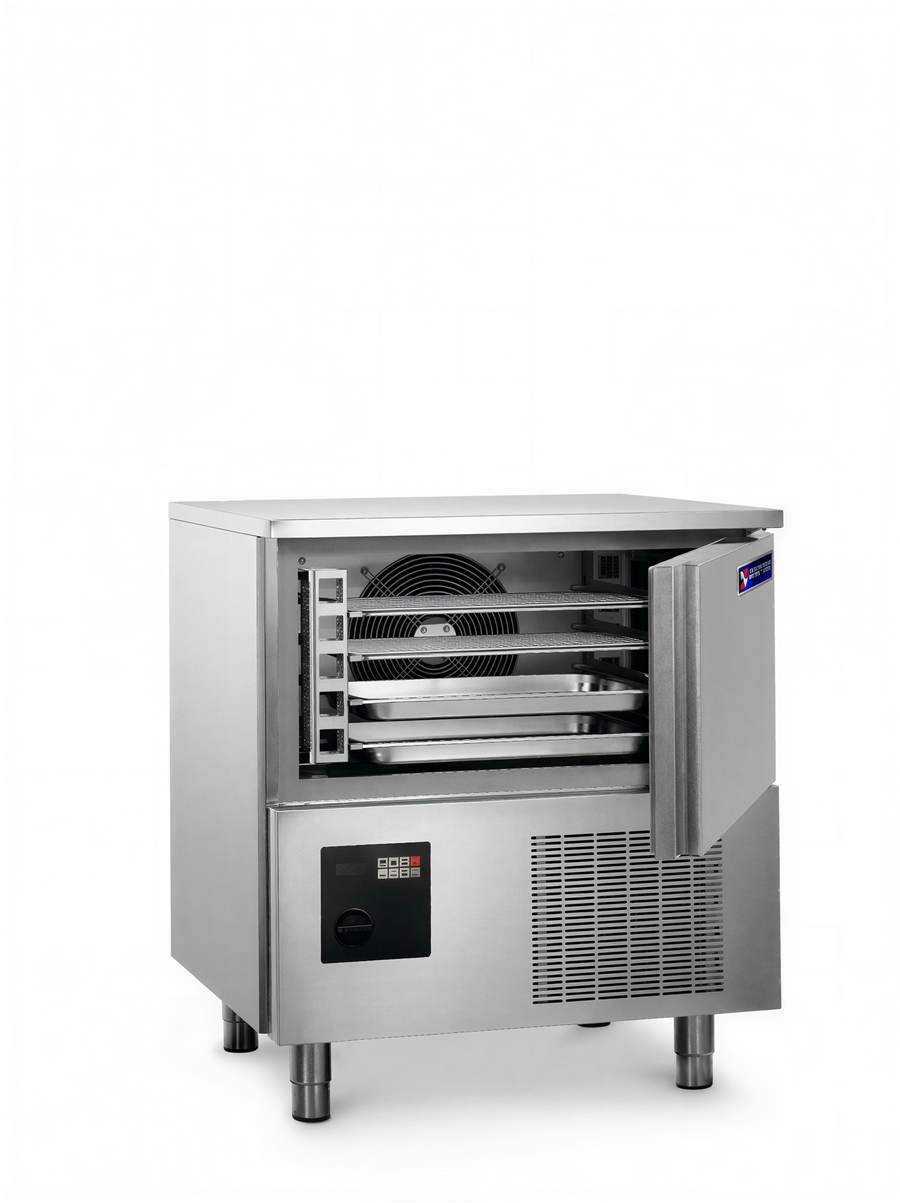

AMPTO ABT-5US is a single-section, self-contained reach-in blast chiller/freezer with capacity for five 18 in x 26 in pans or five GN1/1 trays.
- Provides 57 lb chilling capacity and 35 lb freezing capacity.
- Chilling range: 149°F to 37°F; freezing range: 149°F to 0°F.
- Features stainless steel interior and exterior construction, a solid hinged door, and adjustable stainless steel legs.
- Includes tray supports, a timer, and a temperature probe. Trays are not included.
- Uses automatic defrost with pause and self-contained R404A refrigeration.
The unit operates at 110 Volts, 13 Amps, 1.54 kW, 60 Hz, single-phase, with a NEMA 5-20P plug. Made in Italy.
Overall Dimensions:
33.88"W x 30.75"D x 37.75"HProduct Weight:
277.0 lb5-Pan Capacity
Supports five 18 in x 26 in pans or five GN1/1 trays.
Chilling and Freezing Modes
Provides 57 lb chilling capacity and 35 lb freezing capacity, with separate chilling and freezing temperature ranges.
Timer and Temperature Probe
Working cycle can be controlled by time or core probe; the timer and temperature probe are included.
Automatic Defrost
Automatic defrost system includes the ability to pause.
Stainless Steel Construction
The interior and exterior are stainless steel.
Tray Supports
Tray supports are included; trays are not included.
Solid Hinged Door
Configured with one solid hinged door.
Adjustable Legs
Includes stainless steel adjustable legs.
