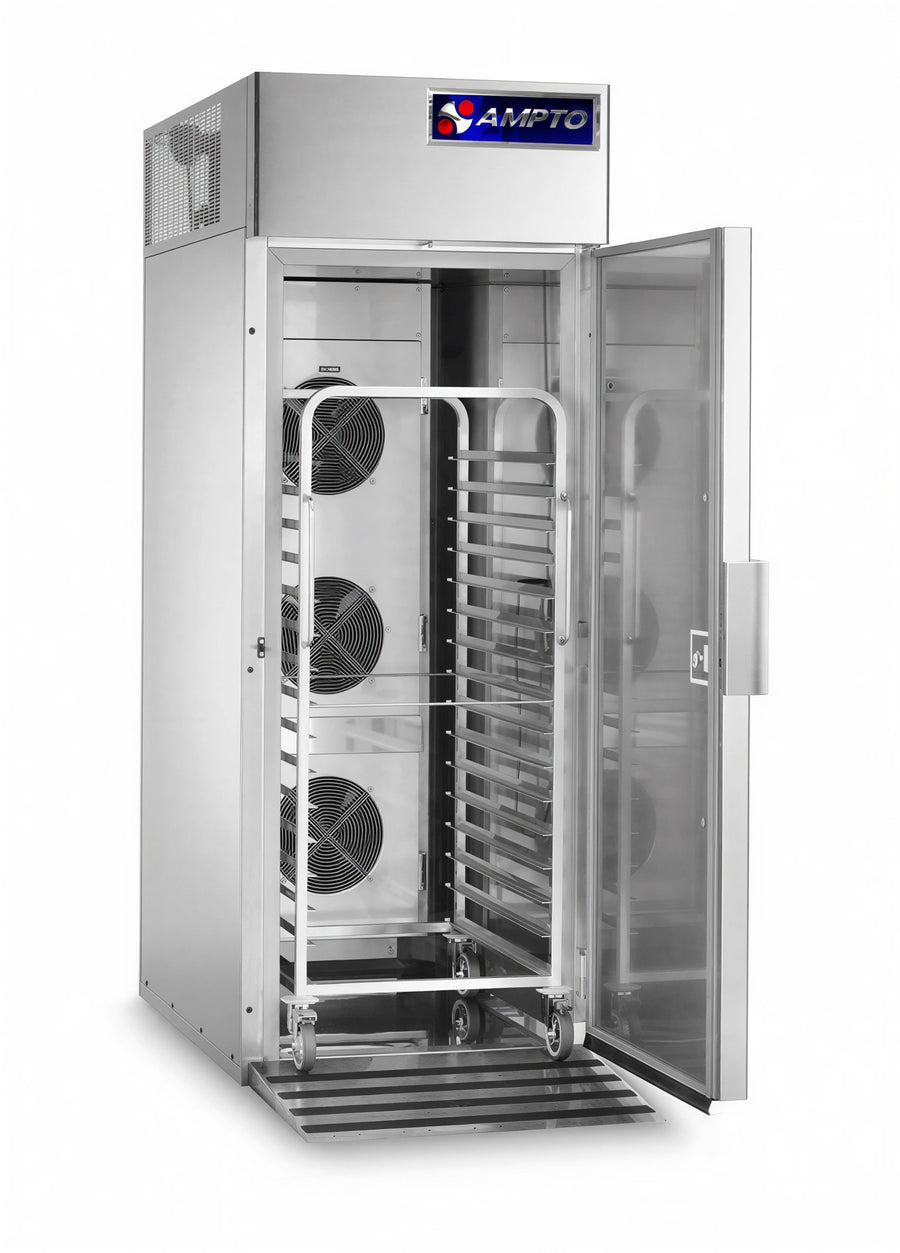

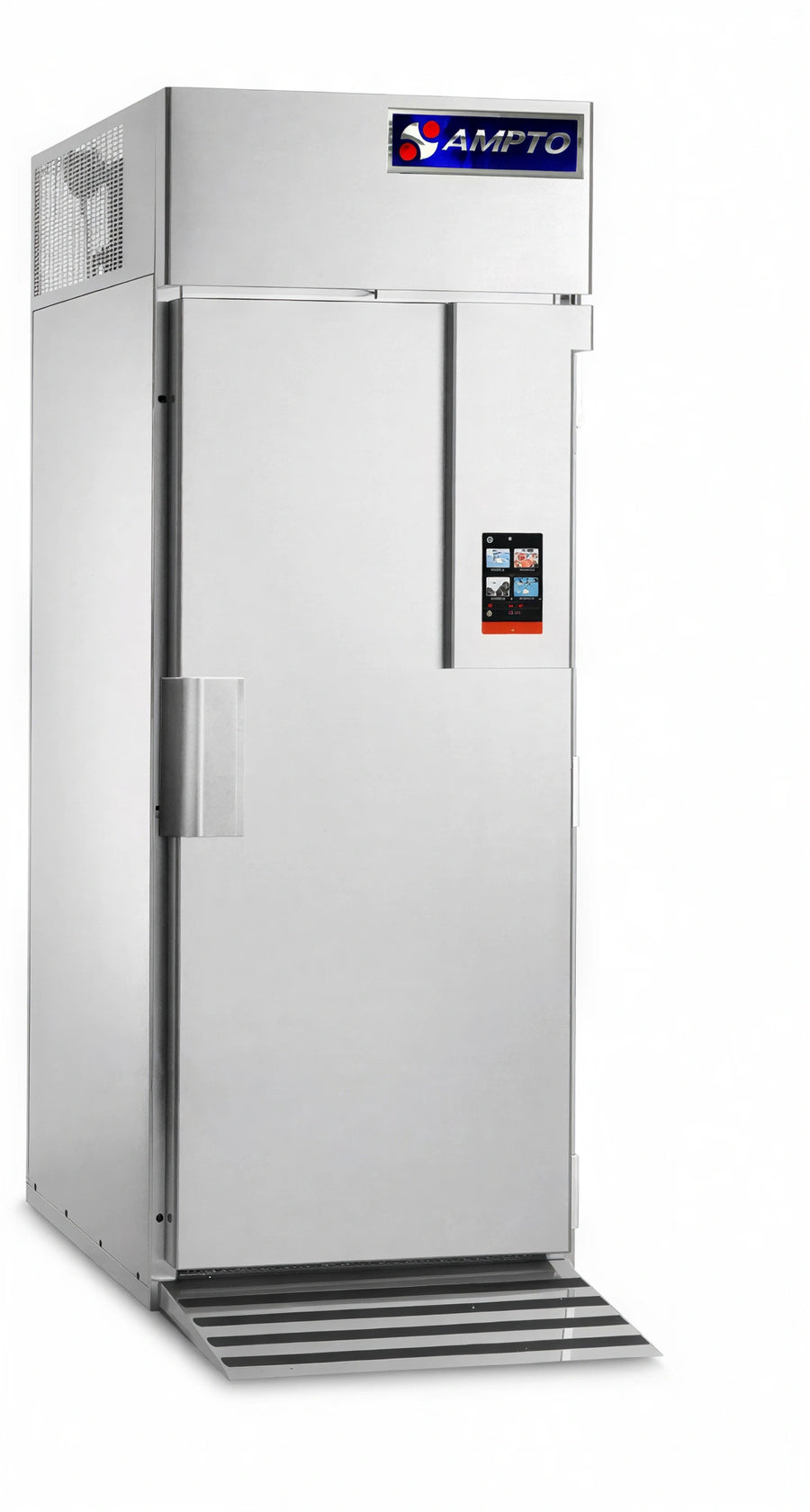

The AMPTO ABT-20US is a single-section, self-contained reach-in blast chiller/freezer for commercial food preparation.
It accommodates 20 pans measuring 18 in. x 26 in. and provides chilling capacity of 209.5 lb. or freezing capacity of 165.5 lb.
- Chilling from 197°F to 37°F and freezing from 197°F to 0°F.
- 7 in. touchscreen control panel with 8 language options and cycle programming.
- AISI 304 stainless steel interior and exterior with 7 in. insulation in the walls, top, and floor.
- Includes a 20-1/2 in. ramp, core probe, and solid hinged door.
- Drain required; supplied without a plug or cord.
Overall Dimensions:
35.62"W x 52.0"D x 95.25"HProduct Weight:
210.0 lbBlast chilling and freezing
Provides a chilling cycle from 197°F to 37°F and a freezing cycle from 197°F to 0°F.
20-pan capacity
Accommodates 20 pans measuring 18 in. x 26 in., with a rack or trolley capacity of 1.
Touchscreen control
The 7 in. touchscreen digital control panel offers 8 language options.
Programmable cycles
Customized blast chilling cycles can be programmed with four distinct phases based on time, room temperature, product temperature, and ventilation.
Core-probe operation
Includes a core probe with automatic probe detection for probe-mode operation.
Drying and sanitizing cycles
Includes a drying cycle, continuous cycle, and fish sanitizing cycle.
Fan and defrost controls
Provides fan speed control and manual or automatic defrost, including automatic defrost with pause.
USB data access
The USB port provides access to programs, receipts, historical data, HACCP information, and parameters.
Stainless steel construction
The interior and exterior use AISI 304 stainless steel, with internally rounded corners and 7 in. insulation in the walls, top, and floor.
Door features
The unit has one solid hinged door with a heated frame and threshold and a three-chamber magnetic seal.
Cleaning access
The evaporator wall is accessible to facilitate cleaning and maintenance.
Included ramp
A 20-1/2 in. ramp is specified for the unit; the cart is not included.
Certifications & Compliance
Warranty & Protection
One-year parts and labor warranty for the original purchaser in the contiguous United States, beginning from the legal dealer invoice showing the serial number and limited to no more than 18 months from factory shipment.
