AmeriKooler Quick Ship Indoor Walk-In Freezer with Floor, 7'-10" W x 9'-9 1/4" L x 7'-7" H, Top-Mount Self-Contained R-448A Refrigeration

SKU: QF081077**FBSM
$18,502.02
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

AmeriKooler Best Sellers Commercial Refrigeration Commercial Refrigerators Merchandising & Display Refrigeration New Arrivals Open-Air Coolers Refrigeration, Freezing & Ice Restaurant Equipment

AmeriKooler Quick Ship Indoor Walk-In Freezer with Floor, 7'-10" W x 9'-9 1/4" L x 7'-7" H, Top-Mount Self-Contained R-448A Refrigeration

-10°F, 4" AK-XPS4 Insulation

Built for dependable cold storage and fast installation, this indoor quick-ship walk-in freezer pairs 4" AK-XPS4 insulation with a top-mount self-contained R-448A refrigeration system and a heavy-duty flush door package.

  • Indoor quick-ship walk-in freezer with floor and a compact 7'-10" W x 9'-9 1/4" L x 7'-7" H size.
  • 4" AK-XPS4 insulation delivers R-32 freezer performance for efficient cold retention.
  • Top-mount, self-contained R-448A refrigeration is factory prewired and preassembled for 90°F ambient operation.
  • Flush self-closing door includes spring-assisted hinges, keyed deadbolt handle, safety inside release, door closer, magnetic gasket, and double sweep wiper.
  • Door jamb LED light and digital LED thermometer make daily temperature checks easy.
  • Modular panel construction and corrosion-resistant Acrylume surfaces support fast installation and long service life.
  • Standard floor panels are rated for 700 lb. per square foot of uniformly distributed load.

Overall Dimensions:

120.0"W x 96.0"D x 91.0"H

Product Weight:

1869.0 lb

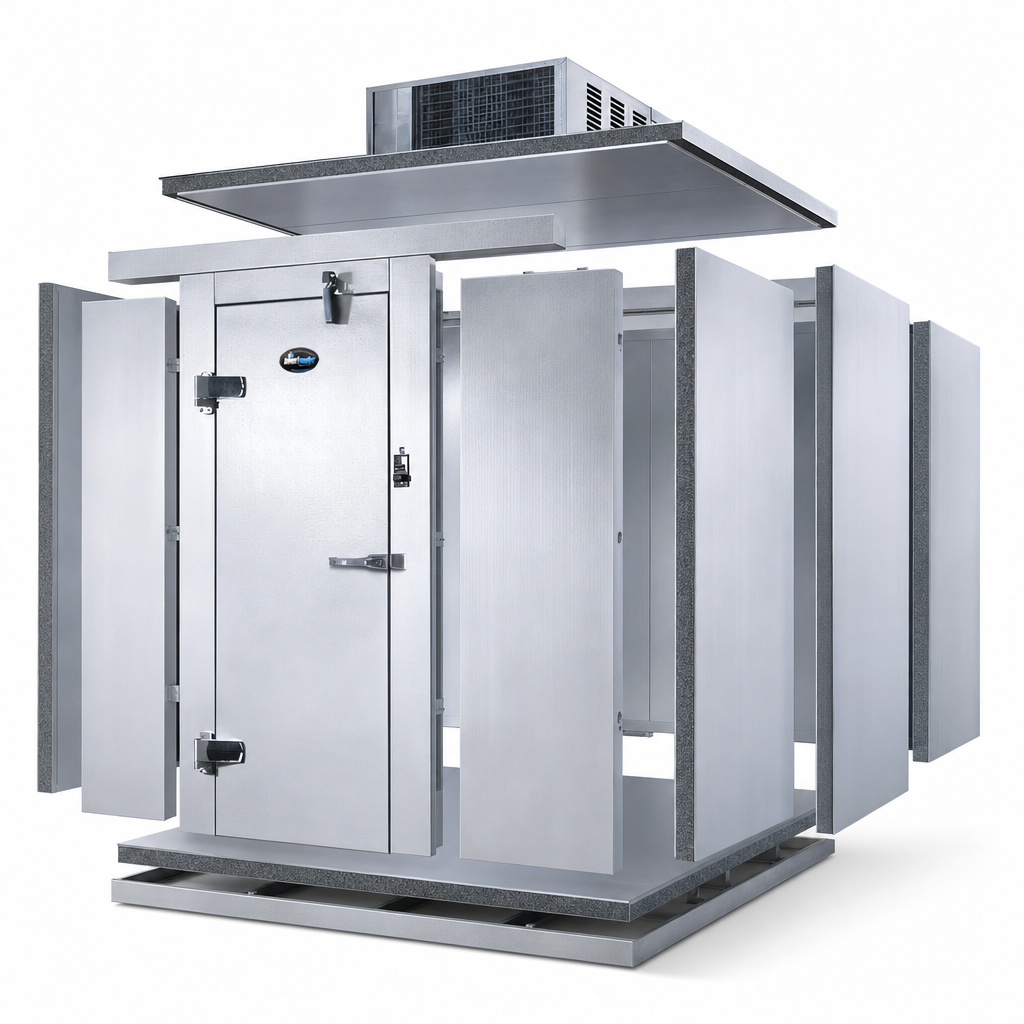

Modular Panel Construction

Prefabricated wall, ceiling, and floor panels are designed for fast field assembly, disassembly, and future enlargement.

Modular Panel Construction

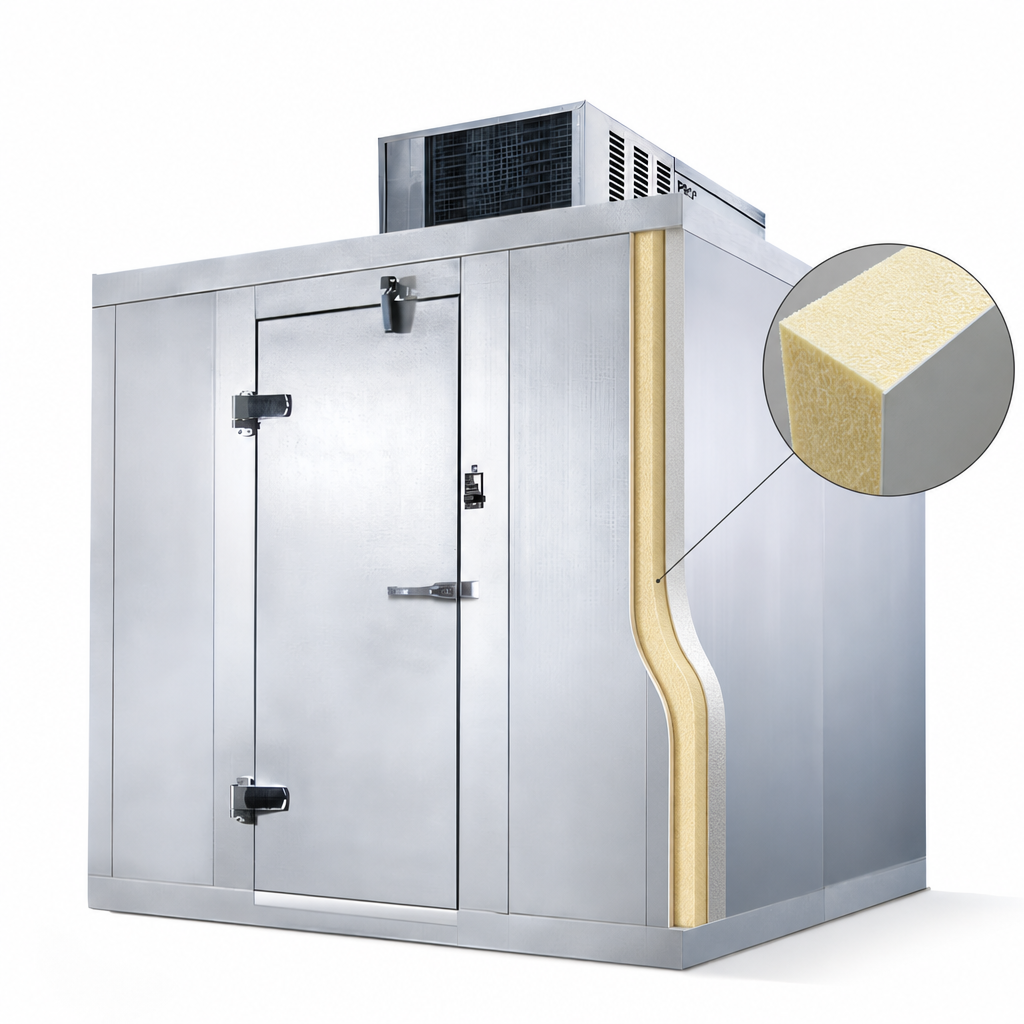

4 Inch AK-XPS4 Insulation

Closed-cell extruded polystyrene insulation provides R-32 performance for freezers and helps resist moisture absorption.

4 Inch AK-XPS4 Insulation

Acrylume Panel Surfaces

26-gauge stucco-embossed, corrosion-resistant Acrylume surfaces are used on the interior and exterior wall and ceiling panels.

Flush Self-Closing Door

The 36 in. x 76 in. swing door includes two super cam-lift spring-assisted hinges, a keyed deadbolt/padlock handle, safety inside release, door closer, magnetic gasket, and double sweep wiper.

Door Jamb LED Light And Thermometer

A center-mounted LED light fixture and digital LED thermometer with on/off pilot light switch are built into the door jamb.

Heated Freezer Door Package

The freezer door includes a heater cable with a heat-sensing regulating thermostat and a heated air pressure relief vent.

Top-Mount Self-Contained Refrigeration

Indoor R-448A refrigeration is factory prewired and preassembled, and the system is sized for 90°F ambient conditions.

Floor Load Rating

Standard floor panels are designed to support 700 lb. per square foot of uniformly distributed load.

Type Walk-In Freezer
Style Indoor Quick Ship
Installation Type Built-In
Refrigeration Type Self-Contained
Refrigerant Type R-448A
Temperature Range -10°F
Material Steel
Finish Acrylume
Shipping Width 120 Inches
Shipping Depth 96 Inches
Shipping Height 91 Inches
Shipping Weight 1,869 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

50-year thermal warranty on insulation; 15-year walls and ceilings; 5-year door and floor panels; 1-year parts and labor warranties.

Documents

PDF Cutsheet PDF Download PDF Architectural specifications (english) PDF Download PDF Flyer PDF Download PDF Architectural specifications (spanish) PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. The documentation specifies this model as an indoor quick-ship walk-in freezer.
It uses 4" AK-XPS4 rigid XPS insulation with R-32 freezer performance.
It includes an indoor, top-mount, self-contained R-448A refrigeration system sized for 90°F ambient conditions.
The door package includes spring-assisted hinges, a keyed deadbolt handle, safety inside release, door closer, magnetic gasket, double sweep wiper, LED light fixture, and digital LED thermometer.
Standard floor panels are rated to support 700 lb. per square foot of uniformly distributed load.
Standard warranty protection includes a 50-year thermal warranty on insulation, a 15-year warranty on walls and ceilings, a 5-year warranty on door and floor panels, a 1-year limited panel labor warranty, and a 1-year original parts warranty.
