American Range SPSH-18 Gas Ranges
Description

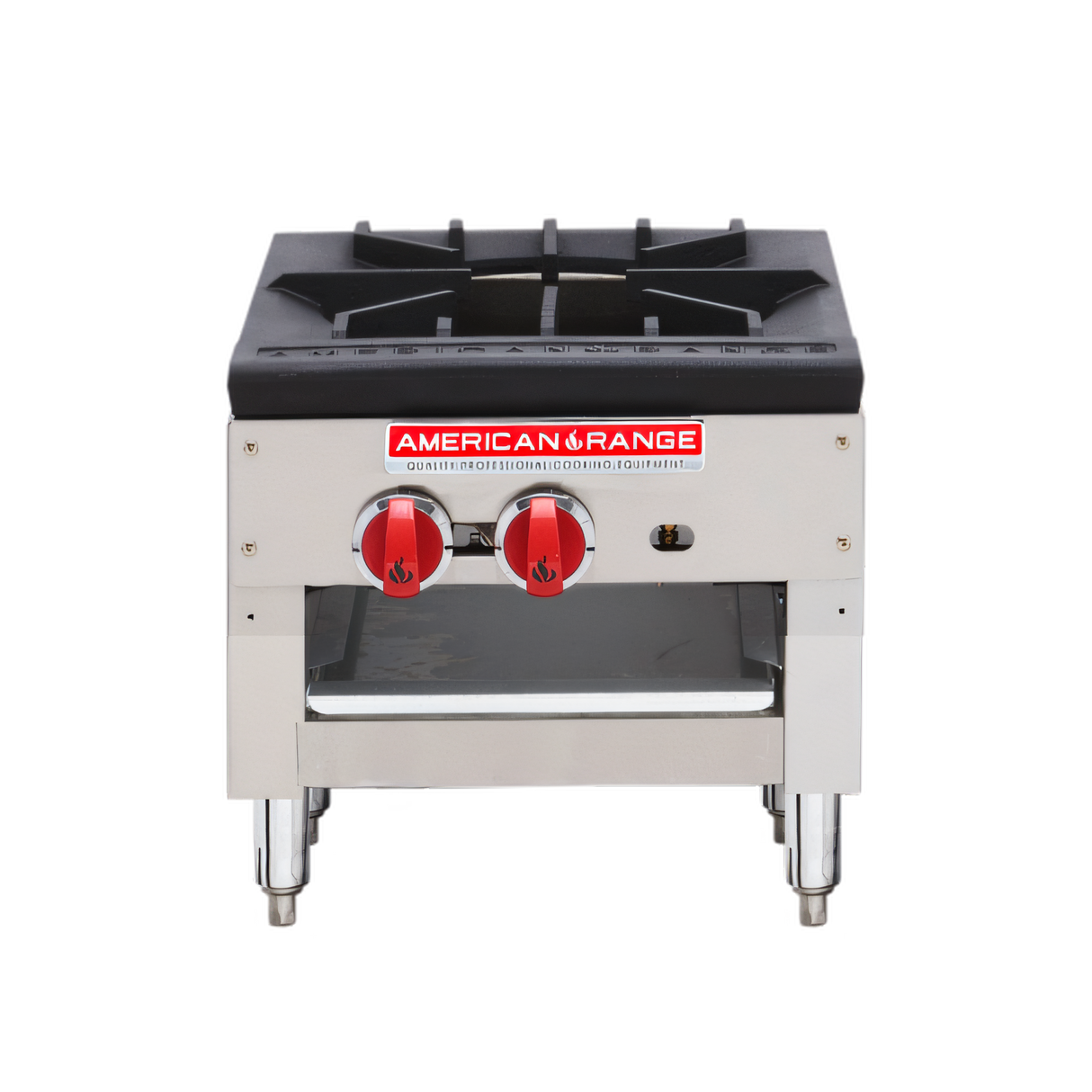

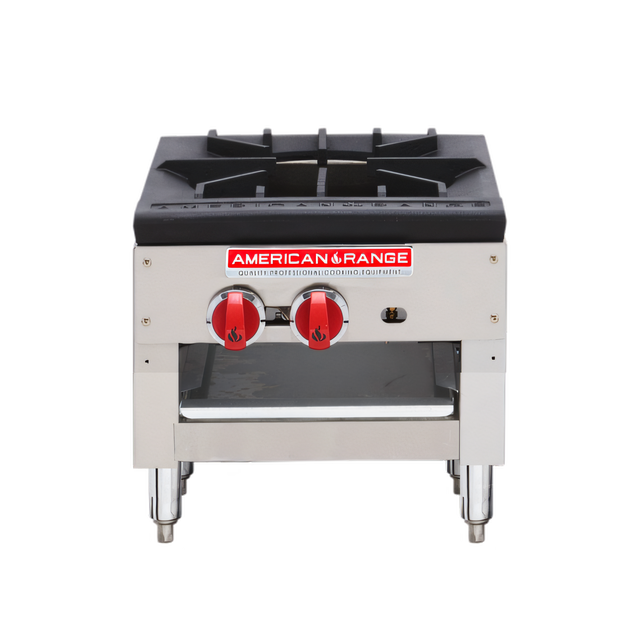

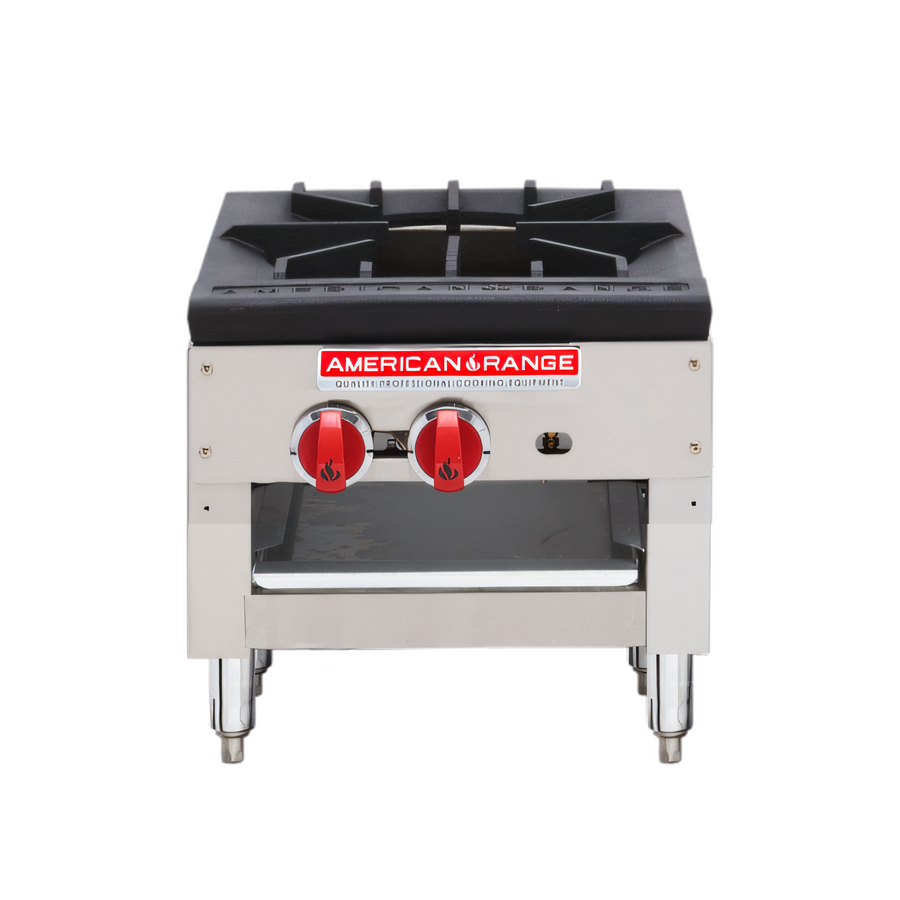

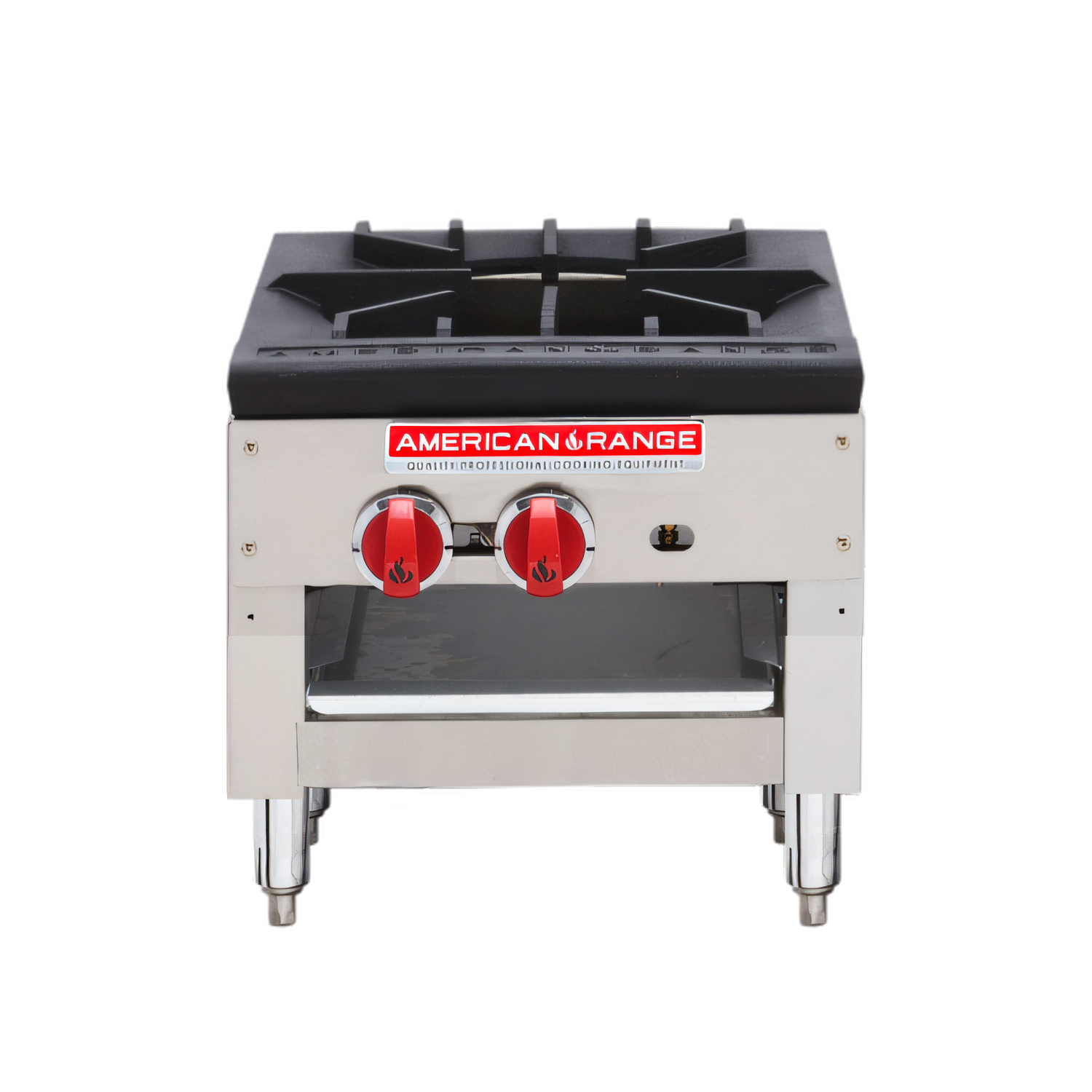

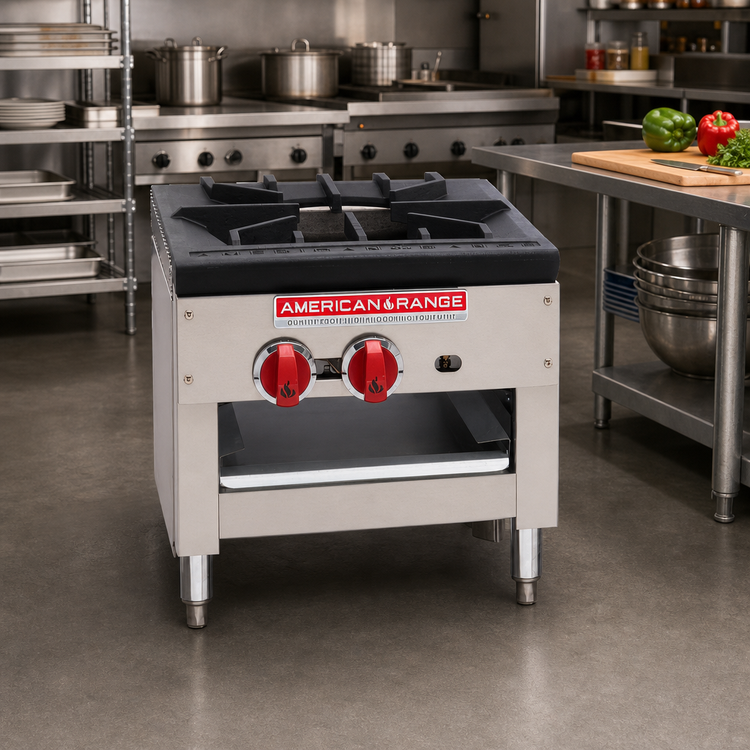

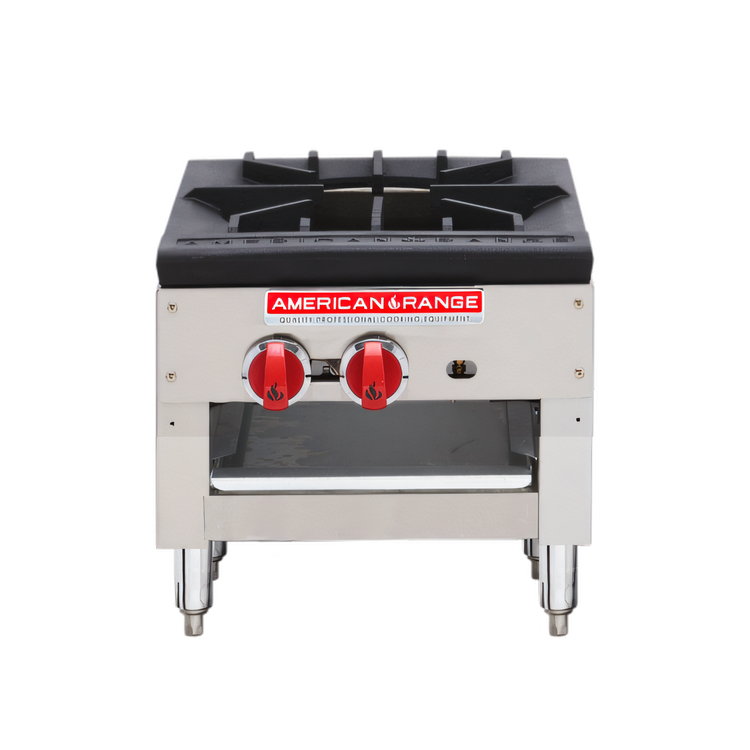

American Range SPSH-18 18" Gas Stock Pot Range
3-Ring Burner · 90,000 BTU · Made in USAEngineered for high-volume kitchens that live on rich broths, hearty soups and rolling boils, the compact SPSH-18 packs a powerful 90,000 BTU punch into an 18" footprint—freeing up valuable line space without sacrificing capacity.
Key Features

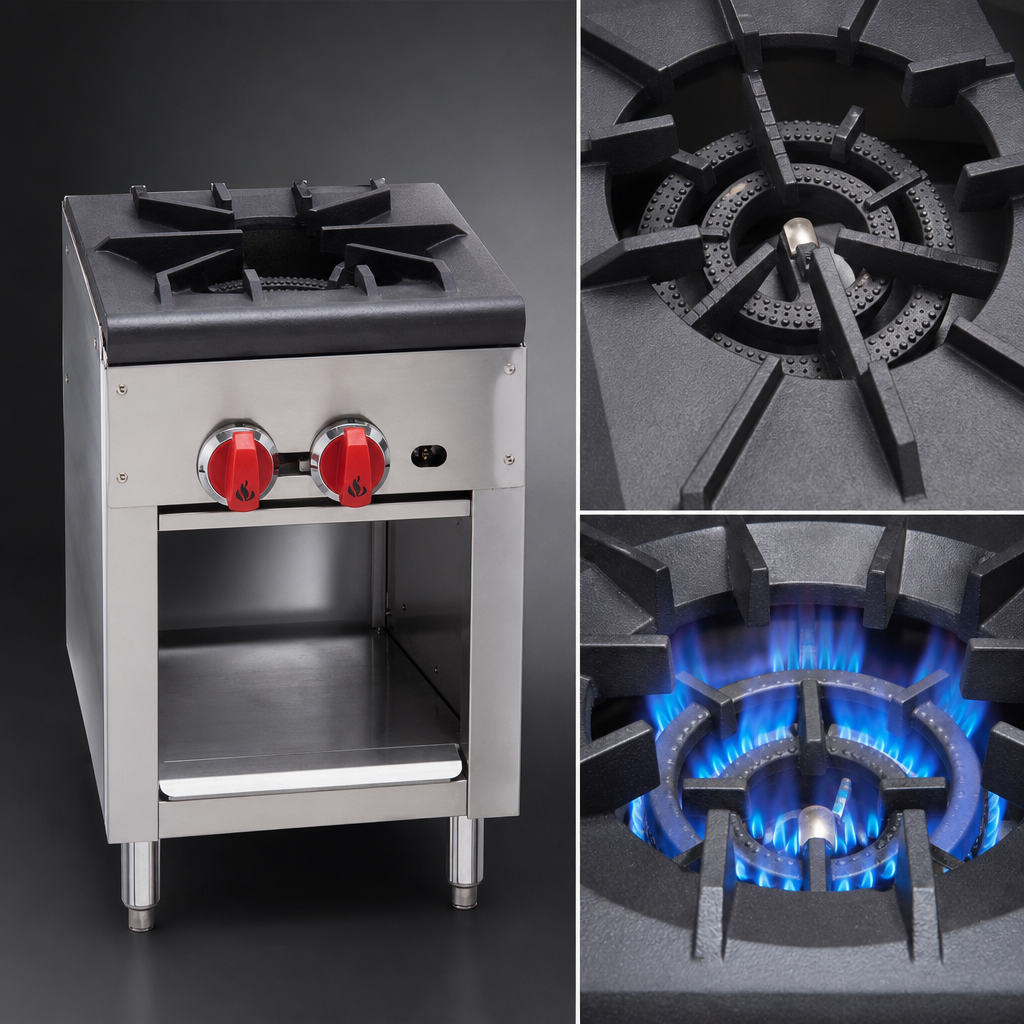

- High-output 3-ring cast-iron burner delivers 90,000 BTU/hr (26 kW).

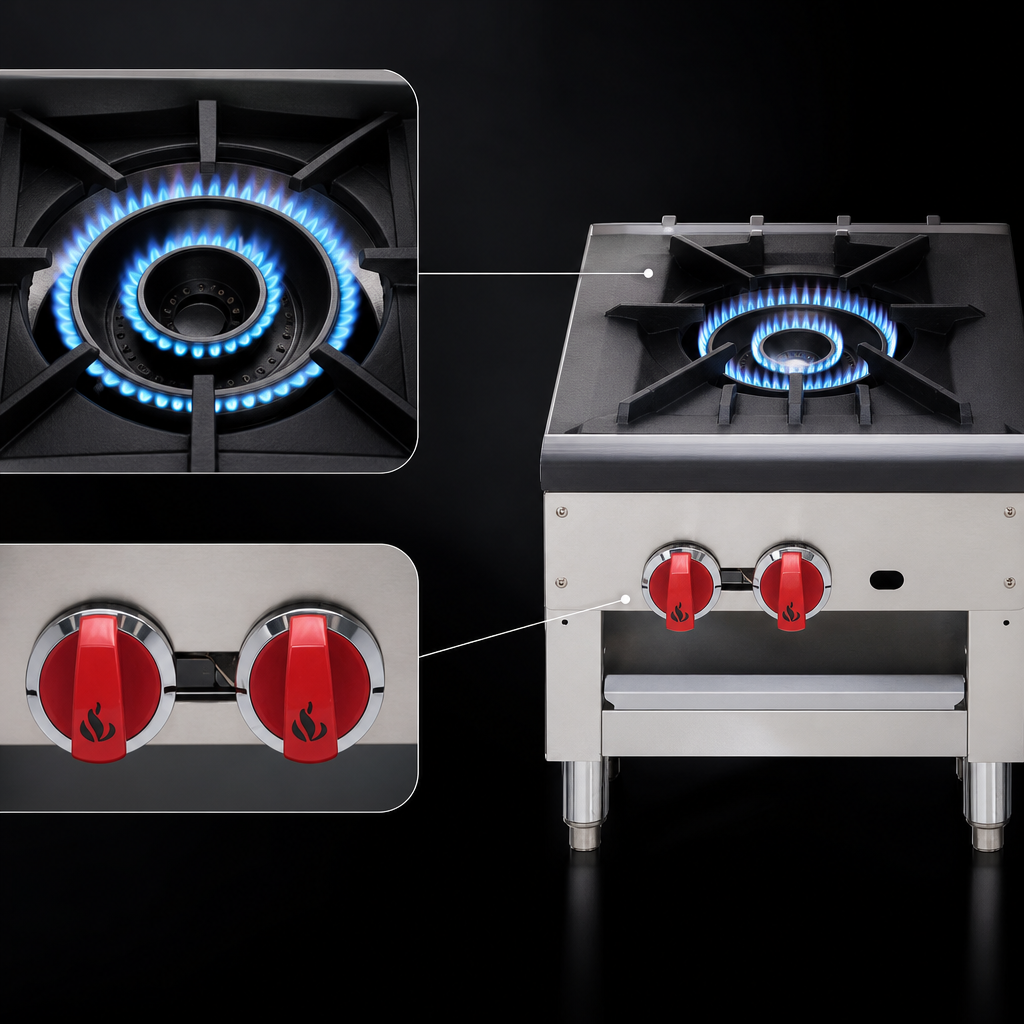

- Independent dual control valves: fine-tune inner/middle rings separately from the outer ring.
- Durable cast-iron top grate accepts heavy stock pots and woks.
- Stainless steel pilots provide instant, reliable ignition.
- Full-width removable crumb tray makes daily clean-up quick and easy.
- Open lower storage cavity keeps ladles, strainers or extra pans right where you need them.
- Heavy-gauge stainless steel front and sides stand up to the busiest commercial kitchens.
- Chrome-plated 6" legs with 3" adjustable bullet feet for easy leveling; 6" casters available.
- Field convertible for Natural Gas or Propane (LP); 3/4" NPT rear gas inlet.
- cETLus & ETL-Sanitation listed for safety and hygiene compliance.
- Designed & built in the USA and backed by a 2-year parts & labor warranty.
Specifications
| Attribute | Details |
|---|---|
| Model | SPSH-18 |
| Total BTU Input | 90,000 BTU/hr (26 kW) |
| Burner Type | Single 3-ring cast-iron burner with dual manual gas valves |
| Dimensions (W × D × H) | 18" × 21" × 18" (457 × 533 × 457 mm) – height includes 6" legs |
| Gas Connection | 3/4" NPT (rear manifold) |
| Manifold Pressure | Natural Gas: 5.0" W.C. | LP: 10.0" W.C. |
| Clearances – Combustible | 12" sides, 4" rear (0" on non-combustible surfaces) |
| Shipping Weight | Approx. 130 lb (59 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year limited parts & labor |
| Country of Origin | Made in USA |
What’s in the Box
- SPSH-18 stock pot range with 6" legs installed
- Cast-iron three-ring top grate
- Removable full-width crumb tray
- Factory-installed pilots, knobs & valves
- Installation & operation manual
Register your range within 90 days of shipment to activate full warranty coverage. For taller (24") or double-burner units, explore the American Range ARSP and SPSH-18-2 models.
