American Range | SKU:
MSDE-1
American Range MSDE-1 Convection Ovens
$5,893.33
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
American Range MSDE-1 Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range MSDE-1 Convection Ovens
$5,893.33
Unit price
/
Unavailable
Description
Majestic Series Electric Convection Oven – Single Deck
Model MSDE-1 • 12 kW • Standard Depth • Made in USABuilt for kitchens that refuse to compromise, the American Range Majestic Series MSDE-1 delivers even baking, rapid recovery and rock-solid durability in a sleek all-stainless package that proudly carries the ETL Sanitation and ETL Safety marks.
Why you’ll love it
- Power & precision – 12 kW element bank and a two-speed ½ HP convection fan for fast, even heat.
- Wide temperature range – Thermostatic control from 200 °F – 500 °F (93 °C – 260 °C) plus a one-hour timer.
- One-handed 50/50 glass doors – Dual dependent doors swing 135° and open/close together for seamless rack changes.

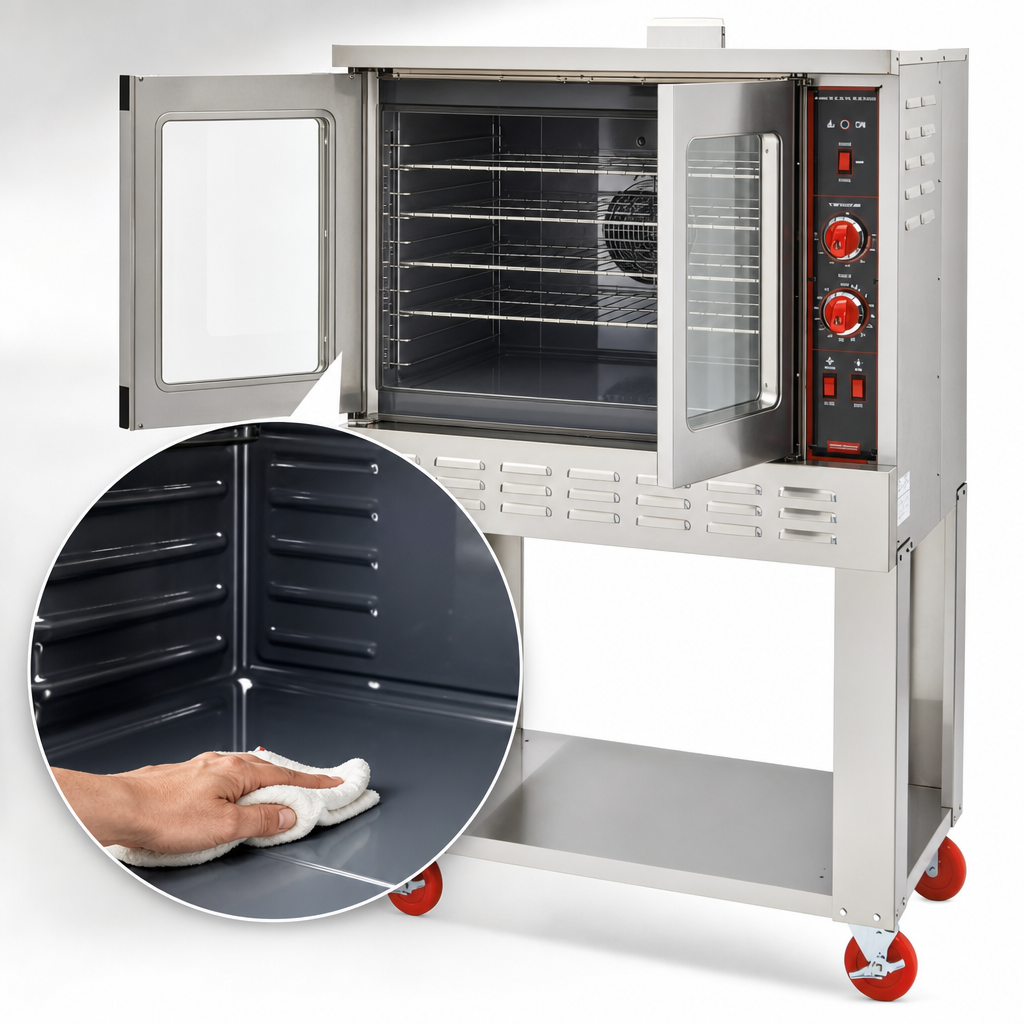

- Easy-clean interior – Porcelainized cavity with five chrome racks and 12 positioning guides.
- Full-size sheet pan capacity – Holds (5) 18 × 26 in pans or (10) 12 × 20 in hotel pans.
- Rapid cool-down – Dedicated oven-cool switch speeds end-of-day shutdown.

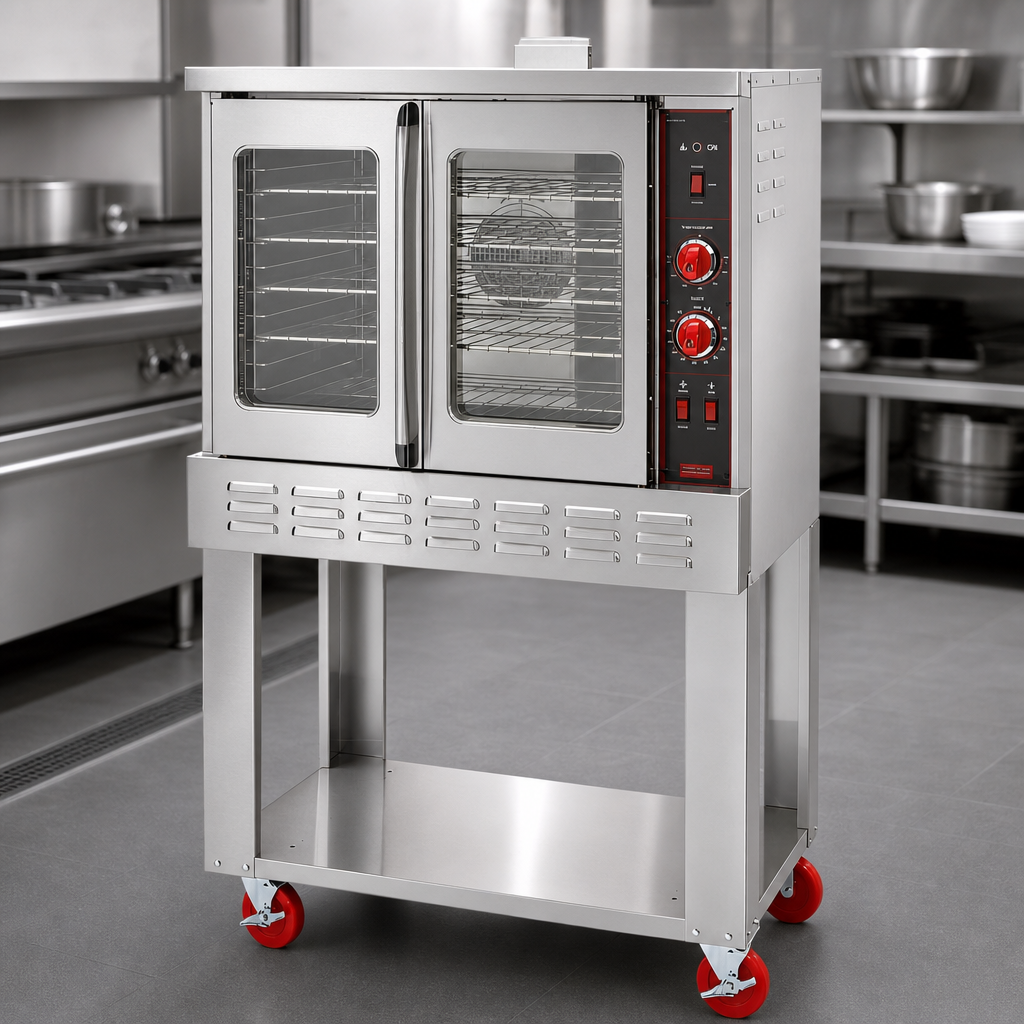

- Built to last – Stainless steel front, sides and top, heavy-duty dependent hinges and a two-year parts & labor warranty.
Technical specifications
| Exterior dimensions (W × D × H) | 40 in × 37 1⁄4 in × 66 in | 1016 mm × 946 mm × 1626 mm |
|---|---|
| Oven cavity | Porcelainized steel, 5 chrome racks, 12 positions |
| Fan motor | ½ HP, two-speed (high/low), 9 A max draw |
| Heat output | 12 kW total, three incoloy elements |
| Temperature range | 200 °F – 500 °F | 93 °C – 260 °C |
| Controls | Mechanical thermostat, 60-min timer, oven-cool switch, burner “ON” indicator |
| Electrical (specify when ordering) |
208 VAC 50 A 1-ph • 240 VAC 44 A 1-ph 208 VAC 30 A 3-ph • 240 VAC 30 A 3-ph (Cord & plug not included) |
| Door style | Dual dependent 50/50 doors, double-pane thermal glass |
| Certifications | ETL Listed, ETL Sanitation |
| Ship weight | ≈ 550 lb (250 kg) |
| Warranty | 2-year limited parts & labor (USA only) |
Installation & clearances
- For use on non-combustible floors with 6 in legs or optional casters.
- Clearance from non-combustible walls: 0 in.
- Clearance from combustible surfaces: 12 in sides, 4 in rear.
- Requires a commercial ventilation system compliant with NFPA-96.
Picture shown may include optional casters and accessories.
Features & Specs
Features & Specs
Manufacturer
American Range
Certifications
ETL, Made in USA
Height
64.0in
Width
40.0in
Depth
42.0in
Shipping Weight
550.0lbs
Size
full/standard size
Base
legs
Type
standard
Interior Finish
porcelain interior
Deck Qty
1 deck
Exterior Finish
stainless steel front & sides
Control Type
thermostatic controls
Specifications
Majestic Convection Oven, single-deck, electric, standard depth, thermostatic controls, temperature range 150°-500° F, one hour timer, 2-speed fan, porcelainized oven interior, 50/50 glass doors, stainless steel front, sides, top, 12.0kW, ETL, Made in USA
