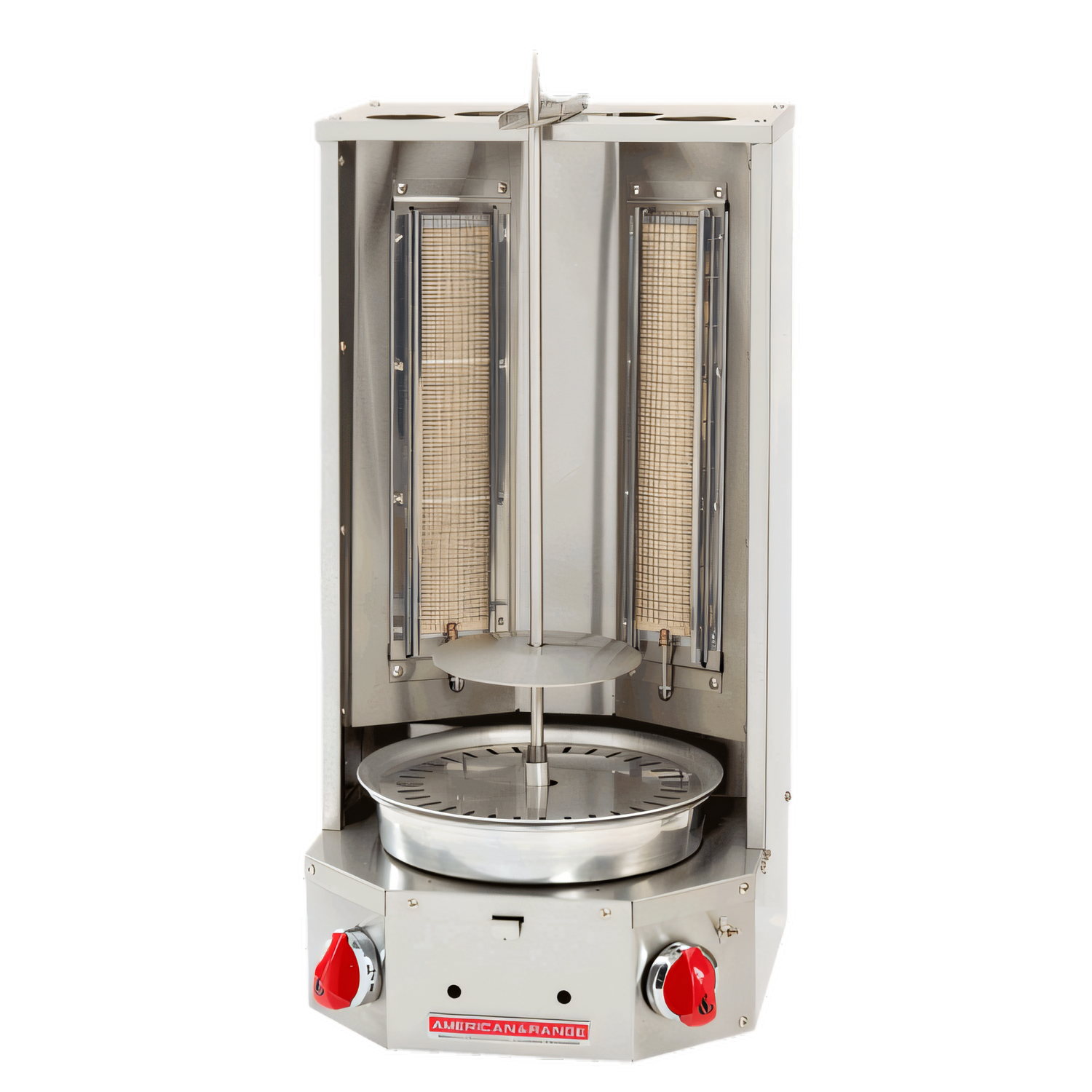

AVB-2 Economy Vertical Broiler – Gas, 2 Burners, 40,000 BTU
Made in USA | cETLus & ETL-Sanitation CertifiedTurn countertop space into a high-profit roasting station. The American Range AVB-2 Economy Vertical Broiler delivers authentic gyros, shawarma, tacos al pastor and more with powerful infrared heat, smooth motorized rotation and a rugged stainless-steel build that’s ready for years of daily service.
Key Features
- Two ceramic infrared burners – 20,000 BTU each (40,000 BTU total)
- Independent manual gas valve for each burner – dial in perfect heat zones
- 6-position skewer adjustment (front-to-back) for ideal searing & self-basting
- Heavy-duty skewer holds up to 65 lb (29 kg) of product
- Powered gear-drive motor provides smooth, even 360° rotation
- 15 in. (381 mm) removable grease pan for fast, mess-free cleanup
- All-stainless front, sides & top – corrosion-resistant & easy to sanitize
- Compact 20 in. W x 23-1/2 in. D footprint – perfect for counters or stands
- Front-panel toggle on/off switch & factory-installed gas regulator
- Two-year limited parts & labor warranty
Technical Specifications
| Model | AVB-2 |
|---|---|
| Gas Type | Natural or Propane (specify when ordering) |
| Total Input | 40,000 BTU/hr (11.7 kW) |
| Burners | 2 ceramic infrared – 20,000 BTU each |
| Cooking Capacity | Up to 65 lb (29 kg) per skewer |
| Skewer Positions | 6 front-to-back settings |
| Grease Pan | 15 in. (381 mm) diameter, removable |
| Dimensions (W × D × H) | 20 in. × 23-1/2 in. × 34 in. (508 mm × 597 mm × 864 mm) |
| Electrical | 120 V, 1-ph, 60 Hz, 6 A, NEMA 5-15P |
| Gas Inlet | 3/4 in. NPT – 5.0" W.C. NG / 10.0" W.C. LP manifold pressure |
| Shipping Weight* | ≈ 125 lb (57 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Origin | Designed & built in the USA |
Installation & Clearances
- For use on non-combustible floors. If curb-mounted, provide 2 in. (51 mm) clearance under base.
- Clearance from non-combustible walls: 0 in.
- Adjacent to combustible construction: maintain 12 in. (305 mm) on sides and 4 in. (102 mm) at rear.
- Must be installed under an adequate commercial ventilation system (NFPA 96).
Optional Accessories
- Stainless-steel equipment stand – Model VES-20 (39 lb / 18 kg)
Warranty
Two-year limited parts & labor warranty. Burner components carry a 90-day limited warranty. Full terms available at americanrange.com/terms-of-sale.
*Shipping weight includes packaging and is approximate. Specifications are subject to change without notice.
Overall Dimensions:
17.0"W x 20.0"D x 34.0"HProduct Weight:
100.0 lbCertifications & Compliance
