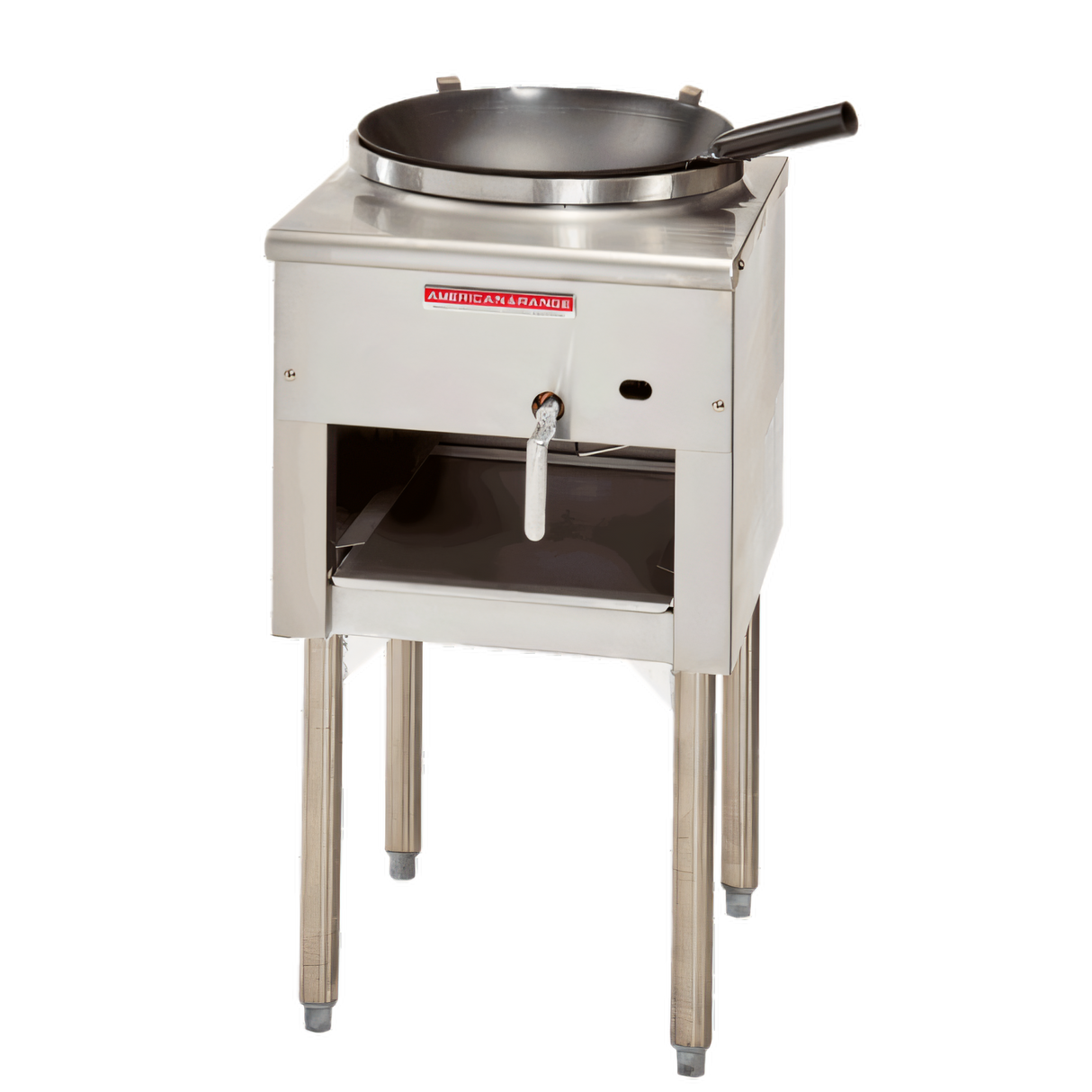

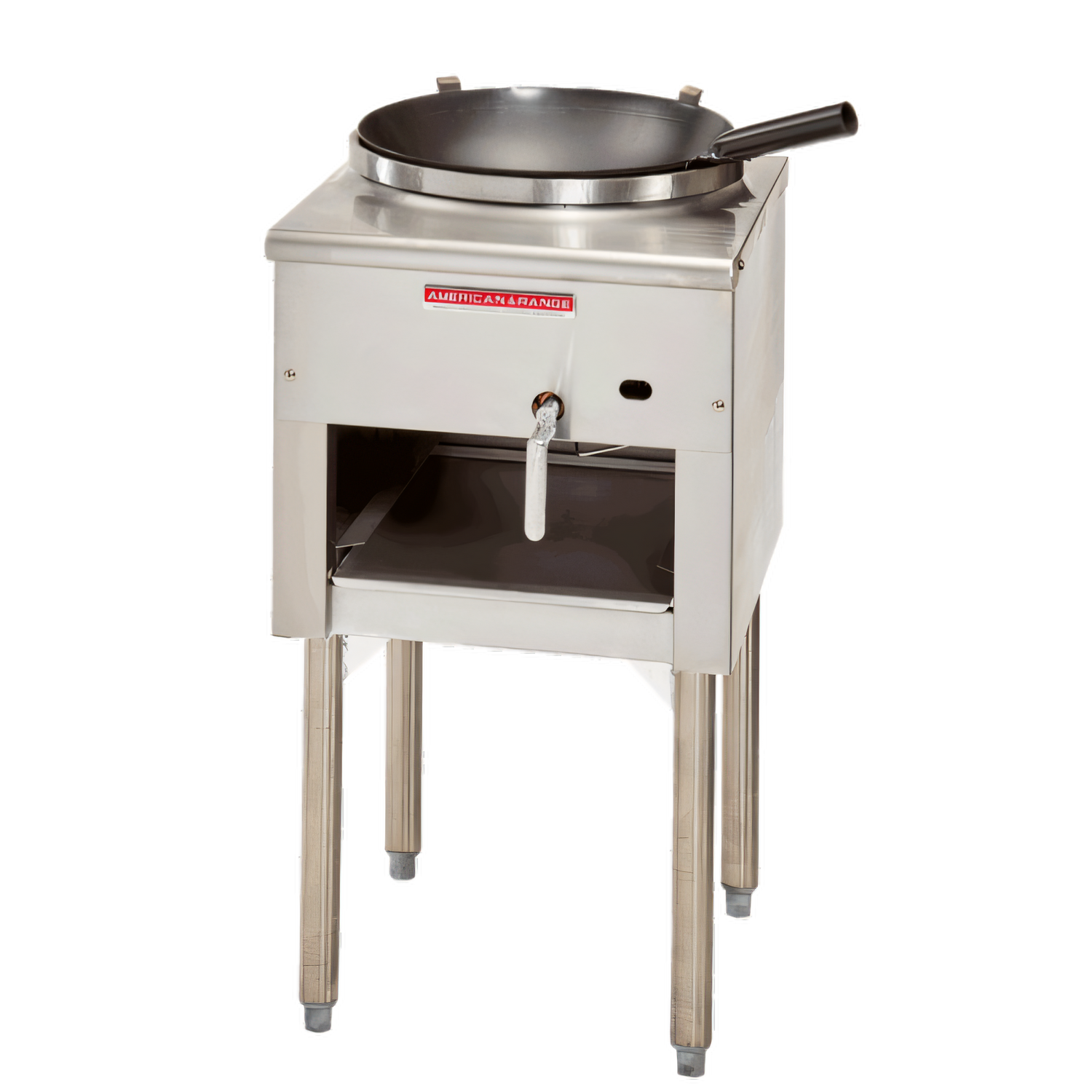

Culinary Series 23-Tip Jet Wok Range – 125,000 BTU
Model ARWR-J16 • Made in USA by American RangeBuilt for chefs who demand blistering wok heat, the Culinary Series ARWR-J16 delivers 125,000 BTU of focused fire power through a 23-tip jet burner. A welded 16" wok ring, stainless steel body and rugged brass valve make this single-station range perfect for exhibition cooking, ghost kitchens, or any operation that needs true stir-fry performance in a compact footprint.
Standard Features
- 23-tip cast iron jet burner – 125,000 BTU / 37 kW for rapid, even heat
- Welded 2" high, 16" diameter wok ring holds round-bottom woks securely
- Extra-wide aluminum lever handle on brass gas valve allows “knee control” for hands-free use
- Heavy-gauge stainless steel front, sides and tubular legs with adjustable bullet feet
- Removable, full-width grease pan for fast clean-ups
- Standing pilot for instant ignition
- 3/4" NPT rear gas connection; field convertible Natural or LP gas (5.0" W.C. NG / 10.0" W.C. LP)
- cETLus & ETL-Sanitation listed for commercial kitchens
- Two-year limited parts & labor warranty when registered
Optional Features
- Tempura style 3-ring burner (90,000 BTU/hr)
- Casters in lieu of adjustable feet
Specifications
| Burner | 23-tip jet, cast iron |
|---|---|
| Total Heat Output | 125,000 BTU/hr | 37 kW |
| Wok Ring | 16" Ø, 2" high, welded steel |
| Overall Width | 18" (457 mm) |
| Overall Depth | 20" (508 mm) |
| Overall Height | 32-1/2" (826 mm) – to cooktop | 37-1/4" (947 mm) to top of guard |
| Gas Connection | 3/4" NPT, rear |
| Shipping Weight | ≈145 lb (66 kg) |
| Certifications | cETLus, ETL-Sanitation |
Warranty: Two-year limited parts & labor coverage (90 days on replacement parts) when product is registered within 90 days of shipment. See full terms for details and exclusions.
Overall Dimensions:
18.0"W x 20.0"D x 36.0"HProduct Weight:
120.0 lbCertifications & Compliance
