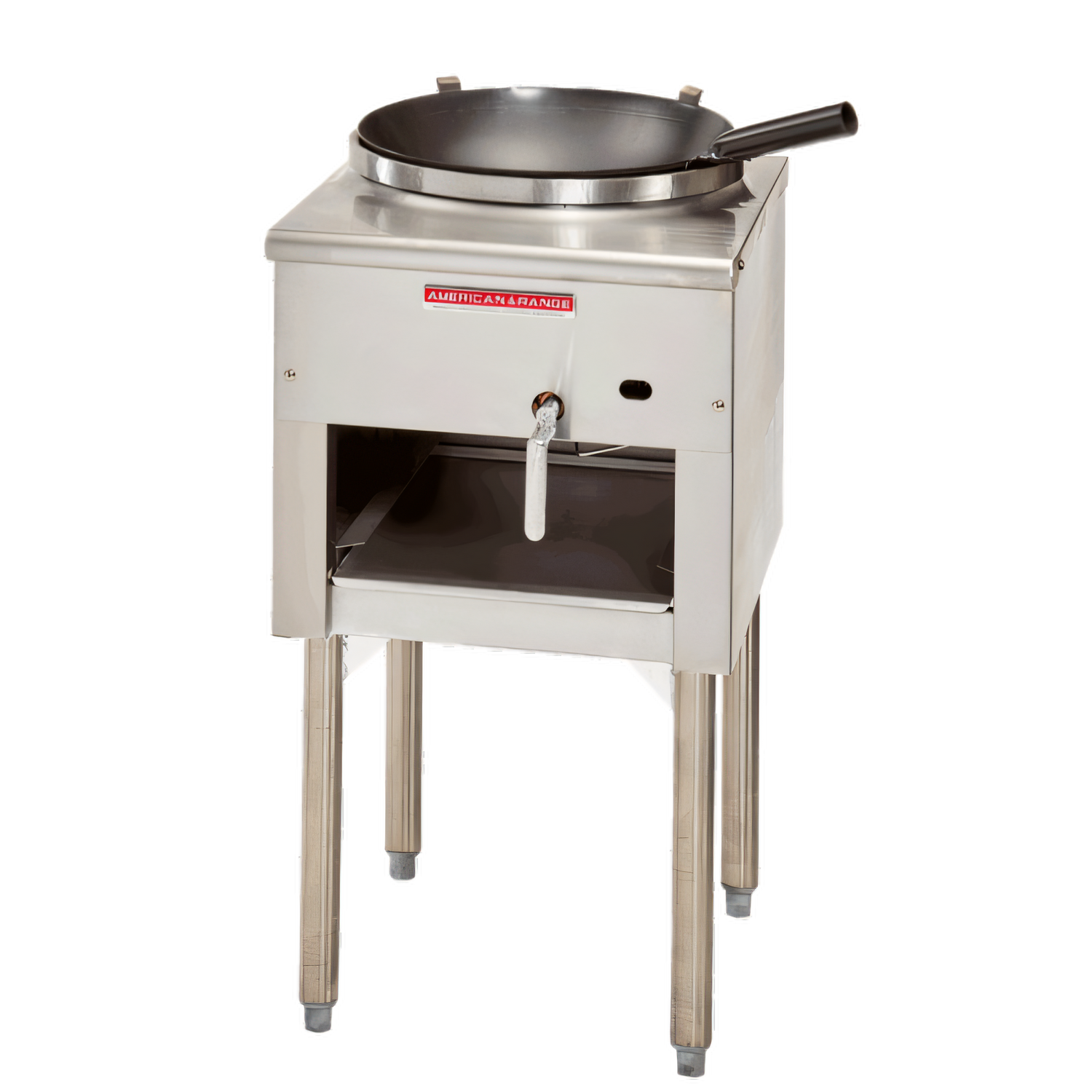

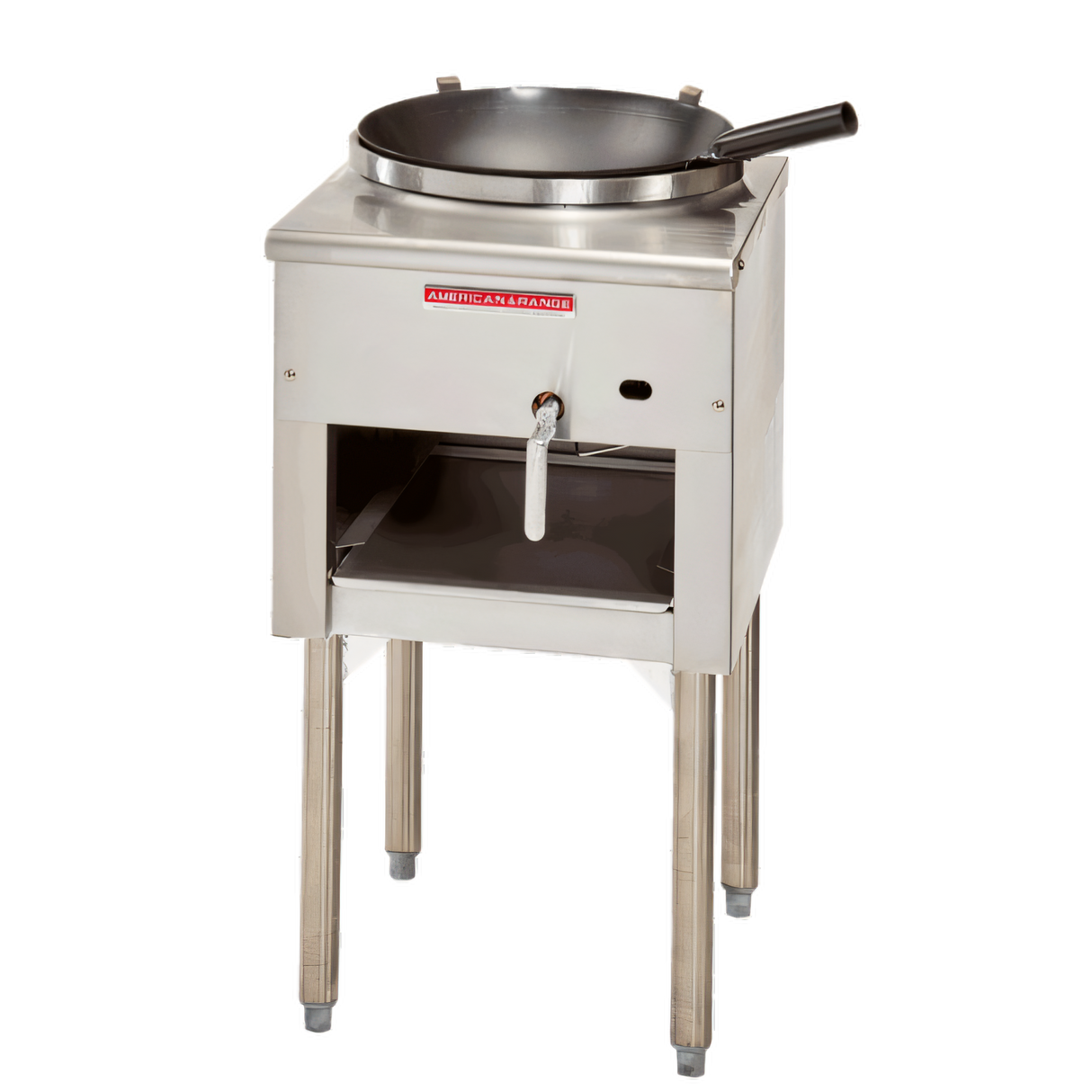

American Range ARWR-J13 13" Jet Wok Range
23-Tip Gas Burner • 125,000 BTU • Made in USABuilt for chefs that refuse to compromise on heat, the American Range ARWR-J13 unleashes an explosive 125,000 BTU flame from a compact 18"-wide chassis. The 23-tip jet burner, welded 13" wok ring, and hands-free knee-operated brass valve give you the firepower and control to turn out perfectly seasoned, smoky wok dishes back-to-back during peak rushes.
Key Features
- 23-tip jet burner delivers 125,000 BTU/hr (37 kW) of concentrated heat.
- Heavy-gauge steel top with welded-in 13" diameter, 2" high wok opening keeps pans stable.
- Brass gas control valve with oversized aluminum lever allows “knee control” for instant flame adjustments.
- Full-width, removable grease pan for quick, mess-free clean-up.
- All-stainless front, sides & tubular legs; adjustable bullet feet level the unit on uneven floors.
- Standing pilot for reliable, push-button-free ignition.
- cETLus & ETL-Sanitation listed for use in commercial kitchens.
- Designed, engineered & built in the USA; backed by a 2-year parts & labor warranty.
Perfect For
- Authentic Chinese & Southeast Asian restaurants
- High-volume ghost kitchens and food halls
- Exhibition cooking and chef’s counters
- Any operation that needs true wok-hei at service pace
Specifications
| Model | ARWR-J13 |
|---|---|
| Burner | 23-tip jet, cast iron |
| Total Output | 125,000 BTU/hr (37 kW) |
| Gas Type | Natural or LP (specify when ordering) |
| Manifold Pressure | 5.0" W.C. NG / 10.0" W.C. LP |
| Gas Connection | 3/4" NPT |
| Wok Ring Diameter | 13" (330 mm) |
| Opening Height | 2" (51 mm) |
| Overall Dimensions (W × D × H) | 18" × 20" × 32-1/2" (457 × 508 × 826 mm) |
| Shipping Weight | Approx. 145 lb (66 kg) |
| Construction | Stainless steel front & sides; heavy-gauge steel top; tubular legs |
| Warranty | 2-year limited, parts & labor |
| Certifications | cETLus, ETL-Sanitation |
Install on non-combustible floors only. Provide 12" side and 4" rear clearance from combustible walls and an adequate ventilation system. Specify gas type and elevation (over 2,000 ft) at time of order.
Gas Equipment Notice:
All gas connections and conversions must be performed by a licensed
professional in accordance with local codes and manufacturer's instructions.
$1,862.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
American Range ARWR-J13 gas wok range — 125,000 BTU commercial power, 13" wok ring, stainless steel, removable grease pan, durable brass valve.
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
36.0in
Width
18.0in
Depth
20.0in
Shipping Weight
120.0lbs
Depth (front - back)
20"
Flue/Back-Splash Height
none
Controls
knee "L" lever
Exterior Finish
stainless steel front & sides
Burner Section Qty
(1)
Specifications
Wok Range, gas, 23 tip jet burner, 13" diameter Wok ring, 2" high opening, brass control valve with aluminum handle, removable grease pan, stainless steel front, sides & tubular legs with adjustable feet, 37.0kW, 125,000 BTU, cETLus, ETL-Sanitation, Made in USA
