American Range ARTY-36 Teppanyaki Griddles
American Range ARTY-36 Teppanyaki Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

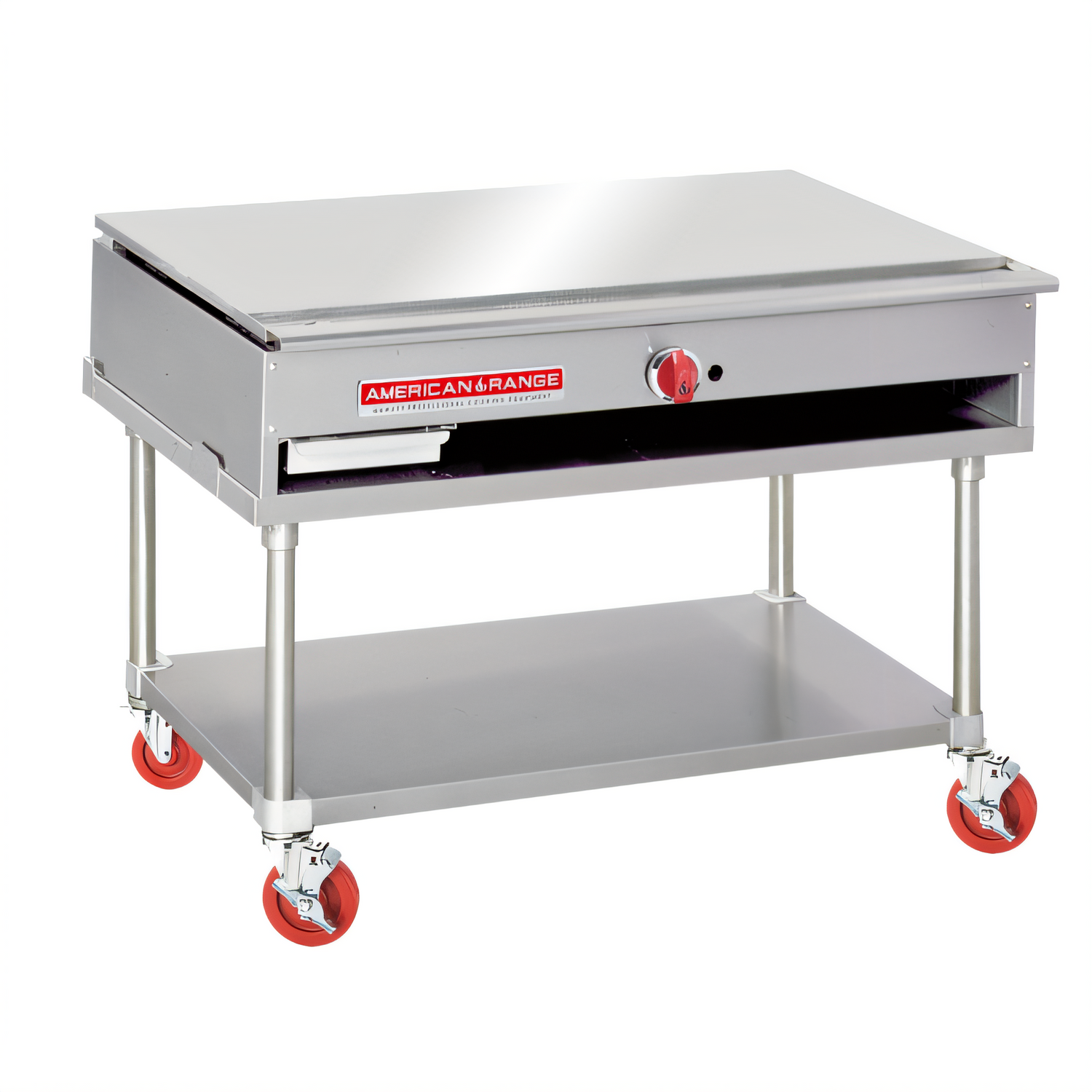

American Range ARTY-36 Teppan-Yaki Griddle – 36"
Authentic Japanese-style performance for commercial kitchensBring show-stopping sizzle to your menu with the American Range ARTY-36 countertop teppan-yaki griddle. Built in the USA and certified for the toughest food-service environments, this 36 inch unit pairs a 3/4" thick polished steel plate with a powerful center-mounted burner for flawless searing, sautéing, and tableside flair.
Key Features

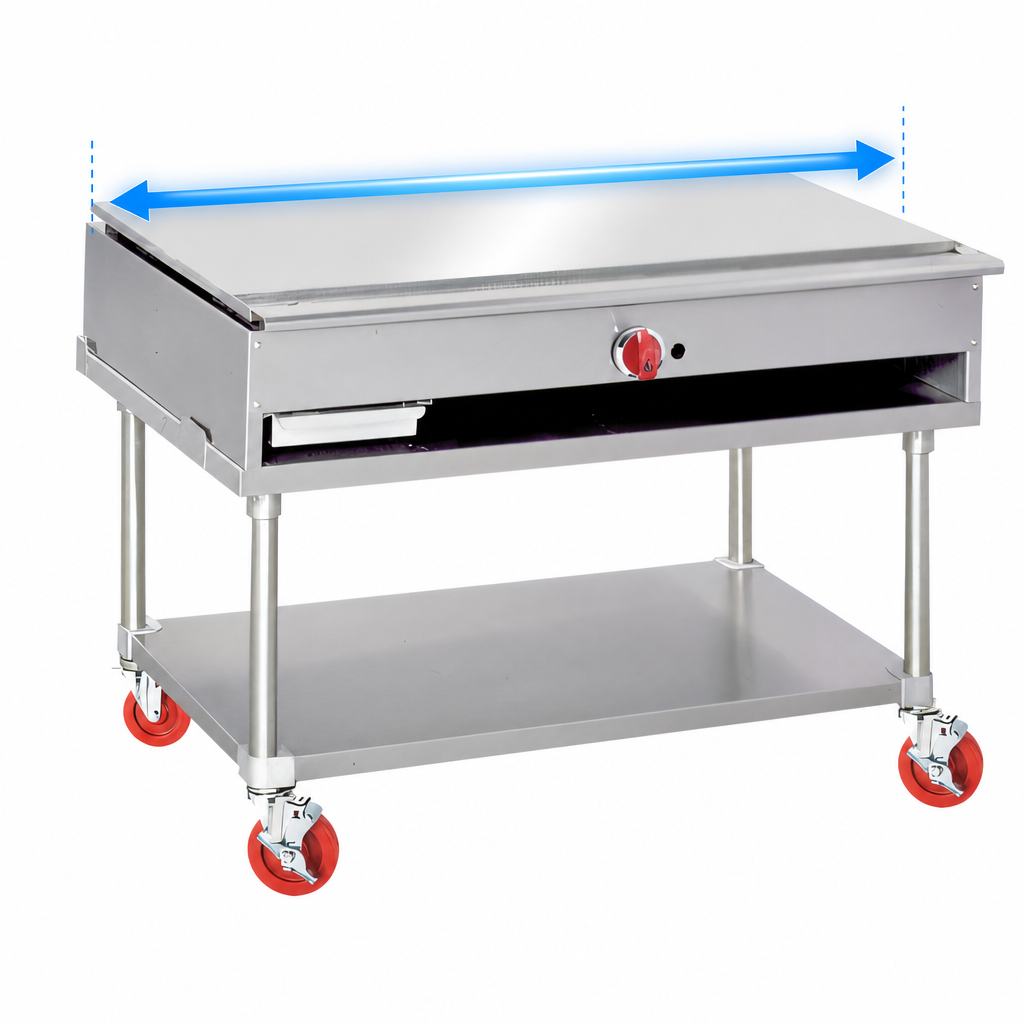

- 36" (914 mm) wide x 24" (610 mm) deep cooking surface—perfect for hibachi, breakfast, or small-plate stations.

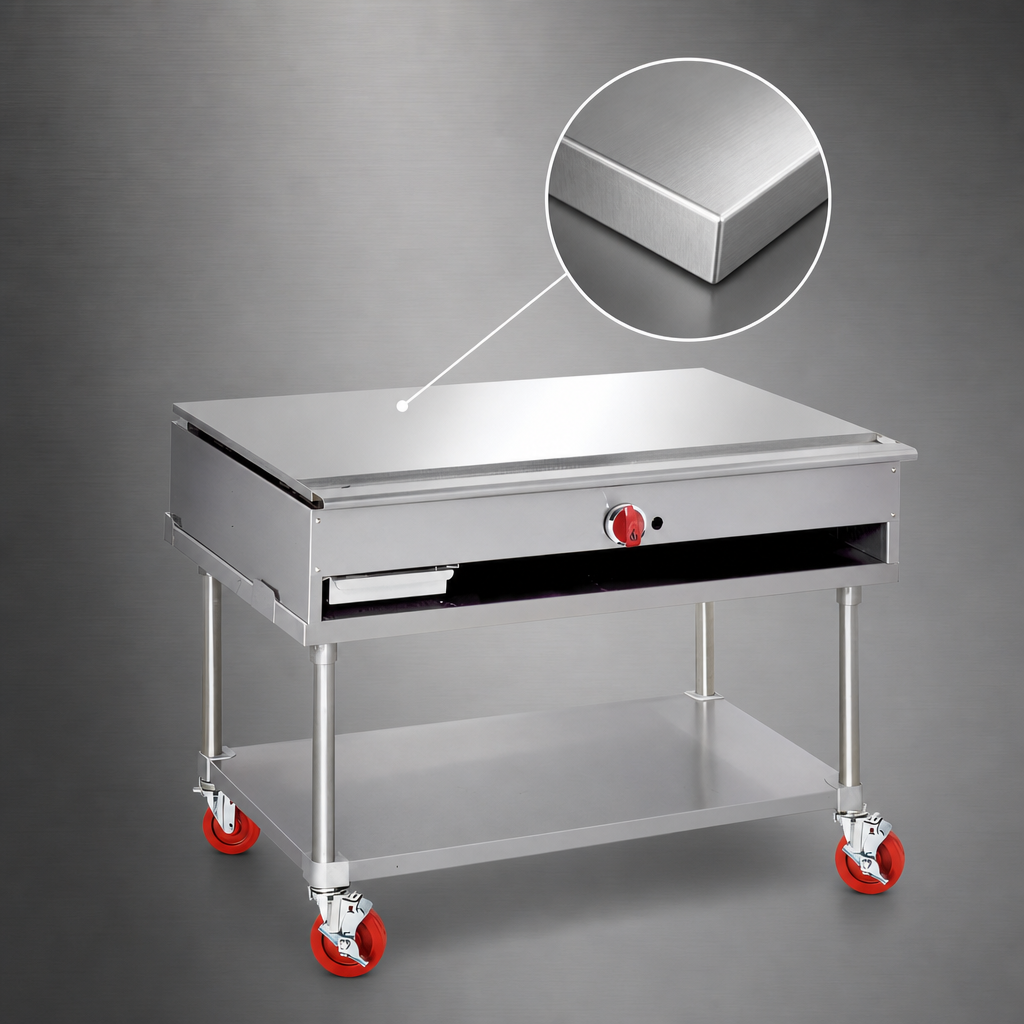

- 3/4" (19 mm) smooth polished steel plate delivers superior heat retention & even distribution.
- One 30,000 BTU (9.0 kW) round burner creates an intense central hot zone for dramatic teppan cooking.
- Precise manual front-mounted gas valve for instant flame control.
- Stainless steel exterior, grease trough, and one-piece rolled front withstand daily commercial abuse.
- Large-capacity removable grease can simplifies cleanup and reduces downtime.
- Field convertible to Natural Gas or LP (must be specified when ordering).
- cETLus & ETL Sanitation listed for use in regulated kitchens.
- Backed by a 2-year limited parts & labor warranty.
- Designed & built in the USA.
Specifications
Model | ARTY-36 |
---|---|
Cooking surface | 36" W × 24" D (914 mm × 610 mm) |
Plate thickness | 3/4" (19 mm) polished steel |
Overall dimensions | 36" W × 29 11/16" D × 10 1/2" H (914 mm × 754 mm × 267 mm) |
Burners | 1 round burner |
Heat input | 30,000 BTU/hr (9.0 kW) |
Gas connection | 3/4" NPT rear manifold |
Manifold pressure | Natural 5.0" W.C. / LP 10.0" W.C. |
Shipping weight | Approx. 200 lb (91 kg) |
Certifications | cETLus, ETL-Sanitation |
Installation & Clearance
- For use on non-combustible floors only—legs, casters, or a 2" (51 mm) curb overhang are required.
- No clearance needed from non-combustible walls.
- If adjacent to combustible surfaces maintain 12" (305 mm) at sides & 4" (102 mm) at rear.
- Must be installed under an appropriate ventilation hood per NFPA 96.
Need mobility or extra storage? An optional heavy-duty stainless steel stand with undershelf and casters is available (sold separately).
Warranty
American Range covers the ARTY-36 with a two-year limited parts & labor warranty when installed, operated, and maintained according to the manufacturer’s guidelines.
