American Range ARTY-24 Teppanyaki Griddles
Description

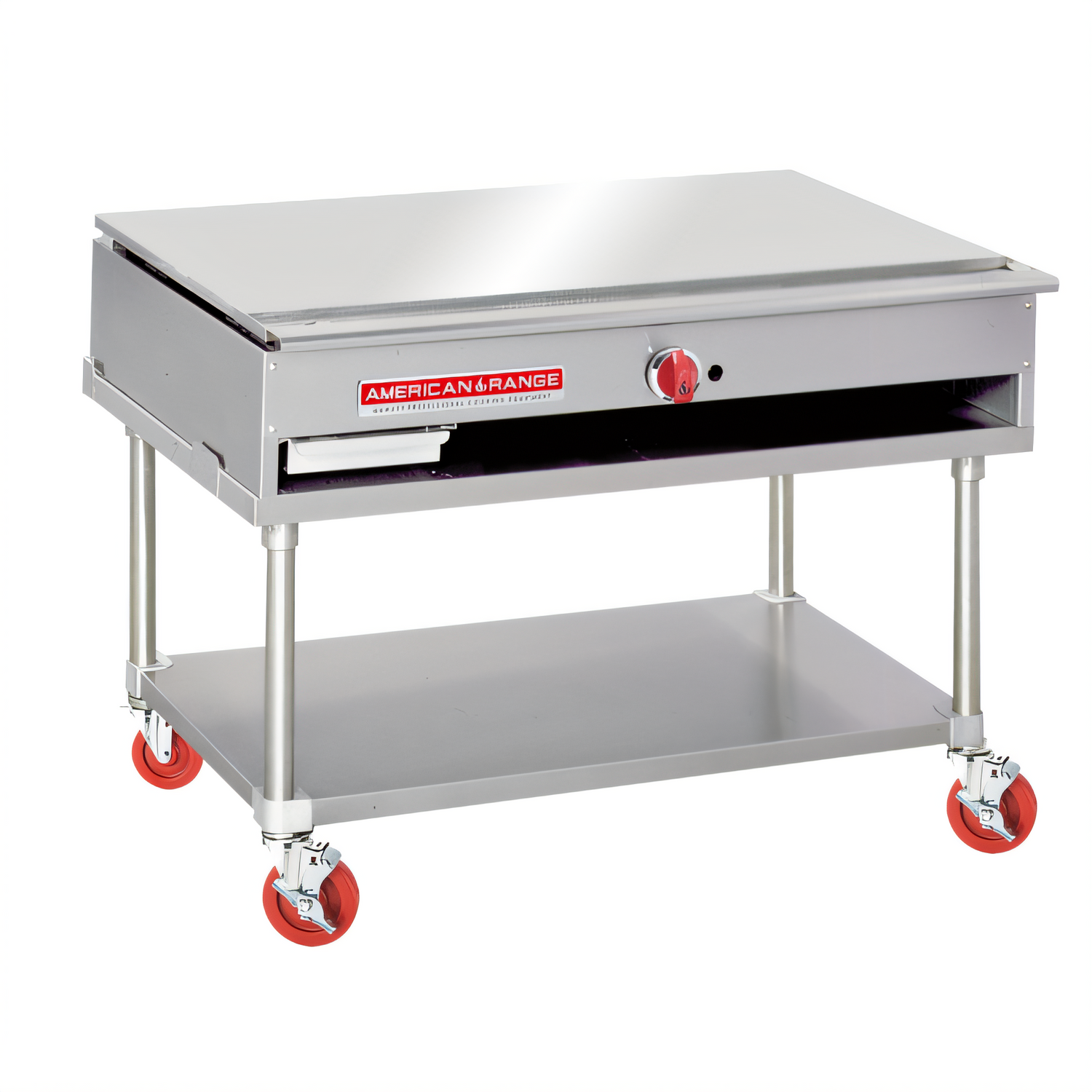

American Range Culinary Series Teppan-Yaki Griddle – 24" (ARTY-24)
Smooth ¾" polished steel plate | 30,000 BTU (9 kW) gas countertop modelBring authentic Japanese-style teppan cooking to your open kitchen, food truck, or chef’s table with the American Range ARTY-24. Hand-crafted in the USA and certified for commercial use, this compact 24" griddle delivers a dramatic hot-zone in the center of its hefty ¾" plate—ideal for searing proteins while vegetables stay warm along the perimeter.
Key Features
- One 30,000 BTU/hr round burner develops intense, even heat in the center of the plate.

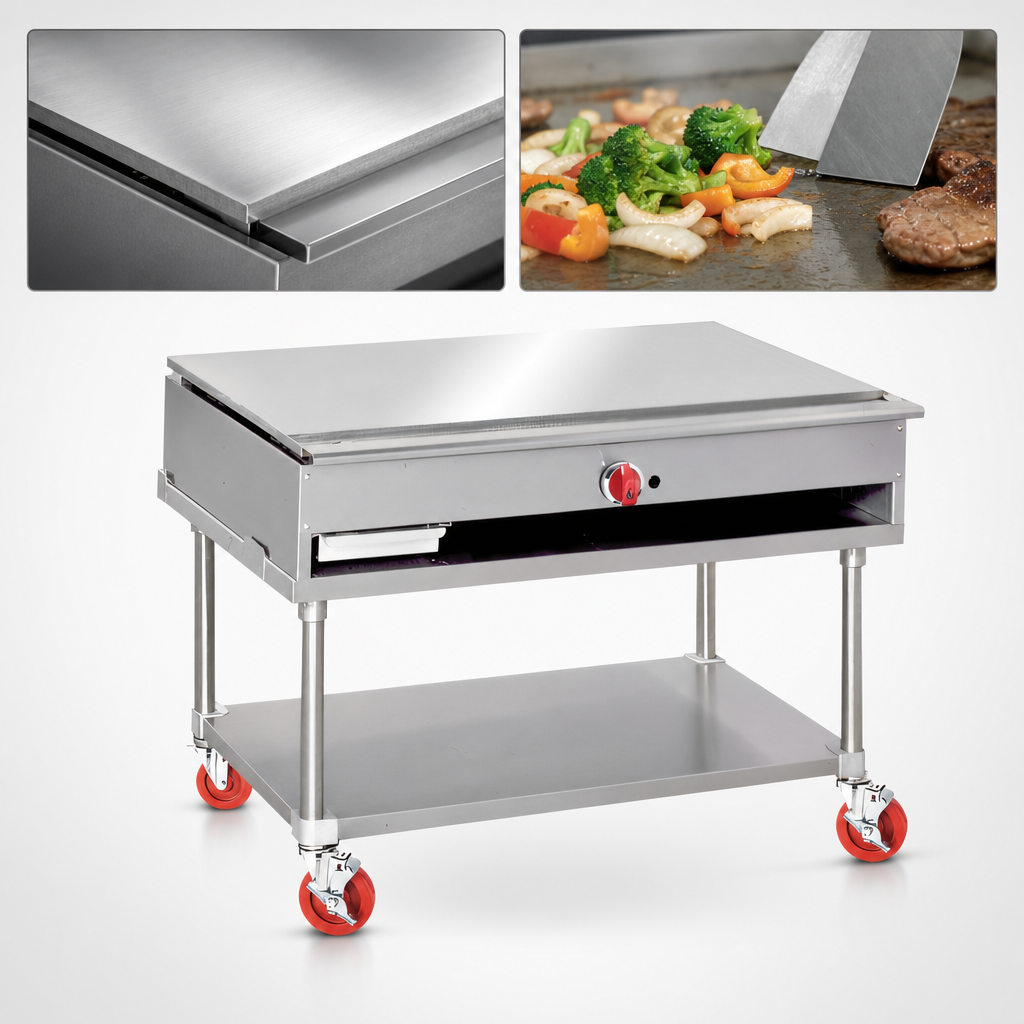

- Thick ¾" (19 mm) x 24" deep polished steel plate retains heat for consistent caramelization.

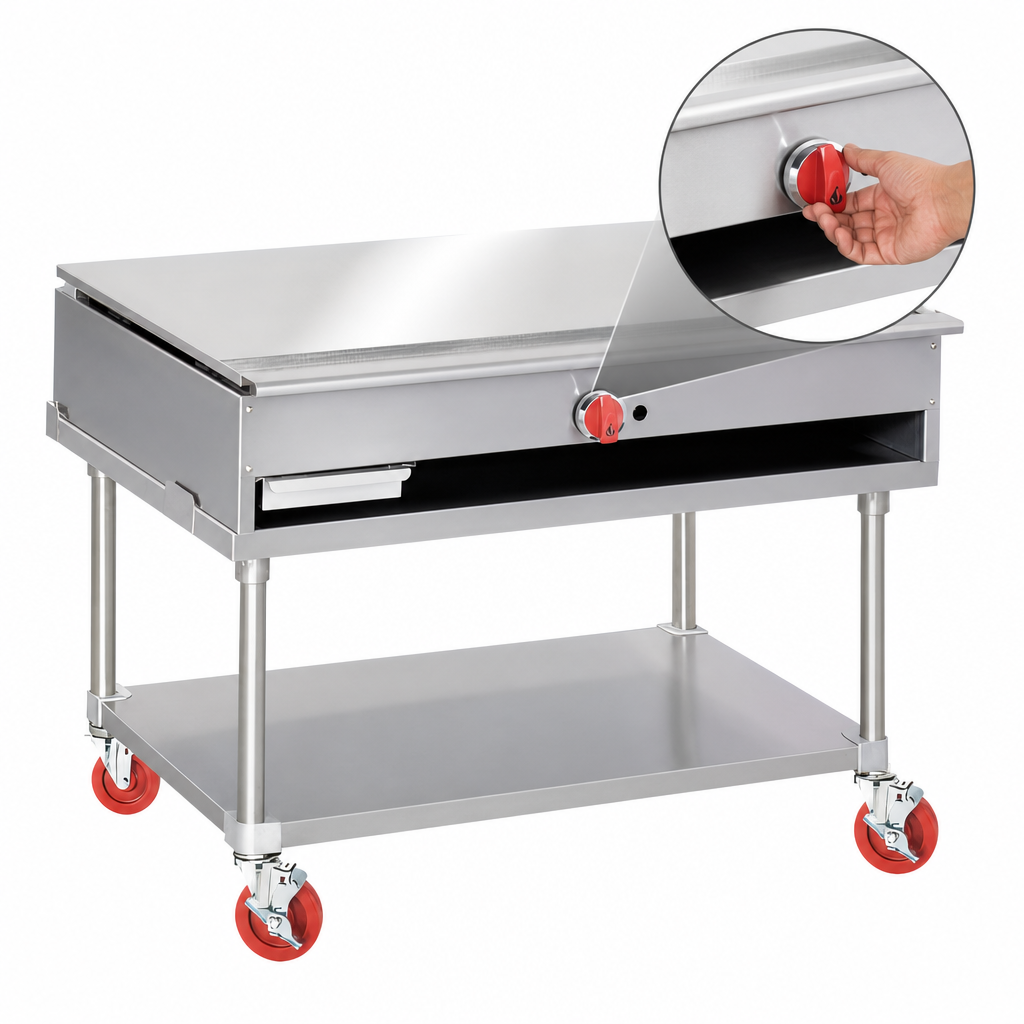

- Manual gas control gives chefs instant surface-temperature response.
- Stainless steel exterior, grease trough, and one-piece rolled front simplify wipe-down.
- Large-capacity removable grease can slides out for fast, mess-free disposal.
- Countertop construction; optional welded splash, stand, shelf & casters available.
- cETLus & ETL Sanitation listed; designed & built in the USA.
- Two-year limited parts & labor warranty backed by nationwide service network.
Specifications
| Model | ARTY-24 |
|---|---|
| Gas type | Natural or LP (specify when ordering) |
| Plate size | 24" W x 24" D | ¾" thick polished steel |
| Overall dimensions | 24" W × 29 11/16" D × 10 1/2" H (610 × 754 × 267 mm) |
| Heat input | 30,000 BTU/hr (9 kW) |
| Burners | 1 round cast-iron burner |
| Manifold pressure | Natural 5.0" W.C. | LP 10.0" W.C. |
| Gas connection | ¾" NPT rear manifold |
| Shipping weight* | Approx. 200 lb (91 kg) |
| Certifications | cETLus, ETL-Sanitation, NSF/ANSI-4 |
| Country of origin | Made in USA |
*Shipping weight includes pallet and packaging.
Installation & Clearance
- For use on non-combustible surfaces; legs, casters, or 2" curb overhang required.
- 0" clearance to non-combustible walls.
- When adjacent to combustible walls, allow >12" (305 mm) sides & >4" (102 mm) rear.
- Commercial ventilation in accordance with NFPA 96 is mandatory.
Warranty
Enjoy peace of mind with American Range’s two-year limited parts & labor warranty, plus a responsive network of authorized service agencies nationwide. Full terms available at americanrange.com/terms-of-sale.
