American Range ARSRB-36 Gas Charbroilers
Description

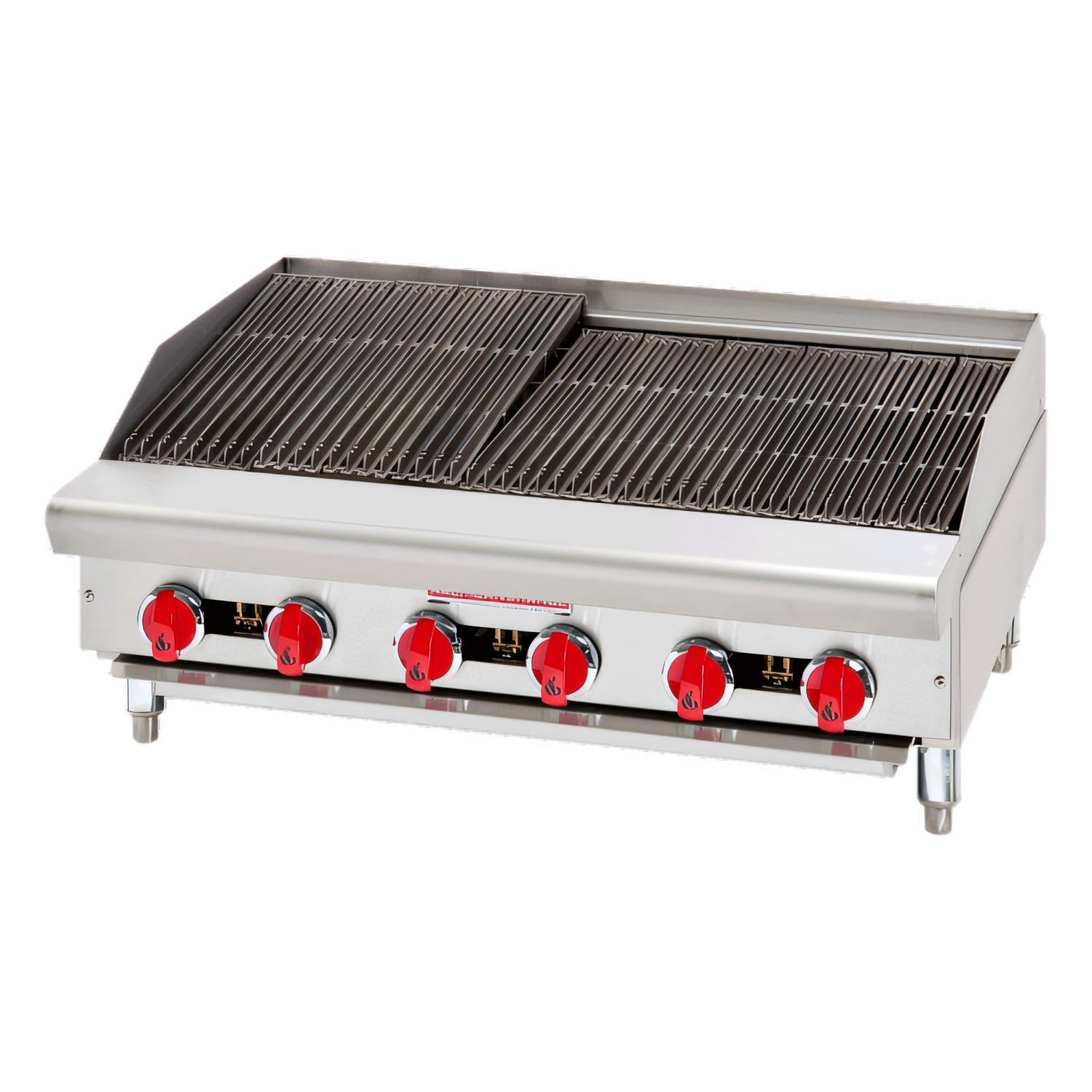

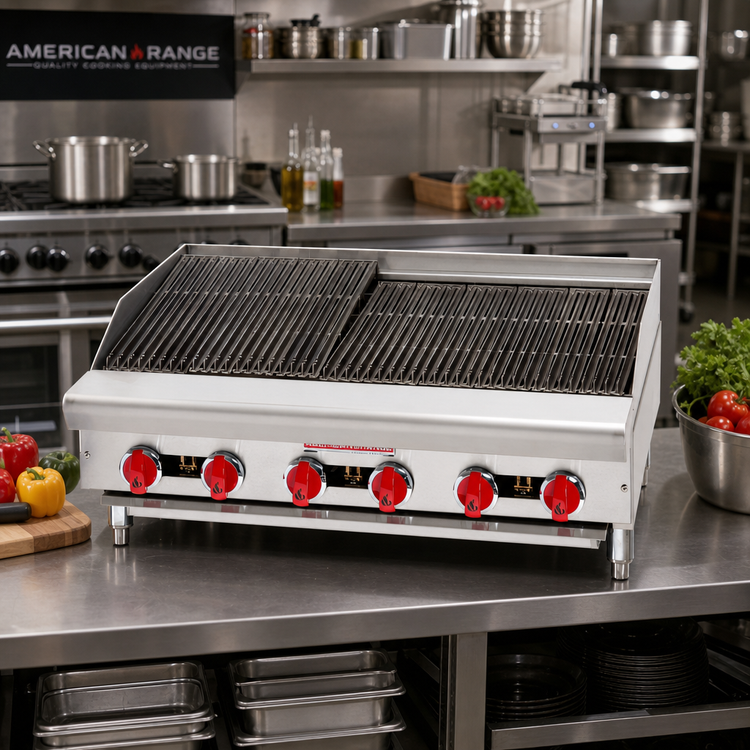

American Range ARSRB-36 Countertop Gas Charbroiler – 36"
90,000 BTU • Six Burners • Made in USAGive your kitchen the rugged grilling power it deserves. Built and assembled in the USA, the American Range ARSRB-36 delivers even heat, signature grill marks and day-in-day-out reliability in a space-saving countertop design.
Performance & Construction Highlights

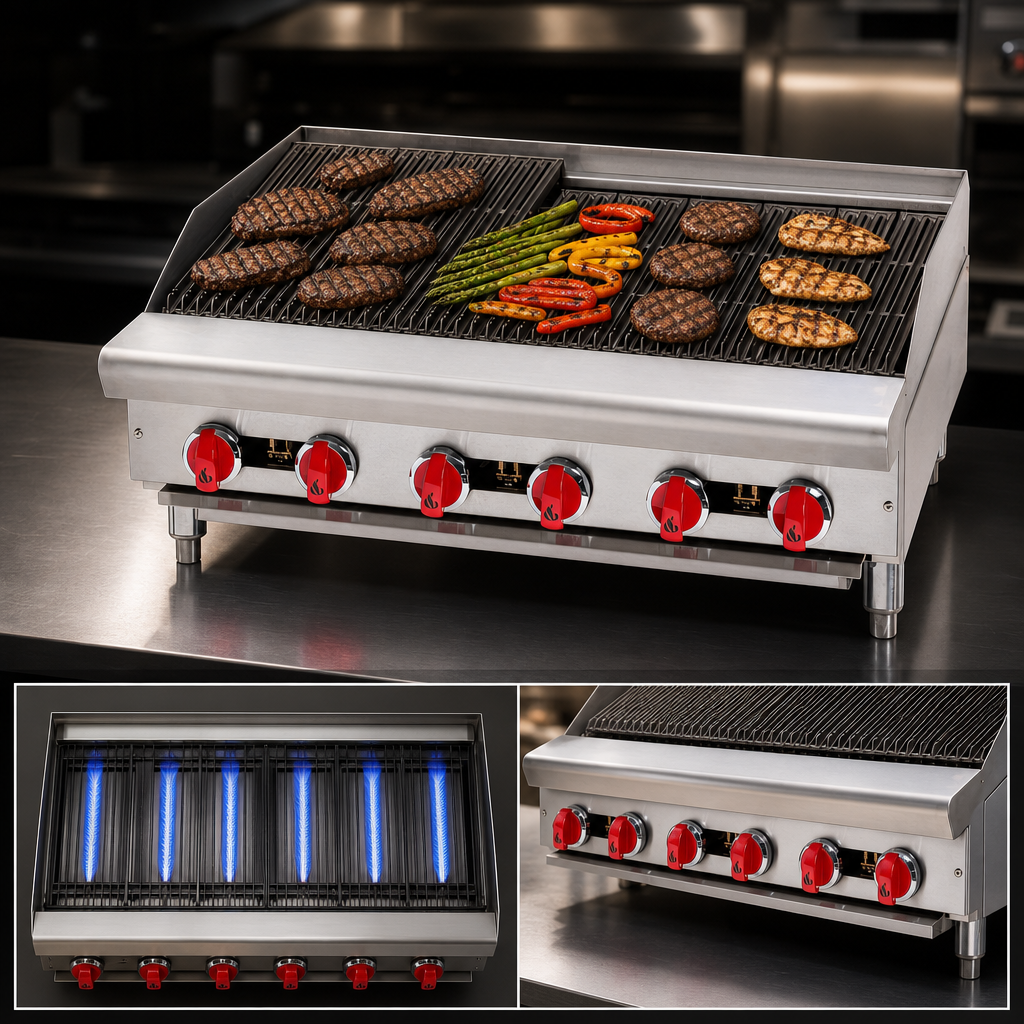

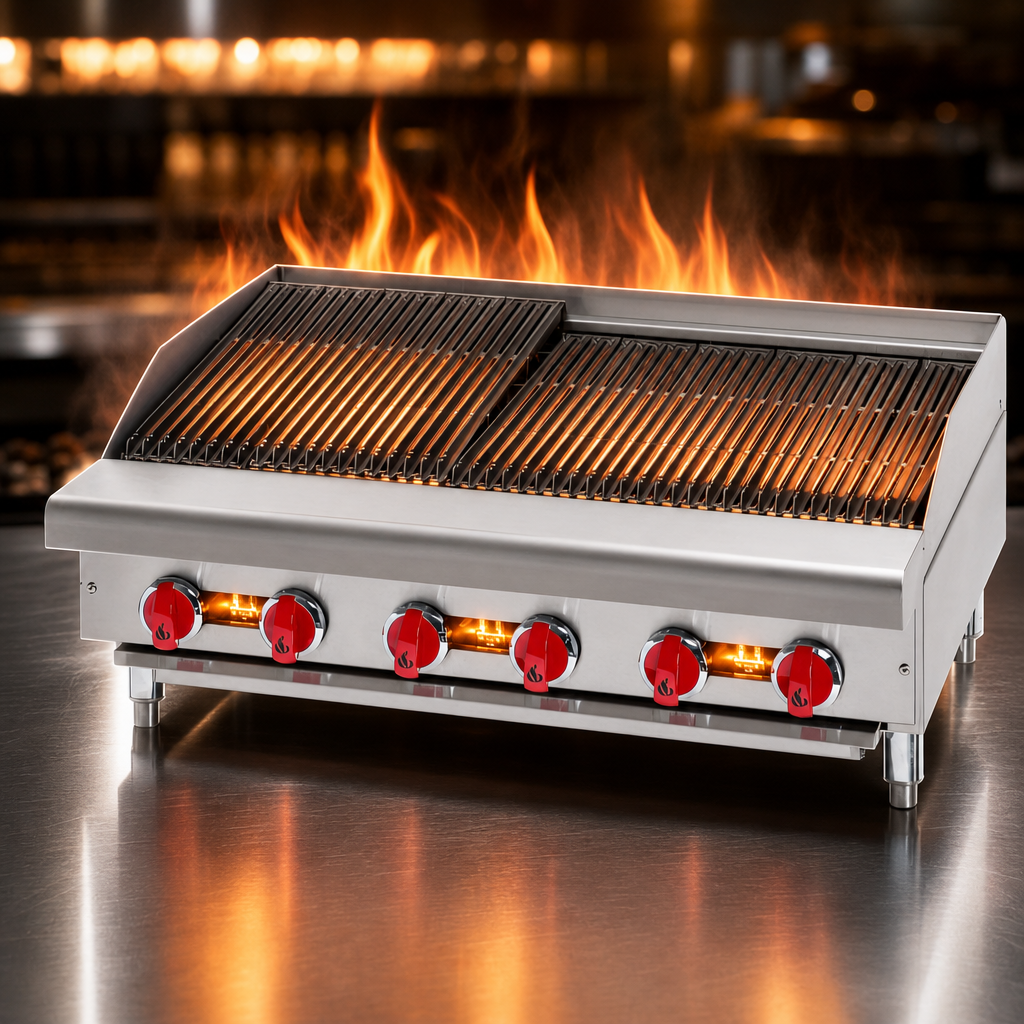

- Total output: 90,000 BTU from six 15,000 BTU cast-iron burners.
- Heavy-duty reversible cast-iron grates (flat or pointed) for perfect sear lines.
- 21" cooking depth handles steaks, burgers, seafood and veggies with room to spare.
- Manual, individually valved burner controls for precise zone grilling.
- Standing-pilot ignition for fast, reliable start-ups.
- Removable cast-iron radiants & full-width grease pan for quick cleanup.
- Heat deflectors keep the grease pan cooler and improve cooking performance.
- Durable stainless-steel front & side panels with 3 ¾" side splash and 4" rear splash.
- Four 4" adjustable legs level the unit on any counter.
- 3/4" rear gas connection with pressure regulator – field convertible for Natural Gas (5" W.C.) or LP (10" W.C.).
Technical Specifications
| Model | ARSRB-36 |
|---|---|
| Overall Width | 36" (914 mm) |
| Overall Depth | 30" (762 mm) |
| Overall Height | 12 9/16" (319 mm) to cook surface |
| Cooking Area | 36" W × 21" D |
| Burners | 6 × 15,000 BTU cast-iron (individually controlled) |
| Total BTU | 90,000 BTU/hr |
| Gas Inlet | 3/4" NPT (rear) |
| Manifold Pressure | Natural Gas – 5.0" W.C. | Propane – 10.0" W.C. |
| Shipping Weight | ≈ 285 lb (129 kg) |
| Clearances* | 0" sides & back (non-combustible). 12" sides / 4" back (combustible). |
*Follow all local codes and the latest NFPA 96 for ventilation and installation requirements.
Factory Options & Accessories
- Stainless-steel equipment stand
- Swivel caster kit (set of four – two with front brakes)
Certifications & Warranty
- ETL Listed (USA & Canada) for safety and sanitation.
- Two-year limited warranty – parts & labor.
- Burners, grates and radiants covered for 90 days.
For full warranty terms, visit AmericanRange.com/terms-of-sale .
