American Range  |  SKU: ARSRB-12

American Range ARSRB-12 Gas Charbroilers

$2,390.26
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

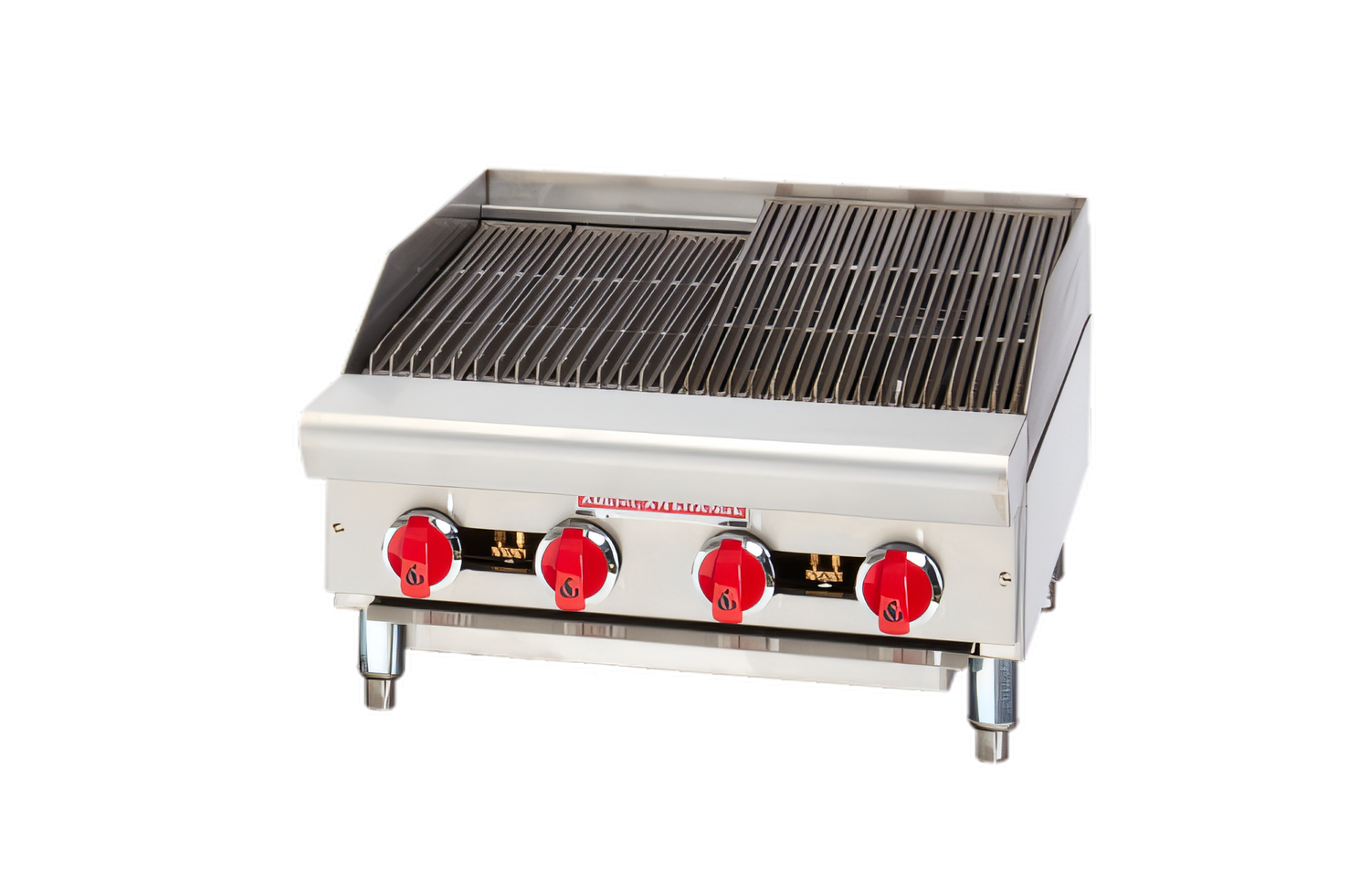

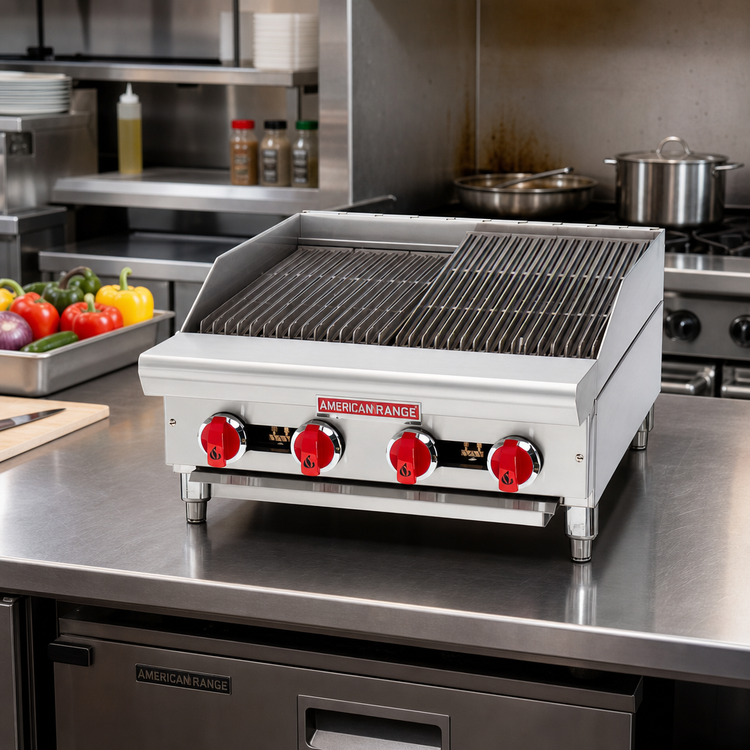

American Range ARSRB-12 Countertop Gas Charbroiler – 12"

30,000 BTU • 2 Burners • Made in USA

Deliver authentic flame-kissed flavor in the tightest kitchens with the American Range ARSRB-12. This 12-inch countertop radiant charbroiler packs professional power into a compact footprint, giving food-service operations a durable, easy-to-clean grill that’s ready for breakfast rushes, lunch lines, and à la carte dinner service.

Key Features

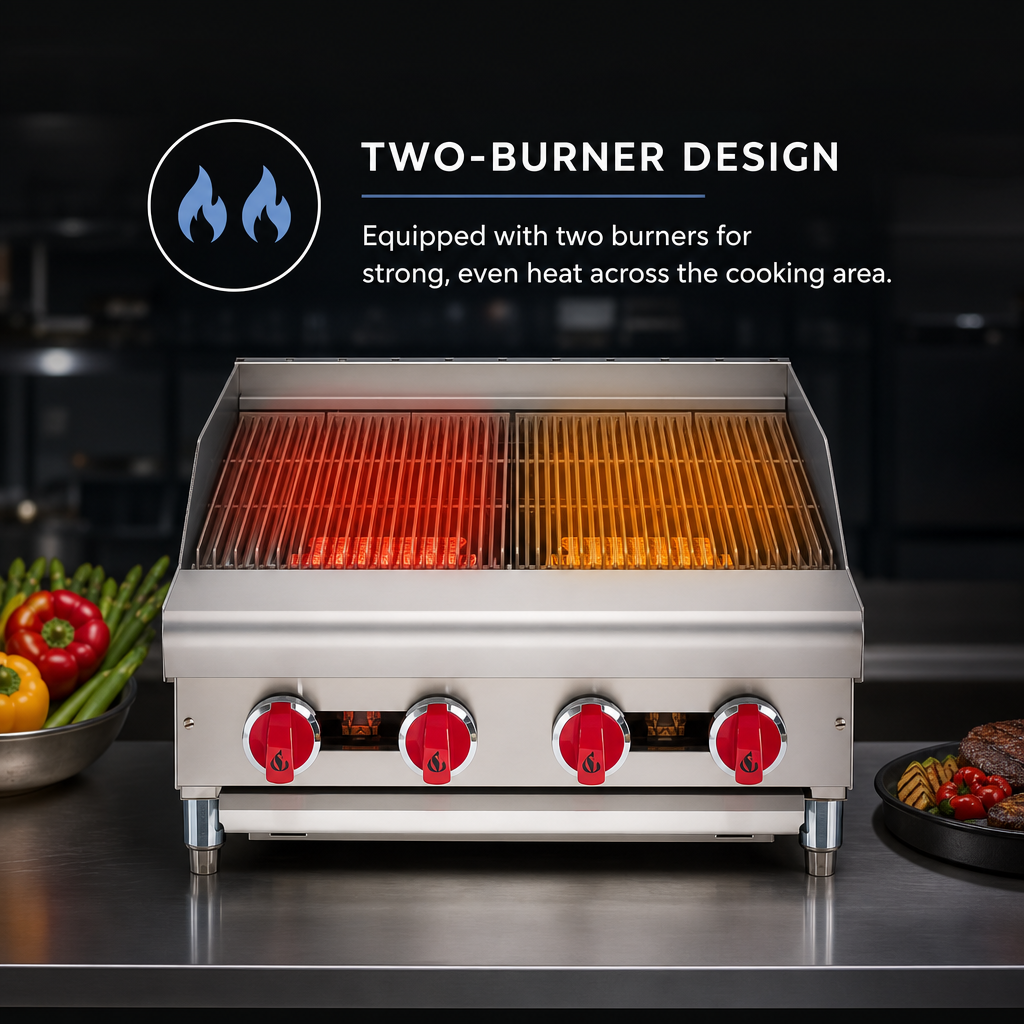

  • Two 15,000 BTU cast-iron burners (30,000 BTU total) with independent manual controls
  • Heavy-duty reversible cast-iron grates (flat or “V” ridged) for perfect grill marks
  • 21" cooking depth delivers generous front-to-back grilling capacity

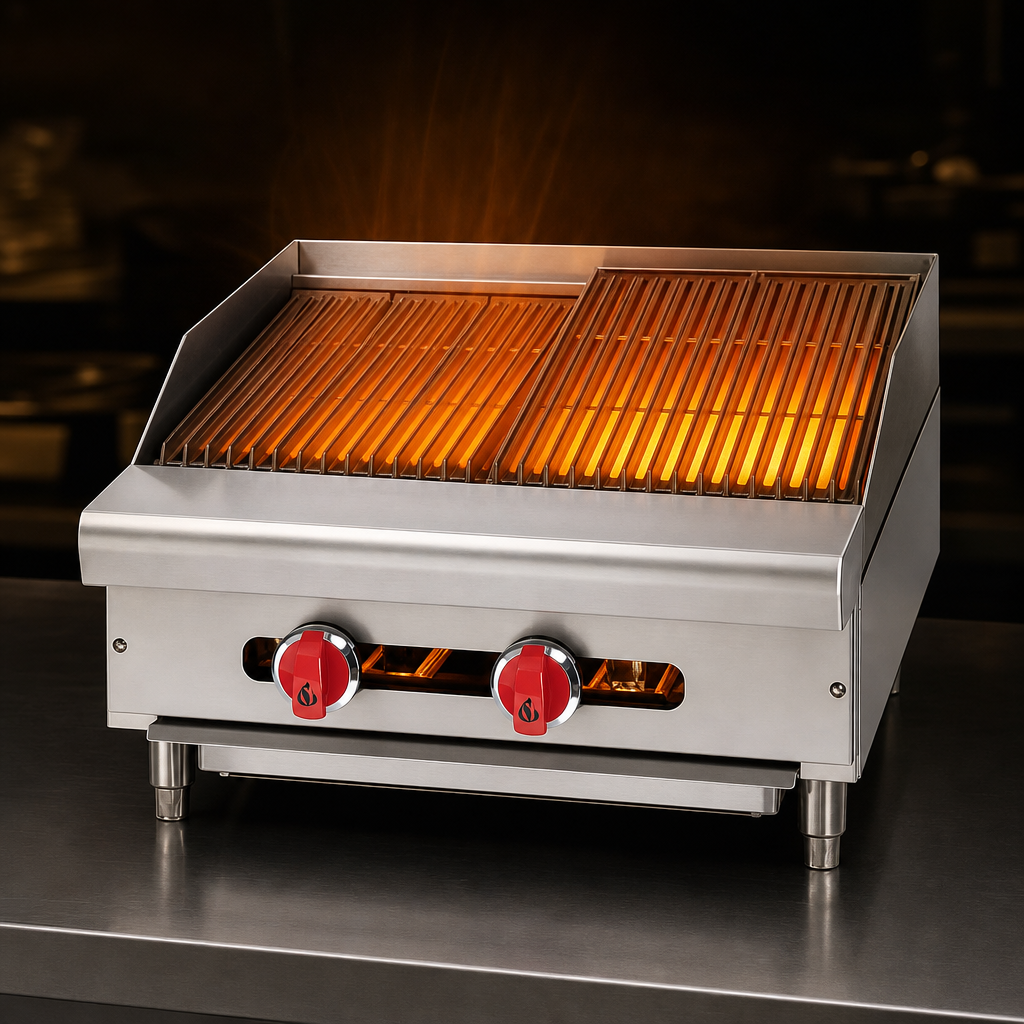

  • Removable cast-iron radiants concentrate heat and simplify cleaning
  • Full-width, stainless steel grease pan & heat deflectors keep the cook line clean and cool
  • Standing pilot ignition for reliable, match-free lighting
  • 4" adjustable legs for quick leveling on any countertop
  • All-stainless front & sides built to withstand demanding commercial use
  • Field-convertible for Natural Gas or LP (3/4" NPT rear gas connection)
  • ETL & ETL Sanitation listed; designed & built in the USA

Specifications

Model ARSRB-12
Cooking Surface (W × D) 12" × 21" (305 mm × 533 mm)
Overall Dimensions (W × D × H) 12" × 30" × 12 9/16" (305 mm × 762 mm × 319 mm)
Burners 2 cast-iron tubular
Total Heat Output 30,000 BTU/hr
Gas Connection 3/4" NPT (rear)
Manifold Pressure 5.0" W.C. Natural Gas  |  10.0" W.C. Propane
Adjustable Legs 4" stainless steel
Shipping Weight Approx. 165 lb (75 kg)
Certifications ETL Listed, ETL Sanitation, Made in USA

Perfect For

  • Food trucks & concession trailers
  • Cafés and bistros with limited line space
  • Quick-service & fast-casual restaurants
  • Satellite kitchens and banquet finishing stations

Warranty

2-year limited parts & labor warranty. Burners, grates, and radiants carry a 90-day warranty. See full terms at americanrange.com.

Important: Commercial cooking equipment must be installed under an adequate ventilation and fire-suppression system, and all gas connections must be performed by a licensed professional in accordance with local codes.

Features & Specs

Manufacturer

American Range

Certifications

ETL, Made in USA

Height

10.5in

Width

12.0in

Depth

29.5in

Shipping Weight

120.0lbs

Control Type

manual controls

Heating Source

radiant

Width (side - side) OA

1 - 12"

Specifications

Charbroiler, gas, countertop, 12" wide, (2) burners, 4" adjustable legs, heavy duty reversible cast iron grates, 21"cooking depth,manual controls, removable radiants & full width grease pan, stainless steel front & sides, 30,000 BTU, ETL, Made in USA
