American Range ARSMG-12 Gas Griddles
American Range ARSMG-12 Gas Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range ARSMG-12 Gas Griddles
Description

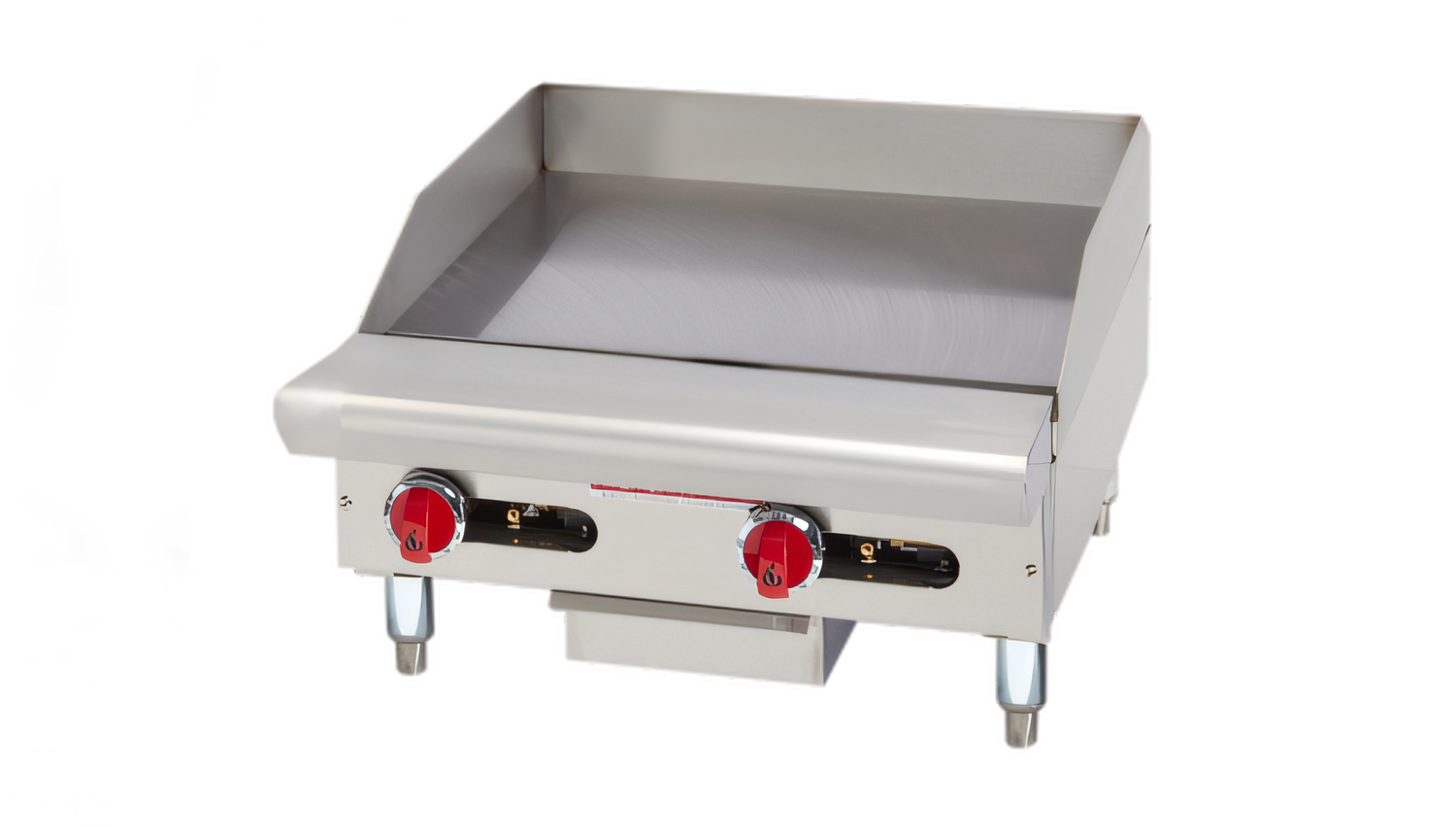

American Range ARSMG-12 Manual Gas Countertop Griddle – 12"
30,000 BTU • 1" Polished Steel Plate • Made in USABuilt for demanding commercial kitchens with limited space, the ARSMG-12 packs full-size griddle performance into a compact 12-inch footprint. A thick, heat-retaining plate, powerful “U” burner and rugged stainless steel body deliver the speed, consistency and durability chefs expect from American Range.
Key Features
- 1" thick, smooth polished steel griddle plate for superb heat retention & recovery
- 21" deep cooking surface maximizes usable area on a slim chassis
- One 30,000 BTU aluminized steel “U” burner provides even, edge-to-edge coverage
- Manual valve lets you dial in temperatures from 250 °F to 500 °F
- 4" stainless steel rear splash and 3 3/4" tapered side splashes keep grease contained
- 3" wide grease trough channels runoff to a 4½ qt stainless steel drawer—easy to remove & clean
- All-stainless exterior (front, sides, splash & landing ledge) stands up to daily abuse
- 4" chrome-plated adjustable legs for quick leveling and a 12 9/16" working height
- Ships Natural Gas ready; includes ¾" rear gas connection, regulator & LP conversion kit
- ETL listed for gas & sanitation; designed & built in North Las Vegas, Nevada
At-a-Glance Specs
| Model | ARSMG-12 |
|---|---|
| Cooking Surface (W × D) | 12" × 21" |
| Plate Thickness | 1" polished steel |
| Total BTU | 30,000 BTU/hr |
| Burners | 1 “U”-shaped aluminized steel |
| Control Type | Manual valve |
| External Dimensions (W × D × H) | 12" × 32 ⁹⁄₁₆" × 18 ⁷⁄₁₆" |
| Working Height | 12 ⁹⁄₁₆" (with 4" legs) |
| Gas Connection | ¾" NPT rear (regulator included) |
| Gas Pressure | 4.0" W.C. Natural • 10.0" W.C. LP |
| Grease Drawer Capacity | 4½ qt |
| Shipping Weight | 142 lb |
| Warranty | 2-year limited parts & labor |
Built to Outperform
American Range equipment is engineered, fabricated and tested in the USA for rock-solid reliability in high-volume operations. From the precise machining of the 1" plate to the welds on the all-stainless chassis, every detail of the ARSMG-12 is designed for years of trouble-free service and consistently delicious results.
Looking for a larger grill line? The ARSMG series is also available in 24", 36", 48", 60" & 72" widths.
