Key specifications

BTU
36,000 BTU
Dimensions
36.0"W × 18.0"D × 21.5"H
Type
Salamander Broiler
Fuel Type
Gas
Burner Type
Infrared
Burner Count
1
Spec sheet
American Range SKU: ARSM-36

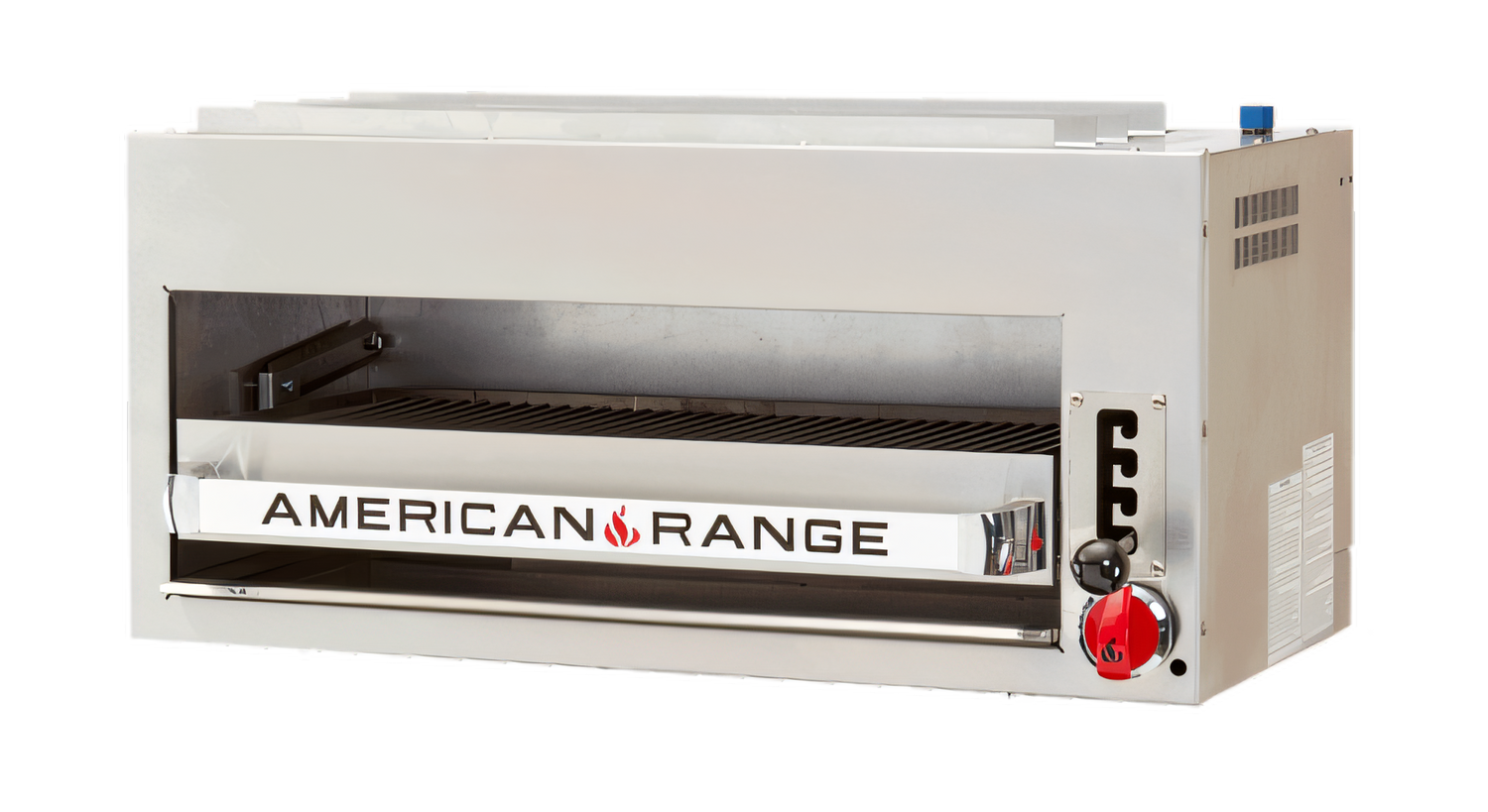

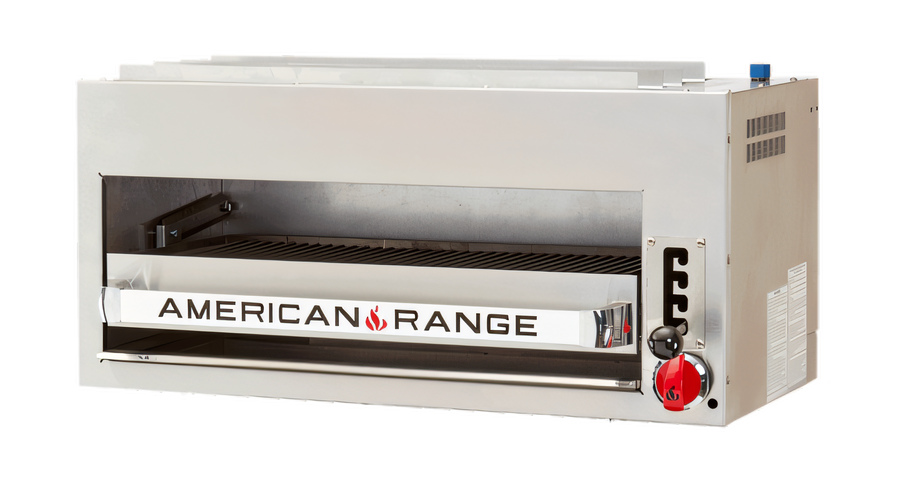

American Range ARSM-36 36-Inch Infrared Salamander Broiler

$3,087.50
/each
Estimated to ship in 11–14 business days Free Shipping
Size
Gas typeRequired
Gas Connector
Included: American Range warranty Two-year limited warranty on parts and labor; broiler burners, lower and upper grates, and radiants have a 90-day warranty duration

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $286/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Salamander Broiler
Fuel Type Gas
Burner Type Infrared
Burner Count 1
Material Stainless Steel
Country of Origin USA
Controls Manual
Ignition Type Standing Pilot
BTU 36,000 BTU
Cooking Grate Positions 4
Grate Features Roll-Out, Removable
Temperature Settings High, Low, Off
Hotel Pan Compatibility 4-Inch Deep Hotel Pan
Width 36 Inches

Description

The American Range ARSM-36 is a 36-inch gas salamander broiler with one infrared burner, manual controls, and standing pilot ignition.

Its stainless steel construction includes a four-level adjustable cooking grate that rolls out for loading and unloading. The grate is removable for cleaning, and the broiler fits a 4-inch-deep hotel pan.

  • 36,000 BTU/hr. infrared burner
  • High, low, and off temperature settings
  • Large-capacity grease tray

Overall Dimensions:

36.0"W x 18.0"D x 21.5"H

Product Weight:

200.0 lb

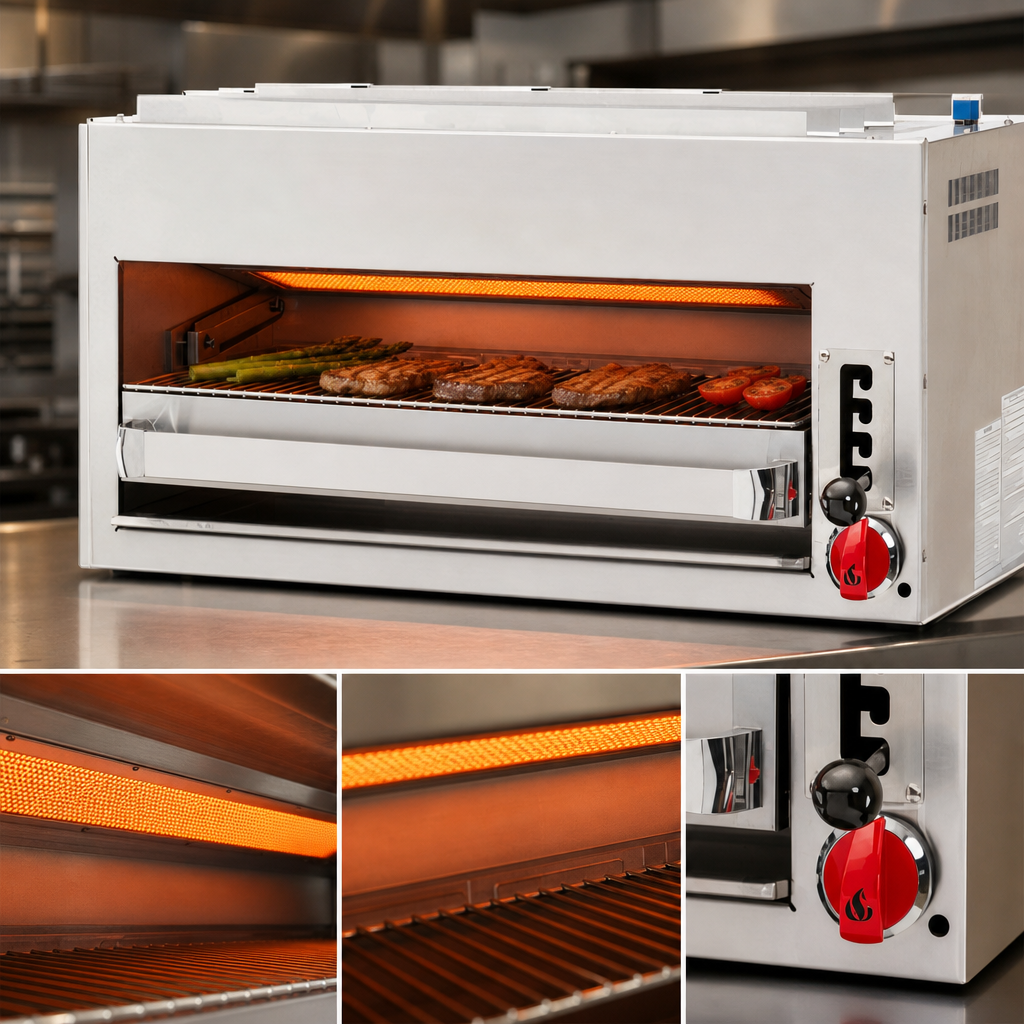

Single Infrared Burner

One infrared-type gas burner provides 36,000 BTU/hr. of heat.

Manual Controls

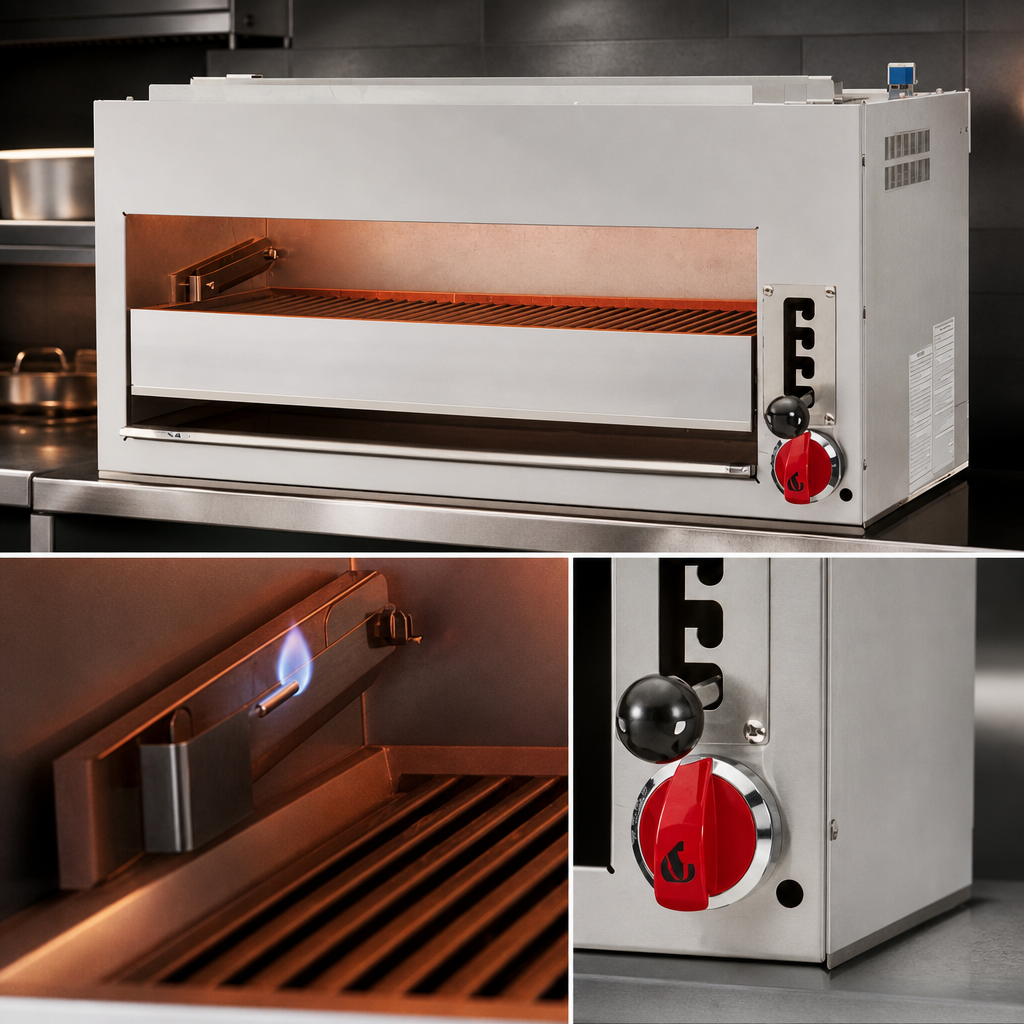

Manual controls provide high, low, and off temperature settings with standing pilot ignition.

Adjustable Roll-Out Grate

The cooking grate adjusts to four positions and rolls out for loading and unloading.

Removable Grate

The grate is removable for cleaning.

Hotel Pan Compatibility

The broiler fits a 4-inch-deep hotel pan.

Grease Tray

A large-capacity grease tray is included.

Stainless Steel Construction

The broiler has stainless steel construction, including stainless steel front and sides.

Frequently Asked Questions

It uses one infrared gas burner rated at 36,000 BTU/hr.
The cooking grate has four adjustable positions.
Yes. The grate rolls out for loading and unloading and is removable for cleaning.
It fits a 4-inch-deep hotel pan.
The cutsheet lists Natural Gas and LP options and states that the gas type must be specified when ordering.
The product has a two-year limited warranty covering parts and labor. Broiler burners, lower and upper grates, and radiants have a 90-day warranty duration.
