American Range | SKU:
ARSHP-48-8
American Range ARSHP-48-8 Hot Plates
$2,857.69
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
American Range ARSHP-48-8 Hot Plates is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range ARSHP-48-8 Hot Plates
$2,857.69
Unit price
/
Unavailable
Description

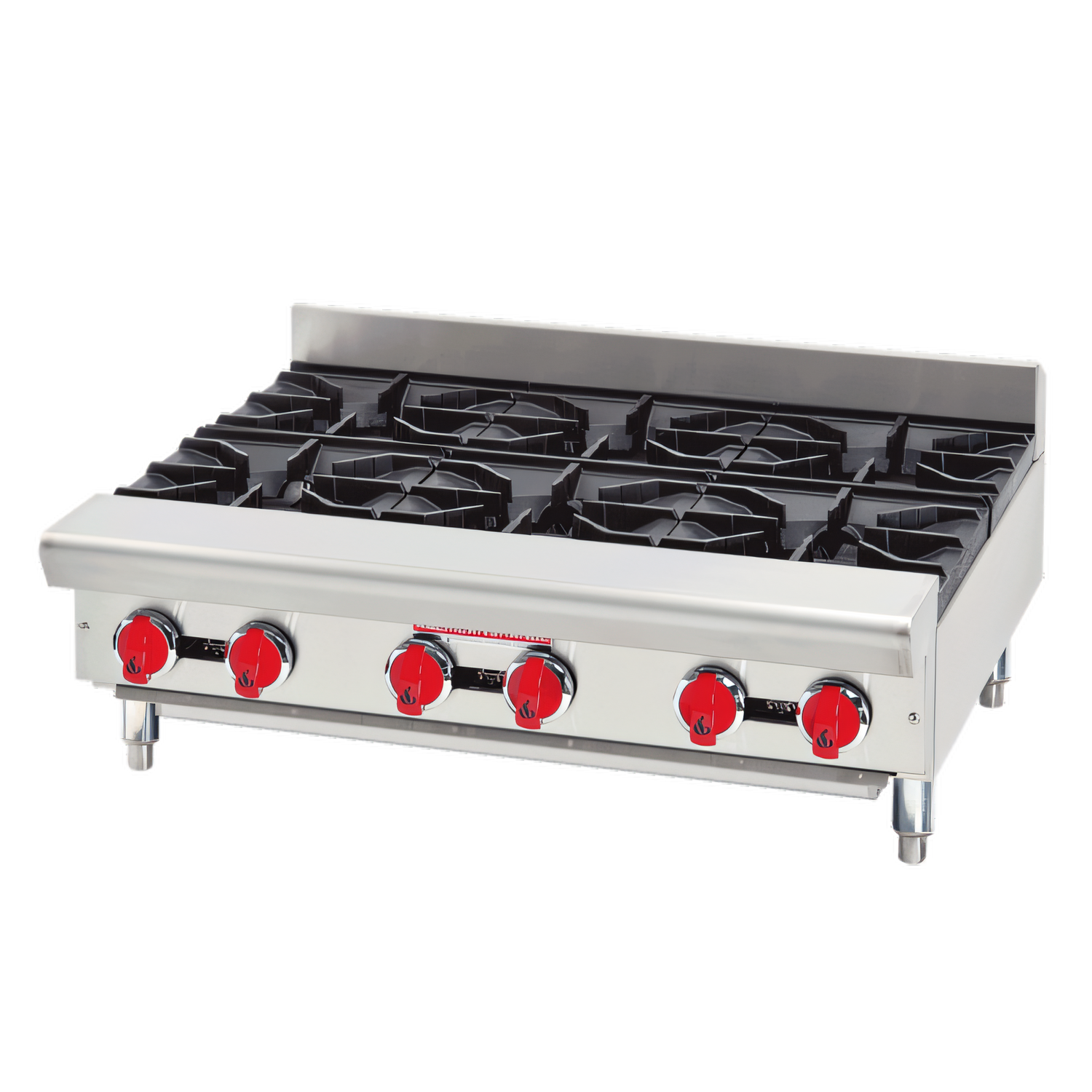

American Range ARSHP-48-8 Countertop Gas Hot Plate – 48", 8 Open Burners
256,000 BTU total • Heavy-duty 12" × 12" cast-iron grates • Made in the USAEngineered for high-volume kitchens, the American Range ARSHP-48-8 packs eight powerful 32,000 BTU burners into a slim, 48-inch footprint—giving you uncompromising performance without sacrificing valuable line space.
Key Features
- (8) two-piece, lift-off open burners rated at 32,000 BTU/hr each (256,000 BTU/hr total)
- Removable 12" × 12" sectional cast-iron grates handle oversized stockpots and distribute heat evenly
- Individual manual gas valves and standing stainless-steel pilots on every burner for instant ignition
- Full-width, slide-out stainless-steel crumb tray speeds daily clean-up
- Rugged stainless-steel front, sides and 4" backguard resist corrosion and abuse
- 4" adjustable legs level the unit on any countertop
- High-visibility die-cast red control knobs stand up to constant use
- cETLus & ETL Sanitation listed for safety and hygiene compliance
- Backed by a 2-year limited parts & labor warranty—service you can trust
Specifications
| Model | ARSHP-48-8 |
|---|---|
| Gas Type | Natural or Propane (specify when ordering) |
| Total BTU Output | 256,000 BTU/hr |
| Burners | 8 open burners |
| BTU per Burner | 32,000 BTU/hr |
| Grate Size | 12" × 12" sectional cast iron |
| Gas Connection | 3/4" rear NPT |
| Manifold Pressure | 5.0" W.C. Natural | 10.0" W.C. Propane |
| Dimensions (W × D × H) | 48" × 30" × 12-9/16" |
| Leg Height | 4" adjustable |
| Shipping Weight | Approx. 270 lb (122 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Country of Origin | United States |
Optional Accessories
- Stainless-steel equipment stand
- Locking casters for stand
Important Installation Notes:
• Unit must be placed on non-combustible flooring with legs or casters installed.
• Maintain ≥ 12" side clearance and ≥ 4" rear clearance from combustible surfaces.
• A compliant commercial ventilation system is required. Consult local codes.
• Unit must be placed on non-combustible flooring with legs or casters installed.
• Maintain ≥ 12" side clearance and ≥ 4" rear clearance from combustible surfaces.
• A compliant commercial ventilation system is required. Consult local codes.
Looking for a different size? ARSHP hot plates are also available in 12", 24", 36" and 60" widths.
Features & Specs
Features & Specs
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
10.0in
Width
48.0in
Depth
30.0in
Shipping Weight
270.0lbs
Burner Qty
8 burners
Legs
without legs
Width (side - side)
48 - 59"
Top and Front Finish
stainless steel front & sides
Specifications
Hotplate, gas, 48" wide, countertop, (8) 32,000 BTU open burner with 12" x 12" sectional cast iron top grates, manual controls, pilot, removable crumb tray, stainless front & sides, 4" backguard, 4" adjustable legs cETLus, ETL-Sanitation, Made in USA
