American Range ARSHP-36-6 Hot Plates
American Range ARSHP-36-6 Hot Plates is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range ARSHP-36-6 Hot Plates
Description

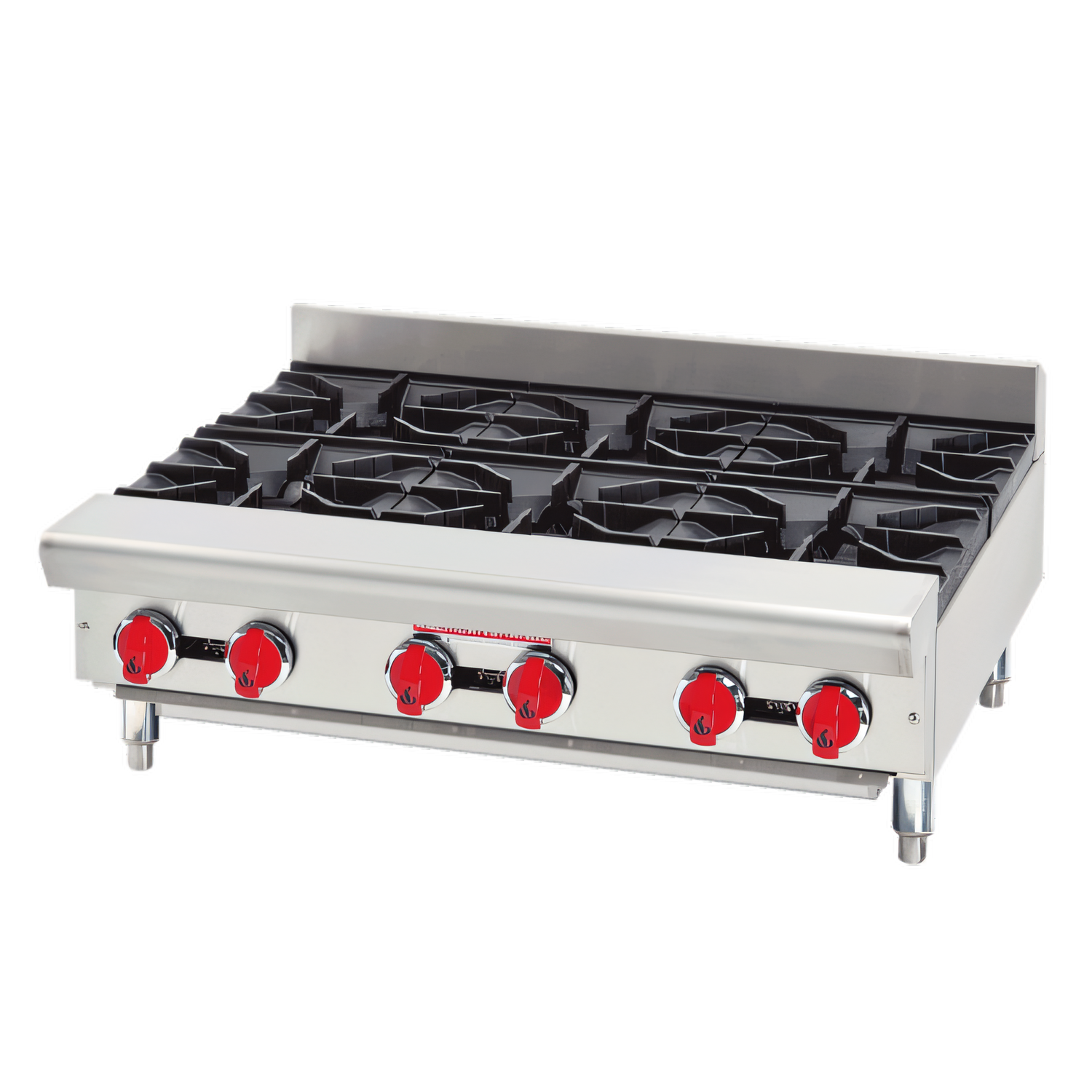

American Range ARSHP-36-6 Gas Hot Plate — 36" Countertop, 6 Open Burners
High-performance, heavy-duty cooking power made in the USABring the intensity of a full-size range to your countertop. The American Range ARSHP-36-6 unleashes a combined 192,000 BTU/hr across six individually controlled open burners, giving busy kitchens the versatility and speed they demand in a compact 36" footprint.
Key Features
- (6) 32,000 BTU two-piece lift-off open burners for rapid, even heating
- 12" × 12" heavy-duty removable cast-iron grates create a continuous cooking surface
- Independent manual gas control valve & stainless-steel standing pilot on every burner
- Full-width stainless steel crumb tray slides out for fast, thorough cleaning
- Low-profile 12 9/16" height with 4" adjustable legs for easy leveling under any hood
- Stainless steel front, sides, landing ledge & 4" backguard resist corrosion and abuse
- 3/4" rear gas connection; order for Natural Gas or LP (field convertible)
- cETLus & ETL-Sanitation listed to NSF/ANSI standards
- Designed & built in North America—backed by a two-year limited parts & labor warranty
Built for Performance
- Sectional cast-iron grates interlock for seamless pan movement
- Die-cast, high-visibility red control knobs remain cool to the touch
- Standing pilots provide instant ignition—no electrical hookup required
- Generous 3 ¾" burner spacing accommodates large stockpots and pans
Specifications
| Model | ARSHP-36-6 |
|---|---|
| Configuration | Countertop gas hot plate, 6 open burners |
| Total Input | 192,000 BTU/hr (6 × 32,000 BTU) |
| Gas Type | Natural Gas or Propane (specify at order) |
| Manifold Pressure | NAT 5.0" W.C. • LP 10.0" W.C. |
| Gas Connection | 3/4" NPT (rear) |
| Cooking Surface | (6) 12" × 12" cast-iron grates |
| Exterior Dimensions | 36" W × 30" D × 12 9/16" H |
| Shipping Weight | ≈ 210 lb |
| Construction | Stainless steel front, sides, landing ledge & 4" backguard |
| Legs | 4" adjustable stainless inset legs |
| Certifications | cETLus, ETL-Sanitation |
| Origin | Made in USA |
Clearances & Installation
- Install on non-combustible countertops only
- Combustible wall clearances: 12" (305 mm) sides, 4" (102 mm) rear
- Commercial ventilation required—refer to NFPA 96 guidelines
- Please specify gas type and altitude (> 2,000 ft) when ordering
Warranty
American Range covers the ARSHP-36-6 with a two-year limited warranty on parts & labor (90 days on replacement parts, broiler burners, grates & radiants). Register your unit within 90 days of shipment for extended coverage.
