Description

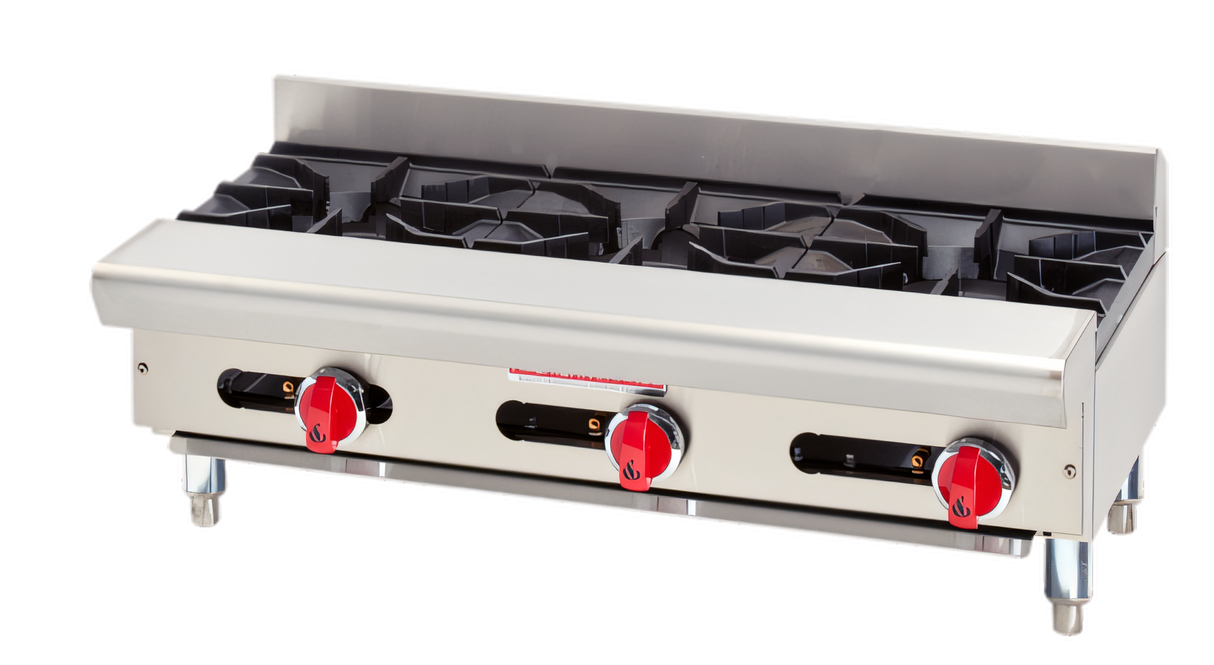

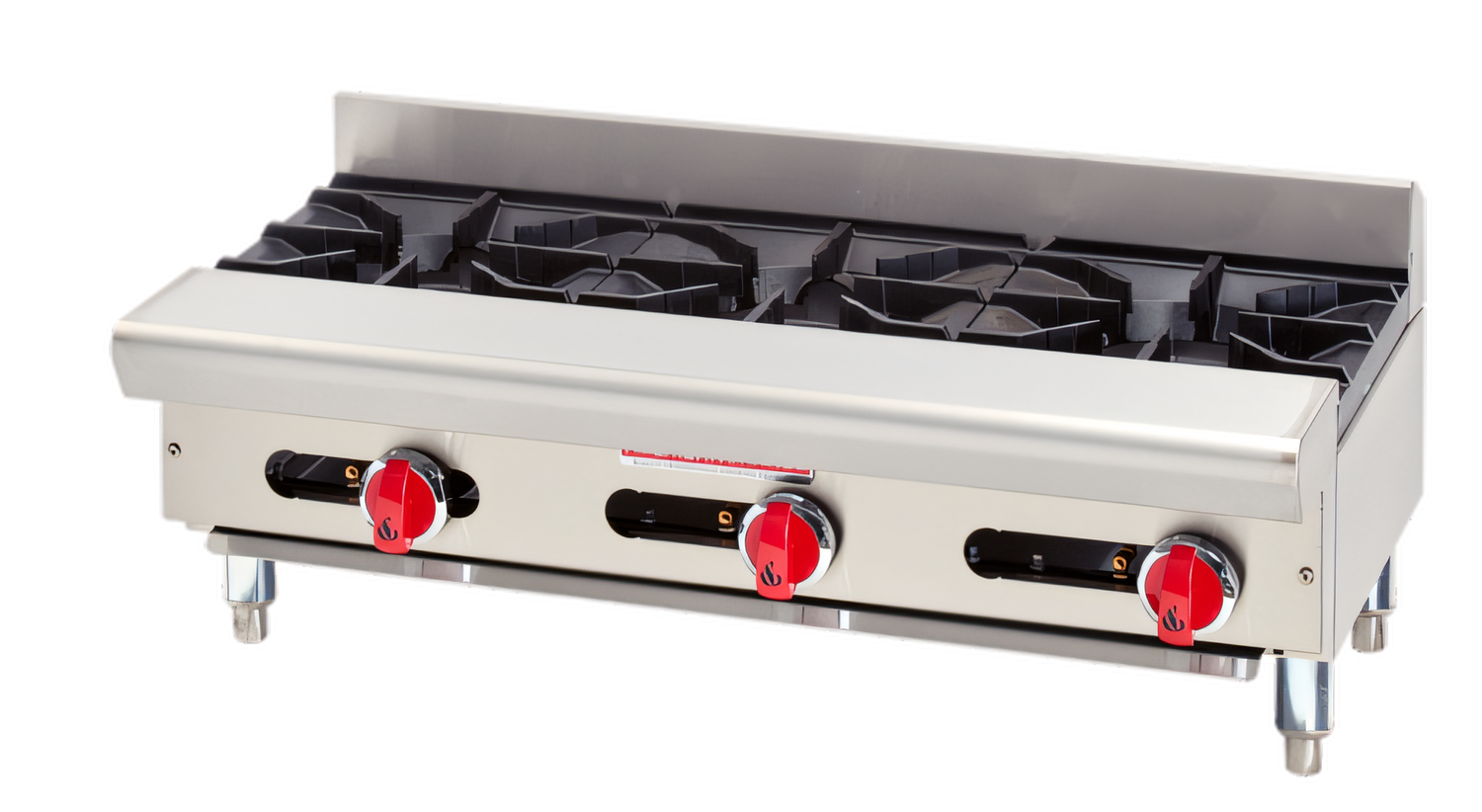

American Range ARSHP-36-3 Countertop Gas Hot Plate – 36"

96,000 BTU • Made in USA • cETLus & ETL-Sanitation

Put high-output performance exactly where you need it. The American Range ARSHP-36-3 packs three powerful open burners into a slim 36-inch footprint—perfect for expanding your line, outfitting a food truck, or adding emergency back-up capacity during peak periods.

Key Features

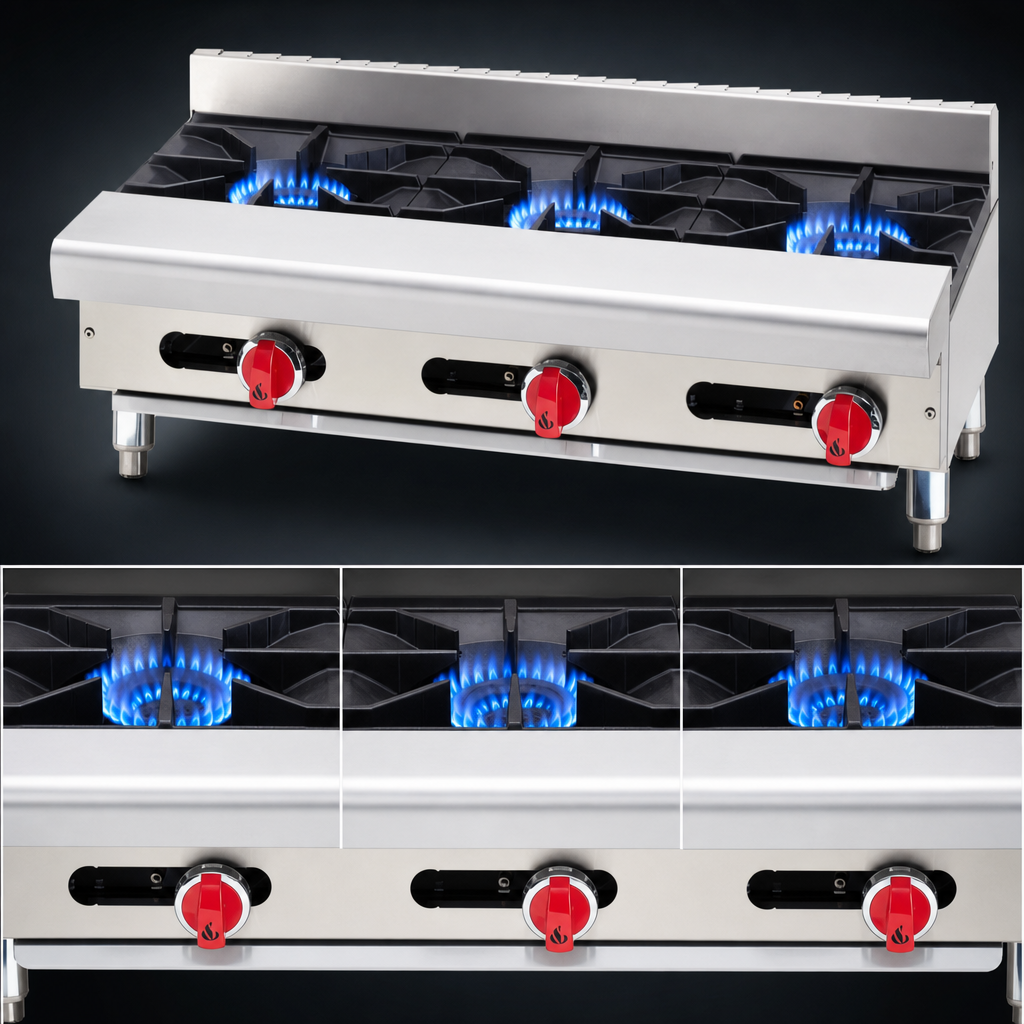

  • Three individually controlled 32,000 BTU open burners (96,000 BTU total).
  • Two-piece, lift-off burner heads for fast cleaning and service.

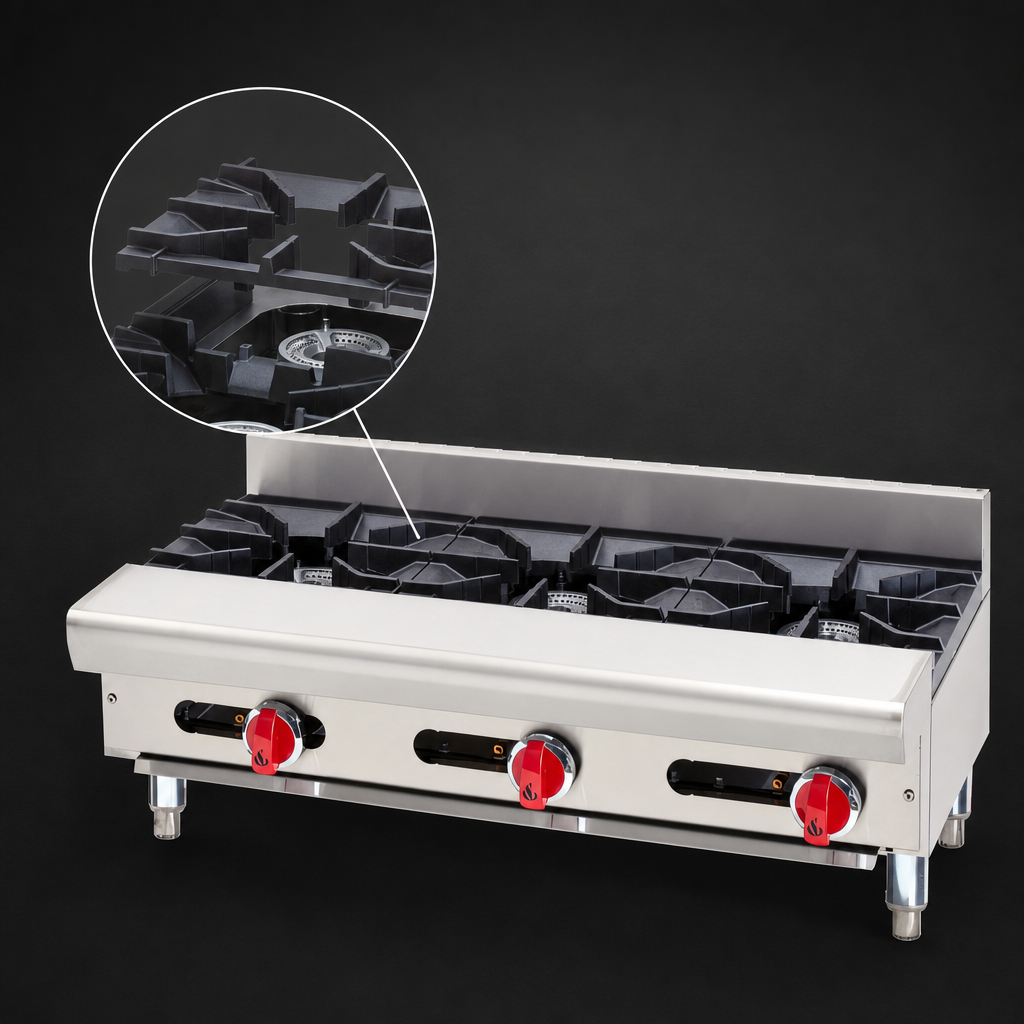

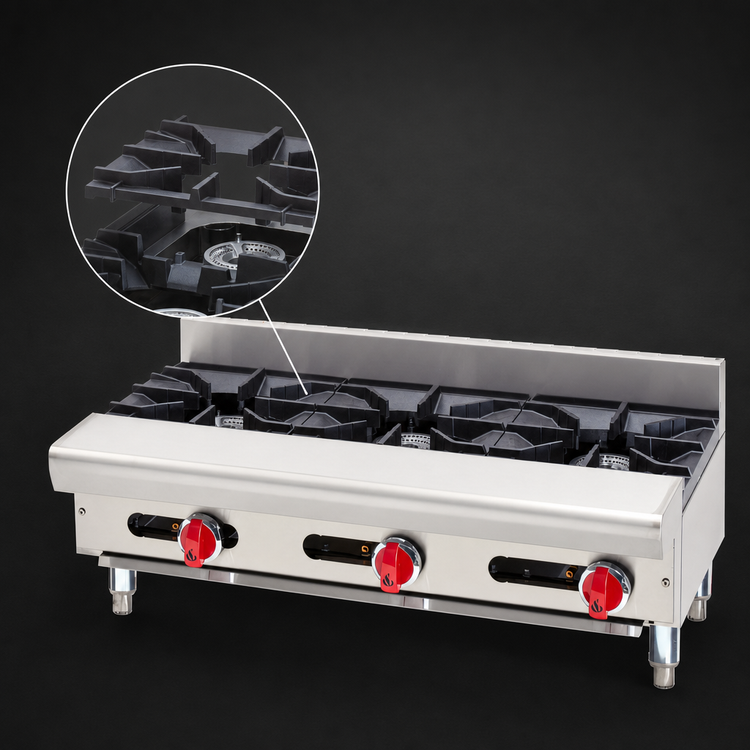

  • 12" × 12" sectional cast-iron grates support heavy stock pots and provide even heat distribution.
  • Standing stainless-steel pilots ensure instant ignition on every burner.
  • Manual gas valves give chefs precise flame adjustment from simmer to sear.
  • Full-width, stainless-steel crumb tray slides out for quick cleanup.
  • Durable stainless-steel front, sides, and 4" backguard withstand daily commercial abuse.
  • 4" adjustable legs let you level the unit on any countertop.
  • Easy-to-grip die-cast red control knobs.
  • Backed by a 2-year limited parts & labor warranty.

Specifications

Model ARSHP-36-3
Gas Type Natural or Propane (specify when ordering)
Total BTU/hr 96,000
Burners 3 open burners, 32,000 BTU each
Top Grates 12" × 12" sectional cast iron, removable
Controls Manual valves with standing pilots
Overall Width 36" / 914 mm
Overall Depth 18" / 458 mm
Overall Height 12-9/16" / 319 mm (with legs)
Gas Connection 3/4" NPT rear
Manifold Pressure Natural 5.0" W.C.  |  LP 10.0" W.C.
Shipping Weight Approx. 115 lb / 52 kg
Certifications cETLus, ETL-Sanitation
Warranty 2-year limited parts & labor
Country of Origin USA

Optional Accessories

  • Stainless-steel equipment stands (various heights)
  • Casters for stands

Installation & Clearance

  • For non-combustible surfaces only.
  • Minimum clearance to combustibles: 12" (305 mm) sides, 4" (102 mm) rear.
  • Legs or casters are required, or provide a 2" overhang if curb-mounted.
  • Must be installed under an approved ventilation hood per NFPA 96 and local codes.
Important: Specify gas type and installation elevation (over 2,000 ft / 610 m) when ordering.

Questions? Our equipment specialists are ready to help you choose accessories, arrange freight, and get cooking fast.

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

10.0in

Width

36.0in

Depth

18.0in

Shipping Weight

115.0lbs

Legs

without legs

Burner Qty

3 burners

Top and Front Finish

stainless steel front & sides

Width (side - side)

36 - 47"

Specifications

Hotplate, gas, 36" wide, countertop, (3) 32,000 BTU open burner with 12" x 12" sectional cast iron top grates, manual controls, pilot, removable crumb tray, stainless front & sides, 4" backguard, 4" adjustable legs cETLus, ETL-Sanitation, Made in USA
