American Range ARMG-60-24 Gas Griddles
Description
ARMG-60-24 Manual Gas Griddle – 60″ x 24″ Plate
by American Range • Made in the USA • ETL ListedBuilt for volume, consistency, and a lifetime of service, the American Range ARMG-60-24 turns a 60-inch countertop into a high-performance cooking station. A full-inch thick polished steel plate teams up with five powerful U-shaped burners to deliver even heat across 1,440 in² of cooking surface—perfect for breakfast rushes, lunchtime sizzles, or all-day menu versatility.
Key Features
- 60″ W x 24″ D cooking surface (24″ deep plate = true 24″ cook zone)

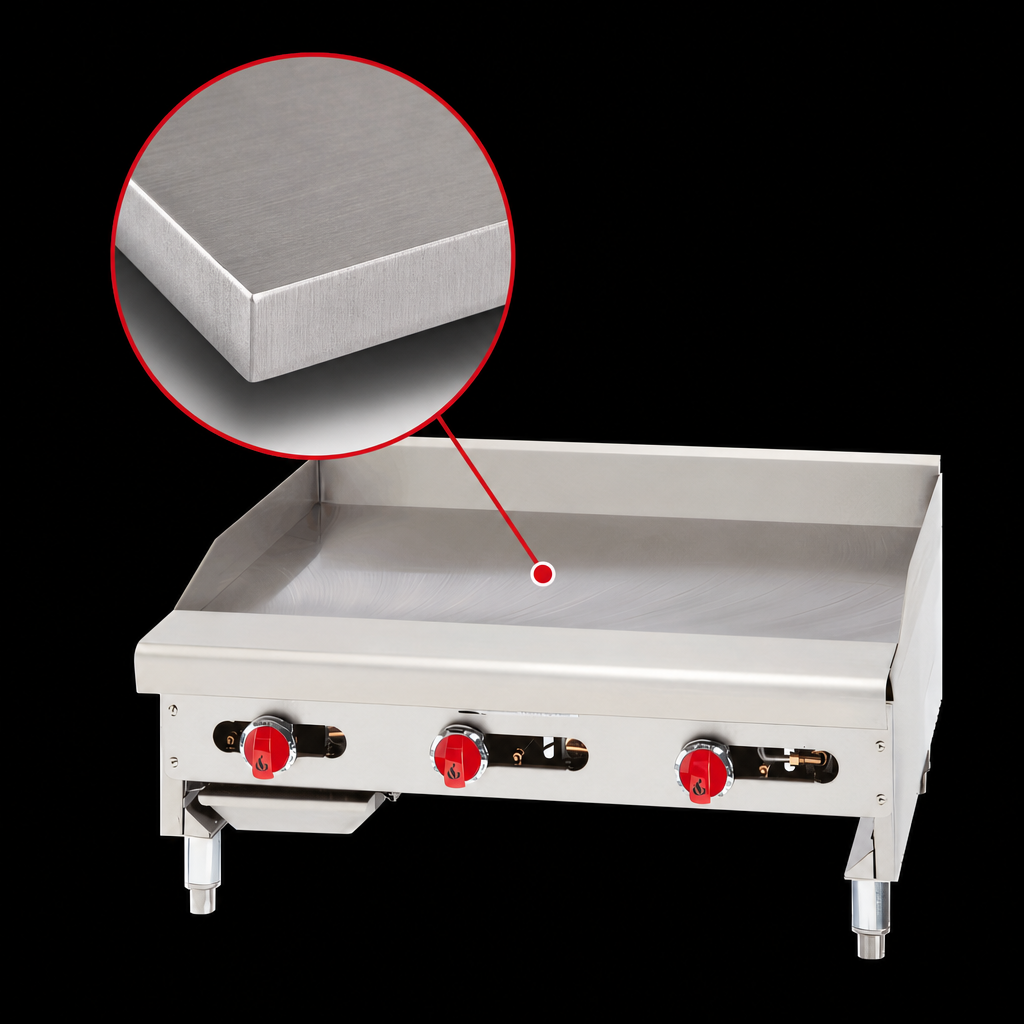

- Polished 1″ (25 mm) thick steel griddle plate for superior heat retention & recovery

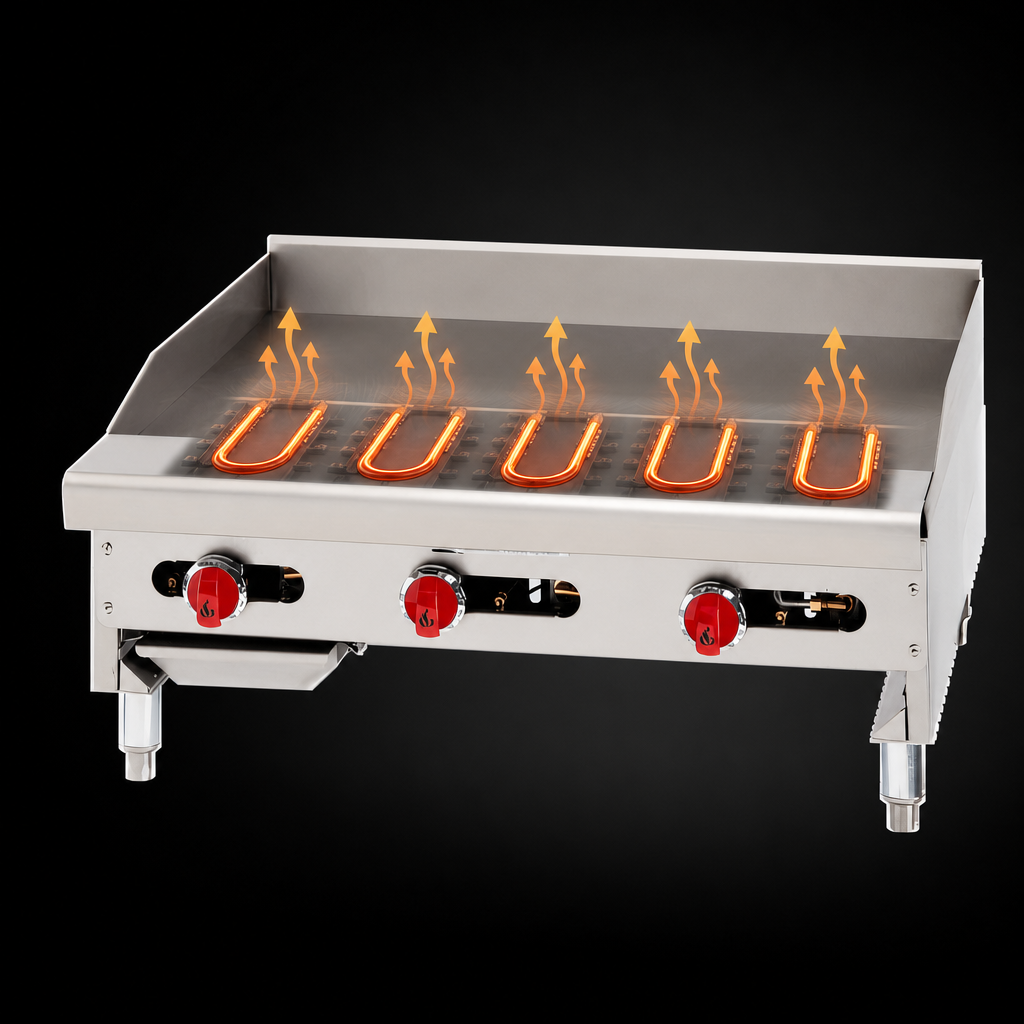

- 5 U-shaped 30,000 BTU burners (one every 12″) for a total of 150,000 BTU / 44 kW
- Manual front-panel controls—instant, responsive flame regulation
- 3″ stainless steel splash guard contains grease and protects walls
- Full-width 3″ grease trough & large removable grease pan for fast clean-ups
- Durable stainless steel exterior (front, sides, landing ledge) resists dents & corrosion
- 4″ adjustable stainless steel legs—level installation on any countertop
- Field convertible to Natural Gas or LP (3/4″ NPT rear gas connection)
- Two-year limited parts & labor warranty backed by American Range nationwide service network
Performance & Utilities
| Model | ARMG-60-24 |
|---|---|
| Cooking surface | 60″ W × 24″ D (1,440 in²) |
| Total BTU output | 150,000 BTU/hr (44.0 kW) |
| Burners | 5 × 30,000 BTU U-shaped aluminized steel burners |
| Gas connection | 3/4″ NPT, rear |
| Manifold pressure | Natural Gas – 5.0" W.C. LP Gas – 10.0" W.C. |
| Overall dimensions (W × D × H) | 60″ × 35″ × 17″ (1524 × 889 × 432 mm) – height to plate |
| Shipping weight | Approx. 665 lb (302 kg) |
| Certifications | ETL (US & Canada), ETL Sanitation |
Installation Notes
- Designed for non-combustible countertops or curb mounts; if curb-mounted without legs, a 2″ front overhang is required.
- Clearances to combustible surfaces: 12″ from sides, 4″ from rear.
- Specify gas type and altitude (over 2,000 ft / 610 m) at time of order.
- Commercial ventilation in accordance with NFPA 96 is required.
Looking for a thermostatic version? Check out the American Range ARTG series for precise dial-set temperature control.
