American Range  |  SKU: ARMG-36-24

American Range ARMG-36-24 Gas Griddles

$3,060.54
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
American Range Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

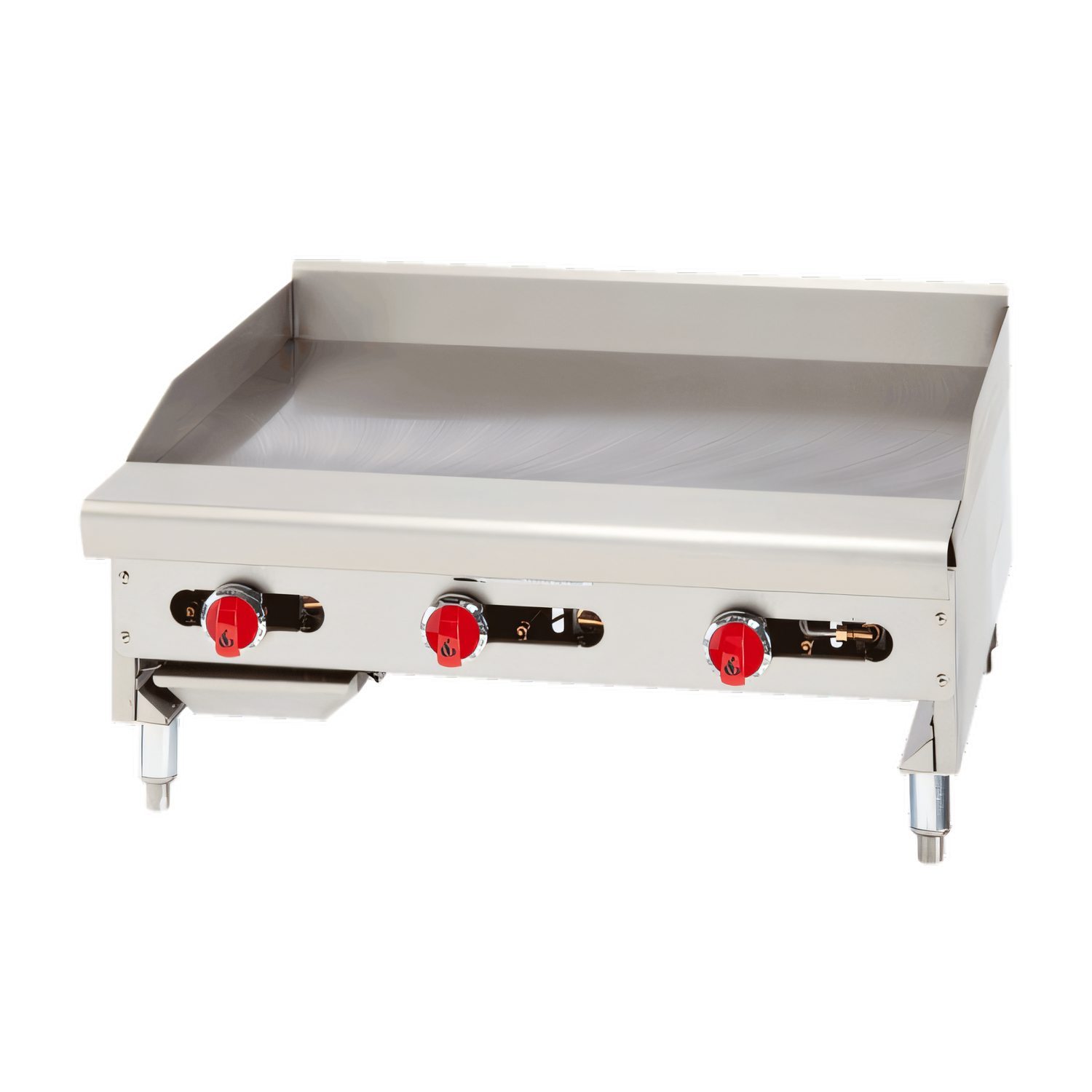

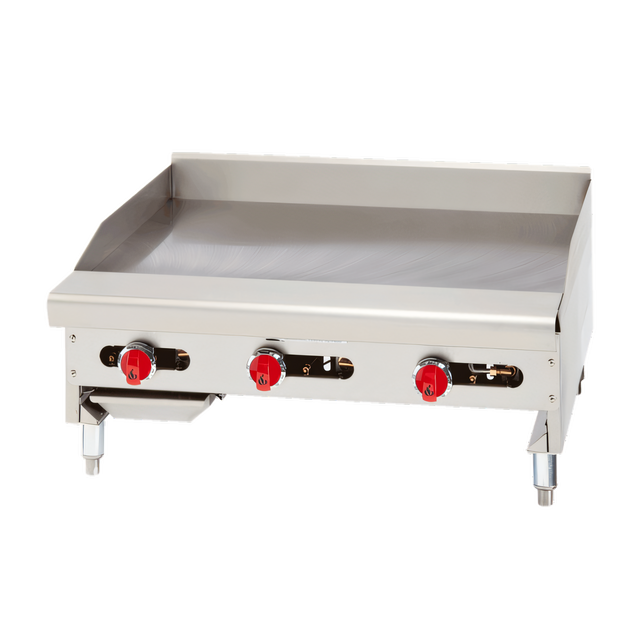

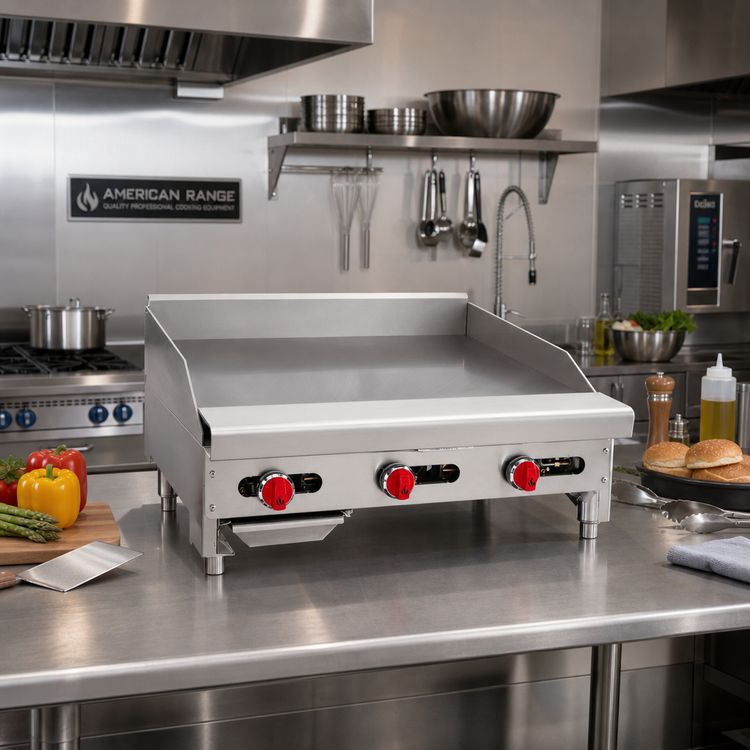

American Range ARMG-36-24 Manual Gas Griddle

36" W × 24" D | 90,000 BTU | Countertop | Made in USA

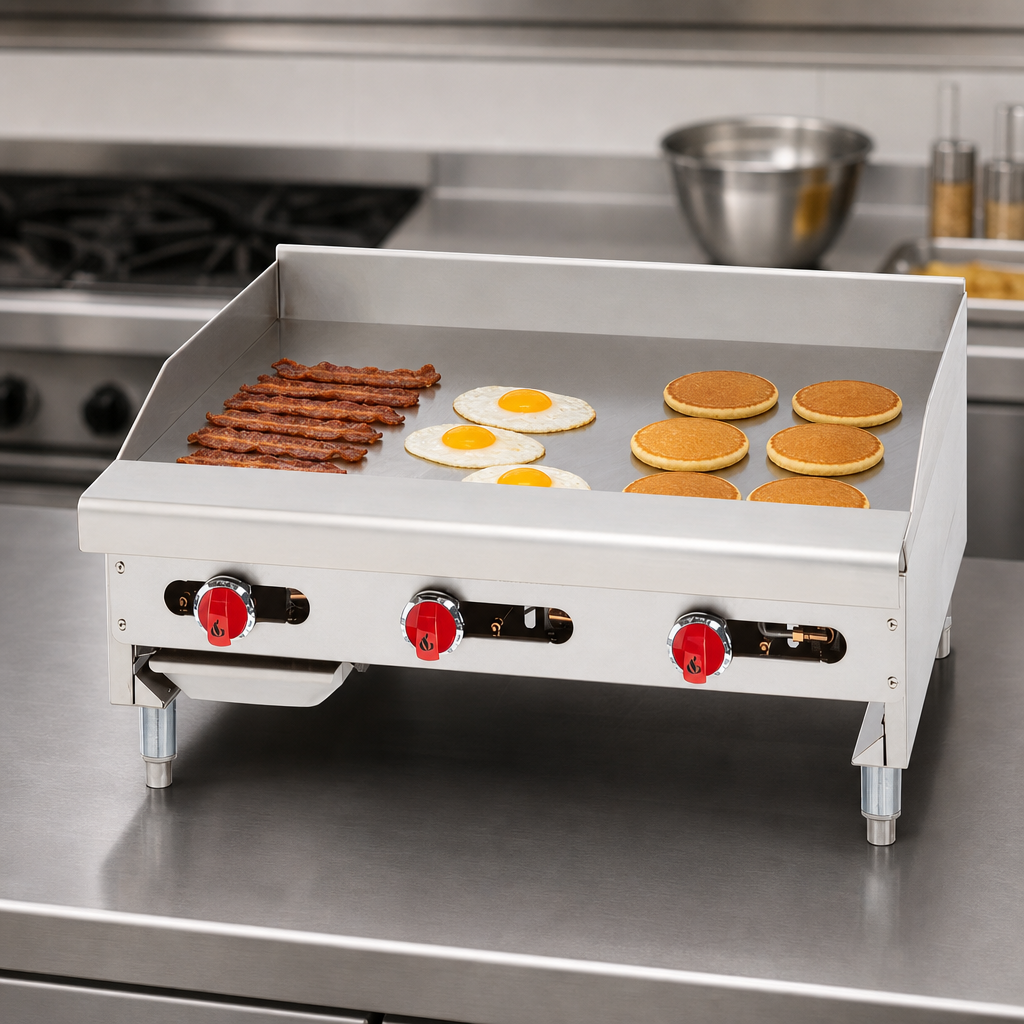

Engineered for busy commercial kitchens, the ARMG-36-24 delivers even, responsive heat across a generous 36-inch cooking surface—perfect for everything from delicate pancakes to high-volume searing.

Key Features
  • 1" thick smooth, polished steel plate for exceptional heat retention & recovery.
  • Three U-shaped 30,000 BTU burners (one every 12") for a total of 90,000 BTU / 26 kW.

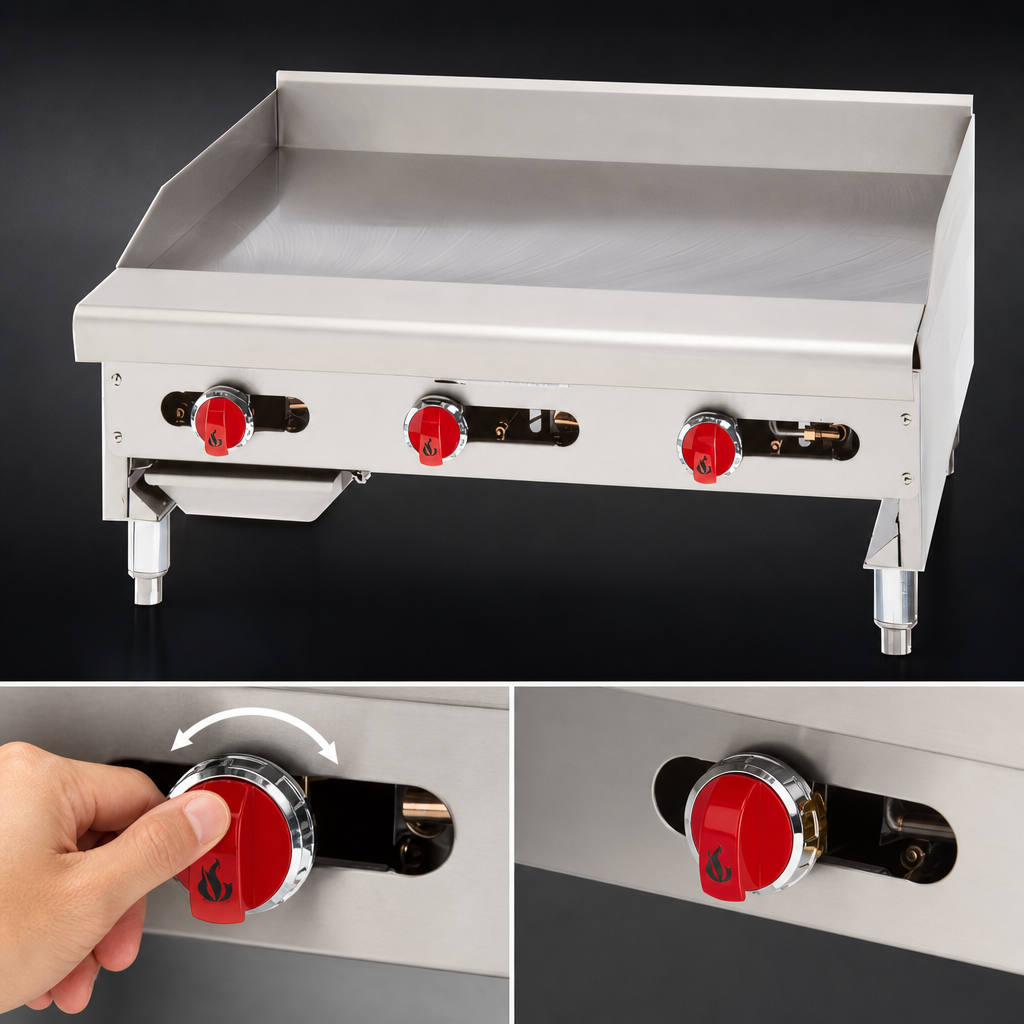

  • Manual control valves give you precise, independent zone control.
  • 3" integrated splash guard keeps grease and debris on the griddle—not on your walls.
  • Full-width 3" stainless steel grease trough with large, removable pan for quick, mess-free cleaning.
  • Rugged stainless steel front, sides, trough and pan—built to handle daily commercial abuse.
  • Adjustable 4" stainless steel legs level the unit and simplify under-counter cleaning.
  • Rear ¾" NPT gas connection; specify Natural or LP gas at order.
  • ETL Listed for safety & sanitation; designed & built in the USA.
Specifications
Model ARMG-36-24
Cooking Surface 36" W × 24" D (914 mm × 610 mm)
Overall Dimensions 36" W × 35" D × 17" H (914 mm × 889 mm × 432 mm)
Burners 3 U-shaped, 30,000 BTU each
Total Input 90,000 BTU/hr (26 kW)
Gas Connection ¾" NPT, rear
Manifold Pressure Natural 5.0" W.C. | LP 10.0" W.C.
Shipping Weight ≈ 385 lb (175 kg)
Certifications ETL & ETL Sanitation
Warranty 2-year parts & labor
Installation & Clearance
  • Use on non-combustible countertops only. Legs or casters required, or provide a 2" overhang if curb-mounted.
  • Clearances: 0" sides/rear to non-combustible surfaces; 12" sides and 4" rear to combustible surfaces.
  • Provide adequate ventilation in accordance with NFPA-96.
  • Specify gas type and altitude (if > 2,000 ft) when ordering.

Full warranty terms available at americanrange.com/terms-of-sale.

Features & Specs

Manufacturer

American Range

Height

17.0in

Width

36.0in

Depth

32.0in

Shipping Weight

254.0lbs

Cooking Surface Width (side - side)

31" - 36"

Exterior Finish

all stainless steel exterior

Griddle Plate Finish

smooth steel

Plate Thickness

1"

Cooking Surface Depth (front - back)

30" - 36"

Controls

manual controls

Specifications

Griddle, gas, 36" W x 24"D, countertop, 1" thick smooth polished steel griddle plate, (2) "U" shaped burners, manual controls, 3" splash guard, 4" legs, stainless steel grease trough & grease pan, stainless steel exterior, 26.0kW, 90,000 BTU, ETL, Made in USA
