American Range ARMG-24-24 Gas Griddles
Description

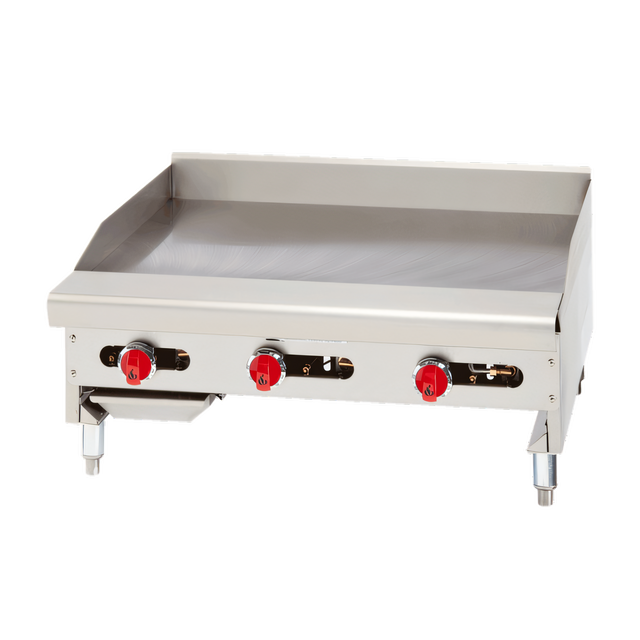

American Range ARMG-24-24 Gas Countertop Griddle – 24" Manual
Made in USA | 60,000 BTU | ETL ListedBuilt for high-volume diners, food trucks, and café lines, the American Range ARMG-24-24 delivers heavy-duty griddle performance in a compact 24" footprint. A full 1" thick polished steel plate teams up with dual U-shaped burners to give you rapid, even heat for flawless pancakes, burgers, quesadillas, and more—shift after shift.
Key Features & Benefits
- 1" (25 mm) thick smooth steel plate maximizes heat retention & recovery.
- (2) 30,000 BTU U-shaped burners—one for every 12" of surface—for consistent edge-to-edge temperatures.
- Manual, infinitely-variable valves provide instant flame response for precise cooking control.
- Integrated 3" splash guard keeps grease contained and kitchen walls clean.
- Stainless steel 3" trough & removable grease pan speed up end-of-shift clean-up.
- Durable stainless steel exterior (front, sides & landing ledge) stands up to commercial abuse.
- 4" adjustable legs level the unit on any countertop.
- ETL Sanitation & ETL Gas certified for use in the U.S. & Canada.
- Designed & built in California and backed by a 2-year parts & labor warranty.
Specifications
| Model | ARMG-24-24 |
|---|---|
| Gas Type | Natural or LP (specify when ordering) |
| Total BTU | 60,000 BTU/hr • 18.0 kW |
| Burners | 2 U-shaped, 30,000 BTU each |
| Cooking Surface | 24" W × 24" D |
| Overall Dimensions | 24" W × 35" D × 17" H |
| Plate Thickness | 1" polished steel |
| Splash Guard | 3" high, rear & sides |
| Grease Management | 3" wide front trough & stainless pull-out pan |
| Manifold Pressure | Natural: 5.0" W.C. • LP: 10.0" W.C. |
| Gas Inlet | ¾" NPT, rear |
| Clearances | Non-combustible: 0"; Combustible: 12" sides, 4" rear |
| Shipping Weight | ≈ 280 lb (127 kg) |
| Warranty | 2-year limited parts & labor |
For installations above 2,000 ft elevation or curb-mount applications, consult factory guidelines. Proper ventilation per NFPA 96 is required.
