American Range ARKB-72 Gas Charbroilers
Description
American Range ARKB-72 Countertop Gas Kebob Broiler — 72" Wide, 360,000 BTU
Made in USA | cETLus & ETL-Sanitation CertifiedWhen your menu runs on skewers, you need a broiler that keeps up. The American Range ARKB-72 packs twelve independently-controlled 30,000 BTU burners into a rugged, all-stainless cabinet that drops right onto your countertop. Its angled, removable radiants tame flare-ups while delivering the smoky, char-broiled flavor that brings guests back for more.
Key Features

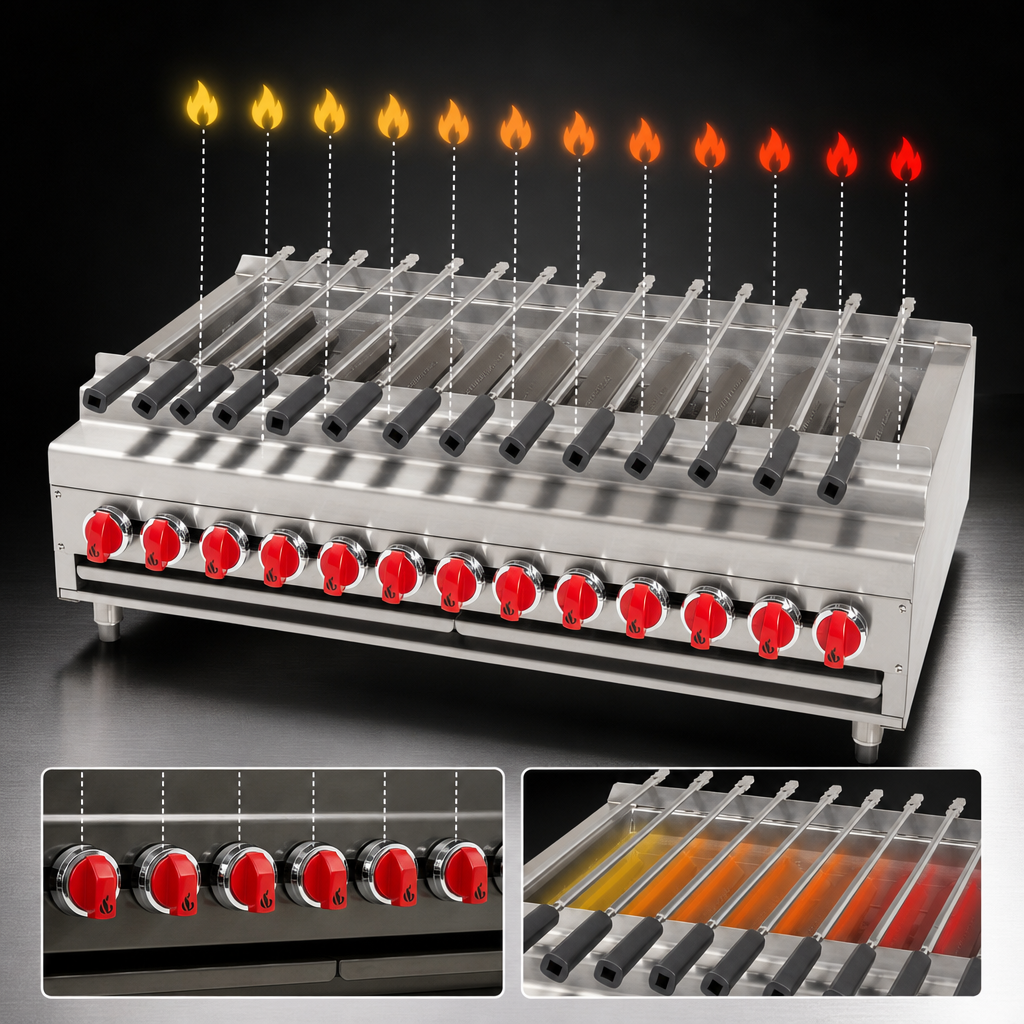

- 12 individually controlled stainless steel burners (30,000 BTU each) on 6" centers
- Heavy-duty angled radiants:
- Optimize heat distribution
- Removable for rapid clean-up
- Angle helps suppress flare-ups while enhancing char flavor
- Heavy-gauge stainless steel skewer frame accommodates four skewers per foot
- One complete V-shape skewer set included (≈24 skewers for 6 ft span)
- Full-width slide-out grease / crumb tray simplifies maintenance
- Manual control valves with standing pilots for each burner
- 4" adjustable welded legs keep the unit level and stable
- Durable all-stainless exterior cleans fast and resists corrosion
- Field convertible for Natural or LP gas | ¾" rear gas connection
- cETLus & ETL-Sanitation listed for safety and hygiene
- Designed, engineered & built in the USA
Specifications
| Model | ARKB-72 |
|---|---|
| Type | Countertop gas kebob / skewer broiler |
| Overall Width | 72 in | 1829 mm |
| Overall Depth | 26 in | 660 mm |
| Overall Height | 15¼ in | 387 mm (incl. legs) |
| Number of Burners | 12 × 30,000 BTU stainless steel tube burners |
| Total Input | 360,000 BTU/hr | 106.0 kW |
| Gas Manifold Pressure | Natural 5.0" W.C. / Propane 10.0" W.C. |
| Gas Inlet Size | ¾" NPT (rear) |
| Controls | Manual valves, standing pilots |
| Included Accessories | 1 V-shape skewer set (≈24 skewers), grease tray |
| Shipping Weight | ≈440 lb | 200 kg |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year parts & labor (burners & radiants 90 days) |
Popular Options (sold separately)
- Rotisserie kit
- Additional stainless steel skewer sets
- Stainless steel equipment stand
Installation & Clearance Requirements
- For use on non-combustible floors or on an equipment stand
- If mounted on a curb, allow a 2" overhang
- 0" clearance to non-combustible surfaces
- When adjacent to combustible walls: maintain 12" from sides & 4" from rear
- Requires adequate ventilation per NFPA 96
- Specify gas type and altitude (over 2000 ft) when ordering
Two-year limited parts & labor warranty provided by American Range. Burners and radiants carry a 90-day warranty. See full terms at americanrange.com/terms-of-sale.
