American Range | SKU:
ARKB-48
American Range ARKB-48 Gas Charbroilers
$9,169.88
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
American Range ARKB-48 Gas Charbroilers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range ARKB-48 Gas Charbroilers
$9,169.88
Unit price
/
Unavailable
Description

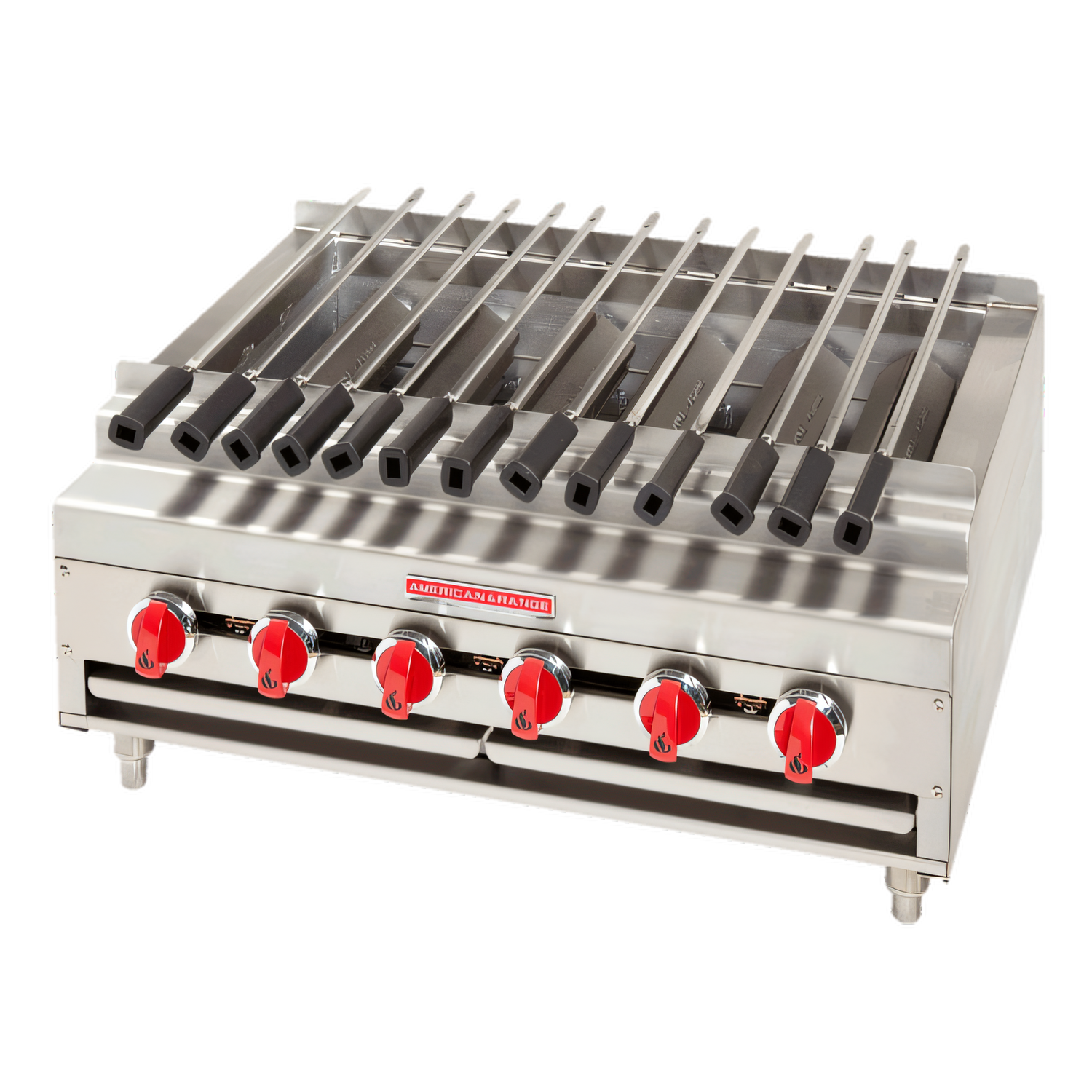

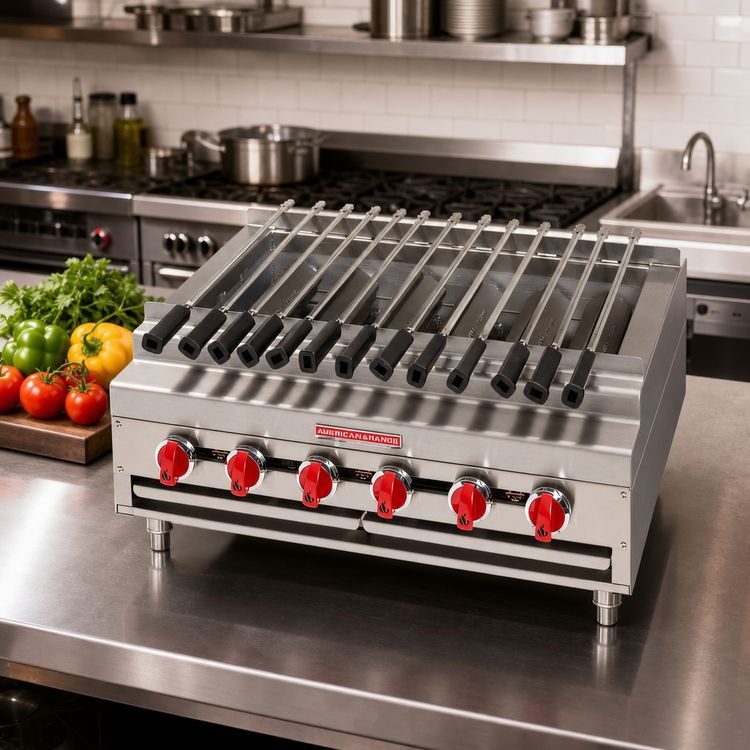

American Range ARKB-48 Countertop Gas Kebob Broiler – 48"
8 individually controlled burners | 240,000 BTU (71.0 kW)Turn out perfectly char-broiled kebobs, souvlaki, satay and more with the powerhouse that chefs trust. Built in the USA and engineered for high-volume food-service, the ARKB-48 delivers intense, even heat, rugged durability and fast nightly clean-up in a compact 48-inch countertop footprint.
Key features & benefits

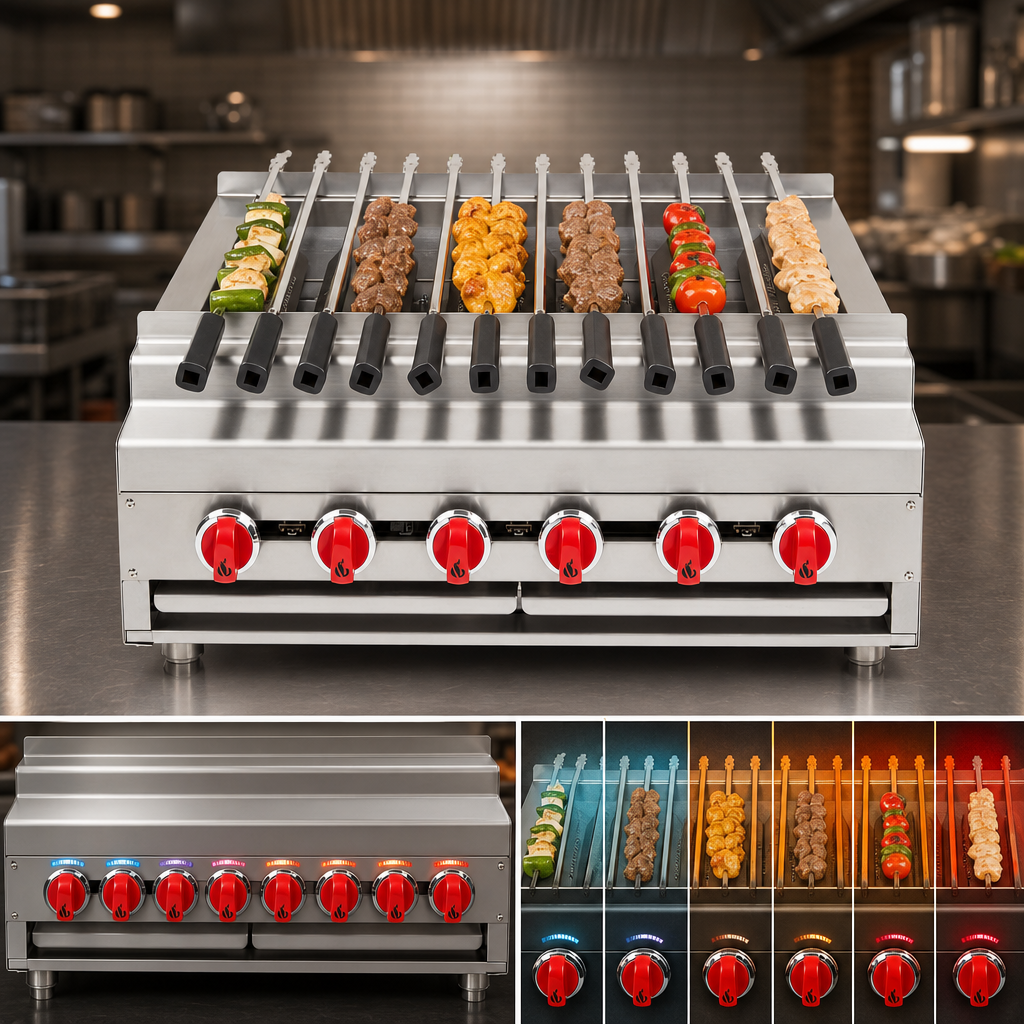

- Eight removable stainless steel burners (30,000 BTU each) spaced every 6" for uniform coverage.
- Angled, heavy-duty radiants minimize flare-ups while imparting authentic char flavor.
- Full-width removable grease/crumb tray speeds end-of-shift clean-up.
- Includes one complete set of V-shape stainless steel skewers – four per foot (16 skewers total).

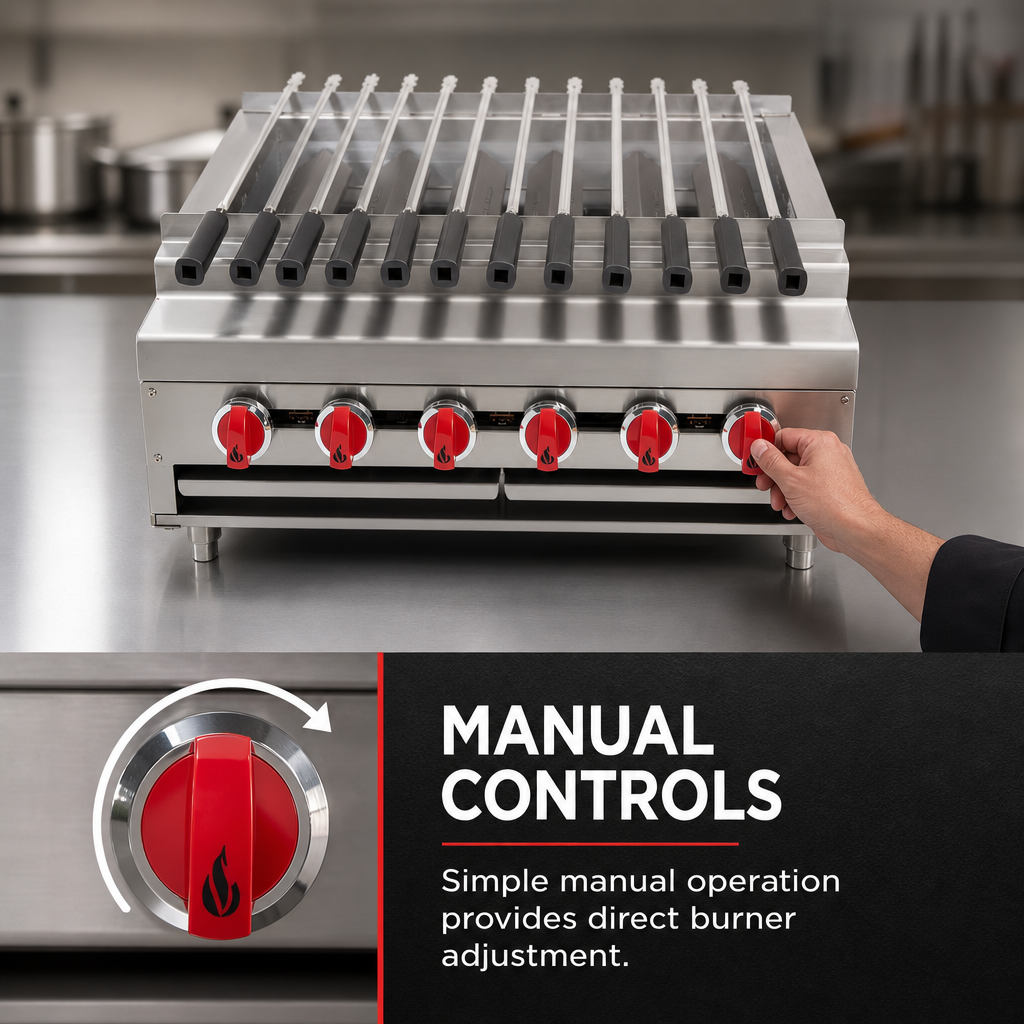

- Front manual controls give each zone independent, instant adjustment.
- 4" adjustable welded legs ensure a rock-solid, level work surface.
- All-stainless steel exterior withstands daily abuse and cleans easily.
- Certified cETLus & ETL-Sanitation for gas safety and sanitation compliance.
- Backed by a two-year limited parts & labor warranty.
Technical specifications
| Model | ARKB-48 |
|---|---|
| Type | Countertop Gas Kebob Broiler |
| Total Input | 240,000 BTU/hr (71.0 kW) |
| Burners | 8 individually controlled (30,000 BTU each) |
| Cooking width | 48" (1,219 mm) |
| Overall depth | 26" (660 mm) |
| Overall height | 15 1/4" (≈388 mm) – without skewers |
| Gas connection | 3/4" NPT rear manifold 5.0" W.C. Natural | 10.0" W.C. LP |
| Shipping weight | 360 lb (163 kg) |
| Construction | Stainless steel exterior, welded frame & legs |
| Included | 16 stainless steel skewers, angled radiants, full-width grease tray, 4" legs |
| Origin | Designed & built in the USA |
| Certifications | cETLus, ETL-Sanitation |
Installation & clearances
- For use on non-combustible surfaces only.
- 0" clearance from non-combustible walls; maintain 12" side and 4" rear clearance from combustible surfaces.
- Requires adequate ventilation per NFPA 96 or local code.
- Please specify gas type (Natural or LP) and altitude >2,000 ft at time of order.
Popular options & accessories
- Rotisserie kit
- Additional stainless steel skewer sets
- Heavy-duty equipment stand
Warranty snapshot: Two-year limited parts & labor warranty. Broiler burners, grates and radiants carry a 90-day warranty.
Specifications subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
16.0in
Width
48.0in
Depth
26.0in
Shipping Weight
360.0lbs
Width (side - side) OA
43 - 48"
Heating Source
radiant
Control Type
manual controls
Specifications
Kebob Broiler, gas, countertop, 48" wide, (8) individually controlled burners, manual controls, 4" legs, heavy duty removable radiants & full width crumb tray, (1 set) skewers, stainless steel exterior, welded legs, 71.0kW, 240,000 BTU, cETLus, ETL-Sanitation, Made in USA
