American Range ARGF-8B-CL-SBR Gas Ranges
Description
48" Green Flame Gas Range – 8 Open Burners / Convection Oven / Storage Base
American Range • Model ARGF-8B-126-C-SB • Natural or LP GasBring high-efficiency fire power and American-made durability to your cookline. This 48 inch Green Flame range delivers a combined 230,000 BTU, pairing eight pilot-free open burners with a spacious 26-1/2 inch convection oven and a handy 11 inch storage base.
Key advantages
- Eight 25,000 BTU open burners with electronic ignition—no standing pilots wasting gas
- 12" × 12" heavy-duty cast-iron grates lift off for quick cleaning

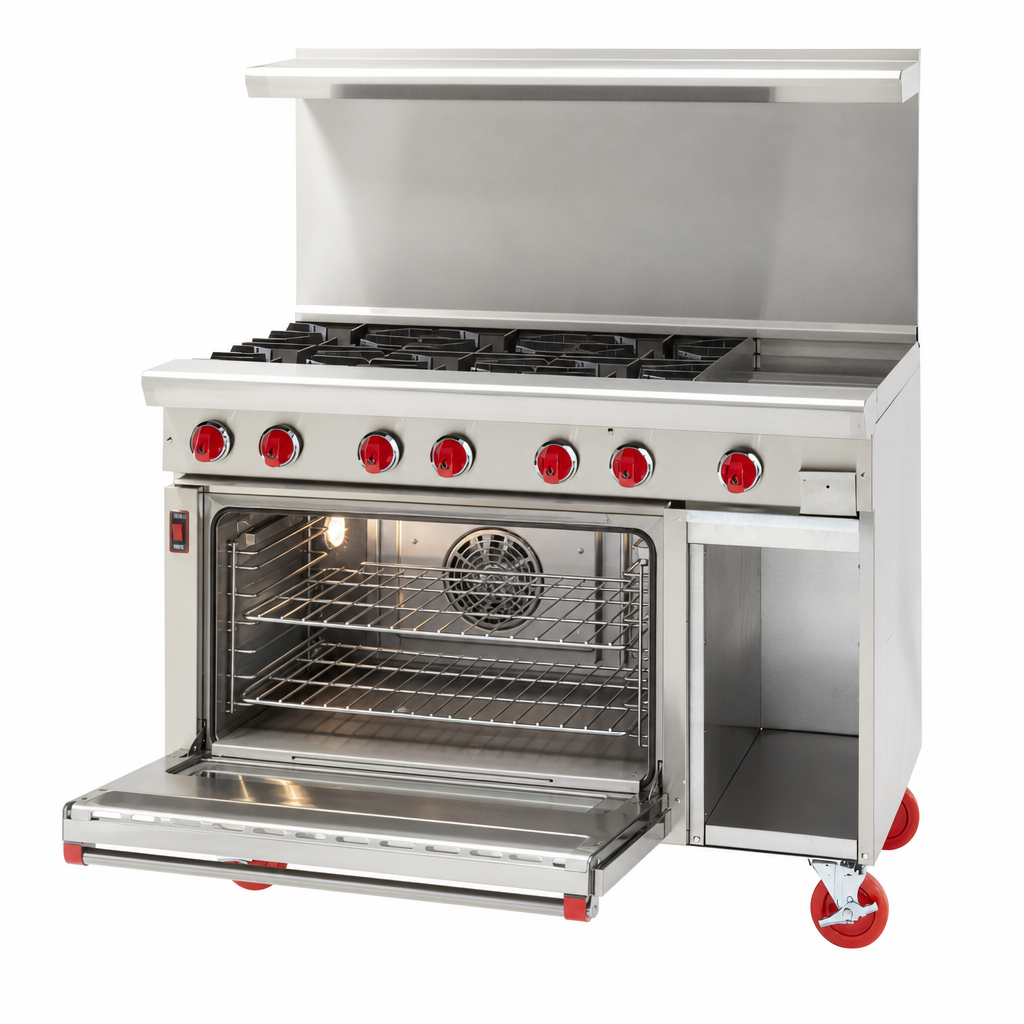

- Left-side convection oven (30,000 BTU) circulates heat for faster, even baking
- Oven shipped with two chrome-plated racks; five rack positions offer menu flexibility
- Right-side 11" storage base keeps pans, lids and utensils within reach
- Stainless steel front, sides, landing ledge & full-width drip pan stand up to daily abuse
- Choose your back: 6" stub, 20" riser or high shelf/riser combo to match any hood set-up
- 6" adjustable, chrome-plated legs level the unit on uneven floors
- Factory-installed ¾" rear regulator; 115 V cord (included) powers convection fan & ignition
Performance & specifications
| Width | 48" (1219 mm) |
|---|---|
| Depth | 32-1/2" (826 mm) |
| Height (to cook surface) | 36" (914 mm) |
| Open burners | 8 × 25,000 BTU/hr (73.3 kW) |
| Convection oven | 30,000 BTU/hr (8.8 kW) |
| Total input | 230,000 BTU/hr (67.0 kW) |
| Oven cavity (W × D × H) | 26-1/2" × 22-1/2" × 13-1/2" (673 × 572 × 343 mm) |
| Oven temp range | 250 °F – 500 °F (121 °C – 260 °C) |
| Electrical | 115 V, 1 ph, 4 A (3-prong cord provided) |
| Gas connection | ¾" NPT, rear • 5.0" W.C. NG / 10.0" W.C. LP |
| Certifications | cETLus • ETL Sanitation |
| Country of origin | Made in USA |
Engineered for longevity
- Porcelain-enameled oven interior wipes clean in seconds
- Spring-assisted, counter-weighted oven door won’t sag or slam
- Cool-touch, high-temperature knobs resist cracking and fading
- Two-year limited parts & labor warranty (90 days on replacement parts & broiler components)
Need casters, LP configuration, or a different back riser? Reach out—we can factory-configure the range to fit your kitchen.
Warranty
Covered by American Range’s 2-year limited parts & labor warranty. Full details are available in the warranty statement.
