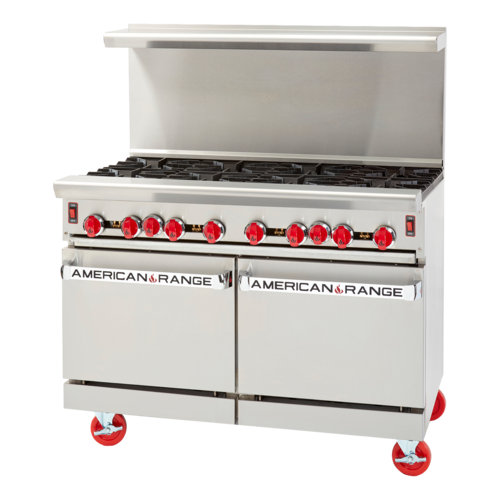

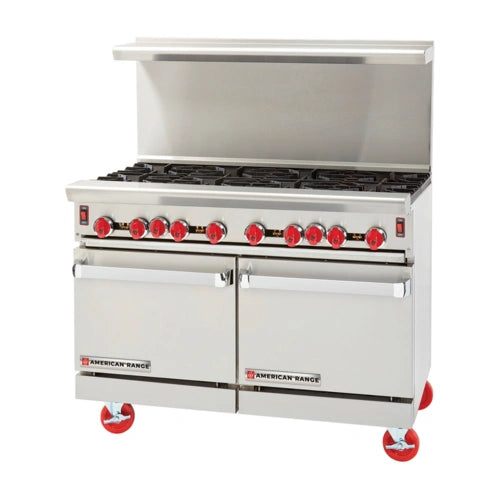

American Range ARGF-8-DSB 48-Inch Commercial Gas Range with 8 Open Burners, Double Storage Base, Stainless Steel Front and Sides
- Dimensions
- 48.0"W × 32.25"D × 56.0"H
- Fuel type
- Gas
- Open burners
- 8
- Burner rating
- 22,000 BTU/hr. each
- Total input
- 176,000 BTU
- Base
- Double storage base; two 20-inch storage bases
Specifications
Description
The American Range ARGF-8-DSB is a 48-inch gas range with eight 22,000 BTU/hr. open burners and a double storage base with two 20-inch storage bases.
It features a stainless steel front and sides, a standard 20-inch back riser and shelf, and 6-inch adjustable chrome-plated legs. Electronic ignition operates without standing pilots, and a removable full-width drip pan is positioned beneath the burners.
The range has a total input rating of 176,000 BTU and requires a 115 V power connection. A 6-inch stub back is available as an option.
Overall Dimensions:
48.0"W x 32.25"D x 56.0"HProduct Weight:

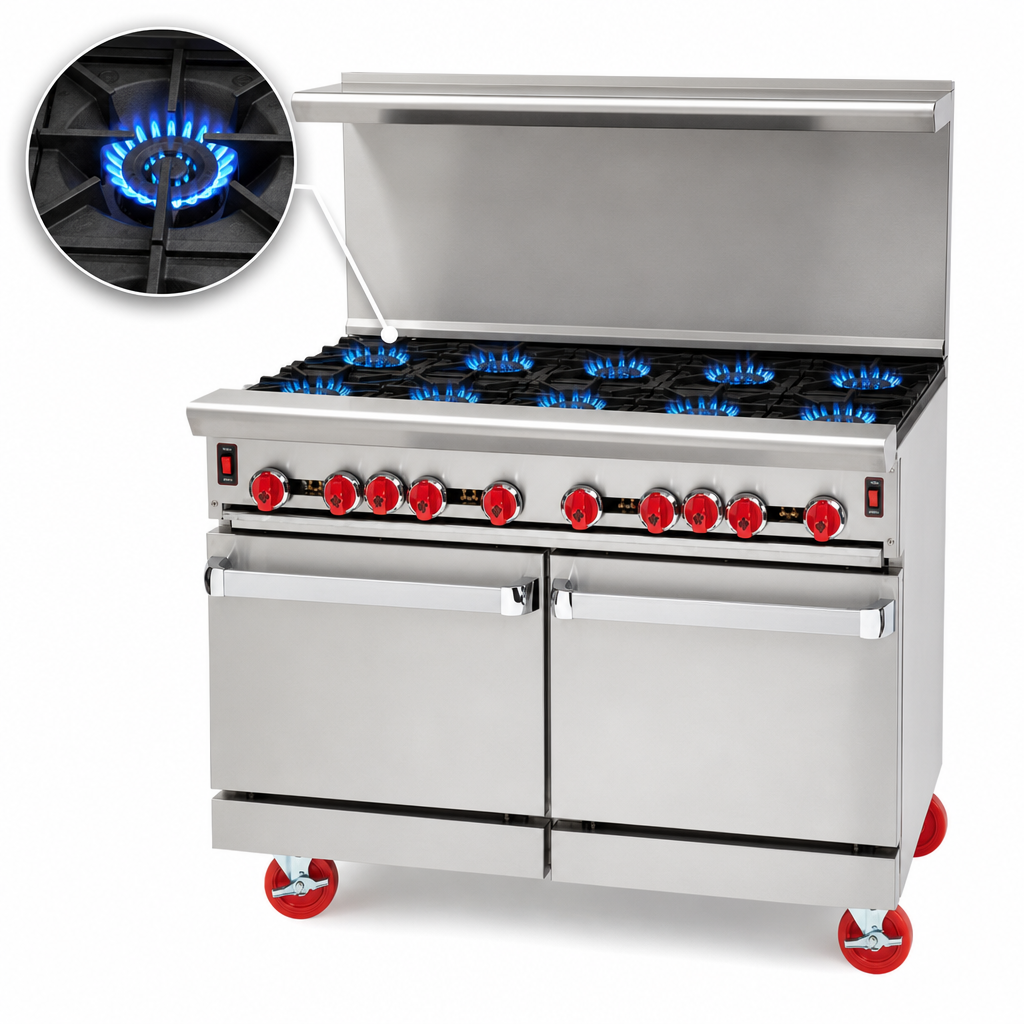

460.0 lbEight open burners
Eight 22,000 BTU/hr. open burners.

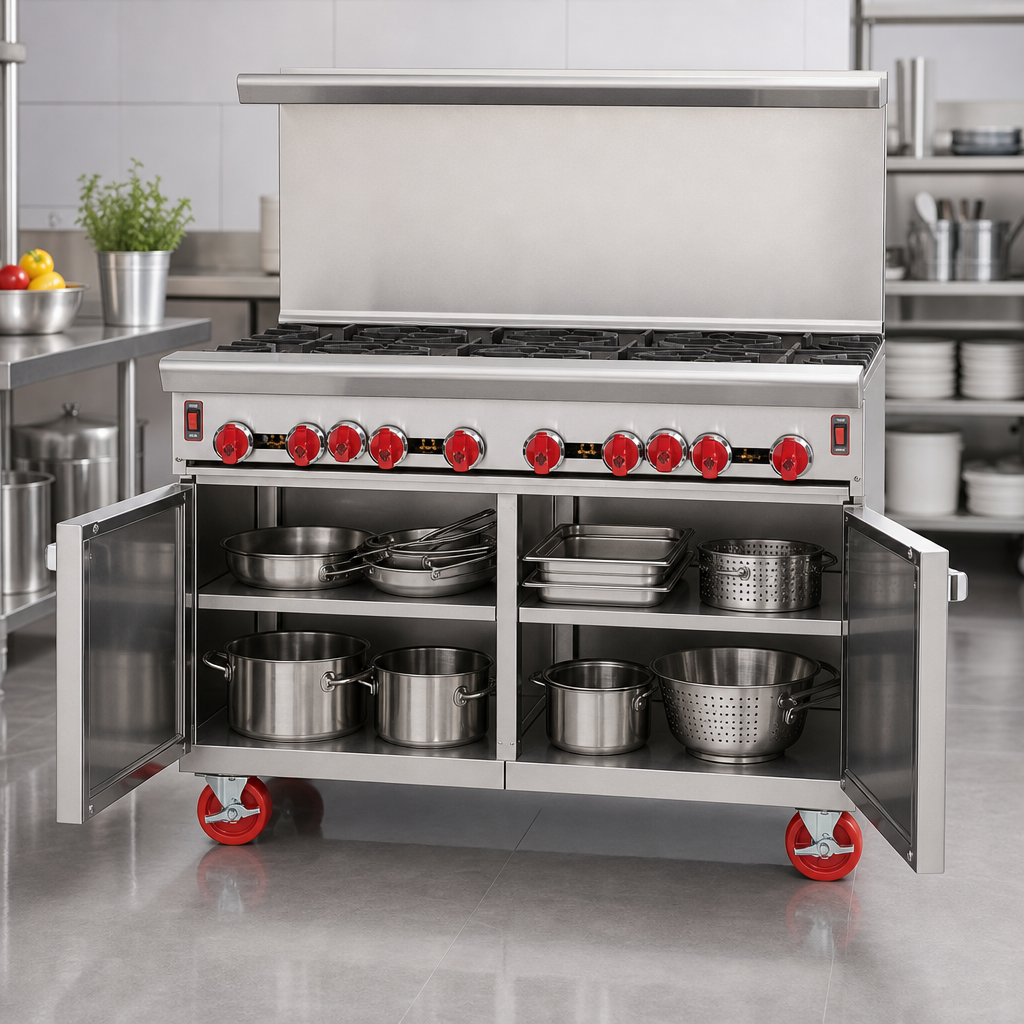

Double storage base
Two 20-inch storage bases are specified for the DSB configuration.
Stainless steel exterior
Stainless steel front and sides.
Standard riser and shelf
20-inch back riser and shelf standard.
Electronic ignition
Electronic ignition with no standing pilots.
Cast-iron grates
12-inch x 12-inch cast-iron top grates.
Removable drip pan
Removable full-width drip pan under the burners.
Adjustable legs
6-inch adjustable chrome-plated legs.
