American Range | SKU: ARGF-48G-4B-CC

American Range ARGF-48G-4B-CC Gas Ranges

Name: American Range ARGF-48G-4B-CC Gas Ranges
Brand: American Range
SKU: ARGF-48G-4B-CC
Price: 21246.75 USD
Availability: InStock

$21,246.75

Expected delivery date of , to your door

if ordered within hours and minutes

Not Shipping to ?

More Delivery Options

Documents

Cutsheet Cutsheet Cutsheet Warranty sheet

Description

72" Green Flame Gas Range with 48" Griddle & Convection Ovens

American Range | Model ARGF-48G-4B-CC | Natural or LP Gas

Engineered for high-volume kitchens, the American Range Green Flame 72" range unites a spacious 48" manual griddle, four powerful open burners and two full-size convection ovens in one heavy-duty, energy-efficient station.

Key Benefits

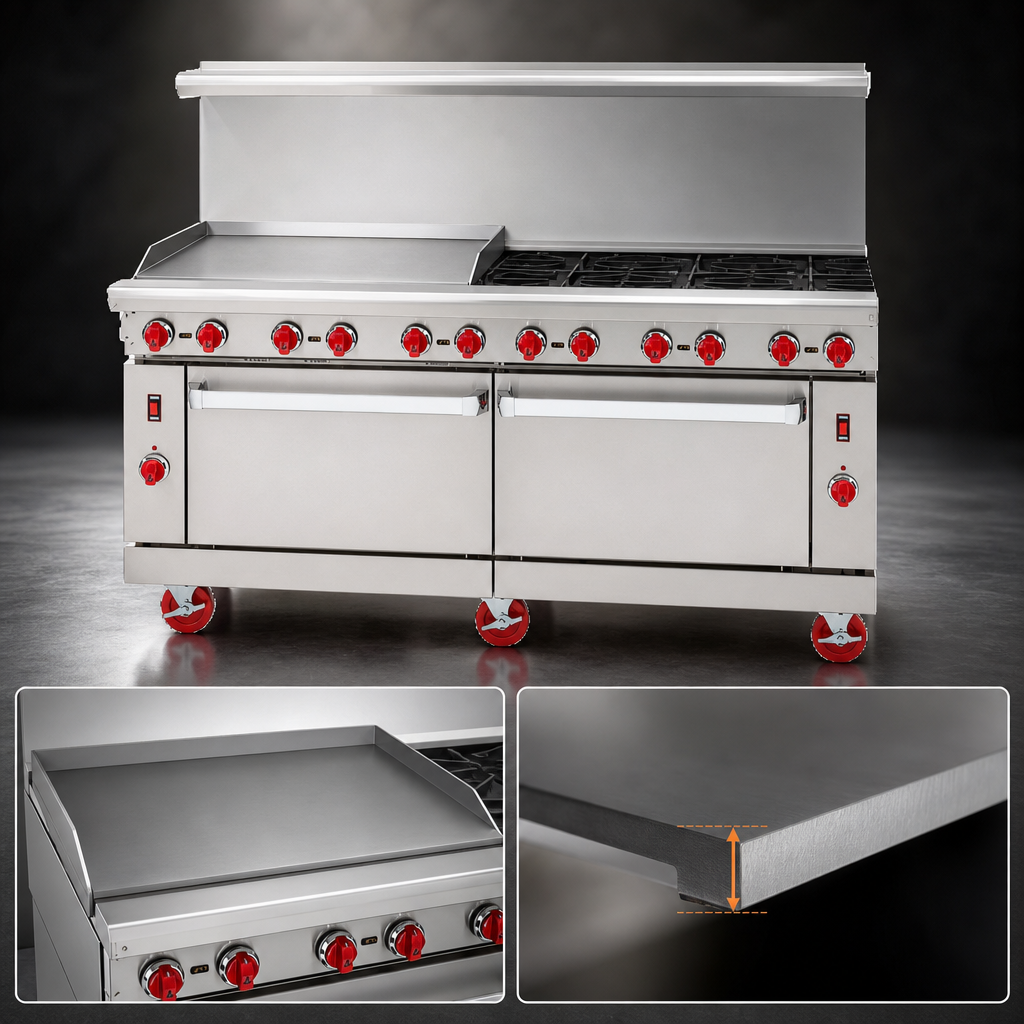

1" thick, 48" polished steel griddle plate delivers exceptional heat retention and recovery.

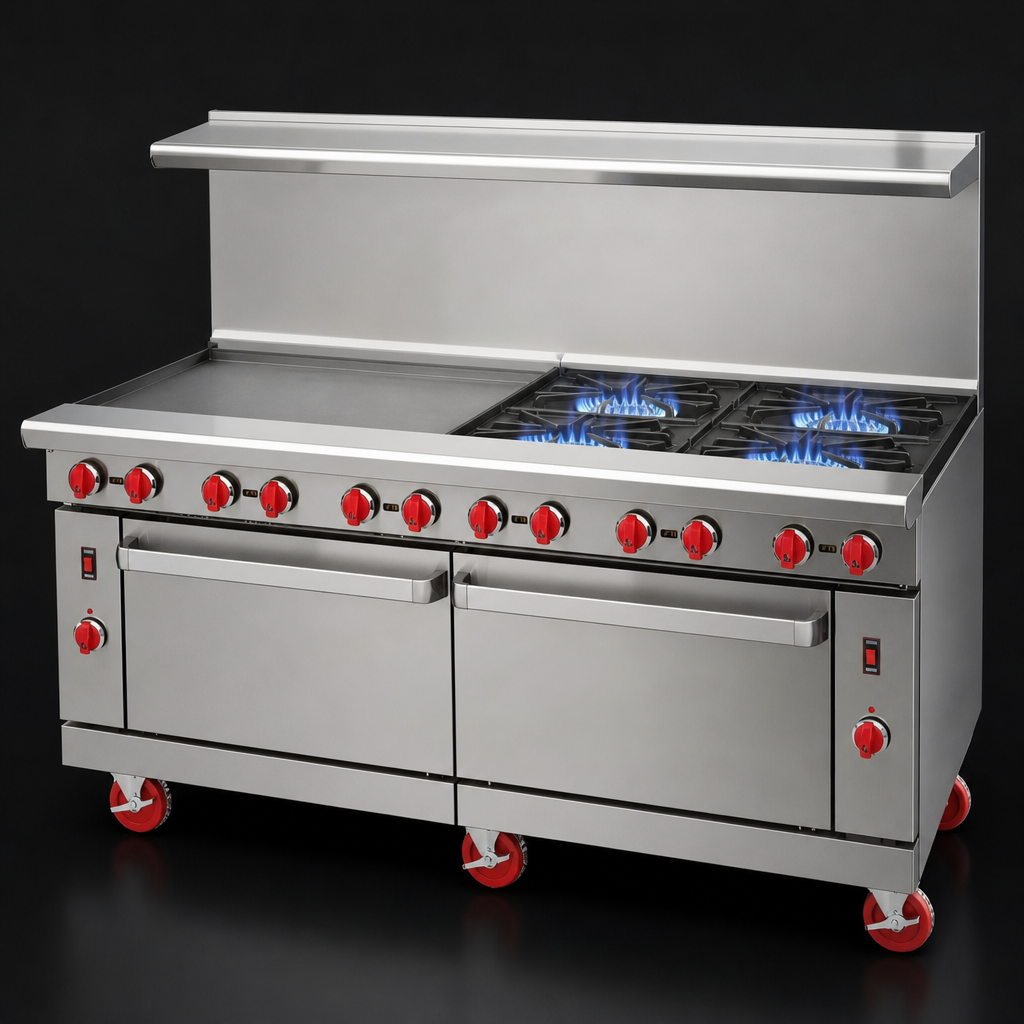

Four 25,000 BTU open burners with pilot-free electronic ignition—no wasted gas during downtime.
Dual 26-1/2" convection ovens (30,000 BTU each) speed cook times with forced-air circulation.
12" × 12" cast-iron grates handle heavy stock pots without flexing.
Stainless steel front, sides and landing ledge resist corrosion and wipe clean fast.
Choose a 6" stub back or a 20" riser with optional high shelf to fit your line-up.
6" chrome-plated legs adjust for perfect leveling on uneven floors.
Total input: 240,000 BTU (70.0 kW) with 120 V plug-in electronic ignition and convection fans.
cETLus & ETL-Sanitation listed; proudly designed & built in the USA.

Convection Ovens

Thermostat range: 250 °F – 500 °F (121 °C – 260 °C).
Porcelain-enamel interior—easy to scrub, won’t rust or flake.
(2) chrome racks per oven; five rack positions accommodate sheet pans and hotel pans.
Spring-assisted, counter-weighted doors stay open at any angle for safe loading.

Griddle Performance

One straight-tube burner every 12" (4 total) delivers 80,000 BTU of even, edge-to-edge heat.
3" wide grease trough with large slide-out drawer keeps the cooking surface clear.
Front-mounted manual gas valves give you instant, precise heat control.

Technical Specifications

Width	72" (1829 mm)
Depth	32-1/2" (826 mm) including 6" landing ledge
Cooking surface height	36" (914 mm) on adjustable legs
Griddle plate	48" W × 24" D × 1" thick (1219 × 610 × 25 mm)
Open burners	4 × 25,000 BTU; 12" × 12" grates
Ovens	2 × convection; interior 26-1/2" W × 22-1/2" D × 13-1/2" H
Total input	240,000 BTU/hr (70.0 kW)
Gas connection	3/4" NPT (rear) – Nat. 5.0" W.C. / LP 10.0" W.C.
Electrical	120 V, 1 ph, 4 A; 15 A 3-prong cord supplied
Shipping weight	Approx. 1,291 lb (586 kg)

What’s Included

(2) chrome oven racks per cavity
Removable full-width drip tray beneath landing ledge
6" adjustable chrome-plated legs
Factory-installed electronic ignition system
Owner’s manual & quick-start guide

Installation Notice: This appliance must be installed under a compliant ventilation and fire-suppression system in accordance with local codes and NFPA 96.

Backed by a two-year limited parts & labor warranty. Register within 90 days of shipment for extended coverage.

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

36.0in

Width

72.0in

Depth

32.5in

Shipping Weight

1218.0lbs

Plate Thickness

1.000" = 1"

Exterior Finish

stainless steel front & sides

Vent

backriser with hi-shelf

Base

(2) standard ovens

Top

(4) open burners, (1) 48" griddle

Specifications

Green Flame Range, gas, 72", (1) 48" griddle, 1" thick plate, manual controls, (4) 22,000 BTU open burners, (2) 26-1/2" convection ovens, (2) racks each oven, pilotless burner, griddle and oven ignition systems, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 70.0kW, 240,000 BTU, cETLus, ETL-Sanitation, Made in USA
