American Range ARGF-36G-6B Gas Ranges
Description
72" Green Flame Gas Range – 6 Burners + 36" Griddle
American Range ARGF-36G-6B • Natural or LP GasWhen your line is slammed, the American Range Green Flame ARGF-36G-6B delivers. Six high-output burners, a full 36" manual griddle and twin full-size ovens pack 280,000 BTU of pilotless power into a single 72" footprint—all wrapped in a rugged stainless-steel chassis that’s designed, built and certified in the USA.
Key Features

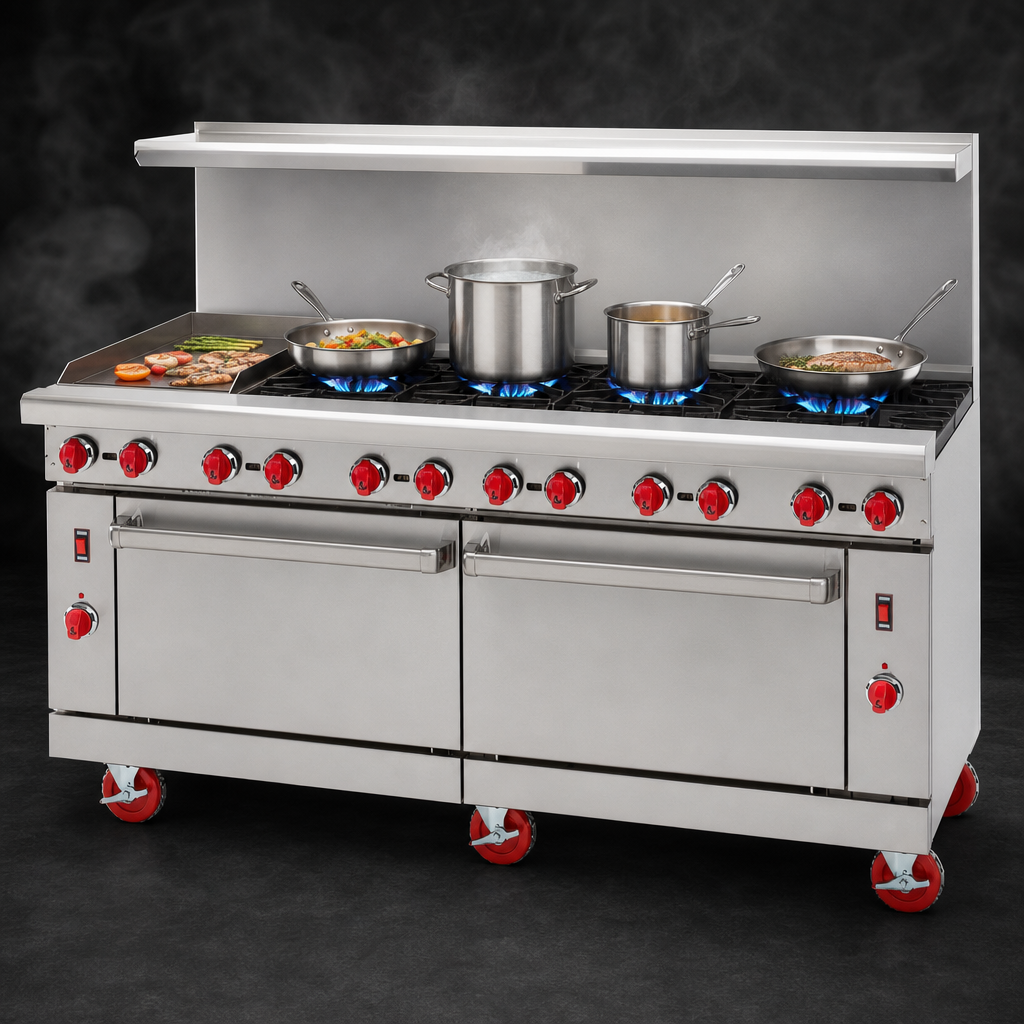

- 6 open burners, 25,000 BTU each – 12"×12" cast-iron grates.

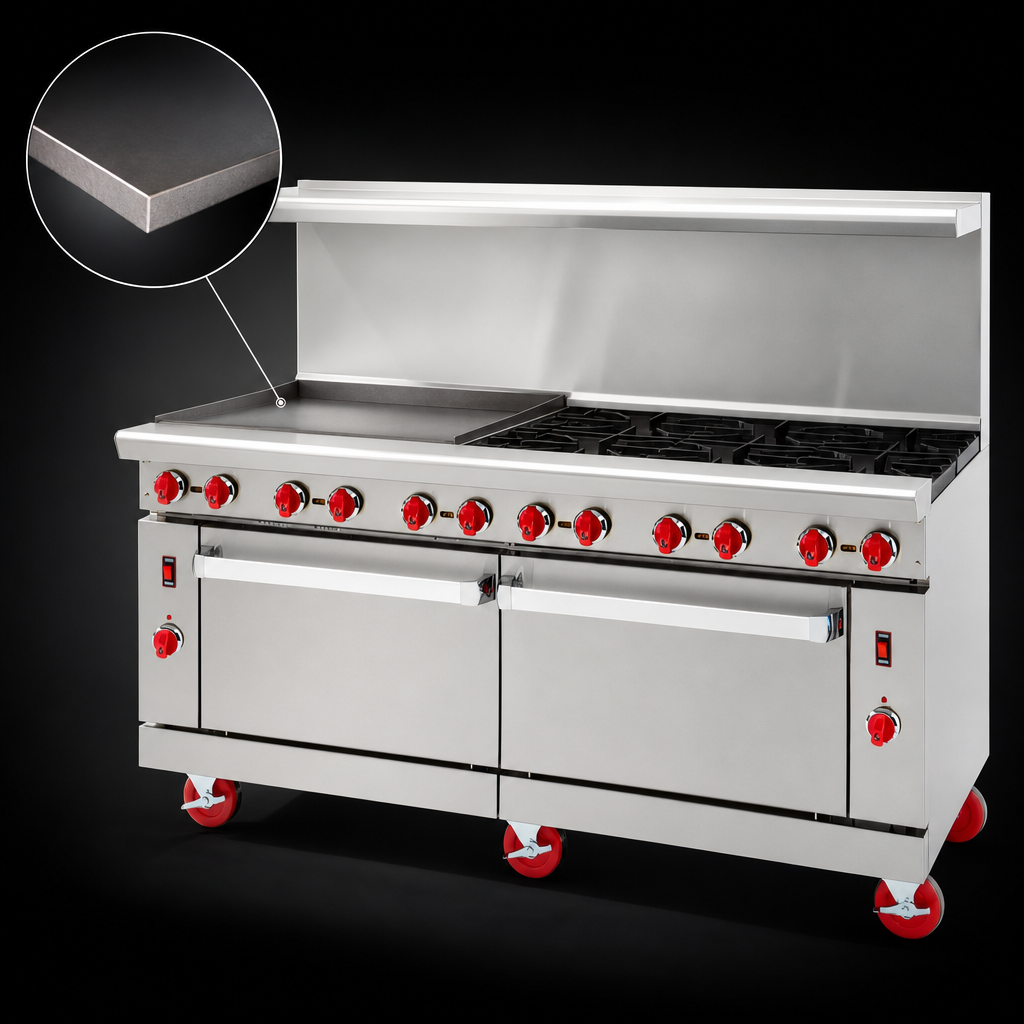

- 36" wide, 1" thick steel griddle plate – one 20,000 BTU burner every 12".
- Two 26 1/2" standard ovens (35,000 BTU each) with two chrome racks per oven.
- Electronic, pilotless ignition on burners, griddle and ovens – saves gas, lights instantly.
- Spring-assisted, counter-weight oven doors require no adjustment.
- Stainless-steel front, sides and 6" deep landing ledge for plating and pans.
- Choice of 20" riser, 6" stub back or high-shelf backsplash (select when ordering).
- 6" adjustable chrome-plated legs; heavy-duty casters available.
- 100 % gas shut-off safety valve & removable full-width drip pan.
- cETLus & ETL-Sanitation listed for commercial kitchens.
Performance at a Glance
| Overall width | 72" (1829 mm) |
|---|---|
| Depth (front → back) | 32 1/2" (826 mm) |
| Work-surface height | 36" (914 mm) on 6" legs |
| Open burners | 6 × 25,000 BTU = 150,000 BTU |
| Griddle section | 36" W × 24" D, 3 × 20,000 BTU = 60,000 BTU |
| Standard ovens | 2 × 35,000 BTU = 70,000 BTU |
| Total input | 280,000 BTU | 82.0 kW |
| Oven cavity (each) | 26 1/2" W × 22 1/2" D × 13 1/2" H |
| Oven temp. range | 250 °F – 500 °F (121 – 260 °C) |
| Gas connection | 3/4" NPT rear – 5.0" W.C. Nat. / 10.0" W.C. LP |
| Electrical | 120 V, 1 φ, 4 A – 15 A 3-prong cord supplied |
| Shipping weight | ≈ 1,100 lb (499 kg) |
What’s Included
- Six open burner assemblies & cast-iron top grates
- 36" manual steel griddle with 3" grease trough & collector
- Two standard ovens with two chrome racks each
- Rear gas pressure regulator & factory-installed power cord
- Customer’s choice of riser/back option (select above)
- Limited 2-year parts & labor warranty
Looking for convection ovens, storage base, or casters? Use the request form for custom configurations.
