American Range  |  SKU: ARGF-36G-6B-CC

American Range ARGF-36G-6B-CC Gas Ranges

$21,081.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

American Range 72" Green Flame Gas Range – 36" Manual Griddle, 6 Open Burners & Dual Convection Ovens

Model ARGF-36G-6B | Natural or Propane

Built and engineered in the USA, the Green Flame Series delivers maximum cooking power while lowering operating costs with pilot-free ignition. This 72 inch range unites a full-width 36" griddle, six high-performance open burners and two spacious convection ovens—giving chefs an all-in-one solution for sautéing, searing, griddling, baking and roasting.

Key Features

  • Total output: 270,000 BTU / 79.0 kW
  • (6) 25,000 BTU open burners with cast-iron 12" × 12" grates
  • Electronic, pilot-less ignition for burners, griddle and ovens—no standing pilot flames

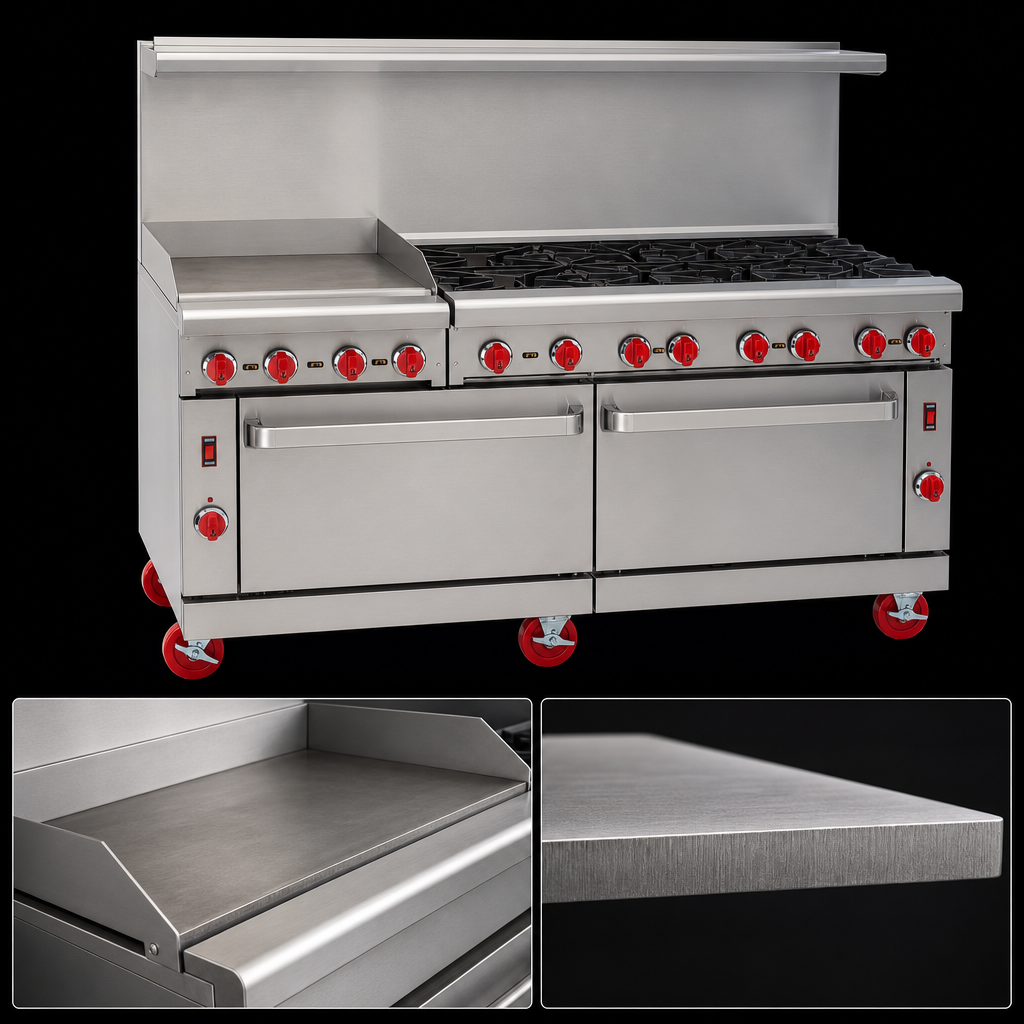

  • 36" manual-control griddle with a 1" thick polished steel plate and 3" grease trough
  • (2) 26-1/2" convection ovens, each supplied with two chrome racks (5 positions)
  • Thermostat-controlled 250 °F – 500 °F baking range
  • Stainless steel front, sides, landing ledge and removable drip pan
  • Choice of back: 6" stub, 20" riser, or riser with high shelf (specify when ordering)
  • 6" chrome-plated adjustable legs
  • 100 % safety gas shut-off & factory-installed pressure regulator
  • cETLus & ETL-Sanitation listed for commercial kitchens
  • 2-year limited parts & labor warranty

Performance Advantages

  • “Green Flame” burners optimize combustion for higher efficiency and lower emissions.
  • Pilot-free design reduces energy use and ambient kitchen heat.
  • High-velocity convection fan shortens cook times and ensures even baking.
  • Spring-assisted, counter-weight oven doors stay open at any angle—no knee or hip bumps needed.

Specifications

Overall width 72" (1829 mm)
Overall depth 32-1/2" (826 mm)
Overall height 56" (1422 mm) with 20" riser
34" (864 mm) to cooking surface
Griddle size 36" W × 24" D × 1" thick
Open burners 6 × 25,000 BTU
Oven type 2 × convection, 30,000 BTU burner each
Oven interior (each) 26-1/2" W × 22-1/2" D × 13-1/2" H (67 L)
Total gas input 270,000 BTU/hr
Gas connection 3/4" NPT, rear
Manifold pressure Natural 5.0" W.C. | LP 10.0" W.C.
Electrical 120 V, 1-phase, 4 A (15 amp cord & plug included)
Shipping weight Approx. 1,100 lb (499 kg)

What’s Included

  • 72" Green Flame range with griddle & burners
  • (4) Chrome oven racks (2 per oven)
  • 6" adjustable chrome legs (installed)
  • Pressure regulator & 120 V power cord
  • Installation / operation manual
Important: This appliance is intended for commercial use only. Install under a compliant ventilation hood and connect to the specified gas type. Specify altitude above 2,000 ft and gas type (Natural or LP) at time of order.

Designed & built in North Las Vegas, NV. Specifications subject to change without notice.

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

36.0in

Width

72.0in

Depth

32.5in

Shipping Weight

1246.0lbs

Base

(2) standard ovens

Top

(6) open burners, (1) 36" griddle

Vent

backriser with hi-shelf

Plate Thickness

1.000" = 1"

Exterior Finish

stainless steel front & sides

Specifications

Green Flame Range, gas, 72", (1) 36" griddle, 1" thick plate, manual controls, (6) 22,000 BTU open burners, (2) 26-1/2" convection ovens, (2) racks each oven, pilotless burner, griddle and oven ignition systems, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 79.0kW, 270,000 BTU, cETLus, ETL-Sanitation, Made in USA
