American Range ARGF-36G-4B-CL Gas Ranges
Description

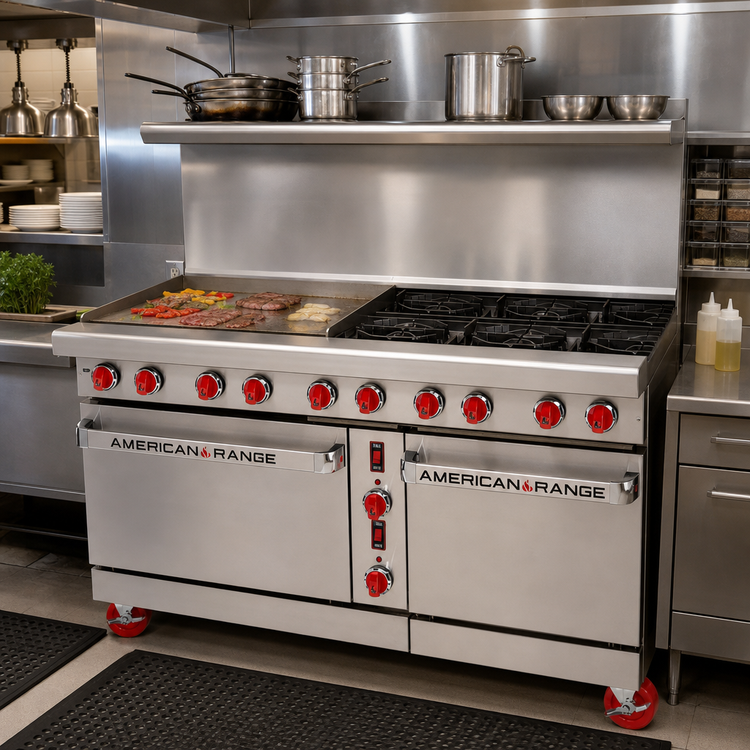

American Range 60" Green Flame Gas Range with 36" Griddle & 4 Open Burners
Model: ARGF-36G-4B-126LEngineered for high-volume kitchens that demand efficiency, the American Range Green Flame series delivers pilot-less ignition, rugged construction, and turbo-charged cooking power—all in one compact 60-inch footprint. This model pairs a full-width 36" manual griddle, four 25,000 BTU open burners, and a double-oven base to tackle breakfast, lunch, and dinner rushes with ease.
Why You’ll Love It

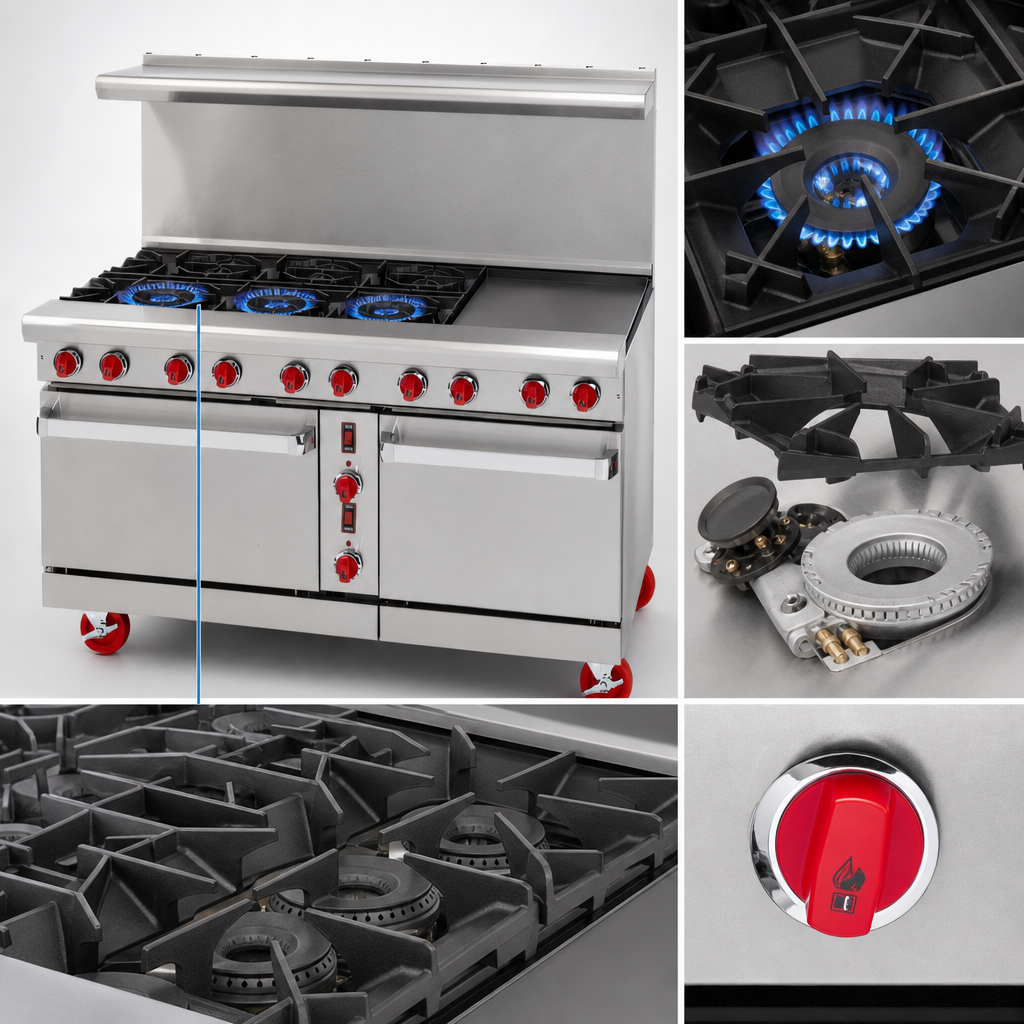

- Four 25,000 BTU lift-off open burners with cast-iron grates for rapid, even heating.

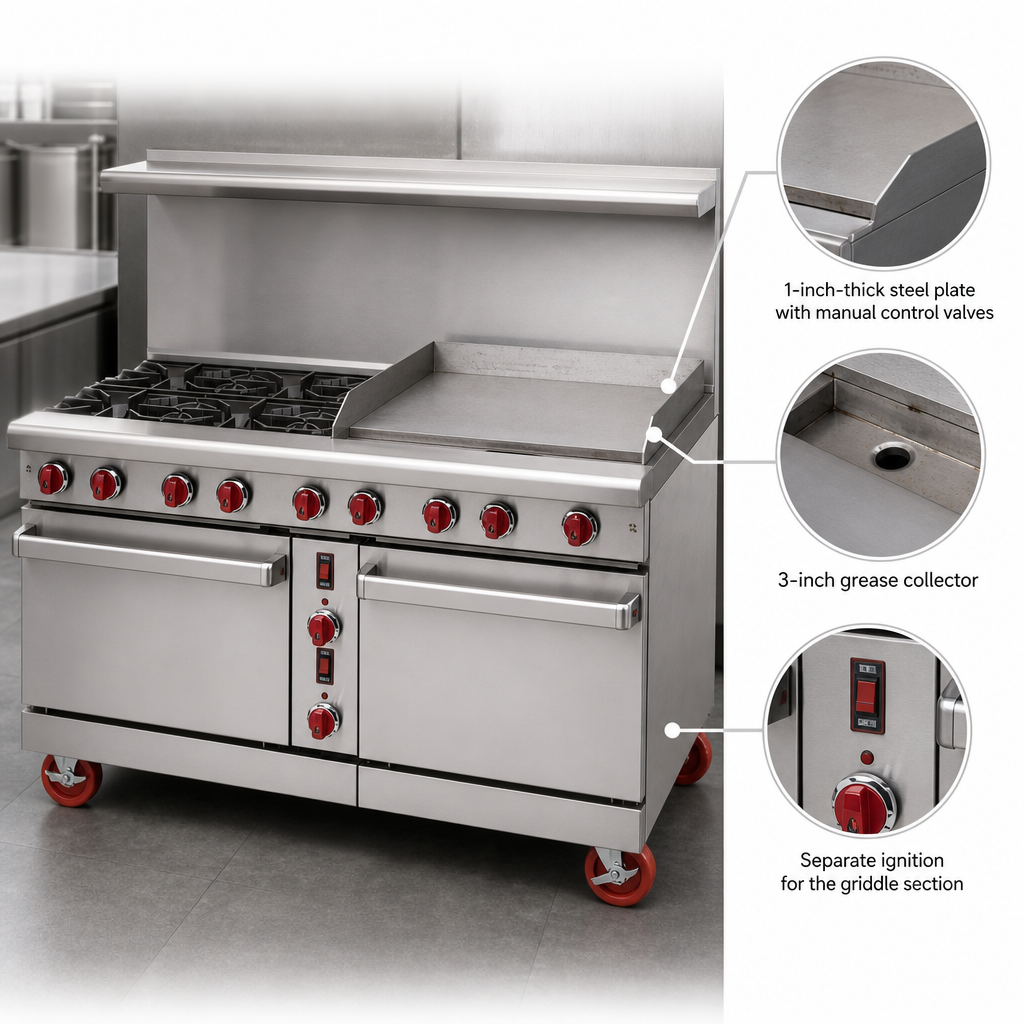

- 36" × 24" griddle plate—1" thick polished steel with manual hi-low valves and a 3" grease trough.
- Pilotless electronic ignition on every burner, griddle, and oven section to cut energy costs and reduce kitchen heat.
- 26-1/2" convection oven (left) powered by a 30,000 BTU burner; porcelain interior, fan-forced heat, two chrome racks.
- 20" space-saver oven (right) with a 27,000 BTU burner and two chrome racks—perfect for side dishes & small batches.
- Spring-assisted, counter-balanced doors stay open at any angle for safe loading.
- Stainless steel front, sides, and 6" landing ledge for a professional look and easy cleanup.
- Choose your backsplash: 6" stub back, 20" riser, or full high riser with shelf (no up-charge).
- 6" adjustable chrome-plated legs; optional locking casters available.
- cETLus & ETL-Sanitation listed, made in the USA, and protected by a 2-year parts & labor warranty.
Quick-View Specifications
| Total Input | 217,000 BTU/hr ‒ 64.0 kW |
|---|---|
| Open Burners (4) | 25,000 BTU/hr each |
| Griddle Burners | One 20,000 BTU/hr tube every 12" |
| Convection Oven Burner | 30,000 BTU/hr |
| Space-Saver Oven Burner | 27,000 BTU/hr |
| Electrical (Convection Fan) | 115 V / 1 ph / 1 A (cord & plug included) |
| Gas Connection | 3/4" NPT rear manifold |
| Overall Dimensions | 60" W × 32-1/2" D × 56" H (height varies with riser) |
| Oven Cavity – Left | 26-1/2" W × 22-1/2" D × 13-1/2" H |
| Oven Cavity – Right | 20" W × 26-1/2" D × 13-1/2" H |
| Shipping Weight | ≈ 849 lb / 385 kg |
Perfect For
- Diners, cafés, and hotel breakfast programs needing expansive griddle real estate.
- Scratch kitchens consolidating multiple cooking platforms into one footprint.
- Food trucks and concession stands where every inch—and every BTU—counts.
- Operations seeking energy-saving electronic ignition without sacrificing heavy-duty performance.
Need casters, thermostatic griddle controls, or other custom options? Let us know—American Range custom builds the Green Flame series to fit your exact workflow.
