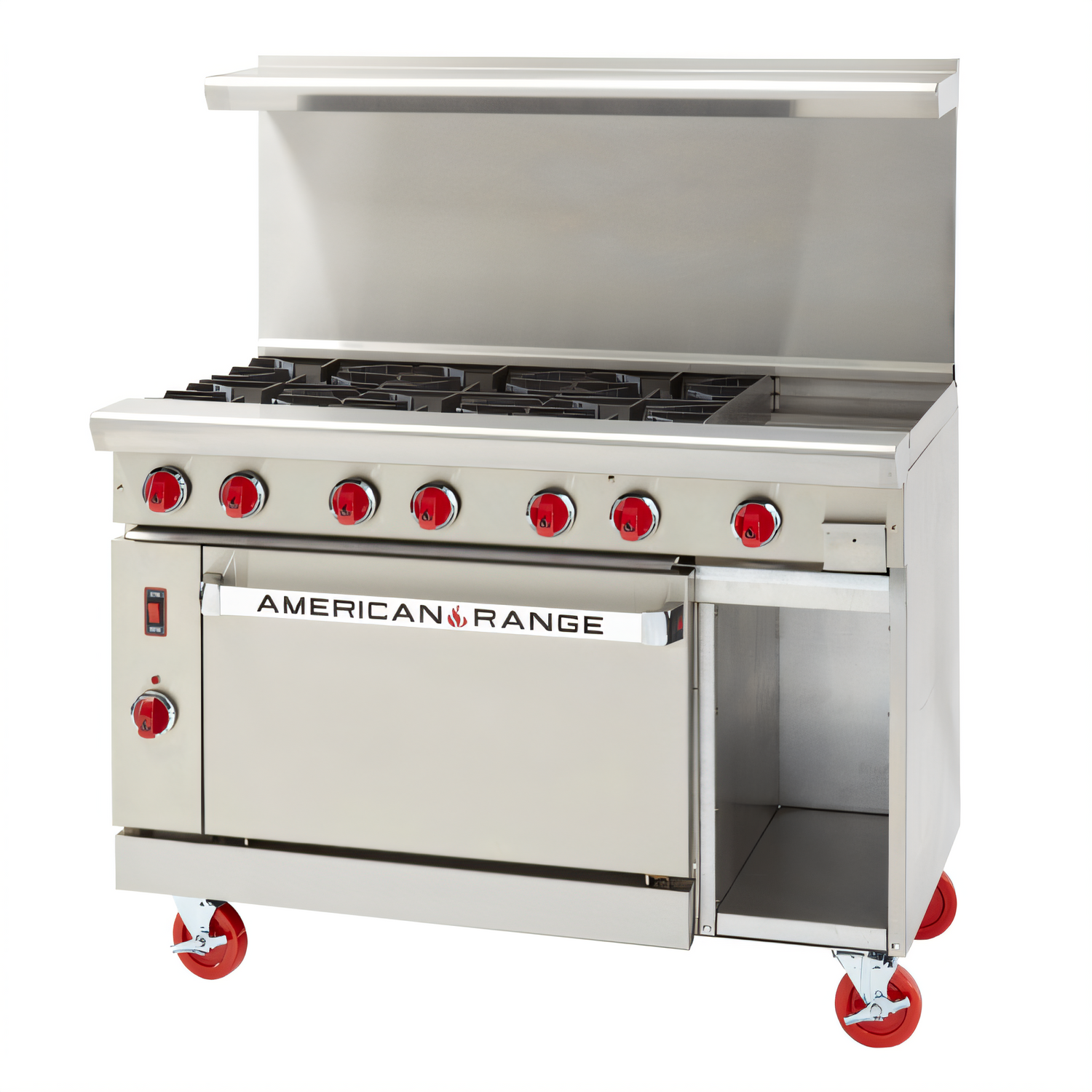

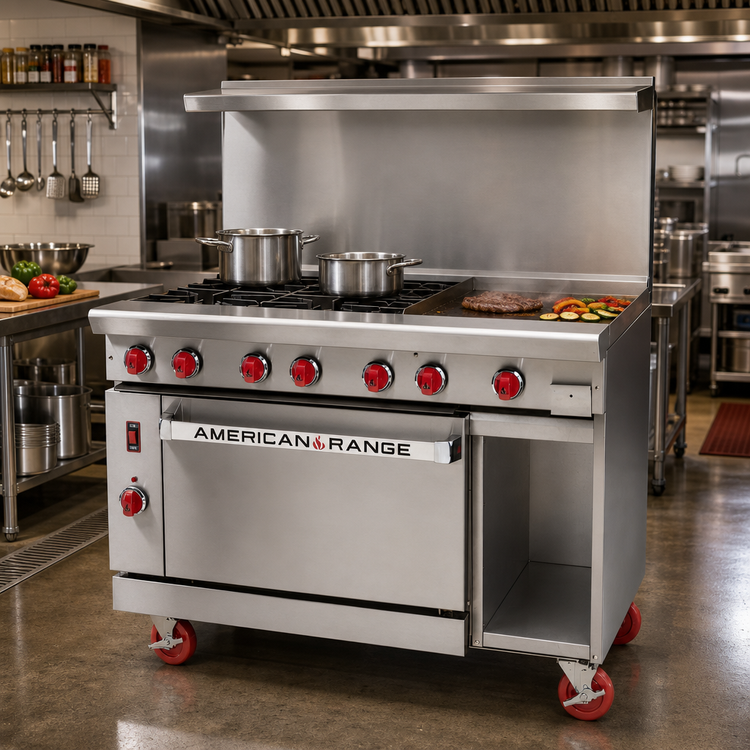

American Range 48-Inch Green Flame Commercial Gas Range with 36-Inch Manual Griddle, 2 Open Burners, Left Convection Oven, and Right Storage Base
American Range 48-Inch Green Flame Commercial Gas Range with 36-Inch Manual Griddle, 2 Open Burners, Left Convection Oven, and Right Storage Base
Stainless Steel Front and Sides; 20-Inch Back Riser and Shelf Standard
This high-output 48-inch range combines a 36-inch manual griddle, two open burners, and a left convection oven in one rugged stainless steel cooking station.
- 36-inch, 1-inch-thick manual griddle gives you a large flat-top cooking area.
- Two 22,000 BTU open burners deliver fast heat with electronic ignition and no standing pilots.
- Left-side 26 1/2-inch convection oven includes two racks, five tray positions, and a spring-assisted counterweight door.
- Stainless steel front and sides, standard back riser with shelf, and 6-inch adjustable chrome-plated legs.
- 115V power connection, rear gas regulator, and a 3/4-inch NPT gas inlet make installation straightforward.
Overall Dimensions:
48.0"W x 32.5"D x 36.0"HProduct Weight:

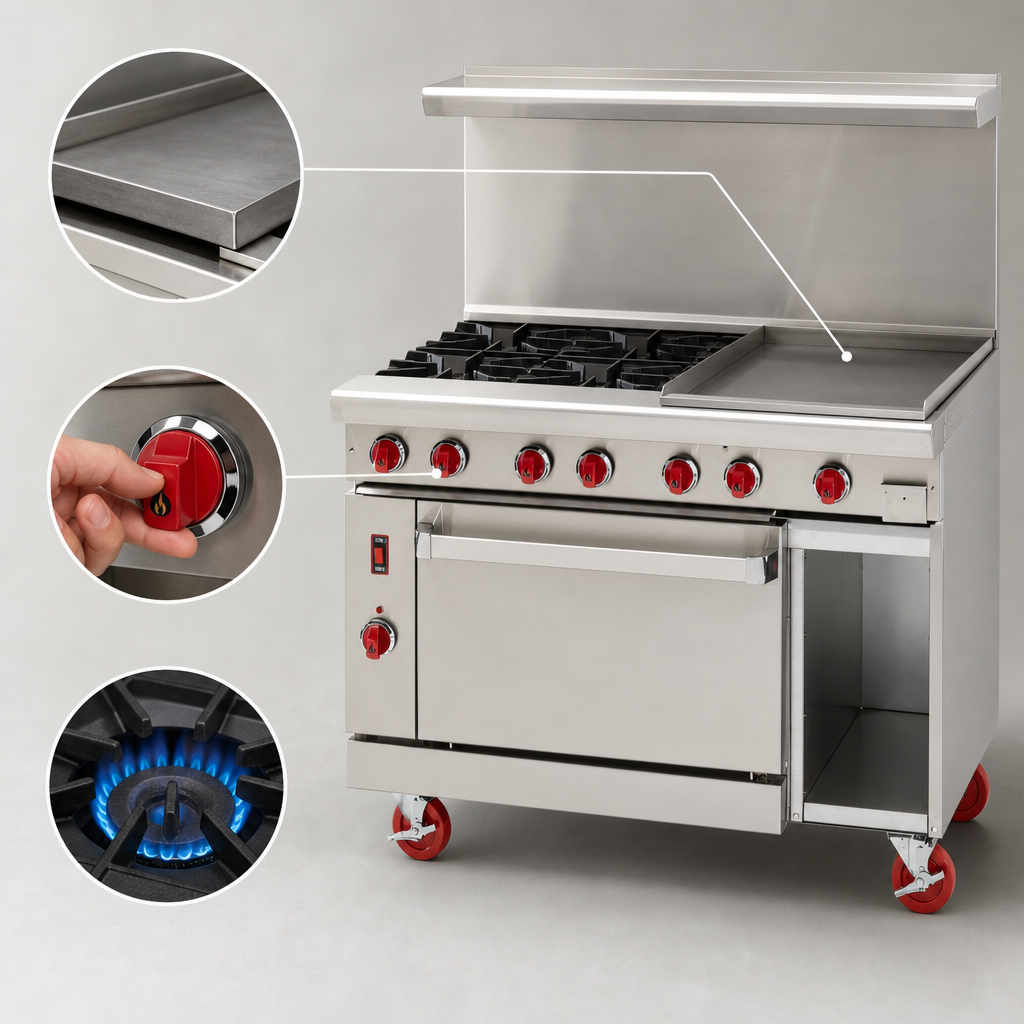

713.0 lbManual Griddle Top
36-inch griddle with a 1-inch-thick steel plate, manual control valves, and 20,000 BTU/hr burners every 12 inches.

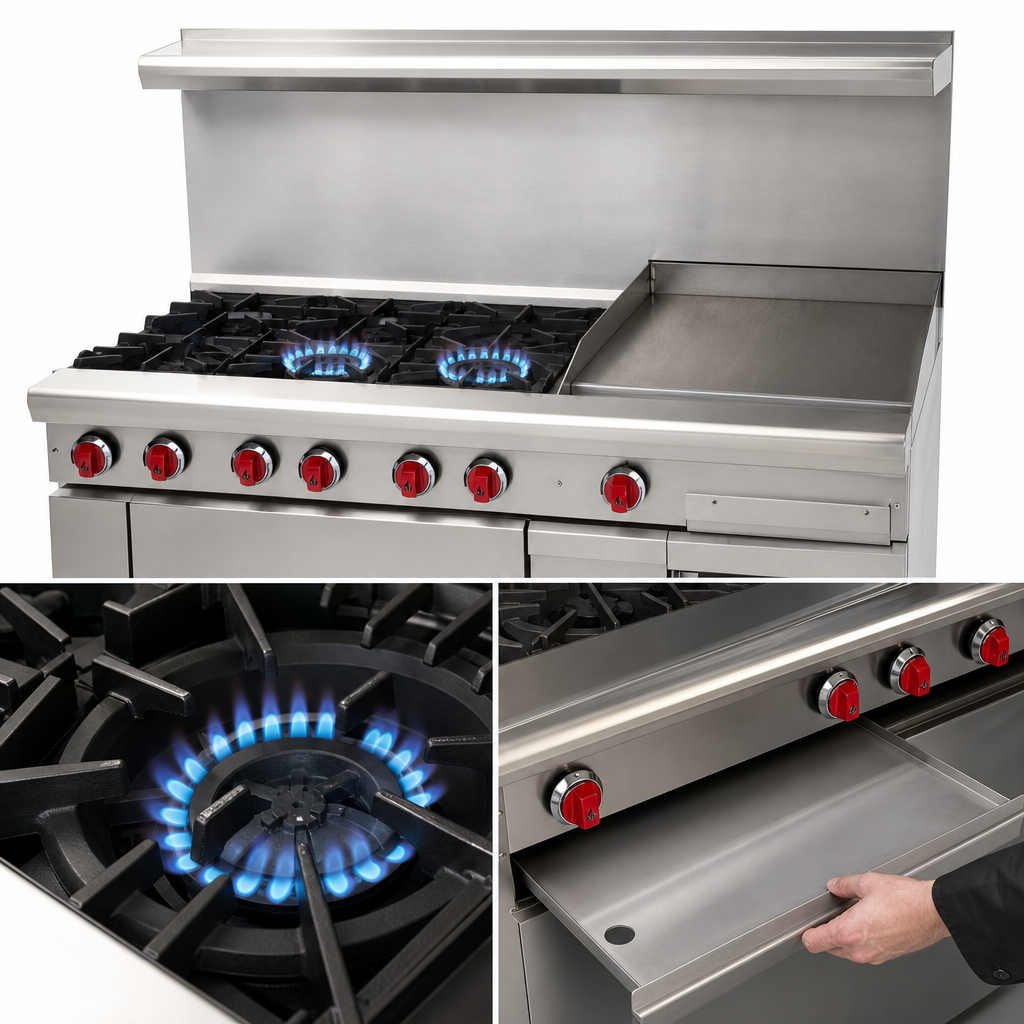

Open Burners
Two 22,000 BTU/hr open burners use electronic ignition with no standing pilots and include a removable full-width drip pan.
Left Convection Oven
26 1/2-inch convection oven on the left with a 30,000 BTU/hr burner, two racks, five tray positions, and a single-phase blower motor.
Oven Door and Interior
Spring-assisted counterweight oven door, porcelain enamel interior, and 100% safety gas shutoff.
Back Riser and Shelf
20-inch back riser and shelf are standard; a 6-inch stub back is available as an option.
Stainless Steel Construction
Stainless steel front, sides, and landing ledge with 6-inch adjustable chrome-plated legs.
Utility Connections
Rear gas connection with included pressure regulator and a 115V plug-and-cord electrical connection.
Made in USA
Designed and built in the USA.
Certifications & Compliance
Warranty & Protection
2-Year Limited Warranty, Parts and Labor
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
