American Range ARGF-24G-8B-CC Gas Ranges
Description
72" Green Flame™ Gas Range with 24" Griddle & Double Convection Ovens
American Range model ARGF-24G-8B-CC | 300,000 BTU (88 kW)Purpose-built for high-volume commercial kitchens, the American Range Green Flame™ delivers the speed of electronic, pilot-free ignition with the rugged power chefs expect. Eight high-output open burners, a 24 inch manual-control griddle and two full-size convection ovens give you a true all-in-one cooking platform that maximizes line space without compromising performance.
Performance & Versatility

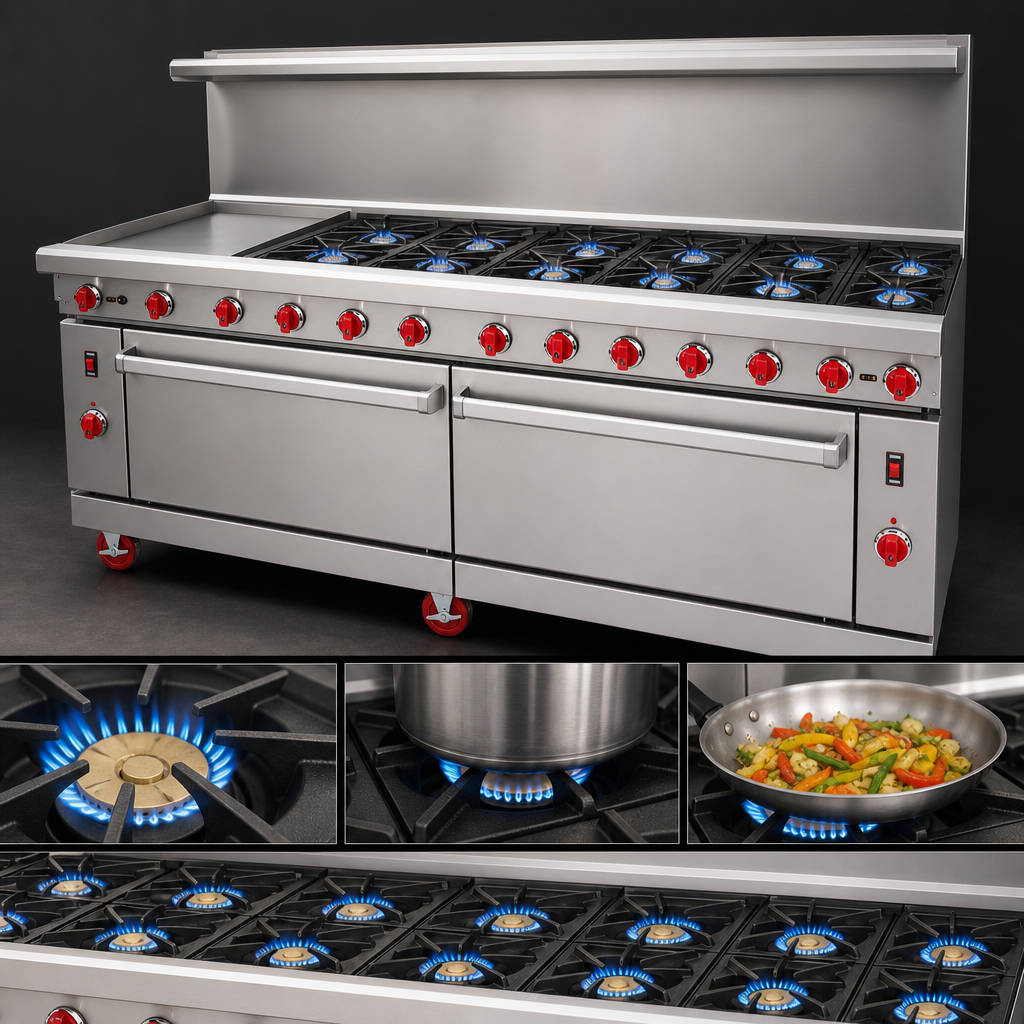

- 8 open burners, 25,000 BTU each (200,000 BTU total) with pilot-less electronic ignition
- 12" × 12" heavy-duty cast-iron top grates—easy to remove, built for high heat

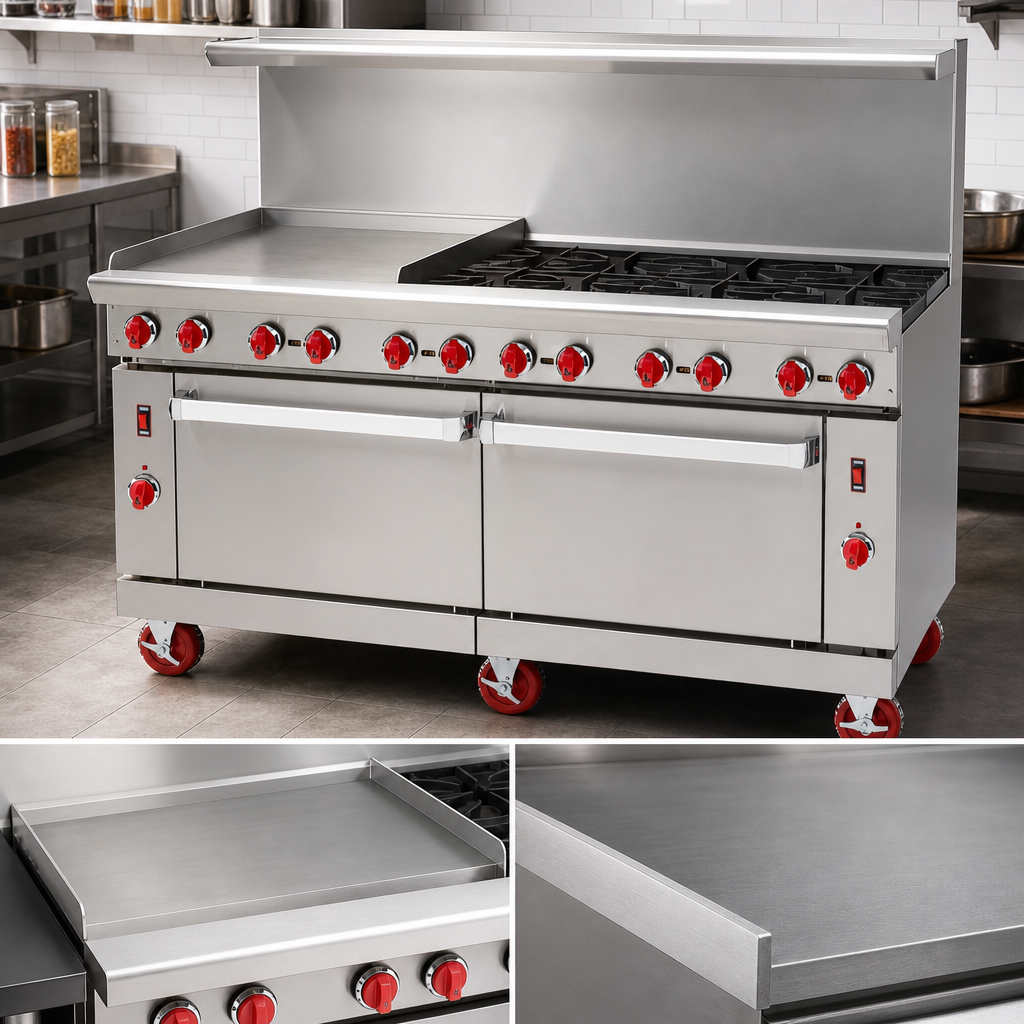

- 24" manual griddle, 1" thick steel plate, one 20,000 BTU burner every 12" for even heat
- 3" wide, welded-in grease trough and large removable collector for fast cleanup
- Two 26-1/2" convection ovens, 30,000 BTU each, porcelain-enameled interior for easy wipe-down
- 5 chrome rack positions & 2 racks supplied per oven (4 total)
- Spring-assisted, counter-weight oven doors—no adjustment required
- Stainless steel front, sides & landing ledge; 6" adjustable chrome-plated legs
- Choice of 6" stub back or 20" riser; optional high shelf available
- Made in the USA and certified cETLus & ETL-Sanitation
Technical Specifications
| Overall width | 72" (1829 mm) |
|---|---|
| Overall depth | 32-1/2" (826 mm) |
| Work-surface height | 36" (914 mm) with 6" adjustable legs |
| Riser / backsplash | 6" stub back or 20" high riser (select when ordering) |
| Open burners | 8 × 25,000 BTU cast-iron (pilot-less, electronic ignition) |
| Griddle section | 24" W × 27-7/8" D plate, 1" thick, 40,000 BTU total |
| Oven interior (each) | 26-1/2" W × 22-1/2" D × 13-1/2" H |
| Convection oven rating | 30,000 BTU / hr (8.8 kW) per oven, with fan |
| Total input | 300,000 BTU / hr (88 kW) |
| Gas connection | 3/4" NPT rear |
| Manifold pressure | Natural 5.0" W.C. | LP 10.0" W.C. |
| Electrical (convection fans & ignition) | 120 V, 1 Φ, 4 A, 6-ft cord & 15 A 3-prong plug included |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | Two-year parts & labor (see warranty details below) |
| Made in | USA |
Industry-Leading Warranty
American Range backs the Green Flame series with a 24-month parts & labor warranty (90-day warranty on replacement parts and broiler components). Optional product registration within 90 days of shipment qualifies your equipment for additional coverage. Full terms available upon request.
Specifications, dimensions and features are subject to change without notice as American Range continually improves product design.
