American Range ARGF-24G-6B-CL Gas Ranges
Description

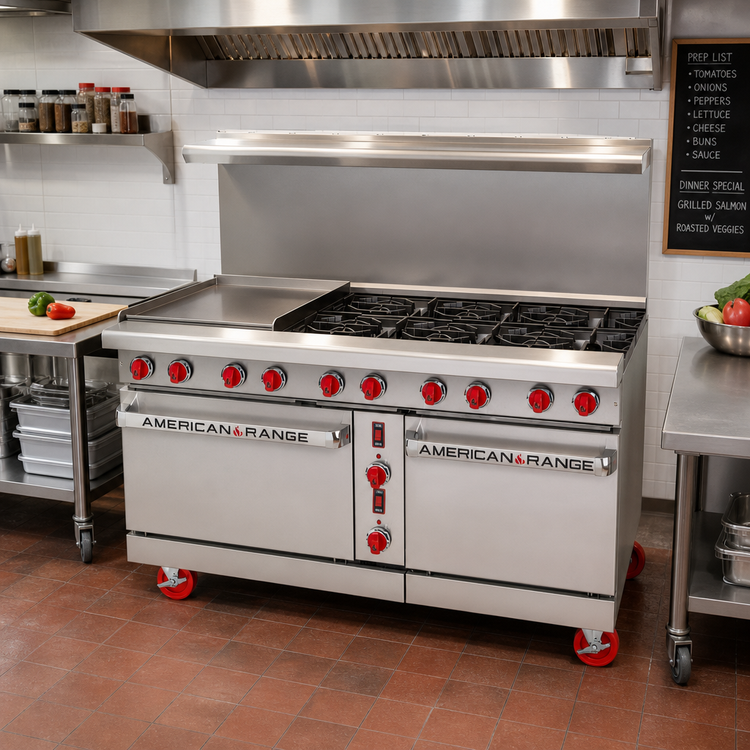

American Range 60" Green Flame™ Range – 24" Griddle & 6 Open Burners
Convection / Space-Saver Oven Combo • 247,000 BTU • Made in USABuilt for kitchens that refuse to compromise, the Green Flame™ series delivers high-efficiency, pilot-free ignition, commercial-grade power and the rugged reliability you expect from American Range. This 60" model marries a full-size 24" manual griddle with six 25,000 BTU open burners, then finishes strong with a left-hand convection oven and right-hand 20" space-saver oven—giving you a true all-in-one cooking platform that maximises every inch of line space.
Top-Line Performance

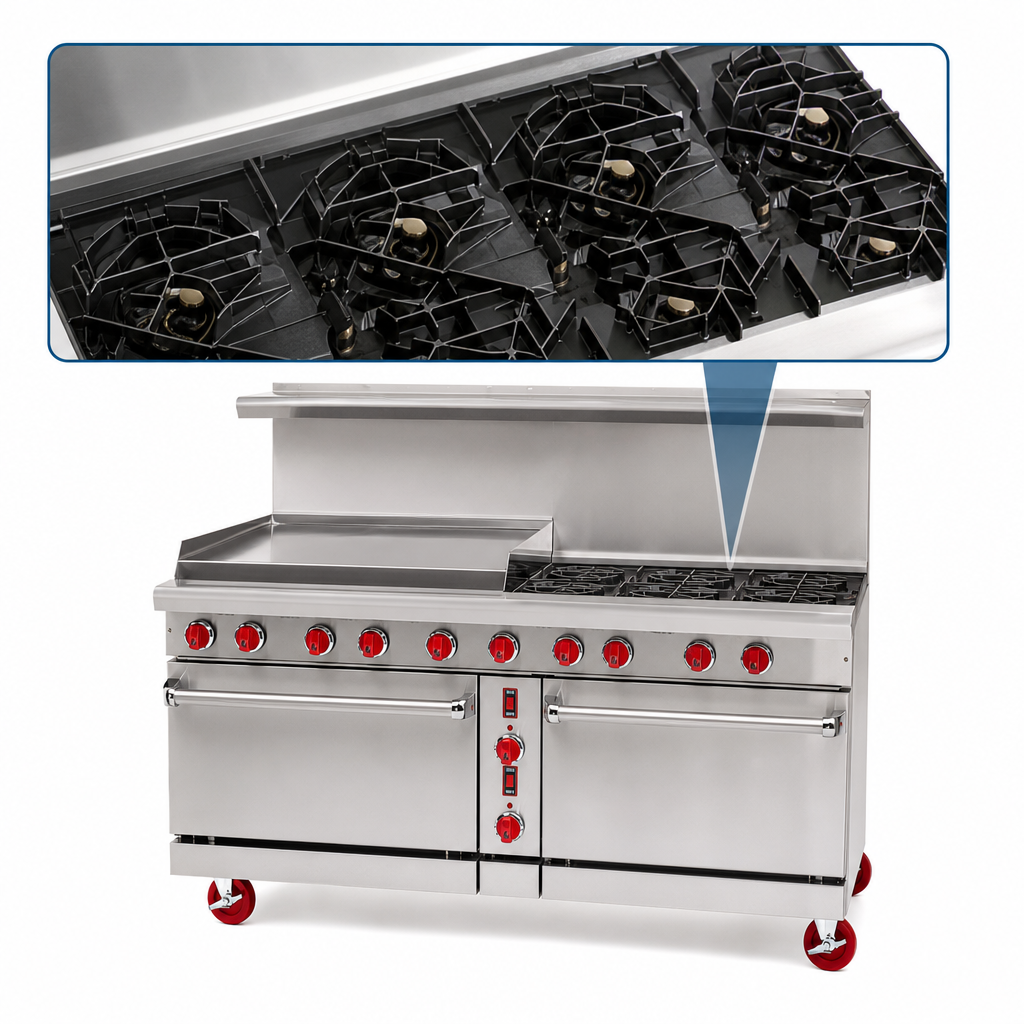

- Six 25,000 BTU open burners with lift-off cast-iron grates (12" × 12")
- Electronic ignition on every burner—no standing pilots = lower energy costs

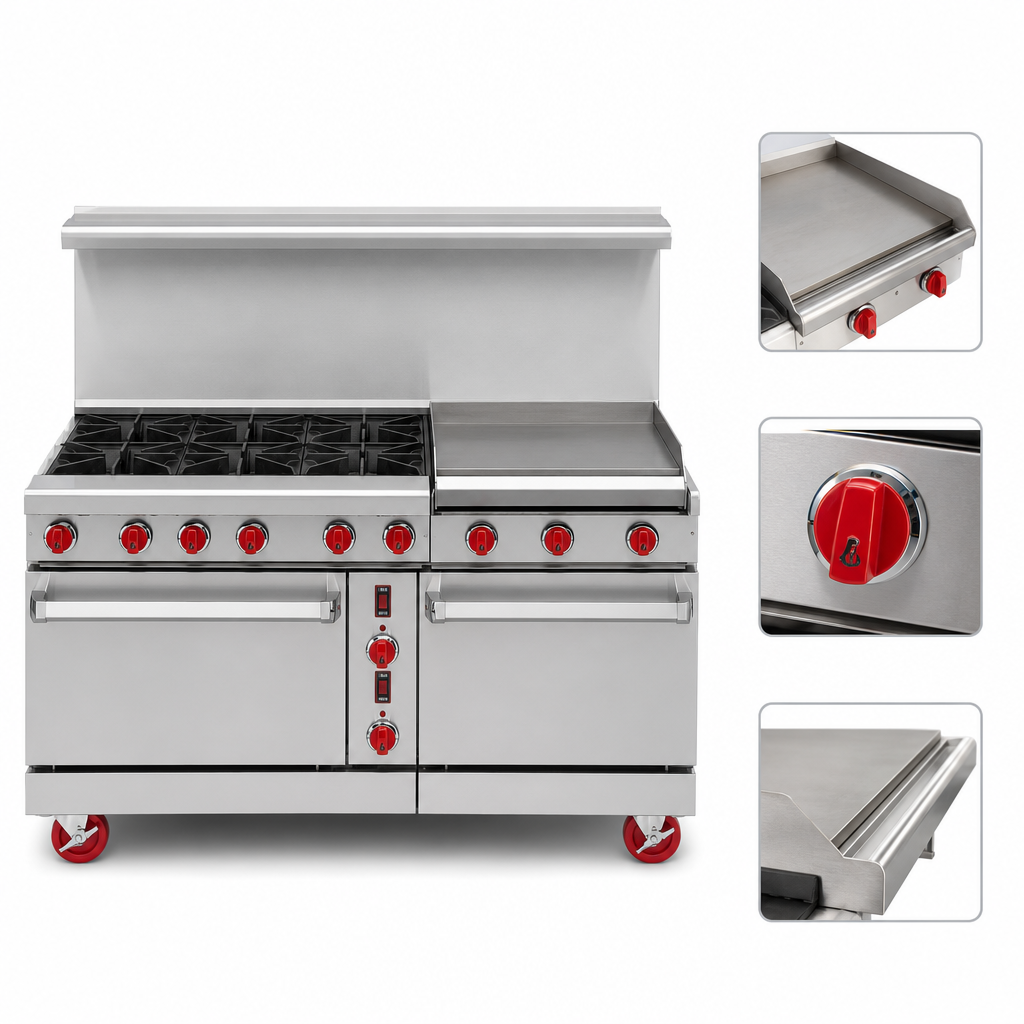

- 24" griddle, 1" thick steel plate, two 20,000 BTU U-shaped burners for fast, even heat
- Infinite manual controls for precise searing, sautéing or low-temp holding
- Full-width removable crumb / drip tray under cooktop
Dual-Oven Versatility
- 26-1/2" convection oven (left) with 30,000 BTU burner & heavy-duty blower for accelerated cook times
- 20" standard space-saver oven (right) with 27,000 BTU burner—perfect for finishing or holding
- Both ovens include two chrome-plated racks and multiple rack positions
- Spring-assisted doors with counter-weights for effortless opening
- Thermostatic control 250 °F – 500 °F (121 °C – 260 °C)
- Porcelain enamel interiors for quick wipe-down cleaning
- 100 % safety gas shut-off valves
Built to Last
- All stainless steel front, sides, backsplash & 6" deep landing ledge
- 6" adjustable chrome-plated legs; optional locking casters available
- Select your backguard at no charge: 6" stub back, 20" low riser, or high shelf & riser
- Heavy-gauge frame and welded chassis—designed & built in the USA
- cETLus & ETL-Sanitation listed
- Two-year parts & labour warranty (90-day on replacement parts)
Specifications
| Model | ARGF-24G-6B-CL* |
|---|---|
| Overall width | 60" (1524 mm) |
| Depth – body / with landing ledge | 31" / 32-1/2" |
| Height (to cook surface) | 36-3/4" with 6" legs (adjustable) |
| Griddle size | 24" W × 24" D × 1" T |
| Open burners | 6 × 25,000 BTU (150,000 BTU total) |
| Griddle burners | 2 × 20,000 BTU (40,000 BTU total) |
| Convection oven | 30,000 BTU – cavity 26-1/2" W × 22-1/2" D × 13-1/2" H |
| Space-saver oven | 27,000 BTU – cavity 20" W × 26-1/2" D × 13-1/2" H |
| Total input | 247,000 BTU /hr (72.0 kW) |
| Gas connection | 3/4" NPT (rear) |
| Manifold pressure | 5.0" W.C. Natural / 10.0" W.C. Propane |
| Electrical | 120 V, 1 ph, 1.0 A (convection motor & ignition) – 6' cord/plug included |
| Shipping weight | Approx. 760–840 lb (343–381 kg) |
| Origin | Proudly Made in the USA |
*Model code indicates: C = convection base, L = convection on left, G = manual griddle.
Utility Requirements
- ¾" gas supply line capable of 247,000 BTU/hr
- 115 VAC, 15 amp dedicated circuit
- Commercial hood & ventilation per NFPA 96
Included With Your Range
- (4) chrome oven racks – two per oven
- 6" adjustable chrome legs
- Your choice of backguard (stub back, 20" riser, or high riser with shelf)
- Factory-installed 6' power cord (NEMA 5-15P)
- User, installation & service manuals
Photos may show optional accessories such as casters or overshelf. For custom configurations or altitude-specific orifices (over 2,000 ft), please contact us before ordering.
