American Range ARGF-24G-4B-126L Gas Ranges
Description

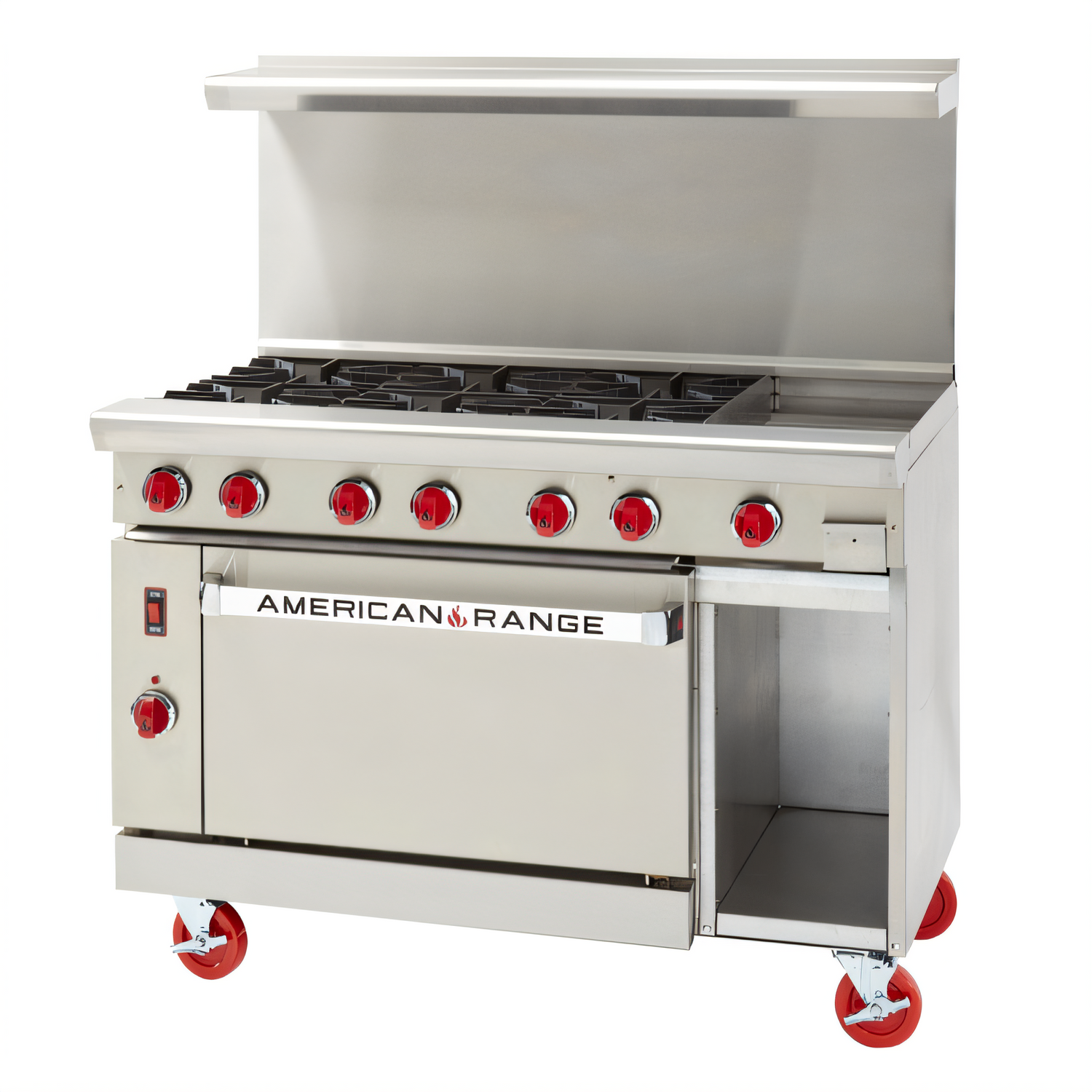

48" Green Flame Gas Range w/ 24" Manual Griddle & 4 Open Burners
Model ARGF-24G-4B-126 • Standard Oven + 11" Storage BaseMeet the next-generation “pilot-less” range from American Range. The Green Flame series pairs electronic ignition on every burner with legendary stainless-steel construction, slashing gas costs while delivering the searing heat, flexibility and reliability busy kitchens demand.
Why this range?

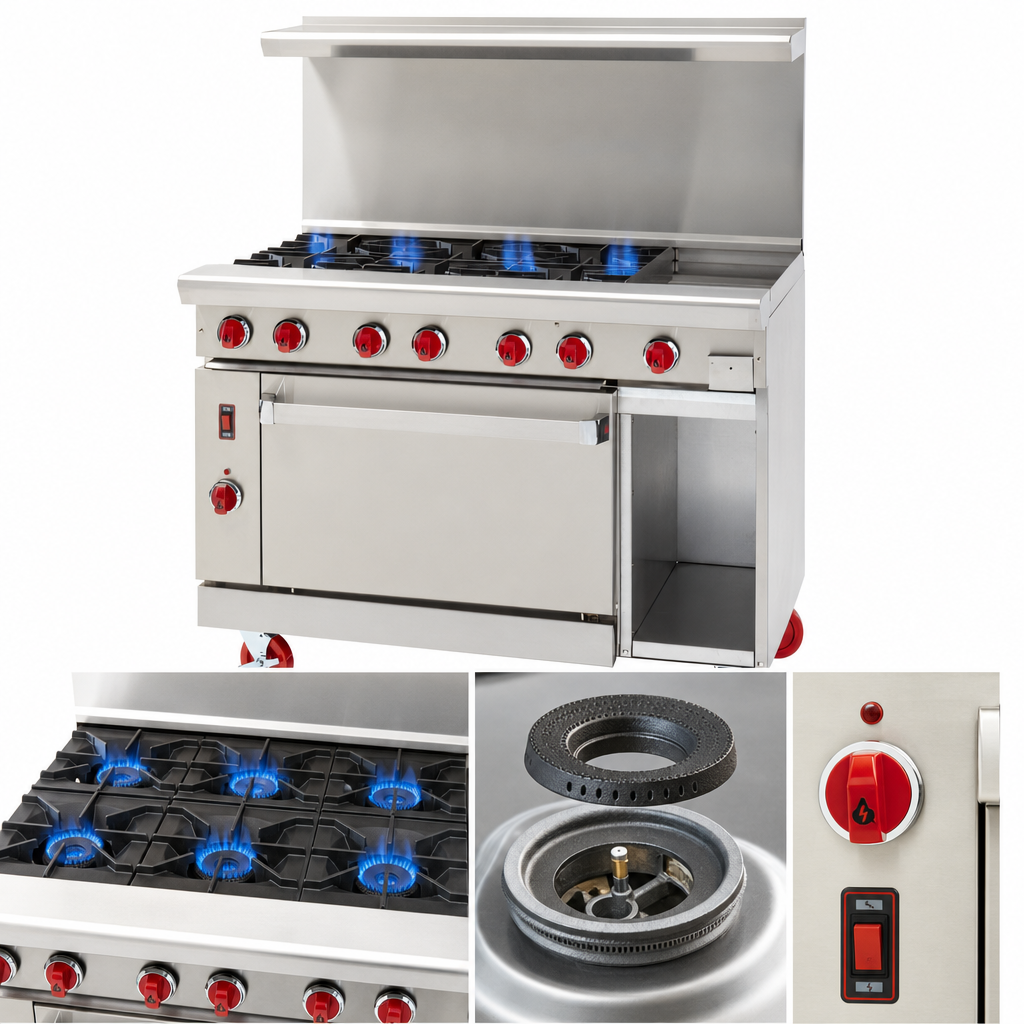

- All-purpose cooktop – four 25,000 BTU open burners plus a 24" manual griddle for eggs, smash burgers or fajitas.

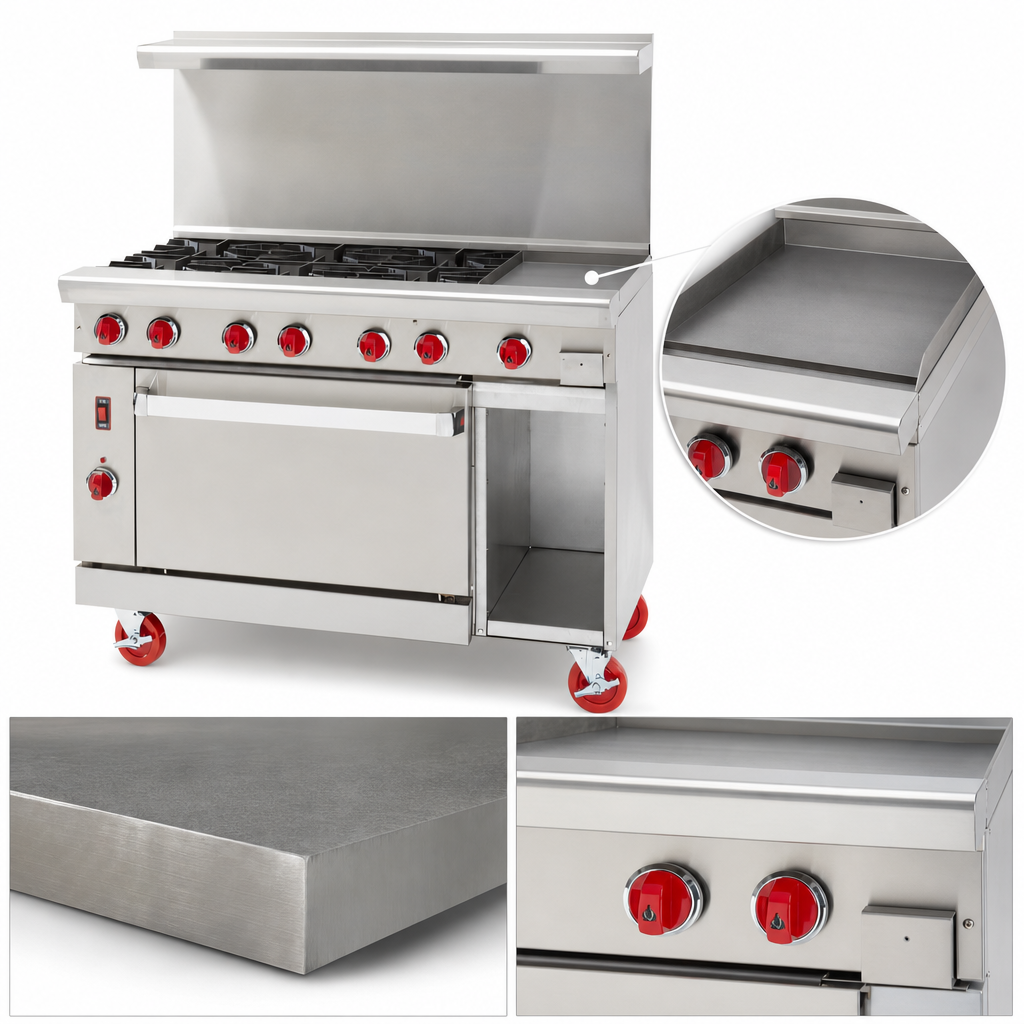

- 1" thick steel griddle plate retains heat for even browning; 3" grease trough feeds into a large, removable drawer.
- 26-1/2" standard oven (left) with porcelain-coated interior, 35,000 BTU burner, 250-500 °F thermostat and two chrome racks.
- 11" storage base (right) keeps sheet pans, utensils or smallwares close at hand without adding footprint.
- Pilot-less electronic ignition on burners, griddle and oven—no standing pilot flames, less excess heat, lower utility bills. 120 V, 15 amp cord included.
- Heavy-duty cast-iron grates (12" × 12") lift off for fast cleaning; full-width drip pan under burners.
- Stainless steel front, sides, splash and 6" deep landing ledge stand up to daily abuse and wipe clean easily.
- Choose your backguard – 20" high shelf & riser, 20" riser only, or 6" stub back (select above).
- 6" chrome-plated, adjustable legs level the range on uneven floors; optional casters available.
- Built & tested in the USA; certified cETLus and ETL-Sanitation.
Technical specifications
| Overall width | 48" (1219 mm) |
|---|---|
| Overall depth | 34" (864 mm) including landing ledge |
| Cooking surface height | 36" (914 mm) on 6" legs |
| Open burners | 4 × 25,000 BTU lift-off heads |
| Griddle section | 24" W • 40,000 BTU (1 burner/12") • 1" plate |
| Oven burner | 35,000 BTU with snap-action thermostat 250-500 °F |
| Oven interior (WxDxH) | 26 1/2" × 22 1/2" × 13 1/2" |
| Total input | 195,000 BTU / 57.0 kW |
| Gas connection | 3/4" NPT rear manifold • NG 5.0" W.C. | LP 10.0" W.C. |
| Electrical | 120 V / 1 ph / 15 A (electronic ignition) |
| Certifications | cETLus, ETL-Sanitation |
| Shipping weight | ≈ 626 lb (284 kg) |
| Warranty | 2-year parts & labor (90-day on replaceable parts) |
Two-year limited parts & labor warranty standard. See American Range warranty statement for full details and exclusions.
American Range continually improves its products; specifications and designs are subject to change without notice.
