American Range | SKU:
ARGF-24G-4B-CL-SBR
American Range ARGF-24G-4B-126-C Gas Ranges
$13,152.75
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
American Range ARGF-24G-4B-126-C Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range ARGF-24G-4B-126-C Gas Ranges
$13,152.75
Unit price
/
Unavailable
Description
48" Green Flame Gas Range with 24" Griddle, 4 Burners & 26-1/2" Convection Oven
Model ARGF-24G-4B-126-C • 175,000 BTU (42.0 kW) • Made in USABuilt in the USA for kitchens that refuse to compromise, the American Range Green Flame series delivers heavy-duty power, energy-saving pilotless ignition, and rock-solid stainless-steel construction—all in a compact 48" footprint.
Why You’ll Love It
- Serious heat on demand – (4) 25,000 BTU open burners plus a 24" manual griddle with two 20,000 BTU burners.
- 1" thick griddle plate distributes heat evenly for picture-perfect sears and all-day consistency.
- Pilotless electronic ignition on burners, griddle, and oven reduces gas waste and eliminates constant pilot flames.
- 26-1/2" convection oven (left side) circulates hot air for faster, more even baking and roasting—thermostat adjustable 250-500 °F.
- Convenient 11" storage base (right side) keeps sheet pans, utensils, or smallwares at arm’s reach.
- Rugged construction – stainless-steel front, sides, landing ledge, and drip pans; heavy-duty cast-iron 12" × 12" top grates.
- Flexible back options – choose 6" stub back, 20" riser, or high shelf with riser (shipped as specified).
- Field-adjustable 6" chrome legs level the unit on any commercial floor; optional casters available.
Performance Breakdown
| Open burners (4) | 25,000 BTU each • Cast-iron grates • Removable full-width drip pan |
|---|---|

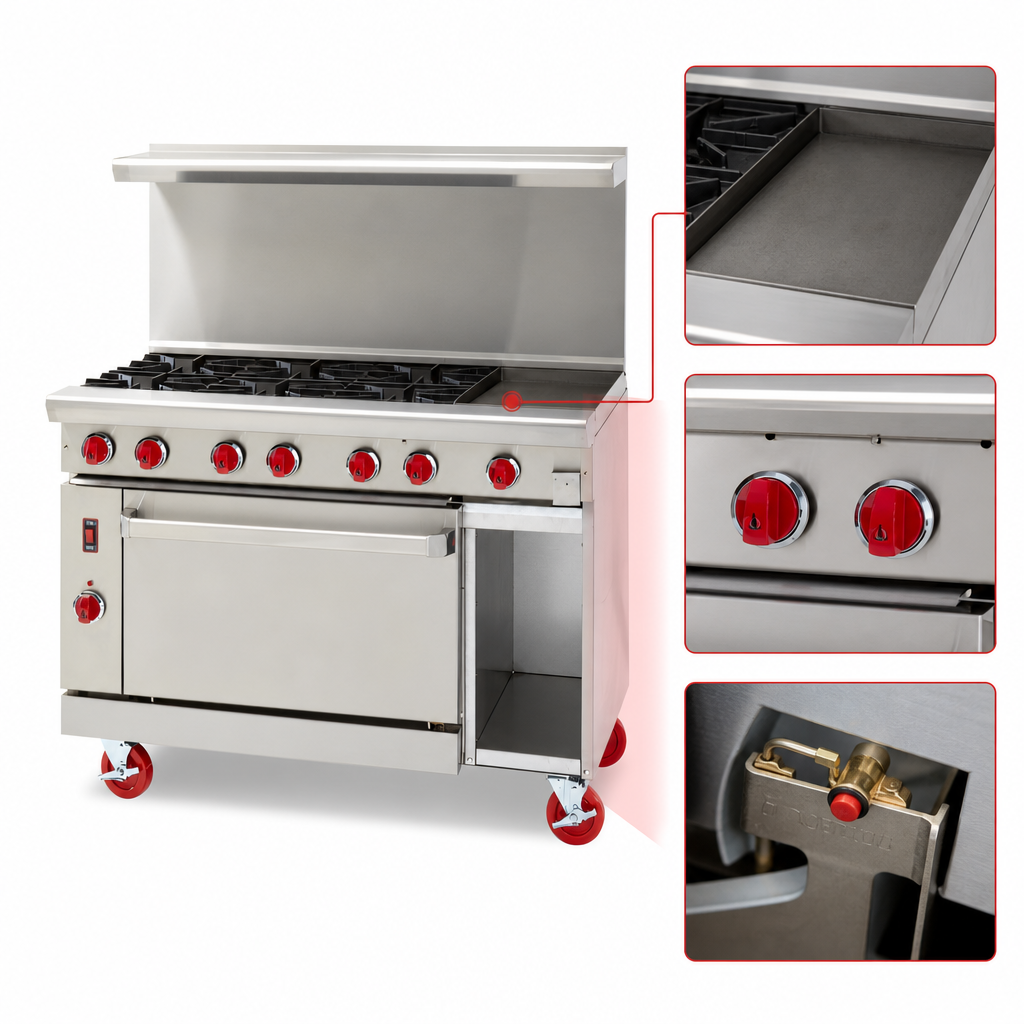

| Manual griddle | 24" W × 24" D • 1" thick steel plate • (2) 20,000 BTU U-burners • 3" grease trough & drawer |
| Convection oven | 30,000 BTU • 26-1/2" W × 22-1/2" D × 13-1/2" H cavity • Porcelain interior • (2) chrome racks, 5 positions |
| Total input | 175,000 BTU (42.0 kW) |
Technical Specifications
| Overall dimensions | 48" W × 34-1/2" D × 36" H to cook surface (56" H with 20" riser) |
|---|---|
| Gas connection | 3/4" NPT rear manifold • Specify Natural or LP; 5.0" W.C. NG / 10.0" W.C. LP |
| Electrical (oven fan) | 120 V / 1-phase / 4 A • 6' cord & NEMA 5-15 plug included |
| Shipping weight | Approx. 626 lb (284 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | Two-year parts & labor (90-day on broiler/grate/radiant components) |
In the Box
- (2) Chrome oven racks
- Grease drawer & full-width drip pan
- Choice of 6" stub back, 20" riser, or high-shelf riser (select when ordering)
- 6" adjustable chrome legs (casters optional)
- Owner’s manual & warranty registration card
Important: A licensed technician must connect the gas supply and verify proper manifold pressure.
Commercial cooking equipment requires an adequate ventilation system. Always follow local codes and the
National Fire Protection Association (NFPA 96) guidelines.
Need a custom configuration? Contact us — American Range can build the Green Flame series with standard oven, all-burner tops, or other base combinations.
Features & Specs
Features & Specs
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
36.0in
Width
48.0in
Depth
32.5in
Shipping Weight
699.0lbs
Plate Thickness
1.000" = 1"
Vent
backriser with hi-shelf
Base
(1) standard oven, (1) cabinet
Exterior Finish
stainless steel front & sides
Top
(4) open burners, (1) 24" griddle
Specifications
Green Flame Range, gas, 48", (1) 24" griddle, 1" thick plate, manual controls, (4) 22,000 BTU open burners, (1) 26-1/2" convection oven on left, (2) racks, (1) 11" storage base on right, pilotless burner, griddle and oven ignition systems, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 42.0kW, 175,000 BTU, cETLus, ETL-Sanitation, Made in USA
